Schwank Select12 Series
Air Curtain
schwankgroup.com/schwankair
3Electrical heat - (IP20)
Model Output (kW) Airflow*1
(CFM)
Sound
power*2
(dB(A))
Sound
Pressure
(dB(A))
FLA (full load
amperage)*3
(A)
Motor
power
(W)
Amperage
motor
(A)
Voltage (V)
Amperage (A)
(heat)
Weight (lb)
AC-TE36-20 4/7 1150 73 55 21 135 0.86 208V3~/19 57
AC-TE60-20 7/10 1600 72 54 29 147 0.94 208V3~/28 82
AC-TE72-20 8/13 2250 75 57 39 270 1.71 208V3~/36 112
AC-TE36-48 4/8 1150 73 55 11 135 0.86 480V3~/10 57
AC-TE60-48 6/12 1600 72 54 16 147 0.94 480V3~/15 82
AC-TE72-48 8/16 2250 75 57 21 270 1.71 480V3~/20 112
AC-TE36-60 4/8 1150 73 55 9 135 0.86 600V3~/8 57
AC-TE60-60 6/12 1600 72 54 13 147 0.94 600V3~/12 82
AC-TE72-60 8/16 2250 75 57 17 270 1.71 600V3~/16 112
1Ambient, no heat - (IP21)
Model Output
(MBH)
Airflow*1
(CFM)
Sound power*2
(dB(A))
Sound Pressure
(dB(A))
Motor
power (W)
Voltage
motor (V)
Amperage
motor (A)
Weight (lb)
AC-TA36-23 0 1150 73 55 135 208V~ 0.86 49
AC-TA60-23 0 1600 72 54 147 208V~ 0.94 71
AC-TA72-23 0 2250 75 57 270 208V~ 0.72 93
Model Output*4
(MBH)
Airflow*1
(CFM)
Sound
power*2
(dB(A))
Sound Pressure
(dB(A))
Motor
power
(W)
Voltage
motor
(V)
Amperage
motor
(A)
Water
volume
(US gal)
Weight
(lb)
AC-TW36-23 27 1050 72 54 109 208V~ 0.71 0.34 57
AC-TW60-23 48 1550 72 54 135 208V~ 0.86 0.55 79
AC-TW72-23 65 2150 74 56 218 208V~ 1.42 0.71 106
2Water heat - (IP21)
1. Highest airflow at 3 fan speed.
2. Values shown are for total sound power levels for Installation Type A: free inlet, free outlet.
3. The Sound power level ratings shown are in decibels, referred to 10-12 watts, calculated per AMCA
Standard 301.
4. FLA: total amperage for motor and heat.
5. Applicable at water temperature 140/104F, air temperature, in +64F.
Above table is valid for 208V/1ph/60Hz. Also approved for 230V/1ph/60Hz. Product performance for
230V/1ph/60Hz will differ from stated data.
Protection class for units with electrical heating: (TE) IP20.
Protection class for units without electric heating and units with water heating: (TW) IP21.
Technical Specification
schwankgroup.com/schwankair
1. Recommended outlet air temperature for good comfort and optimized output.
2. Nominal output at given supply and return water temperature.
Model Nozzle
width x depth (in)
Max Velocity
at nozzle (fpm)
Outlet Velocity
(fpm)
Outlet Velocity Uniformity
(%)
AC-TA36-23 38.4x2.6 2346 1974 81
AC-TE36-20(48)(60) 38.4x2.6 2346 1974 81
AC-TA60-23 58.5x2.6 2267 1860 80
AC-TE60-20(48)(60) 58.5x2.6 2267 1860 80
AC-TA72-23 77.8X2.6 2346 1974 81
AC-TE72-20(48)(60) 77.8X2.6 2346 1974 81
AC-TW36-23 38.4x2.6 2165 1785 75
AC-TW60-23 58.5x2.6 1791 1545 82
AC-TW72-23 77.8X2.6 2165 1785 75
Model Fan
Speed
Airflow
(CFM)
Output
(MBH)
Return water
temp. (°F)
Water flow
(GPM)
Pressure
drop (kPa)
Output*2
(MBH)
Outlet air
temp. (°F)
Water
flow (GPM)
Pressure
drop (kPa)
AC-TW36-23 max 1050 34.1 108 1.0 1.4 50.9 108 2.9 8.8
AC-TW60-23 max 1550 52.2 100 1.4 2.0 82.6 113 4.7 16.2
AC-TW72-23 max 2150 72.4 100 1.9 2.6 114.0 111 6.5 21.6
Technical Specification
Supply water temperature: 176 °F
Room temperature: +64 °F
Outlet air temperature: +95 °F*1
Water temperature: 176/140 °F
Room temperature: +64 °F
Model Fan
Speed
Airflow
(CFM)
Output
(MBH)
Return water
temp. (°F)
Water flow
(GPM)
Pressure drop
(kPa)
Output*2
(MBH)
Outlet air
temp. (°F)
Water flow
(GPM)
Pressure drop
(kPa)
AC-TW36-23 max 1050 34.8 118 3.1 10.9 28.0 90 1.6 3.2
AC-TW60-23 max 1550 49.8 108 3.2 8.7 46.4 91 2.6 6.1
AC-TW72-23 max 2150 73.7 113 5.5 17.2 64.5 91 3.6 8.1
Supply water temperature: 140 °F
Room temperature: +64 °F
Outlet air temperature: +95 °F*1
Water temperature: 140/104 °F
Room temperature: +64 °F
AC TE 72 60
Select12 Series
Electric Heated
Air Curtain
Nominal Length of unit
in inch
Voltage Code 600V
schwankgroup.com/schwankair
The introduction pages consist mainly of pictures.
For translation of the English texts used, see the respective language pages.
EN
Les pages de présentation contiennent principalement des images.
Pour la traduction des textes en anglais, consultez la page correspondante à la
langue souhaitée.
FR
schwankgroup.com/schwankair
Valve (3/4
")
Valve (3/4
")
G
L
M
K
JO
G
Valve (3/4
")
Valve (3/4
")
E / C / A
GKN
R H
QI
P
J
O
F / D / B Valve (3/4"),
outside thread
L = 6.6 ft
A/W
Valve (3/4
")
Valve (3/4
")
L KG G E
Ref (inch) Model
A81.40 AC-TA72-23
AC-TE72-20(48)(60)
AC-TW72-23
B80.5 AC-TA72-23
AC-TE72-20(48)(60)
AC-TW72-23
C62.1 AC-TA60-23
AC-TE60-20(48)(60)
AC-TW60-23
Ref (inch) Model
P2 All Models
Q1.65 All Models
R0.39 All Models
Ref (inch) Model
D61.2 AC-TA60-23
AC-TE60-20(48)(60)
AC-TW60-23
E42 AC-TA36-23
AC-TE36-20(48)(60)
AC-TW36-23
F41.1 AC-TA36-23
AC-TE36-20(48)(60)
AC-TW36-23
Ref (inch) Model
G81.40 All Models
H18 All Models
I10 All Models
J8.22 All Models
K6.57 All Models
L6.49 All Models
M4.68 All Models
N8.22 All Models
O1.96 All Models

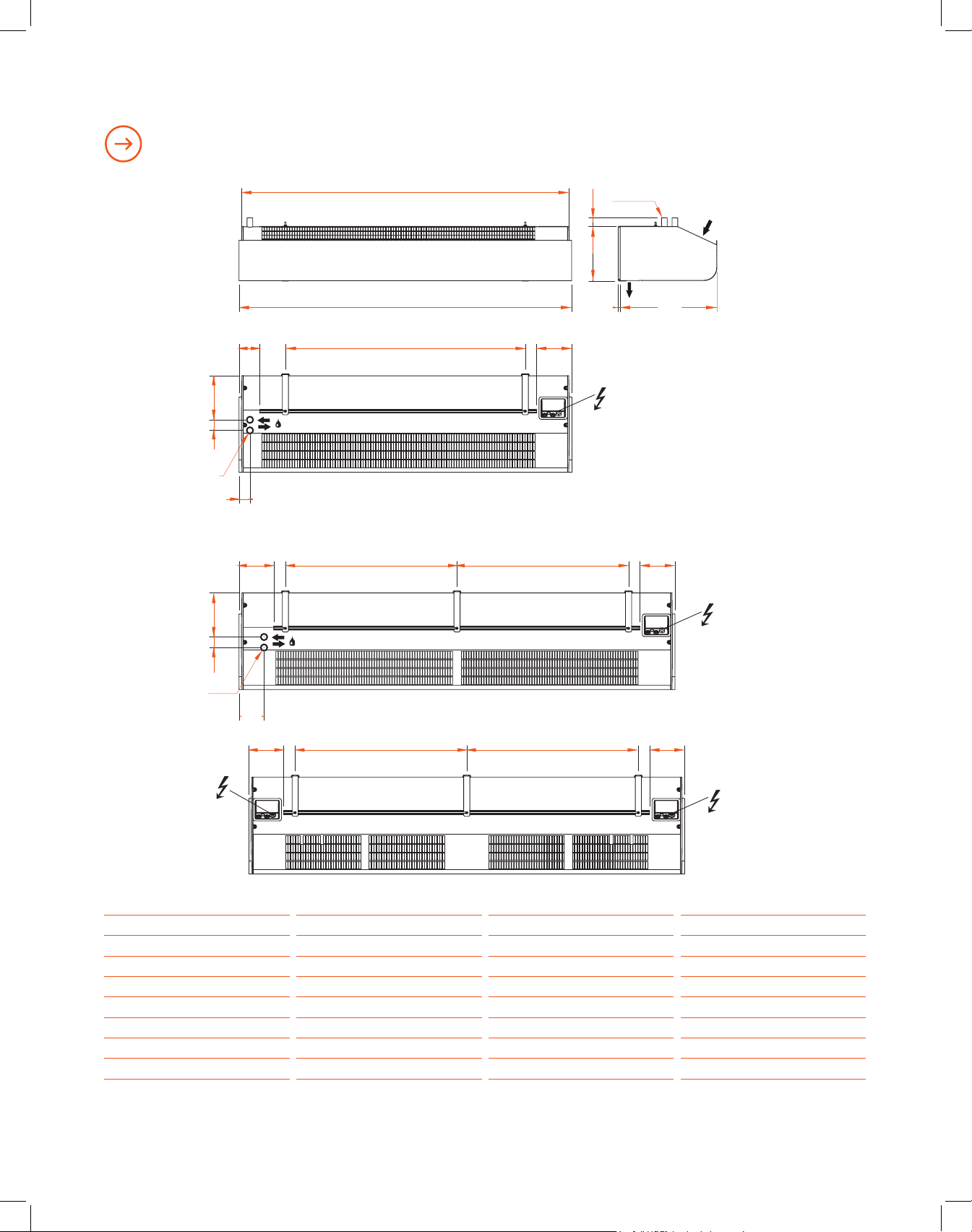

Dimensions
schwankgroup.com/schwankair
A B
Gland
Knock-out
Knock-out
ø17,5 ø17,5
ø32,5
ø25,5
ø20,5
ø17,5
Gland Gland
A A
B
C
D
Fig. 2
Knock-out A
Open the unit
Ref (inch)
A0.69
B0.81
C1.00
D1.28
schwankgroup.com/schwankair
Fig. 3: Open the unit.
C
Fig. 4
Fig. 5
min 60
1.18 in 2.36 in
2.36 in
Minimum distance
schwankgroup.com/schwankair

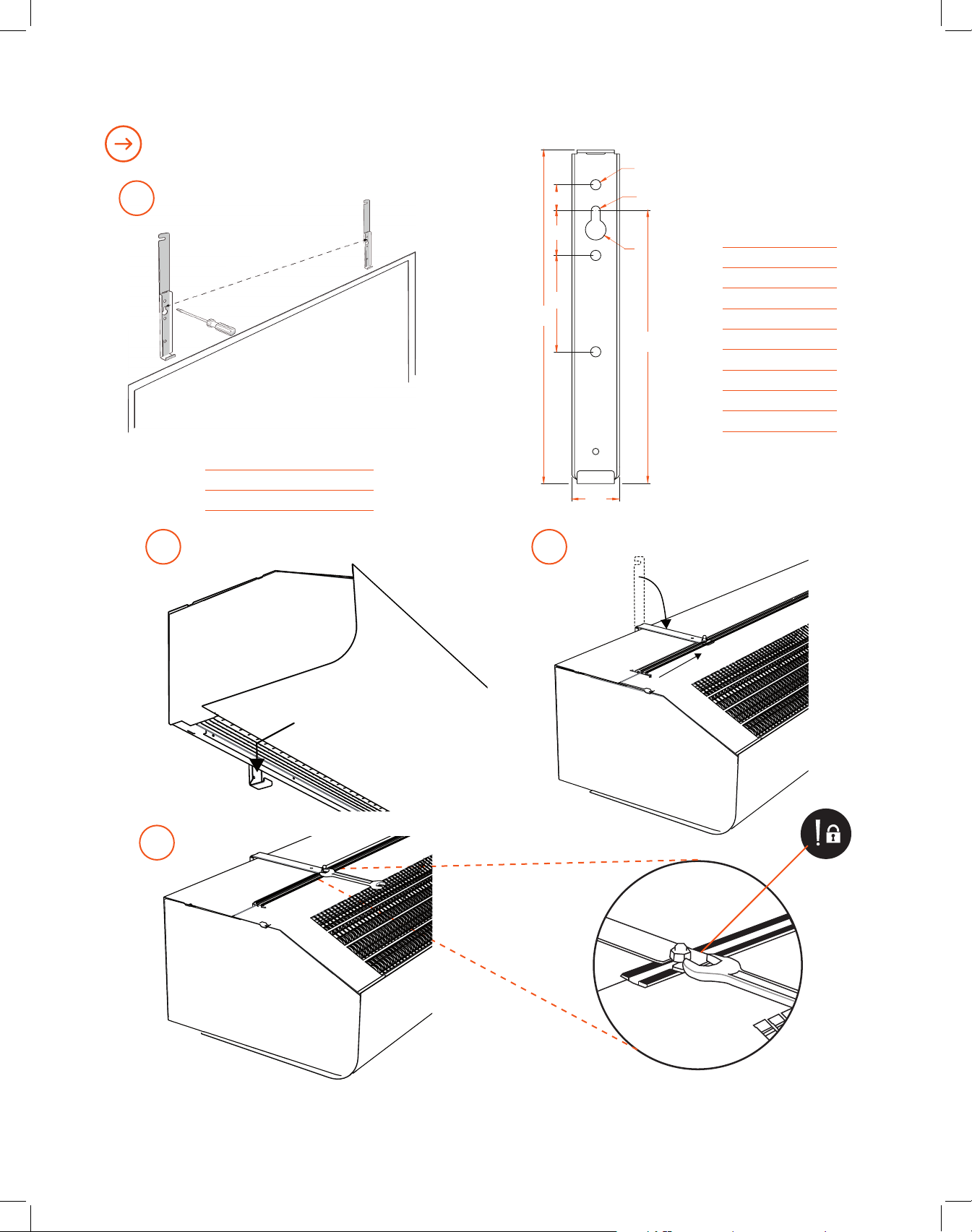

Fig. 6: Mounting with wall brackets
D
B C
min 500 mm
36" Models 2 pcs
60" Models 2 pcs
72" Models 3 pcs
A
20
Ø8 (3x)
Ø7
Ø16
213
37
260
75 35
Ref (inch)
A10.24
B1.46
C8.39
D2.95
E1.38
F0.79
G0.31
H0.28
I0.63
min 19.7 in
A
G (x3)
H
I
B
C
D E F
Mounting with wall brackets
schwankgroup.com/schwankair
JC-0702-15/20JC-0754-15/20 JC-0704-15/20

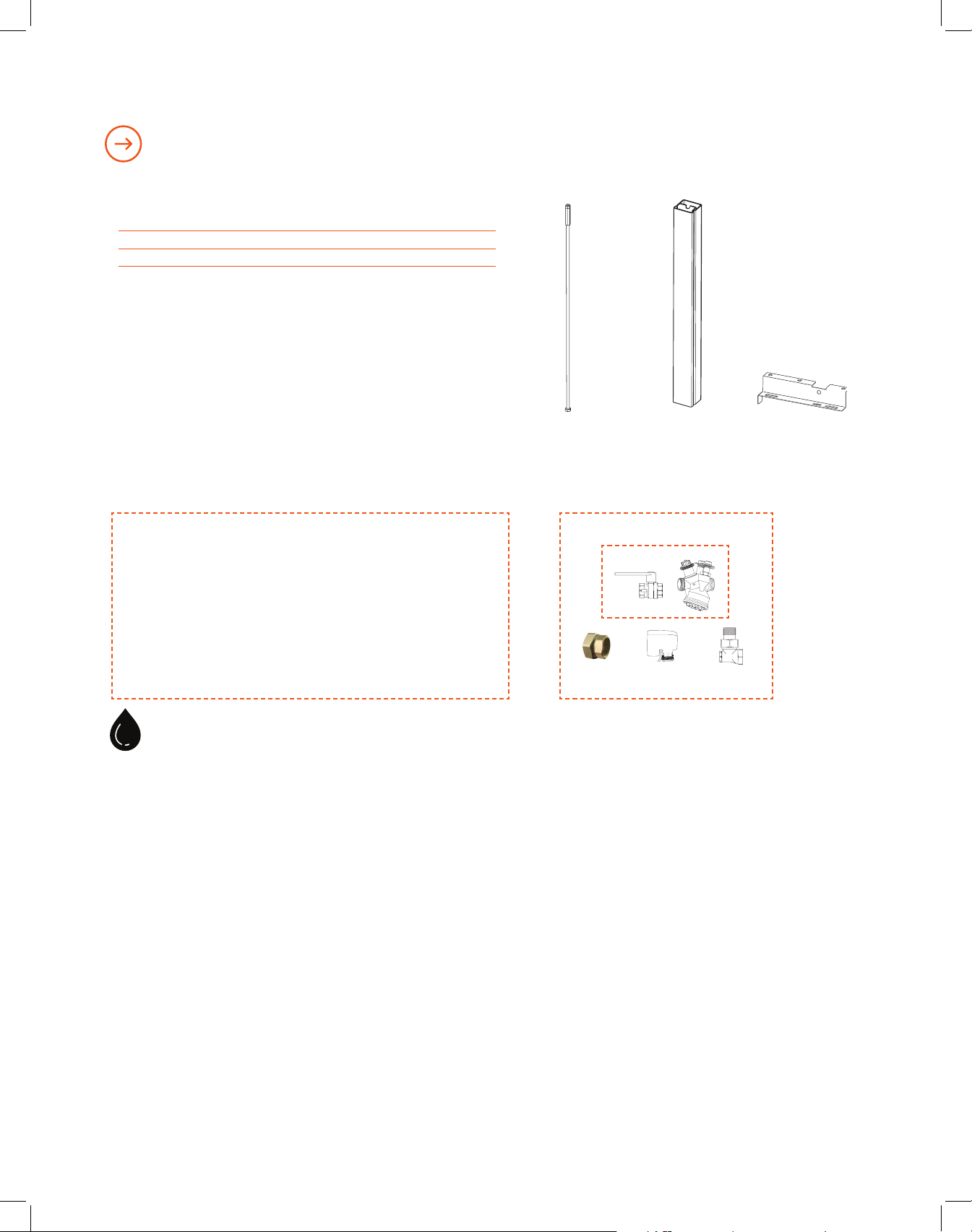

Accessories
JC-0752-XX
Water Heated Plumbing Kit
Nipple
JC-0754-15/20 - Threaded Rods for Ceiling Mount (3.4ft)
JC-0702-15/20 - Pendulum Ceiling Bars
JC-0704-15/20 - Pendulum Ceiling Brackets
JC-0752-XX - 3/4 Plumbing Kit for Water Heated Models
Kit includes:
• Valve kit: TAC, pressure independent regulation
and adjustment valve + shut off valve
• Nipple connection for valve, female thread (x2)
• Actuator ON/OFF 230V
• Bypass valve
schwankgroup.com/schwankair
5A x 3
N H1H2
N
1
On
Off
F1 F2 F3
on/off 2
N
LPE N L
PE
~
6 5 4 2 31 ALPE N
S E NS OR
208V1~
0 -10V
Only water
N L
1L EP
L2
L3
N
L
1L EP
3L 2L
B lue
Yellow
R ed
White
M
~
M
~~ ~
Left motor Right motor
6 5 4 2 31 ALPE N
R ed / +10 V
Yellow / 0-10
B lue / GND
White /Tach
0 - 10V
DOOR
AFT E R
WAT E R
5A
16A
EP 2L1L
Only 72” version
Wiring Diagram - Schwank Select12 Series Air Curtain
Ambient & Water Heated
