SCION xB
!A word about safe vehicle operations
This Pocket Reference Guide is a summary of
basic vehicle operations. It contains brief
descriptions of fundamental operations so you
can locate and use the vehicle’s main equip-
ment quickly and easily.
The Pocket Reference Guide is not intended
as a substitute for the Owner’s Manual locat-
ed in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual
and supplementary manuals so you will have
a better understanding of the vehicle’s capa-
bilities and limitations.
Your dealership and the entire staff of Scion,
a marque of Toyota Motor Sales, U.S.A., Inc.,
wish you many years of satisfied driving in
your new SCION xB.
This Pocket Reference Guide is not a full
description of SCION xB operations. Every
xB owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed infor-
mation highlighted in yellow throughout
the Owner’s Manual. Each box contains
safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Pocket Reference
Guide is current at the time of printing.
T
oyota reserves the right to make changes
at any time without notice.
Spare tire & tools
Tool location
Removing the spare tire
17
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Loosen the bolt and remove it.
Refer to the Owner’s Manual for jack positioning and
tire changing procedures.
Wheel nut wrench
Jack handle
Jack
Spare tire Flat tire net*
*Flat tire will not fit into spare tire compartment.
Use net to secure flat tire, and refer to your
Owner’s Manual for more details
1
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
INDEX
Item Page no.
OVERVIEW
Engine maintenance 8
Fuel tank door release and cap 6
Hood release 6
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry 7
FEATURES/OPERATIONS
Air conditioning/Heating 14
Automatic transmission 9
Clock 14
Cup holders 15
Door locks 10
Grocery bag hooks 15
Light control-Instrument panel 14
Lights & turn signals 12
Luggage storage box 15
Manual transmission 9
Parking brake 10
Seat adjustments-Front 10
Seat adjustments-Rear 11
Seats-Head restraints 11
Tilt steering wheel 11
Windows 13
Windshield wiper & washer 13
SAFETY AND EMERGENCY FEATURES
Doors-Child safety locks 16
Seat belts 16
Seat belts-shoulder belt anchor 16
Spare tire & tools 17
06_xB_Scion Ins.qxd 6/28/05 6:56 PM Page 1
3
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
2

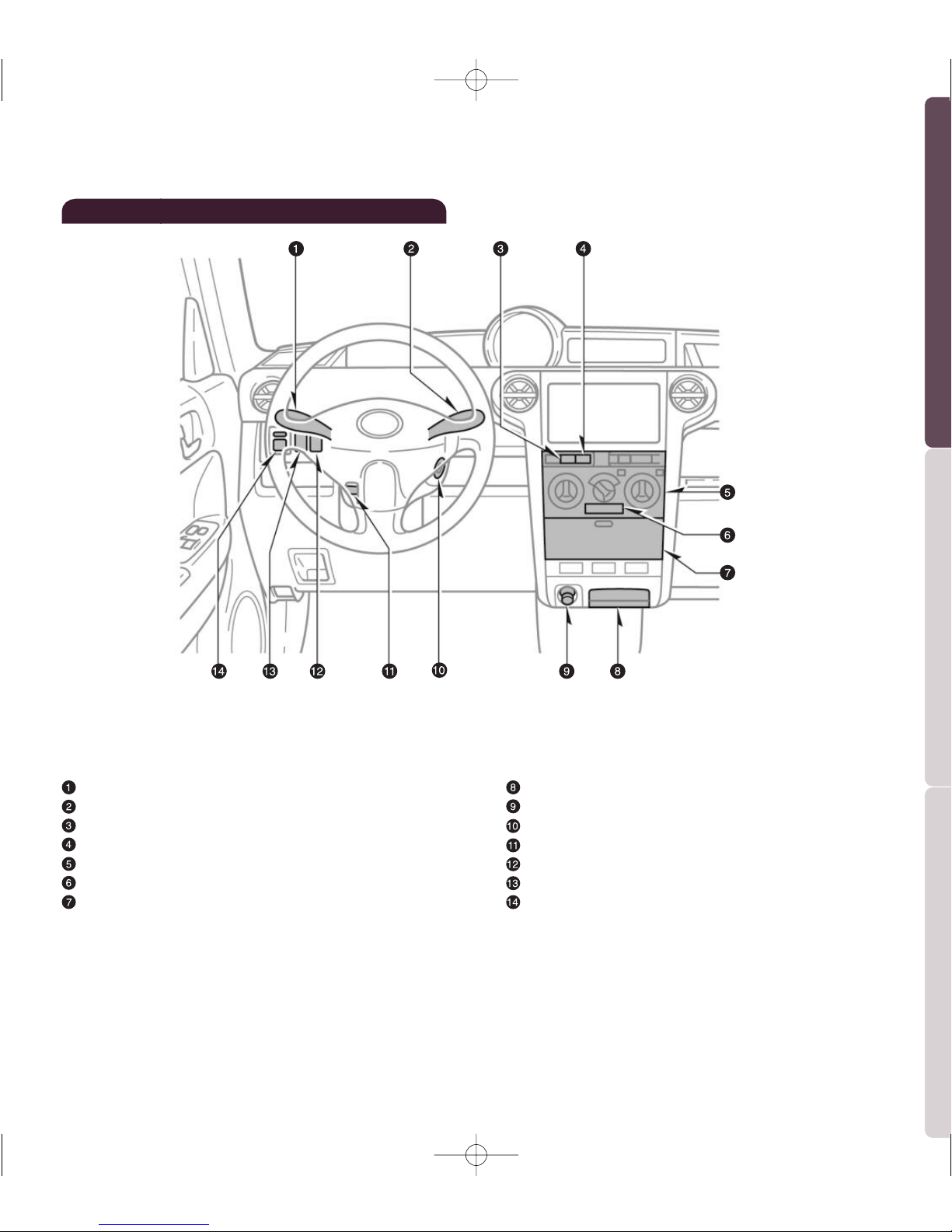

OVERVIEW
Headlight and turn signal controls
Wiper and washer controls
Rear window defogger switch
Emergency flasher switch
Air conditioning controls
Front passenger seat belt reminder light
Auxiliary box
Ashtray
12V DC Power outlet/Cigarette lighter
Ignition
Tilt steering lock release
Traction control system off
Instrument panel light control
Power rear view mirror controls
Instrument panel
06_xB_Scion Ins.qxd 6/28/05 6:56 PM Page 2
5
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
4
OVERVIEW
Driver seat belt reminder1
Front passenger seat belt reminder1
Brake system warning1
Charging system warning1
Low engine oil pressure warning1
Vehicle Stability Control/Traction Control
warning1
Malfunction/Check Engine indicator1
1For details, refer to “Service reminder indicators and warning
buzzers,” Section 1-6, 2006 Owner’s Manual.
2For details, refer to “Engine coolant temperatureindicator and
warning light” Section 1-6, 2006 Owner’
sManual.
Headlight indicator
Overdrive-off indicator
Slip indicator
Traction control system off indicator
Anti-lock Brake System warning1
When the Anti-lock Brake System (ABS) function is in
action, you may feel the brake pedal pulsating and
hear a noise. In this situation, to let the Anti-lock
Brake System work for you, just hold the brake pedal
down more firmly. Do not pump the brake as this will
result in reduced braking performance.
Indicator symbols
Low fuel level warning1
Blue: Low engine coolant temperature
indicator2
Red: High engine coolant temperature warning1
Turn signal indicators
Headlight high beam indicator
Open door warning1
Airbag SRS warning1
Speedometer
Service indicator and reminder
Clock
Odometer and two trip meters
Clock/trip meter reset knob
Tachometer
Fuel gauge
Instrument cluster
Engine oil replacement reminder1
MAINT
REQD
06_xB_Scion Ins.qxd 6/28/05 6:56 PM Page 4
7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
6
OVERVIEW
Hood release
Pull
Pull up to release
then raise hood
Fuel tank door release and cap
Turn
Pull up
Driver seat
NOTE: If the cap is not tightened enough, Check
Engine “ ” indicator may illuminate.
Keyless entry
NOTE: After unlocking, if a door is not opened within
thirty (30) seconds, all doors will relock for safety.
Locking operation Unlocking operation
Alarm operation
Push Push ONCE: Driver door
TWICE: All doors
Push
06_xB_Scion Ins.qxd 6/28/05 6:56 PM Page 6
9
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Automatic transmission (if equipped)
Park1
Reverse
Neutral
Drive
P
R
N
D
Second gear
First gear
1The ignition must be ON, and the brake pedal
depressed.
Downshifting increases power going uphill, or
provides engine braking downhill. For best fuel
economy during normal driving conditions, always
drive with the shift lever in the “D” position.
For safety, the engine will not start unless the clutch
pedal is FULLY depressed.
Manual transmission (if equipped)
Overdrive switch
To turn “ON” or “OFF” Depress the overdrive switch
to choose either three-speed (“OFF”) or four-speed
(“ON”) operation. During normal driving conditions,
always drive with overdrive “ON,” this allows the
transmission to shift automatically into four-speed
operation at higher speeds, improving fuel economy.
If the indicator light on the instrument cluster is
illuminated, overdrive is “OFF.”
Overdrive switch
8
OVERVIEW

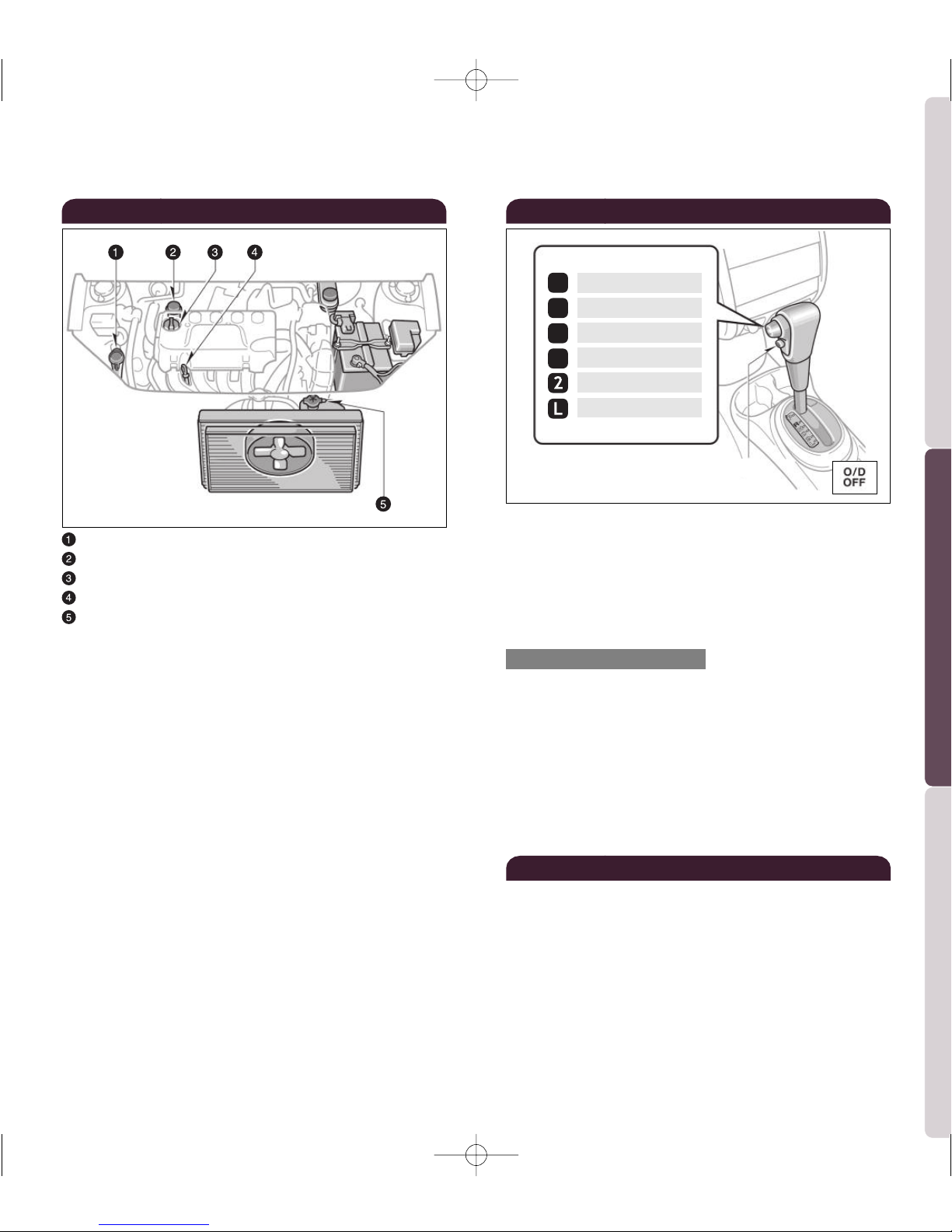

Engine maintenance
Windshield washer fluid tank
Power steering fluid reservoir
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
Note: Regularly scheduled maintenance, including
oil changes, will help extend the life of
your vehicle and maintain performance.
Please refer to the “Owner’s Warranty
Information Booklet,” “Scheduled
Maintenance Guide” or “Owner’s Manual
Supplement.”
06_xB_Scion Ins.qxd 6/28/05 6:56 PM Page 8
11
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Seats-Head restraints
Height Height Height
Lock release button Lock release button
Front Rear
Tilt steering wheel
Lock release
lever
Angle
Hold wheel, push lever down, set angle then return
lever.
Note: Do not attempt to adjust while the vehicle
is in motion.
Seat adjustments-Rear
(1) Push
(2) Lower
(3) Pull up
(4) Fold down
10
FEATURES/OPERATIONS
Seat adjustments-Front
Parking brake
Pull
(2) Press
(1) Pull slightly
(3) Lower
Set Release
Lock
Unlock
Seatback angle
Position
Door locks
06_xB_Scion Ins.qxd 6/28/05 6:56 PM Page 10
13
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Windshield wiper & washer
Interval wipe
Slow
Fast
Pull wash and wipe
Single wipe
Windows
Window operation
Window
lock switch
Driver side
Automatic down operation (driver side only) Push
the switch completely down and release to fully
open. To stop window mid-way, lightly push the
switch in the opposite direction.
Up
Down Up
Down
Rear
Front
Wash and wipe
Wipe
Wash and wipe
12
FEATURES/OPERATIONS
Lights & turn signals
Headlights
Turn signals
Parking lights
High beams
Low beams
Headlights
Right turn
Left turn
Lane change
Lane change
High beam flasher
06_xB_Scion Ins.qxd 6/28/05 6:56 PM Page 12
14
FEATURES/OPERATIONS
15
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Clock
Turn to “H”-Set hour
Turn to “M”-Set minutes
Cup holders
Front Rear
Air conditioning/Heating
Air Conditioning ON/OFF
Rear defogger
Fresh or recirculate cabin air
Vent selector1
Fan speed
Temperature
1“ ” or “ ,” use fresh air to reduce window
fogging.
+
-
Brightness
control
Light control-Instrument panel
Grocery bag hooks
Pull down
ClockLuggage storage box
Unlock Unlock
Lock Lock
06_xB_Scion Ins.qxd 6/28/05 6:56 PM Page 14
