UNDERCOUNTER COMPACT CUBER WITH STORAGE

SCE275

VOLUME PRODUCTION • 24 HOUR

Air-Cooled Water-Cooled

ARI ARI

/50

/70

/50

/70

lbs./kg. lbs./kg.. lbs./kg. lbs./kg.

sce275-1 290/132 220/100 305/138 264/120

sce275-32 290/132 220/100 305/138 264/120

SCOTSMAN

Certified & rated

in accordance

with ARI standard

810-95

WARRANTY See your dealer for complete warranty details.

•3years parts and labor on all components.

•5years parts and labor on evaporator.

•5years parts on the compressor and condenser.

DEPENDABLE PERFORMANCE IN ANY CONDITION:

•90 lbs. of storage.

•Breathes in and out the front side. No need to allow space at its side for

air circulation.

•Refrigeration system, electronic control, water pump motor and water

valve separated from the ice and water.

•Factory installed photoelectric eye bin control simplifies installation and

maximizes ice in the bin.

•Solid state, microprocessor electronic control.

•Reusable, cleanable air filter.

•7ft. powercord for quick installation.

This product qualifies for the following listings:

Rated in accordance with ARI standard 810-95 & 820-95

Undercounter

Installation

Adapts to numerous under-

counter applications. Fits

under any 40˝ counter.

Slide Away

Access Door

Provides convenient and

easy access to ice.

Approx. Cube Size:

/8˝x 13

/8˝x 5

/8˝

Power Water Usage

Bin* Basic Max. Fuse Min. Shipping Consumption Gallons/100 lbs.

Model Condenser Capacity Electrical Size or HACR Comp. Circuit Circuit Weight KWH/100 lbs. Potable Condenser

Number Unit lbs./kg. Volts/Hz/Phase Circuit Breaker HP Wires Ampacity lbs./kg. 90°F/70° F 90°F/70° F 90°F/70° F

SCE275A-1G Air 90/41 115/60/1 15 .6 2 Cord 230/104 11.4 29.0 –

SCE275A-32G Air 90/41 208-230/60/1 15 .6 2 Cord 230/104 11.4 29.0 –

SCE275W-1G Water 90/41 115/60/1 15 .6 2 Cord 225/102 8.2 28.0 240

Ice Machine Specifications

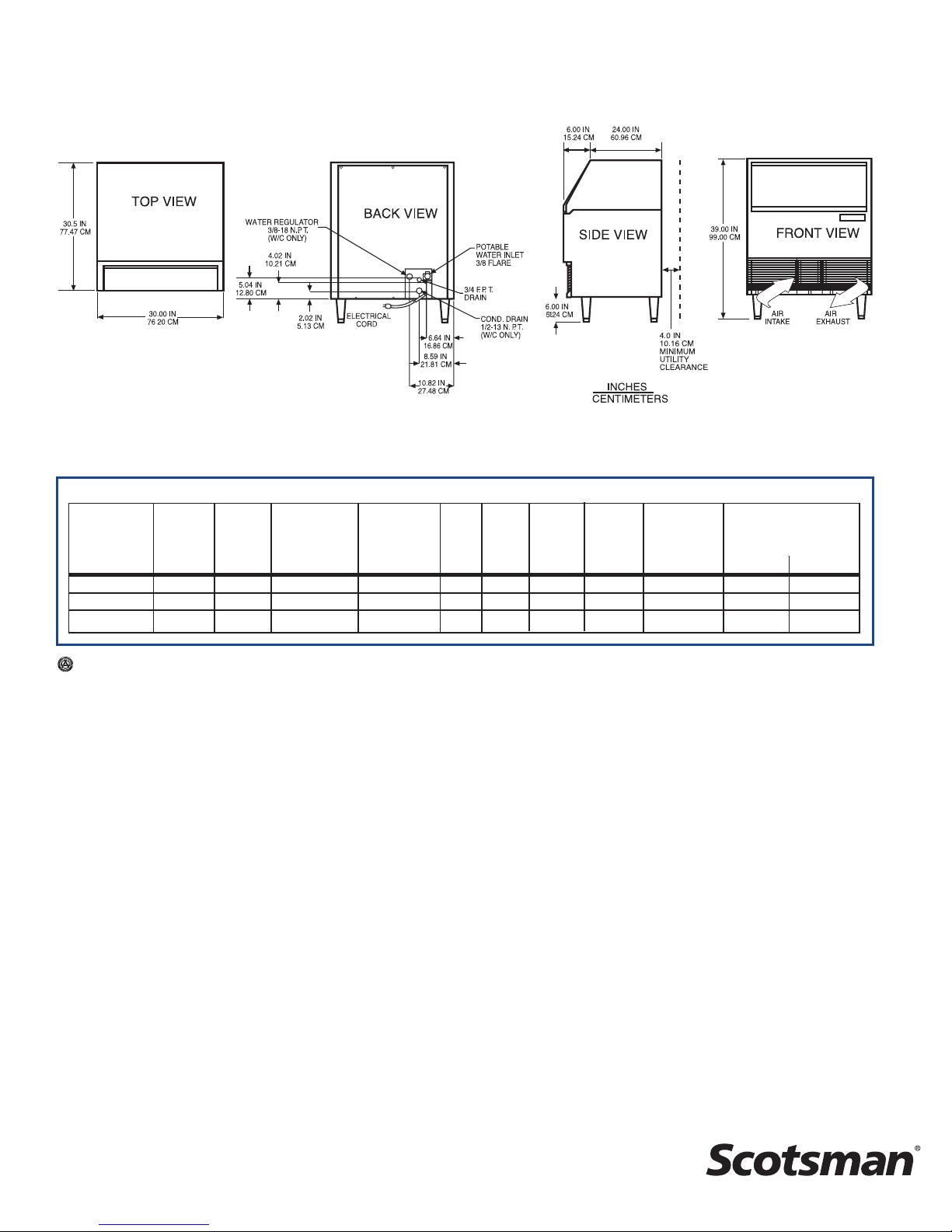

All models: Dimensions W x D x H without legs (Add 6˝ height for legs): Unit: 30˝ x 30˝ x 33˝ Shipping Carton: 33˝ x 33˝ x 39˝

IMPORTANT OPERATING REQUIREMENTS:

Minimum Maximum

Air Temperatures 500F (100C) 1000F (37.70C)

Water Temperatures 400F (4.40C) 1000F (37.70C)

Water Pressures 20 PSIG 120 PSIG

Electrical Voltage -5% +10%

Consult Your Local SCOTSMAN Representative At:

Machine requires voltage indicated on rating name plate. Failures caused by improper voltage are not considered

factory defects. Extended periods of operation at temperatures exceeding limitations constitutes misuse under the

terms of Scotsman Manufacturer’s Limited Warranty, resulting in a loss of warranty coverage. Specifications and

design are subject to change without notice.

Scotsman’s ice machines are not designed for outdoor installations. Scotsman remote condensers are

designed for outdoor installations.

INSTALLATION NOTE: Allow 6˝ minimum space at back for utility connections.

*Bin capacity rated in accordance with ARI Standard 820-95.

LEGS SUPPLIED:

Four plastic legs screw into mounting plates on cabinet base. Provides 6” minimum height.

Finish: rotocast grey plastic.

Refrigerant-R-404A

SU-275-1 15M 9-04

775 Corporate Woods Parkway • Vernon Hills, IL 60061 •1-800-SCOTSMAN • Fax: (847) 913-9844

Visit our website at: www.scotsman-ice.com • E-mail: customer.ser[email protected]

YOU’LL VALUE THE DIFFERENCE.
