2023 LUMEN eRIDE | ENGLISH 1

2023 SCOT T

LUMEN eRIDE MANUAL

2023 LUMEN eRIDE | ENGLISH 2

LUMEN eRIDE

GEOMETRY & TECHNICAL DATA 03

HEADSET ADJUSTMENT 05

SETTING SAG 06

TWINLOC 07

TQ SYSTEM MANUALS 07

CABLE ROUTING 08

SPARE PARTS 11

MANUFACTURE’S GUARANTEE 15

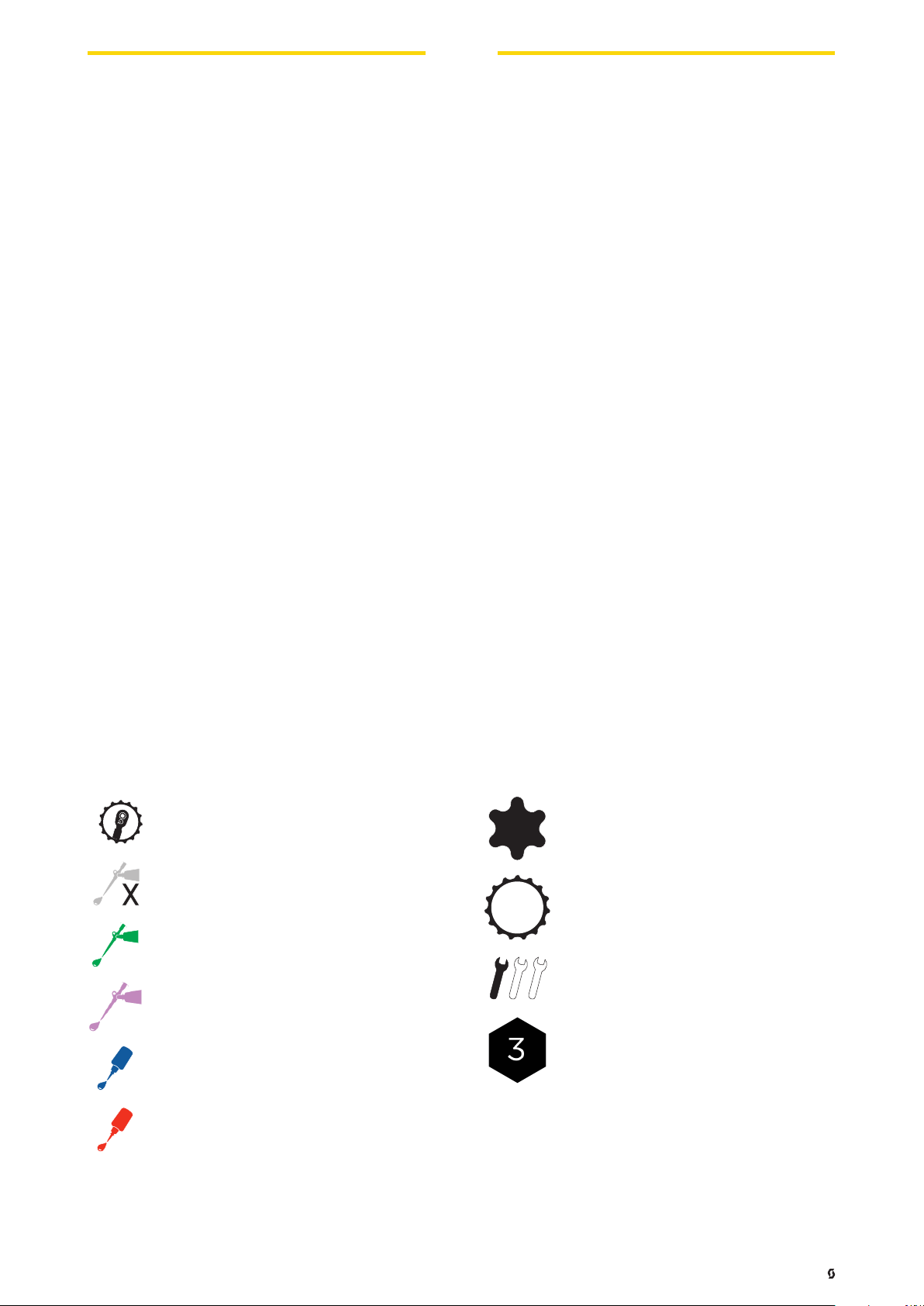

LEGEND

10Nm

TORQUE REQUIRED TORX TOOL SIZE

HEX TOOL SIZE

TORQUE AMOUNT

TASK DIFFICULTY

NO GREASE REQUIRED

GREASE REQUIRED

CARBON GREASE REQUIRED

THREADLOC REQUIRED

CONTENT

THE LUMEN eRIDE SHOULD BE ADJUSTED EXACTLY TO THE RIDER FOR MAXIMUM SAFETY AND

RIDEABILITY.

Please contact your authorized SCOTT dealer for advice in order to avoid technical problems or any harm.

BEARING FIT REQUIRED

2023 LUMEN eRIDE | ENGLISH 3

LUMEN eRIDE

GEOMETRY & TECHNICAL DATA

MY23 LUMEN eRIDE SM MED LG XL

AHead tube angle ° 65.5 65.5 65.5 65.5

BHead tube length mm 110 110 120 135

CTop tube horizontal mm 562 589 620 645

Dstandover height mm 765 767 780 800

EBB offset mm -38.5 -38.5 -38.5 -38.5

FBB height mm 338.5 338.5 338.5 338.5

G Wheelbase mm 1176 1206 1240 1270

IBB center to TST mm 415 440 480 520

JSeat angle ° 76.8 77 77.2 77.5

K Chainstay mm 450 450 450 450

L Reach mm 416 446 476 501

M Stack mm 615 615 625 638

Fork Length mm 540 540 540 540

Trail mm 126 126 126 126

SEATPOST mm 31.6

SEATPOST CLAMP mm 34.9

TRAVEL mm 130 Rr 150 Ft

SHOCK LENGTH mm 165

SHOCK STROKE mm 45

HARDWARE M.FRAME mm Trunnion

HARDWARE LINKAGE mm 8 x 20

MAX ROTOR mm 200 Rr 200 Ft

MAX CHAINRING Tooth 36

MAX TYRE WIDTH in 2.6

CHAINLINE mm 55

2023 LUMEN eRIDE | ENGLISH 4

LUMEN eRIDE

GEOMETRY & TECHNICAL DATA CONT.

Please observe the maximum seatpost insertion

so not to damage the frame.

Small: 150 mm Max Insertion

Medium: 175 mm Max Insertion

Large: 215 mm Max Insertion

X-Large: 255 mm Max Insertion

Please note that on the small sized frame it

is only possible to use a 500 ml water bottle,

with a side entry cage.

2023 LUMEN eRIDE | ENGLISH 5

LUMEN eRIDE

It is important to install the headset correctly

depending on the set up required. There are

two types of headset cups.

0° & 0.6° ( 64° & 65°) These can be indentiﬁed

from the stamp on the inner surface of the

headset cup.

The headset is available in two options:

288251 SYN HEADSET ZS56/28.6-ZS56/40 MTB

290060 SCO HEADSET CUP KIT SPARK 22

Do not use a standard headset tool

to remove these plastic headset

cups.

LUMEN eRIDE

HEADSET ADJUSTMENT

Slacker

Steeper

2023 LUMEN eRIDE | ENGLISH 6

LUMEN eRIDE

SAG ADJUSTMENT

01 02

Wear your normal riding gear, set the

sage meter to zero & the twinloc in

the open position.

If the sag value is not to your liking

within the sag range indicated, adjust

the shock pressure as indicated above.

You may need to use this specific valve

extender depending on which shock

pump you have.

297520

Gently sit on the bike allowing the

sag meter to move. Once completed

dismount the bike gently. Check the

value.

SCO eRIDE REAR SHOCK VALVE

EXTENDOR 23

2023 LUMEN eRIDE | ENGLISH 7

LUMEN eRIDE

Motor Manual Battery Manual

Range Extender ManualDisplay Manual

Charger Manual

LUMEN eRIDE

TWINLOC

LUMEN eRIDE

TQ SYSTEM MANUALS

LUMEN NAME PART NO. CAM TYPE DROPPER

LUMEN eRIDE 900 SL TWINLOC TSP3 290009 BLUE CAM YES

LUMEN eRIDE 900 TWINLOC TSP3 290009 BLUE CAM YES

LUMEN eRIDE 910 TWINLOC TSP3 290009 BLUE CAM YES

2023 LUMEN eRIDE | ENGLISH 8

LUMEN eRIDE

CABLE ROUTING

Rear Brake & Rear Derailleur

Dropper Seatpost

2023 LUMEN eRIDE | ENGLISH 9

LUMEN eRIDE

CABLE ROUTING

Twinloc

Speed Sensor

2023 LUMEN eRIDE | ENGLISH 10

LUMEN eRIDE

CABLE ROUTING

TQ System
