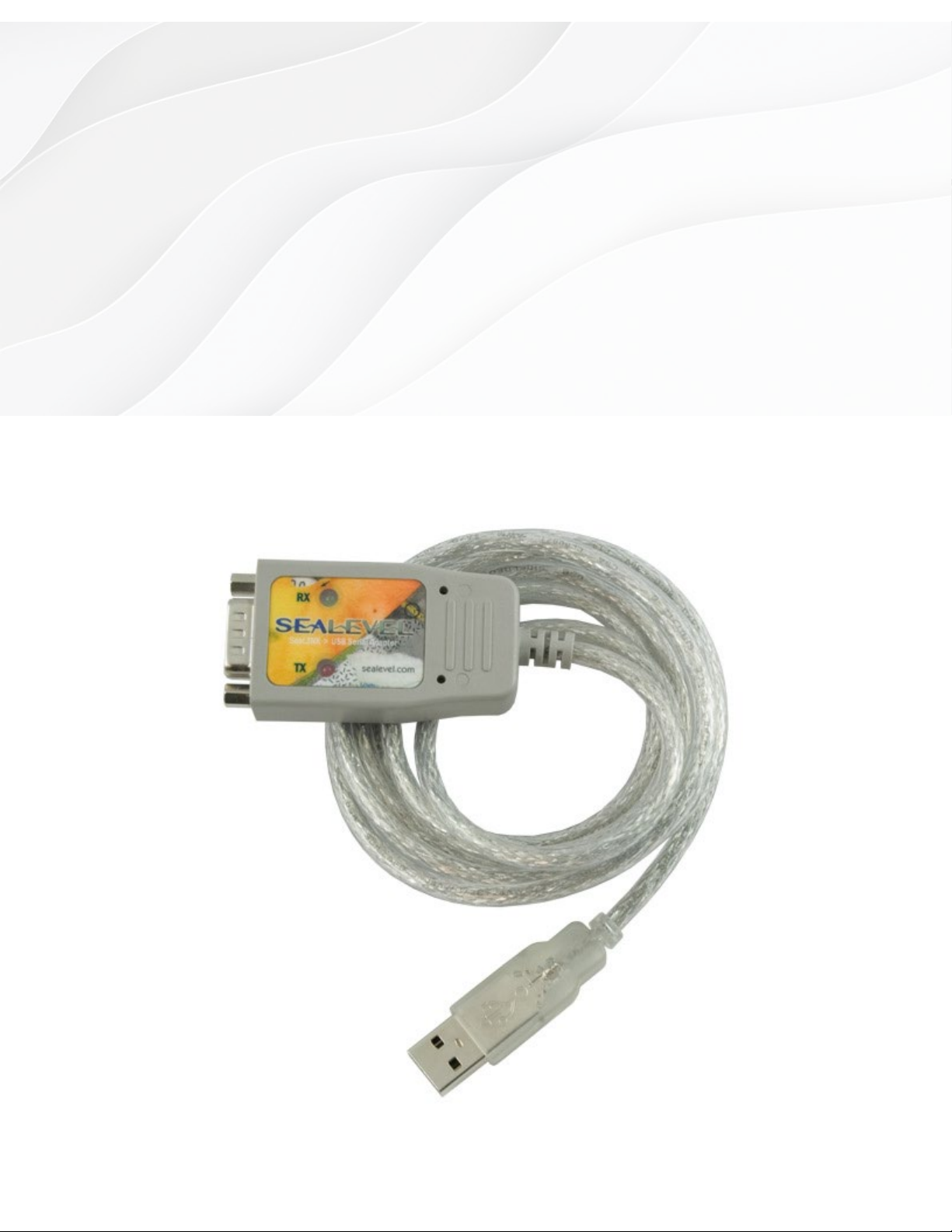

SEALINK +232-DB9

User Manual | 2105R

Contents

CONTENTS...........................................................................................................................................................2

BEFORE YOU GET STARTED ...............................................................................................................................3

PRODUCT DESCRIPTION..................................................................................................................................... 4

ELECTRICAL SPECIFICATIONS.........................................................................................................................11

TECHNICAL SPECIFICATIONS..........................................................................................................................12

HARDWARE CONFIGURATION..........................................................................................................................13

INSTALLATION ..................................................................................................................................................14

HARDWARE INSTALLATION .............................................................................................................................16

APPENDIX A - HANDLING INSTRUCTIONS......................................................................................................24

APPENDIX B – TROUBLESHOOTING................................................................................................................25

APPENDIX C – ELECTRICAL INTERFACE ........................................................................................................29

APPENDIX D – ASYNCHRONOUS COMMUNICATIONS ..................................................................................30

APPENDIX E – CABLE DRAWING .....................................................................................................................31

APPENDIX F – HOW TO GET ASSISTANCE .....................................................................................................32

WARRANTY ........................................................................................................................................................33

Before You Get Started

What’s Included

The 2105R is shipped with the following items. If any of these items are missing or damaged, please

contact Sealevel for replacement.

•2105R – USB to RS-232 Single Port Serial Interface Adapter

•Serial Loopback Plug – Diagnostics/Troubleshooting

Advisory Conventions

Warning

The highest level of importance used to stress a condition where damage could result to the

product, or the user could suffer serious injury.

Important

The middle level of importance used to highlight information that might not seem obvious or a

situation that could cause the product to fail.

Note

The lowest level of importance used to provide background information, additional tips,

or other non-critical facts that will not affect the use of the product.

Product Description

The Sealevel Systems SeaLINK+232-DB9 serial interface adapter provides the PC with a single USB to RS-

232 asynchronous serial port providing a versatile interface for common RS-232 needs. The SeaLINK+232

connects to a PC’s external USB port, so it does not require opening the computer case. Resources such

as IRQs and I/O addresses are also not utilized.

The SeaLINK® USB to RS-232 serial adapter utilizes Sealevel’s expertise in military-grade designs by

incorporating a ruggedized, overmolded enclosure design. This improves the reliability and durability in

industrial and mobile applications such as GPS navigation systems, barcode readers, signature input

devices, serial printers, scales, and similar applications.

The 2105R features programmable baud rate and data formats with 128-byte receive and 256-byte transmit

buffers. The USB serial adapter is compatible with all standard PC baud rates (300 bps and above) and

supports high-speed communication to 921.6K bps. The 2105R is powered by the USB port and status LEDs

molded into the enclosure indicate serial data activity and connection to the host.

Sealevel SeaCOM USB software drivers and utilities make installation and operation easy using Windows

and Linux operating systems. After installing the software, simply plug the 2105R into an available USB port

and the serial port is recognized as a standard COM port by the host system enabling compatibility with

legacy software.

The attached cable is 44 inches long and fully shielded to protect the 2105R from RF and EMI interference

that is common in mobile and industrial environments. Standard operating temperature range is 0 - +70°C,

and extended temperature range (-40 - +85°C) is optional.

Features

•Compliant with RoHS and WEEE directives

•High-speed UART with 128-byte Rx FIFO and

256-byte Tx FIFO

•Data rates from 300 bps to 921.6K bps

•All modem control signals implemented

•Powered by USB connection

•DB9M connector

Optional Items

Depending upon your application, you are likely to find one or more of the following items useful with the

2105R. All items can be purchased from our website (www.sealevel.com)by calling our sales team at (864)

843-4343.

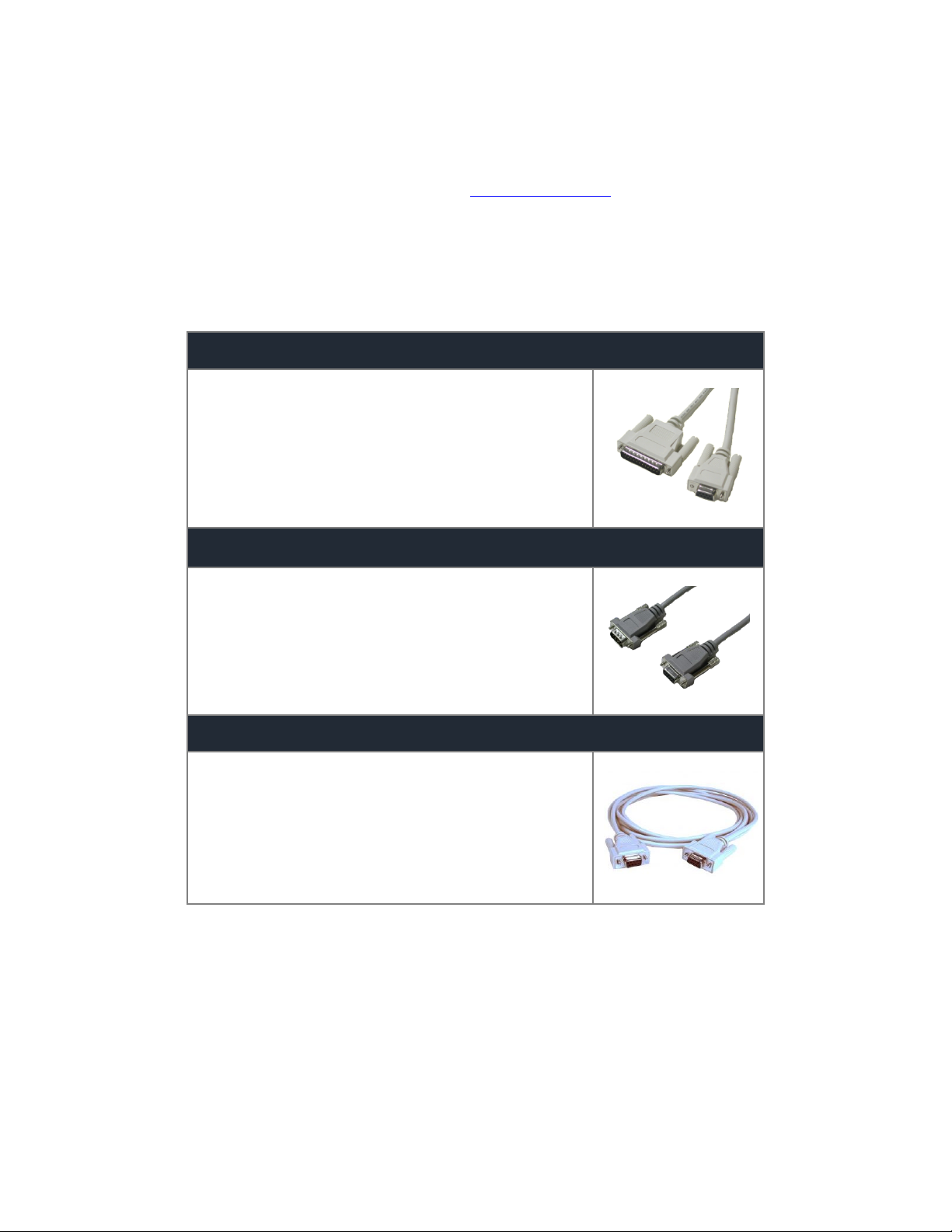

Cables

DB9F to DB25M (RS-232) Extension Cable (Part# CA177)

The CA177 is a standard AT-style RS-232 modem cable with a

DB9F connector on one end and a DB25M connector on the

other. This cable is 72 inches in length.

DB9F to DB9M Extension Cable (Part# CA127)

The CA127 allows users to extend a DB9 cable up to six feet.

The connectors are pinned one-to-one,

so the cable is

compatible with any device or cable that has DB9 connectors.

DB9 Female to DB9 Female Null Modem Cable (Part# CA213)

The CA213 is a 10' null modem cable with DB9 female

connectors on both ends. Null modem cables cross pins 2 and

3 (Tx and Rx) and loop back handshaking signals (RTS to CTS

and DTR to DSR) to allow two computers, with DB9 serial ports,

to communicate.

Hubs

High Speed 4-Port USB 2.0 Hub with SeaLATCH USB Ports (Part# HUB4P)

The hub is USB 2.0 compliant, providing a full 480M bps data

rate to the host, and is backwards compatible with USB 1.1 and

1.0 devices. The HUB4P includes a wall-mount AC adapter that

supplies a full 500mA to each attached USB peripheral. The

power supply outputs 5VDC @ 2.4A and has a locking DC

connector to prevent accidental removal of the power cable.

High Speed 7-Port USB 2.0 Hub (Part# Hub 7P)

The HUB7P is USB 2.0 compliant, providing a full 480M bps data

rate to the host, and is backwards compatible with USB 1.1 and

1.0 devices. The powered hub includes a wall-

mount AC

adapter that supplies a full 500mA to each attached USB

peripheral. The power supply outputs 5VDC @ 4A and has a

locking DC connector to prevent accidental removal of the

power cable. The hub is housed in a rugged plastic enclosure

and status LEDs indicate external power, connection to the

host, and fault conditions.

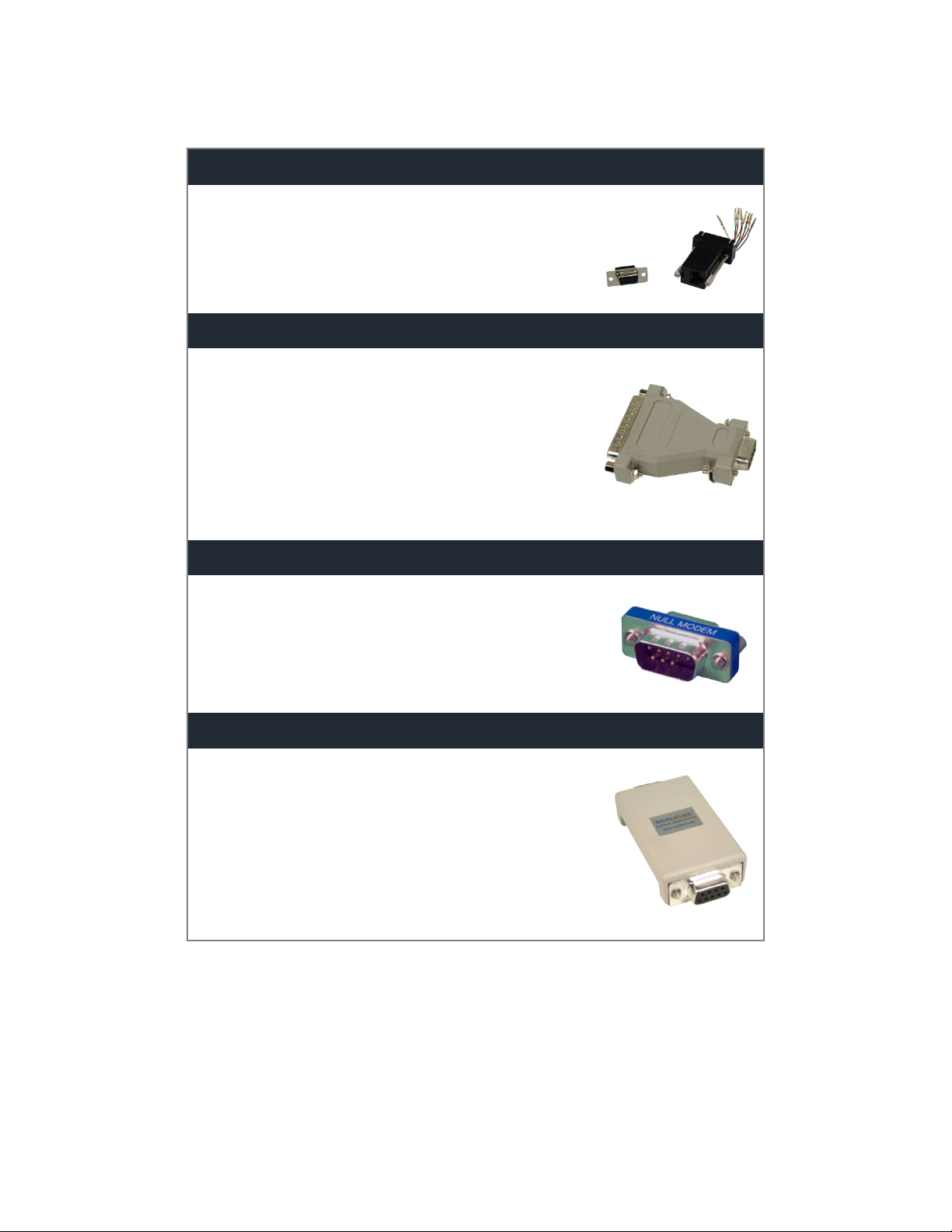

Adapters and Converters

DB9F to RJ45 Modular Adapter (Item# RJ9S8)

The RJ9S8 is a DB9 female to RJ45 adapter. It can be

configured without tools and is an excellent choice for using

available infrastructure wiring.

DB9 Female to DB25 Male - RS-232 Converter (ParT# CA241)

Converts an RS-232 DB9 Male connector to an RS-232 DB25

Male connector.

DB9 Male to DB9 Female Low Profile Null Modem Adapter (Part# DB113)

DB9 Male to DB9 Female Low Profile Null Modem Adapter.

DB9 Female to DB9 Male - Serial Surge Suppressor (Part# SS-DB9)

User configurable for use with male or female DB9 ports, the

SS-DB9 protects all 9 lines, plus D shell chassis. Convenient

DB9 input and output connects directly to the protected port,

obtaining a ground outlet from the computer chassis. Surge

suppression is handled with balanced arrays of high-speed

avalanche diodes that

divert excess energies created by

electrostatic discharges, faulty wiring, or lightning away from

network interface connections.

Product Family

Whether you require one serial port or 16, SeaLINK USB serial adapters will have you quickly communicating

with RS-232, RS-422, and RS-485 peripherals. Unlike traditional UART-based devices, SeaLINK USB

products use a state-machine architecture that reduces host processor overhead for faster, more reliable

communications. Sealevel's SeaCOM software drivers and utilities make installation and operation easy

using Windows and Linux operating systems.

Part # Description

2105R USB to 1-Port RS-232 DB9 Serial Interface Adapter

2106 USB to 1-Port RS-422 DB9 Serial Interface Adapter

2113 USB to 1-Port RS-232, RS-422, RS-485 DB9 Serial Interface Adapter

2123 USB to 1-Port RS-232, RS-422, RS-485 (Software Configurable) DB9 Serial Interface Adapter

2101 USB to 1-Port RS-232 DB25 Serial Interface Adapter

2102 USB to 1-Port RS 422, RS-485, RS-530 DB25 Serial Interface Adapter

2103 USB to 1-Port Isolated RS-232 DB25 Serial Interface Adapter

2104 USB to 1-Port RS 422, RS-485, RS-530 DB25 Serial Interface Adapter

2108 Embedded USB to 1-Port RS-232 DB9 Serial Interface Adapter with Low Profile PC Bracket

2128 Embedded USB to 1-Port RS-232, RS-422, RS-485 (Software Configurable) DB9 Serial

Interface Adapter with PC Bracket

2213 USB to 2-Port Isolated RS-232, RS-422, RS-485 DB9 Serial Interface Adapter

2223 USB to 2-Port RS-232, RS-422, RS-485 (Software Configurable) DB9 Serial Interface Adapter

2201 USB to 2-Port RS-232 DB9 Serial Interface Adapter

2202 USB to 2-Port RS-422, RS-485 DB9 Serial Interface Adapter

2203 USB to 2-Port RS-232, RS-422, RS-485 DB9 Serial Interface Adapter

2208 Embedded USB to 2-Port RS-232 DB9 Serial Interface Adapter with Standard Size PC

Bracket

2228 Embedded USB to 2-Port RS-232, RS-422, RS-485 (Software Configurable) DB9 Serial

Interface Adapter with PC Bracket

2401 USB to 4-Port RS-232 DB9 Serial Interface Adapter

2402 USB to 4-Port RS-422, RS-485 DB9 Serial Interface Adapter

2403 USB to 4-Port RS-232, RS-422, RS-485 DB9 Serial Interface Adapter

2404 USB to 4-Port RS-232 RJ45 Serial Interface Adapter

2407 USB to 4-Port RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter

2423 USB to 4-Port RS-232, RS-422, RS-485 (Software Configurable) DB9 Serial Interface Adapter

2433 USB to 4-Port RS-232, RS-422, RS-485 (Software Configurable) DB9 Serial Interface Adapter

641U USB to RS-232 RJ45 Serial Interface Adapter

647U USB to RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter

2801 USB to 8-Port RS-232 DB9 Serial Interface Adapter

2802 USB to 8-Port RS-422, RS-485 DB9 Serial Interface Adapter

2803 USB to 8-Port RS-232, RS-422, RS-485 DB9 Serial Interface Adapter

2804 USB to 8-Port RS-232 RJ45 Serial Interface Adapter

2807 USB to 8-Port RS-232, RS-485, RJ45 VersaCom Serial Interface Adapter

2823 USB to 8-Port RS-232, RS-422, RS-485 (Software Configurable) DB9 Serial Interface Adapter

2833 USB to 8-Port RS-232, RS-422, RS-485 DB9 Serial Interface Adapter

681U USB to RS-232 RJ45 Serial Interface Adapter

687U USB to RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter

2161 USB to 16-Port RS-232 RJ45 Serial Interface Adapter

2167 USB to 16-Port RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter

2108S Embedded USB to 1-Port RS-232 DB9 Serial Interface Adapter with Standard Size PC

Bracket

2123-OEM USB to 1-Port RS-232, RS-422, RS-485 (Software Configurable) DB9 Serial Interface Adapter

2223-KT USB to 2-Port RS-232, RS-422, RS-485 (Software Configurable) DB9 Serial Interface Adapter

2223-OEM USB to 2-Port RS-232, RS-422, RS-485 (Software Configurable) DB9 Serial Interface Adapter

641U-OEM USB to RS-232 RJ4 Serial Interface Adapter

647U-OEM USB to RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter

681U-OEM USB to RS-232 RJ45 Serial Interface Adapter

687U-OEM USB to RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter

2106-RoHS RoHS Compliant USB to 1-Port RS-422 DB9 Serial Interface Adapter

2102-RoHS RoHS Compliant USB to 1-Port RS-422, RS-485, RS-530 DB25 Serial Interface Adapter

2201-RoHS RoHS Compliant USB to 2-Port RS-232 DB9 Serial Interface Adapter

2203-RoHS RoHS Compliant USB to 2-Port RS-232, RS-422, RS-485 DB9 Serial Interface Adapter

2401-RoHS RoHS Compliant USB to 4-Port RS-232 DB9 Serial Interface Adapter

2403-RoHS RoHS Compliant USB to 4-Port RS-232, RS-422, RS-485 DB9 Serial Interface Adapter

2801-RoHS RoHS Compliant USB to 8-Port RS-232 DB9 Serial Interface Adapter

2404-RoHS RoHS Compliant USB to RS-232 RJ45 Serial Interface Adapter for Powering 5VDC Serial

Peripherals

2402-DC12 RoHS Compliant USB to RS-232 RJ45 Serial Interface Adapter for Powering 12VDC Serial

Peripherals

2404-DC24 USB to RS-232 RJ45 Serial Interface Adapter for Powering 24VDC Serial Peripherals

2407-DC05 USB to 4-Port RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter for Powering 5VDC

Serial Peripherals

2407-DC12 USB to 4-Port RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter for Powering 12VDC

Serial Peripherals

2407-DC24 USB to 4-Port RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter for Powering 24VDC

Serial Peripherals

2804-DC05 USB to 8-Port RS-232 RJ45 Serial Interface Adapter for Powering 5VDC Serial Peripherals

2804-DC12 USB to 8-Port RS-232 RJ45 Serial Interface Adapter for Powering 12VDC Serial Peripherals

2804-DC24 USB to 8-Port RS-232 RJ45 Serial Interface Adapter for Powering 24VDC Serial Peripherals

2807-DC05 USB to 8-Port RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter for Powering 5VDC

Serial Peripherals

2807-DC12 USB to 8-Port RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter for Powering 12VDC

Serial Peripherals

2807-DC24 USB to 8-Port RS-232, RS-485 RJ45 VersaCom Serial Interface Adapter for Powering 24VDC

Serial Peripherals

Andere Handbücher für SeaLINK+232-DB9

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere SeaLevel Adapter Handbücher

SeaLevel

SeaLevel SeaPORT PIO-96 Bedienungsanleitung

SeaLevel

SeaLevel 8208 Bedienungsanleitung

SeaLevel

SeaLevel SeaLink+232 Bedienungsanleitung

SeaLevel

SeaLevel SeaISO ISO-1 Bedienungsanleitung

SeaLevel

SeaLevel SeaLINK REL-16 Bedienungsanleitung

SeaLevel

SeaLevel SeaLINK+4 Bedienungsanleitung

SeaLevel

SeaLevel ULTRA COMM+8.PCIe Bedienungsanleitung

SeaLevel

SeaLevel SeaLINK+16/232.RJ Bedienungsanleitung

SeaLevel

SeaLevel ISO-16 Bedienungsanleitung

SeaLevel

SeaLevel SeaLINK+8.VC Bedienungsanleitung

SeaLevel

SeaLevel SeaLINK.SC Bedienungsanleitung

SeaLevel

SeaLevel PIO-48 Bedienungsanleitung

SeaLevel

SeaLevel SeaLINK+8.SC Bedienungsanleitung

SeaLevel

SeaLevel MIL-188-C Bedienungsanleitung

SeaLevel

SeaLevel SeaLINK+4.232 Bedienungsanleitung

SeaLevel

SeaLevel SeaLINK+232 2101 Bedienungsanleitung

SeaLevel

SeaLevel SeaLINK PIO-96 Bedienungsanleitung

SeaLevel

SeaLevel SeaPort PLC-16 Bedienungsanleitung

SeaLevel

SeaLevel COMM+4.cPCI Bedienungsanleitung

SeaLevel

SeaLevel SeaLINK+16.VC Bedienungsanleitung

SeaLevel

SeaLevel SeaLINK+8.Ultra Bedienungsanleitung

SeaLevel

SeaLevel SeaLINK+4/485 Bedienungsanleitung

SeaLevel

SeaLevel SeaLINK plus 485I Bedienungsanleitung

SeaLevel

SeaLevel Route 56 Bedienungsanleitung

Beliebte Adapter Handbücher anderer Marken

PCB Piezotronics

PCB Piezotronics 090B274 Bedienungsanleitung

Auvidea

Auvidea J20 Produkthandbuch

Gossen MetraWatt

Gossen MetraWatt AT3-III E Bedienungsanleitung

Akribis

Akribis ITF-21-BISS-MIT Bedienungsanleitung

Tenda

Tenda W54U Bedienungsanleitung

ROHO

ROHO AGILITY Bedienungsanleitung

PROLiNK

PROLiNK WN2001 Bedienungsanleitung

Hawking

Hawking HUF2 Bedienungsanleitung

Airlink101

Airlink101 AWLC4030 Bedienungsanleitung

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Bedienungsanleitung

Philips

Philips SWA4554S/10 Bedienungsanleitung

JVC

JVC TS-C9D2B Gebrauchsanweisung

NETGEAR

NETGEAR A6100 Bedienungsanleitung

D-Link

D-Link DWA-121 Bedienungsanleitung

Philips

Philips SWA2037 Bedienungsanleitung

Basalte

Basalte 0610-20 Bedienungsanleitung

Yealink

Yealink EHS40 Bedienungsanleitung

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Bedienungsanleitung
