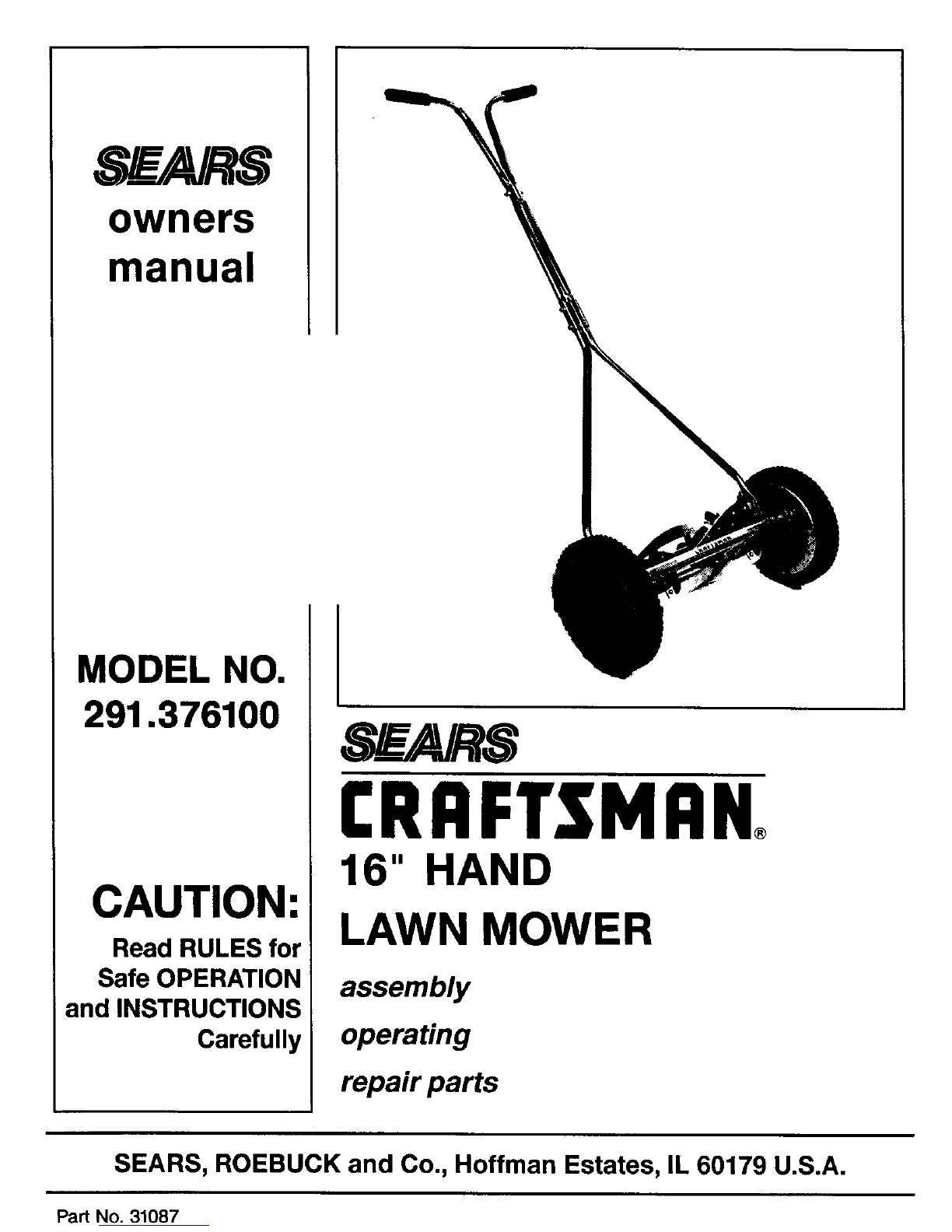

Sears Craftsman 291.376100 Bedienungsanleitung

8EA/RS

owners

manual

MODEL NO.

291.376100

CAUTION:

Read RULES for

Safe OPERATION

and INSTRUCTIONS

Carefully

8__A/R8

I:RRFTSMRN

16" HAND

LAWN MOWER

assembly

operating

repair parts

SEARS, ROEBUCK and Co., Hoffman Estates, IL 60179 U.S.A.

Part No. 31087

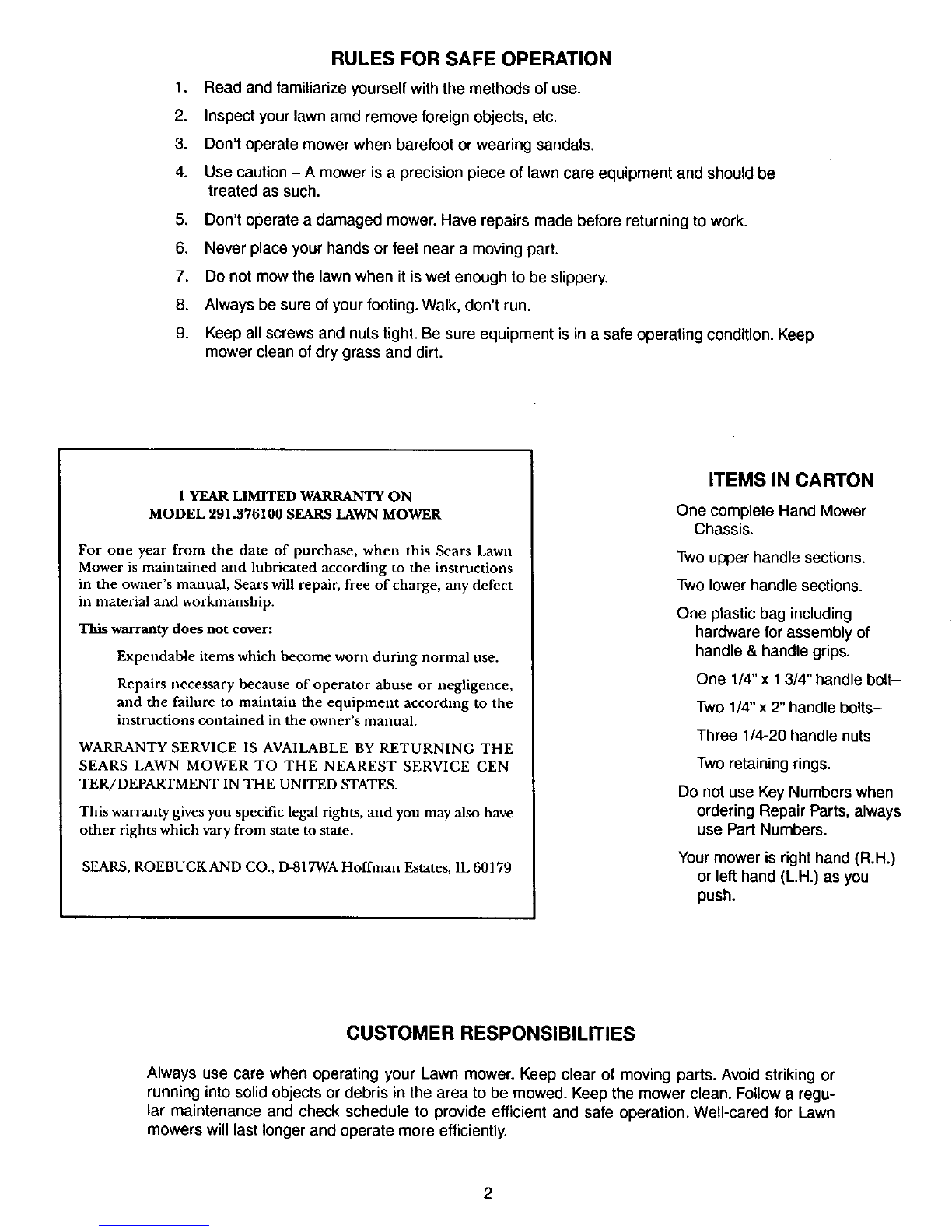

RULES FOR SAFE OPERATION

1. Read and familiarize yourself with the methods of use.

2. Inspect your lawn amd remove foreign objects, etc.

3. Don't operate mower when barefoot or wearing sandals.

4. Use caution - A mower is a precision piece of lawn care equipment and should be

treated as such.

5. Don't operate a damaged mower. Have repairs made before returning to work.

6. Never place your hands or feet near a moving part.

7. Do not mow the lawn when it is wet enough to be slippery.

8. Always be sure of your footing. Walk, don't run.

9. Keep all screws and nuts tight. Be sure equipment is in a safe operating condition. Keep

mower clean of dry grass and dirt.

1 YEAR LIMITED WARRANTY ON

MODEL 291.376100 SEARS LAWN MOWER

For one year from the date of purchase, when this Sears Lawn

Mower is maintained and lubricated according to the instructions

in the owner's manual, Sears will repair, free of charge, any defect

in material aud workmanship.

This warranty does not cover:

Expendable items which become worn during normal use.

Repairs necessary because of operator abuse or negligence,

and the failure to maintain the equipment according to the

instructions contained in the owner's manual.

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE

SEARS LAWN MOWER TO THE NEAREST SERVICE CEN-

TER/DEPARTMENT IN THE UNITED STATES.

This warranty gives you specific legal rights, and you may also have

other rights which vary from state to state.

SEARS, ROEBUCKAND CO., D_lTWA Hoffman Estates, IL 60179

ITEMS IN CARTON

One complete Hand Mower

Chassis.

Two upper handle sections.

Two lower handle sections.

One plastic bag including

hardware for assembly of

handle & handle grips.

One 1/4" x 1 3/4" handle bolt-

Two 1/4" x 2" handle bolts-

Three 1/4-20 handle nuts

Two retaining rings.

Do not use Key Numbers when

ordering Repair Parts, always

use Part Numbers.

Your mower is right hand (R.H.)

or left hand (L.H.) as you

push.

CUSTOMER RESPONSIBILITIES

Always use care when operating your Lawn mower. Keep clear of moving parts. Avoid striking or

running into solid objects or debris in the area to be mowed. Keep the mower clean. Follow a regu-

lar maintenance and check schedule to provide efficient and safe operation. Well-cared for Lawn

mowers will last longer and operate more efficiently.

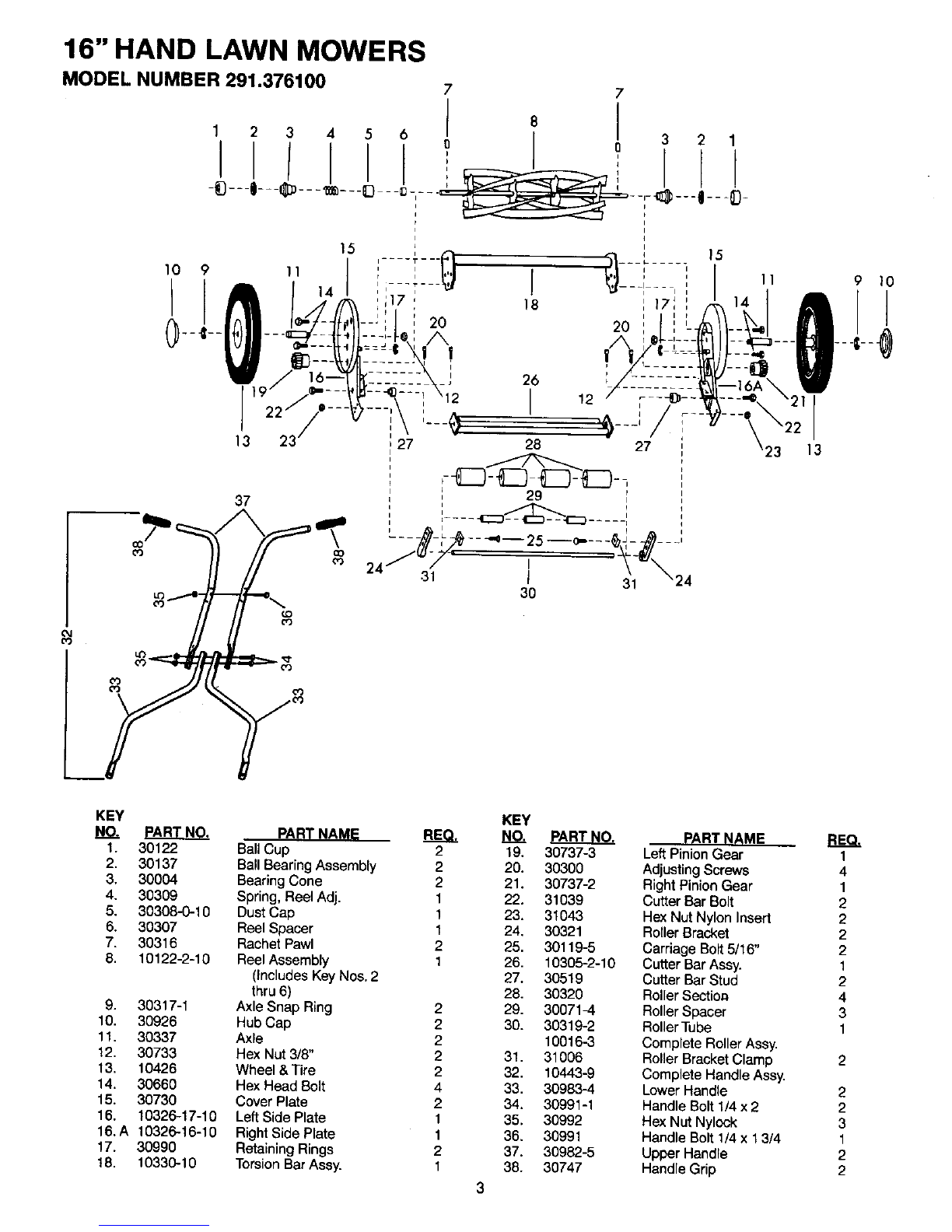

16" HAND LAWN MOWERS

MODEL NUMBER 291.376100

10 9

9 10

KEY

NO. PART NO. PART NAME

1. 30122 Ball Cup

2, 30137 Ball Bearing Assembly

3, 30004 Bearing Cone

4. 3030g Spring, Reel Adj.

5. 30308-0-10 Dust Cap

6. 30307 Reel Spacer

7. 30316 Raehet Pawl

8. 10122-2-10 Reel Assembly

(hcludes Key Nos. 2

thru 6)

9. 30317-1 Axle Snap Ring

10. 30926 Hub Cap

11. 30337 Axle

12. 30733 Hex Nut 3/8"

13. 10426 Wheel &Tire

14. 30660 Hex Head Bolt

15. 30730 Cover Plate

16. 10326-17-10 Left Side Plate

16. A 10326-16-10 Right Side Plate

17. 30990 Retaining Rings

18. 10330-10 Torsion Bar Assy.

REQ.

KEY

NO, PARTNO.

19. 30737-3

20. 30300

21. 30737-2

22. 31039

23. 31043

24. 30321

25. 30119-5

26. 10305-2-10

27. 30519

28. 30320

29. 30071-4

30. 30319-2

10018-3

31. 31006

32. 10443-9

33. 30983-4

34. 30991-1

35. 30992

36. 30991

37. 30982-5

38. 30747

PART NAME

Left PinionGear

Adjusting Screws

Right PinionGear

Cutter Bar Bolt

Hex Nut Nylon Insert

Roller Bracket

Carriage Bolt 5/18"

Cutter Bar Assy.

Cutter Bar Stud

Roller Section

Roller Spacer

Roller Tube

Complete Roller Assy.

Roller Bracket Clamp

Complete Handle Asey.

Lower Handle

Handle Bolt 1/4 x 2

Hex Nut Nylock

Handle Bolt 1/4 x 1 3/4

Upper Handle

Handle Grip

REQ.

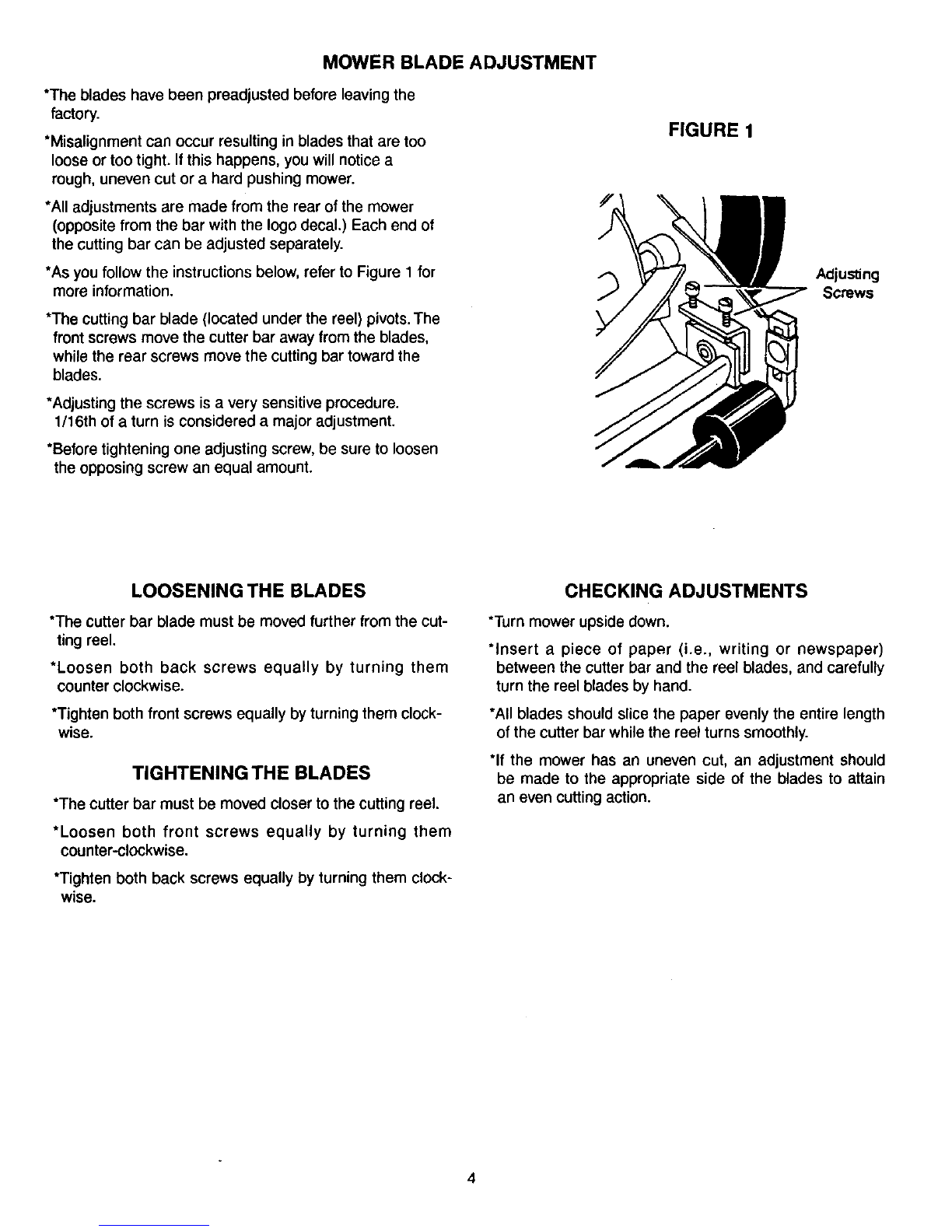

MOWER BLADE ADJUSTMENT

*The blades have been preadjusted before leaving the

factory.

*Misalignment can occur resulting in blades that are too

loose or too tight. If this happens, you will notice a

rough, uneven cut or a hard pushing mower.

*All adjustments are made from the rear of the mower

(opposite from the bar with the logo decal.) Each end of

the cutting bar can be adjusted separately.

*As you follow the instructions below, refer to Figure 1 for

more information.

*The cutting bar blade (located under the reel) pivots. The

front screws move the cutter bar away from the blades,

while the rear screws move the cutting bar toward the

blades.

*Adjusting the screws is a very sensitive procedure.

1/16th of a turn is considered a major adjustment.

*Before tightening one adjusting screw, be sure to loosen

the opposing screw an equal amount.

FIGURE 1

Adjusting

Screws

LOOSENING THE BLADES

*The cutter bar blade must be moved further from the cut-

ting reel.

*Loosen both back screws equally by turning them

counter clockwise.

*Tighten both front screws equally by turning them clock-

wise.

TIGHTENING THE BLADES

*The cutter bar must be moved closer to the cutting reel.

*Loosen both front screws equally by turning them

counter-clockwise.

*Tighten both back screws equally by turning them clock-

wise.

CHECKING ADJUSTMENTS

*Turn mower upside down.

*Insert a piece of paper (i.e., writing or newspaper)

between the cutter bar and the reel blades, and carefully

turn the reel blades by hand.

*All blades should slice the paper evenly the entire length

of the cutter bar while the reel turns smoothly.

*If the mower has an uneven cut, an adjustment should

be made to the appropriate side of the blades to attain

an even cutting action.

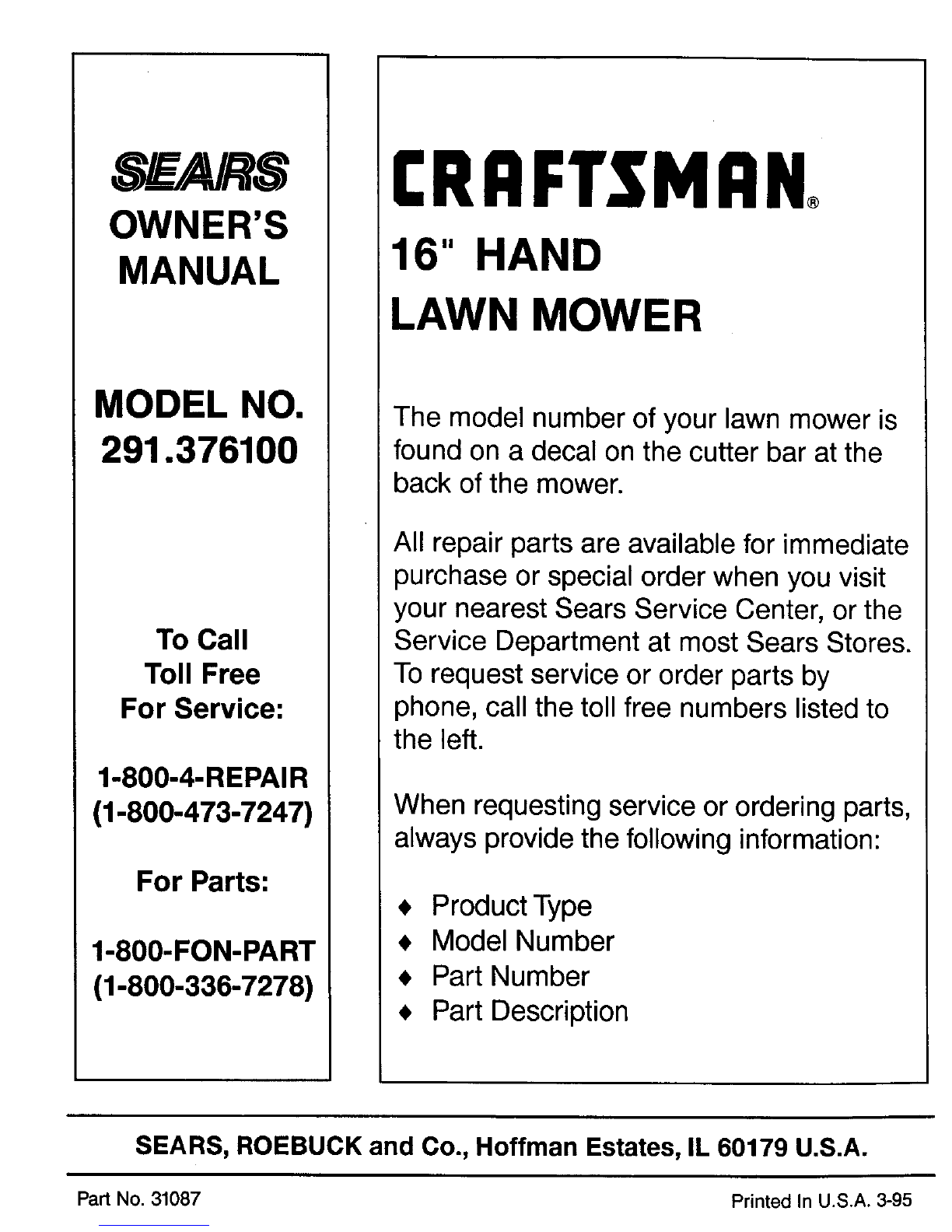

, _AJRS

OWNER'S

MANUAL

MODEL NO.

291.376100

To Call

Toll Free

For Service:

1-800-4-REPAIR

(1-800-473-7247)

For Parts:

1-800-FON-PART

(1-800-336-7278)

CRAFTSMRN,o

16" HAND

LAWN MOWER

The model number of your lawn mower is

found on a decal on the cutter bar at the

back of the mower.

All repair parts are available for immediate

purchase or special order when you visit

your nearest Sears Service Center, or the

Service Department at most Sears Stores.

To request service or order parts by

phone, call the toll free numbers listed to

the left.

When requesting service or ordering parts,

always provide the following information:

• Product Type

• Model Number

• Part Number

• Part Description

SEARS, ROEBUCK and Co., Hoffman Estates, IL 60179 U.S.A.

Part No. 31087 Printed In U.S.A. 3-95
