NVD Varifocal Vandal Dome Cameras

On-Screen Display Manual

Note: Products with model numbers that end with “Q” or that have a round green “Q” sticker are RoHS compliant.

3 Cameras in 1:

1/3” Sony Super HAD II CCD

2.8~12mm Varifocal lens

Digital Slow Shutter (DSS)

OSD with service monitor port

550 TV lines

Weatherproof (IP66)

EV-2806-NMMQ (NTSC)

EV-2806-PMMQ (PAL)

On-Screen Display Manual

SECO-LARM U.S.A., Inc.

Precautions:

PLEASE READ THIS MANUAL THOROUGHLY BEFORE USING THE CAMERA TO BECOME FAMILIAR WITH THE

CORRECT OPERATIONAL PROCEDURES.

Do not open the camera body or touch

any electrical parts.

Electric shock may occur.

Do not insert objects into the

camera body.

Doing so may cause fire or

electric shock.

Do not touch the camera with

wet hands.

Electric shock may occur.

Precautions While Camera is in Use:

Do not disconnect the power cord from

the camera before disconnecting from the

wall outlet.

Always disconnect the power by removing

the plug from the wall outlet.

If the camera emits a burning smell,

immediately disconnect it from the power

source and report the problem to your

distributor.

Precautions When Installing:

Do not install the camera where it might be

exposed to extreme temperature conditions.

Only use the camera in conditions where

temperatures are between 4°~122° F

(-20°~50° C). Make sure the area is well

ventilated when operating in high temperatures.

Do not install near any cooling or heating

equipment.

Do not install or use the camera in an area

where humidity is high.

Do not install the camera in dusty

environments.

Do not install the camera under unstable

lighting conditions.

Severe lighting change or flickering can cause

the camera to work improperly. If the camera is

exposed to a spotlight or an object reflecting

strong light, smear or blooming may occur.

Do not touch the front lens.

This is one of the most important parts of the

camera. Be careful not to leave fingerprints on

the lens cover.

Do not drop the camera or subject it to

physical shocks.

Malfunctions may occur.

Never keep the camera pointed directly at

strong light.

Continuous exposure to intense light may

damage the CCD.

Do not expose the camera to rain or other

liquids.

If the camera gets wet, wipe it dry

immediately. Liquids may contain chemicals

that corrode the electronic components.

Do not expose the camera to radioactivity.

If exposed to radioactivity, the CCD will fail.

Only apply power after the installation of

the product.

Please check that the power satisfies the

normal specifications before connecting

the camera.

On-Screen Display Manual

SECO-LARM U.S.A., Inc.

Day/Night...................................................

3DNR ........................................................

Special ......................................................

Adjust ........................................................

Reset .........................................................

Exit.............................................................

Troubleshooting ........................................

Table of Contents:

Features.....................................................

Menu Diagram ...........................................

Special Menu Diagram ..............................

Menu Setup ...............................................

Lens...........................................................

Exposure....................................................

White Balance ...........................................

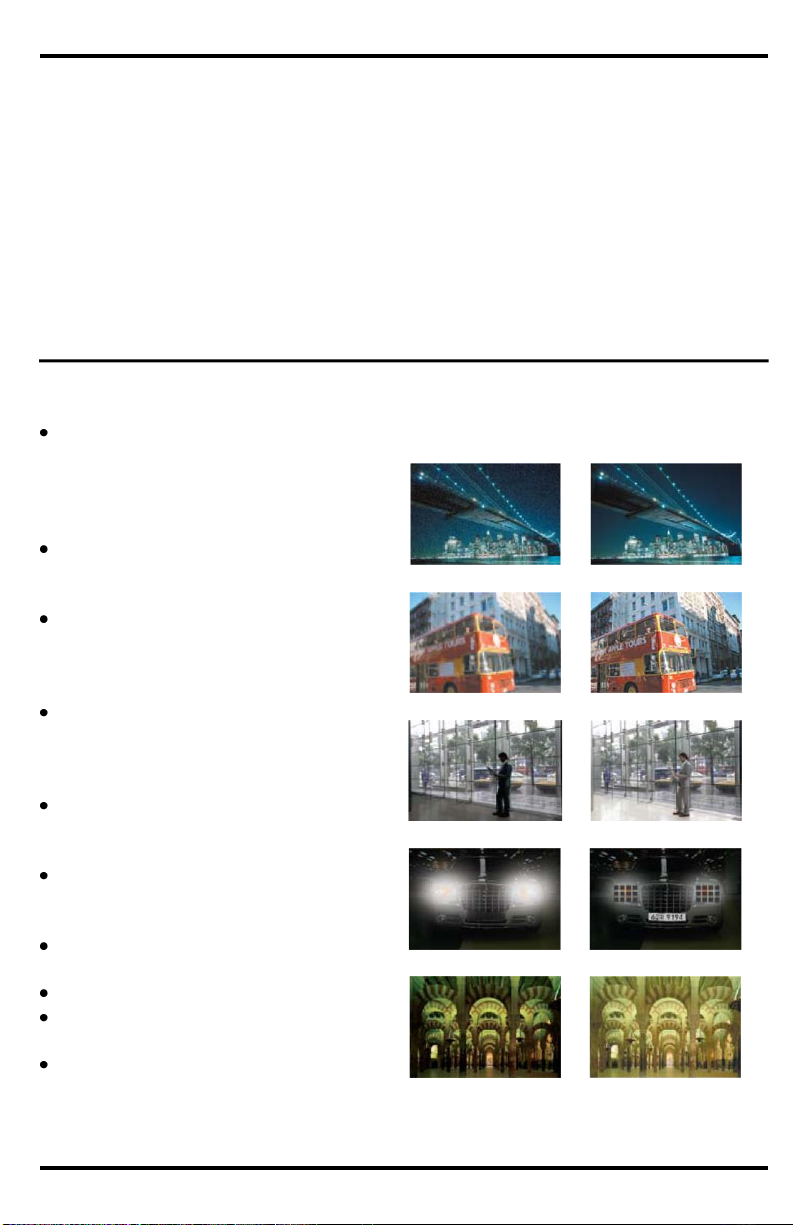

Features:

3DNR (DNR with 3D Filtering) DSP

Chip Gives day and night images high

resolution and provides quality images

at low-light levels. 3D Filtering reduces

camera noise.

550 TV Lines The Sony Super HAD

CCD image sensor provides excellent

resolution.

D-WDR (Digital Wide Dynamic Range)

Captures high-resolution pictures even

when strong backlight makes images

appear dark.

High Spotlight Back Light

Compensation (HSBLC) Function

Defines target areas and removes

spotlights to make reading easier.

Illumination A minimum illumination of

0.000006-lux captures clear images

even in low-light conditions.

Disk Saving Effects Improves quality

and saves hard drive space by reducing

camera noise.

OSD On-screen display menu with

multi-language support.

Privacy Masking 8 Zones available.

Sense-Up Magnifies existing light up to

258 times.

Digital Zoom Up to 32 times

magnification.

3DNR OFF

3DNR ON

Standard Camera

550 TV Lines

D-WDR OFF

D-WDR ON

Normal BLC

HSBLC

Standard Image

Minimum Illumination

On-Screen Display Manual

SECO-LARM U.S.A., Inc.

Menu Diagram:

SETUP MENU

SETTINGS

SETTING OPTIONS

1) LENS

DC/MANUAL

Range: 0~100 Level Adjustable

2) EXPOSURE

SHUTTER (seconds)

FLK, 1/60, 1/250, 1/500, 1/2000, 1/5000, 1/10000, 1/100000

BRIGHTNESS

Range: 0~100 Level Adjustable

AGC

OFF / LOW / MIDDLE / HIGH

SENSE-UP

Range: x2~x258 Level Adjustable

BLC

OFF / BLC (GAIN: LOW, MIDDLE, HIGH/DEFAULT:

LEFT/RIGHT, WIDTH, TOP /

BOTTOM, HEIGHT, RETURN)

HSBLC: (LEVEL: RANGE 1~8 Selectable/DEFAULT:

LEFT/RIGHT, WIDTH,TOP /

BOTTOM, HEIGHT, RETURN)

D-WDR

OFF / INDOOR / OUTDOOR

RETURN

3) WHITE BAL.

ATWL

ATW / AWB / MANUAL (R Gain : 0~100 Level Selectable,

B Gain : 0~100 Level Selectable)

AWC SET

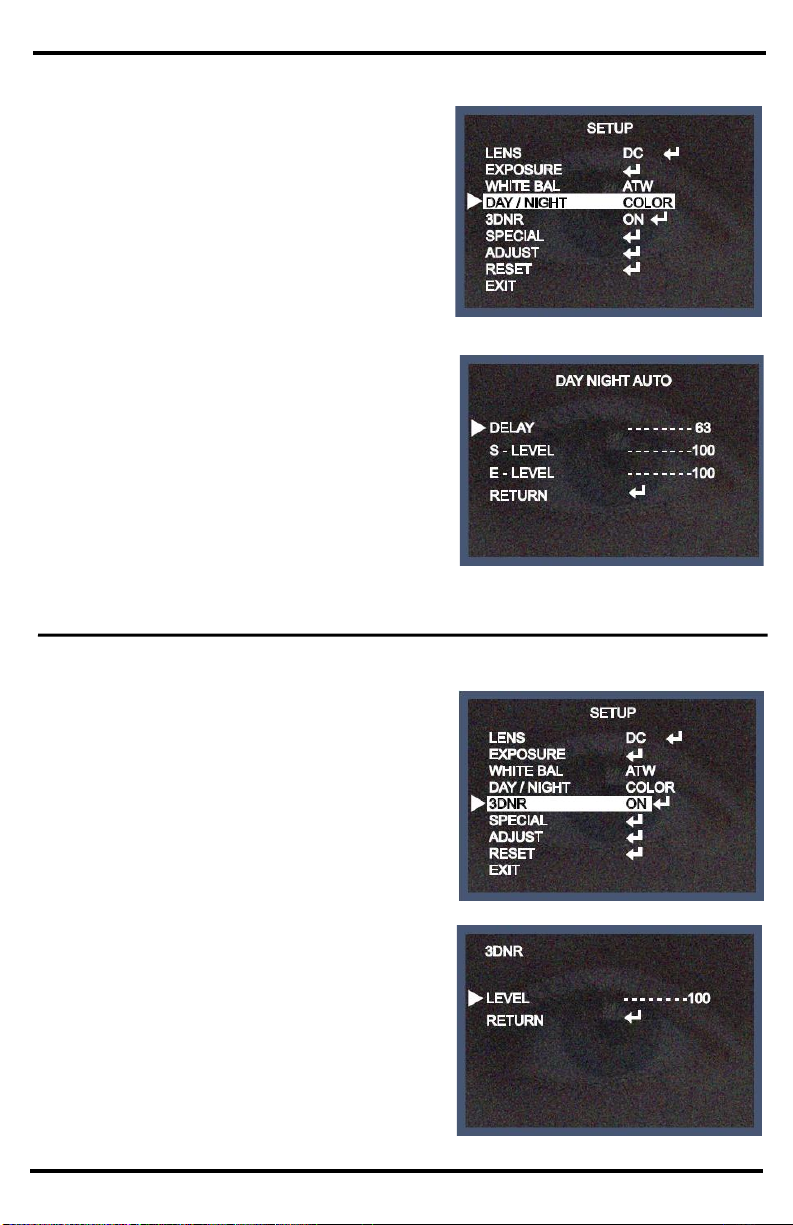

4) DAY / NIGHT

AUTO/ B/W/ COLOR/ EXT

COLOR

AUTO: DELAY (0~63) / S-LEVEL(0~100) /

E-LEVEL(0~100)

RESET

5) 3DNR

ON (Range : 0~100 Level Adjustable) / OFF

6) SPECIAL

Reference page 5

7) ADJUST

SHARPNESS

Range: 0~31 Level Adjustable

BLUE

Range: 0~100 Level Adjustable

RED

Range: 0~100 Level Adjustable

8) RESET

FACTORY

Reset to factory settings

9) EXIT

Save the SETUP Menu and exit

On-Screen Display Manual

SECO-LARM U.S.A., Inc.

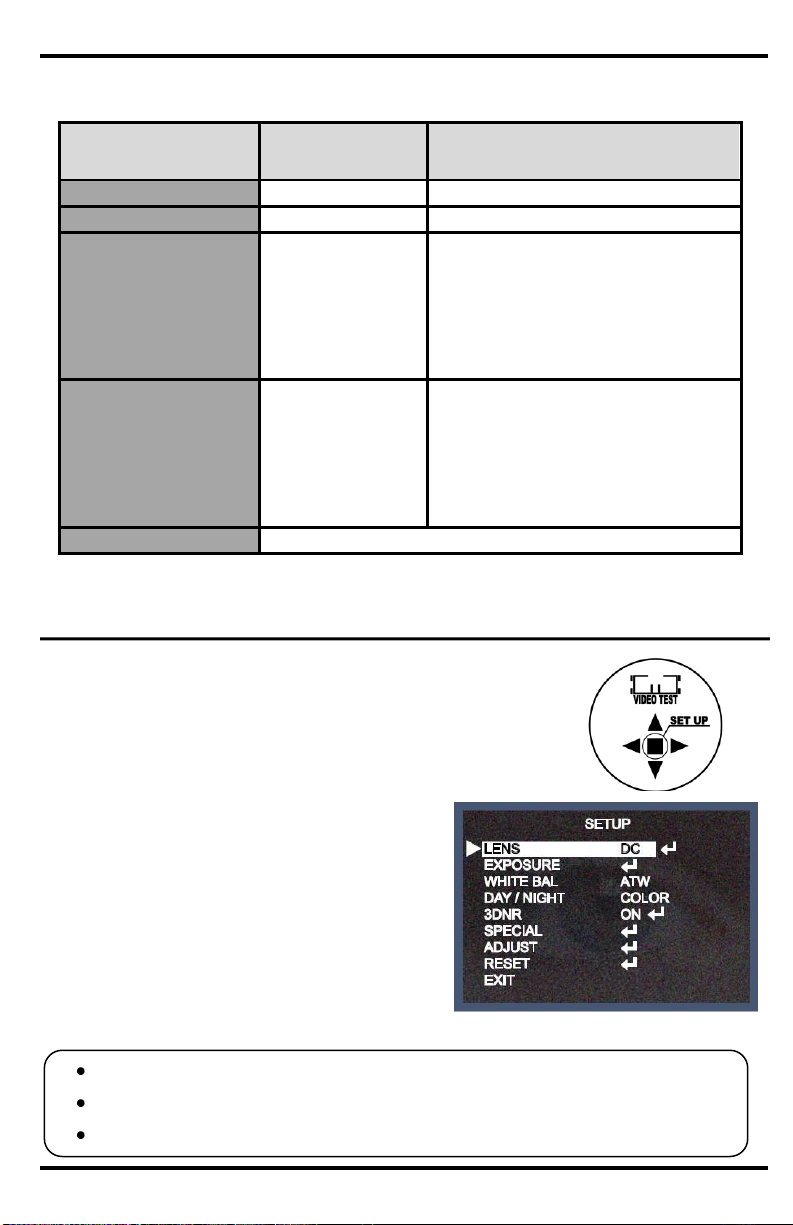

Special Menu Diagram:

SPECIAL MENU

DEFAULT

SETTINGS

SETTING OPTIONS

1) CAMERA TITLE

OFF

ON / OFF

2) DIGITAL–EFFECT

OFF

FREEZE / MIRROR / D-ZOOM / GAMMA / NEG. IMAGE

3) MOTION

AREA SELEC: AREA 1~4

AREA DISPLAY: ON / OFF

LEFT / RIGHT: 0~100 Level Adjustable

WIDTH: 0~100 Level Adjustable

TOP / BOTTOM: 0~100 Level Adjustable

HEIGHT: 0~100 Level Adjustable

SENSITIVITY: 0~40 Level Adjustable

MOTION VIEW: ON/OFF

RETURN

4) PRIVACY

AREA SELECT: AREA 1~8

AREA DISPLAY: ON / OFF

LEFT / RIGHT: 0~100 Level Adjustable

WIDTH: 0~100 Level Adjustable

TOP / BOTTOM: 0~100 Level Adjustable

HEIGHT: 0~100 Level Adjustable

SENSITIVITY: 0~40 Level Adjustable

COLOR: Select between 15 colors.

RETURN

5) RETURN

Save the SPECIAL menu and exit

Menu Setup:

Menu items can be selected by using the OSD (On Screen Display)

buttons on the camera.

1. Press the SET UP button.

The SETUP menu will be displayed on the

monitor.

2. Move to and select the required function using

the UP and DOWN buttons.

3. Change the menu settings using the LEFT

and RIGHT buttons.

Available values are displayed by pressing

the LEFT and RIGHT buttons.

4. After choosing the setting, move the arrow

indicator to EXIT and press the SET UP

button to exit.

Note:

Move to available options by moving the arrow to the desired feature.

A submenu is available where the option reads .

The submenu is not available where the option reads - - - -.

On-Screen Display Manual

SECO-LARM U.S.A., Inc.

Lens:

This function controls the brightness of the image.

1. Move the arrow indicator to LENS using the UP and DOWN buttons on the SETUP menu screen.

2. Select the desired lens type by pressing the LEFT and RIGHT buttons.

3. Press RETURN to return to the SETUP menu.

Note:

When DC is selected from the SETUP menu, the brightness can be adjusted. The

brightness control range is 1~100.

Lens

BRIGHTNESS I………I………I 100

RETURN 

Exposure:

This function is used to select Automatic or Manual shutter-speed control.

1. On the SETUP menu screen, select

EXPOSURE by using the UP and DOWN

buttons.

SHUTTER: Select the desired shutter mode by

pressing the LEFT and RIGHT buttons.

A. FLK: Select FLK when flickering caused by

the unmatched frequency of electric lights

occurs.

B. SHUTTER SPEED: Choose between 1/60,

1/250, 1/500, 1/2000

Note:

To produce better results with FLK, do not use in conjunction with the D-WDR mode

in the BACKLIGHT menu.

Brightness can only operate when selected from Manual mode. When selected from

DC mode, brightness will be disabled.

BRIGHTNESS: Select to adjust the brightness of the image.

Adjustable range: 0~100

On-Screen Display Manual

SECO-LARM U.S.A., Inc.

AGC (AUTOMATIC GAIN CONTROL): A higher gain

increases brightness, but also increases any noise.

A. OFF: Deactivates the AGC function.

B. LOW: Sets automatic gain control to LOW.

C. MIDDLE: Sets automatic gain control to MIDDLE.

D. HIGH: Sets automatic gain control to HIGH.

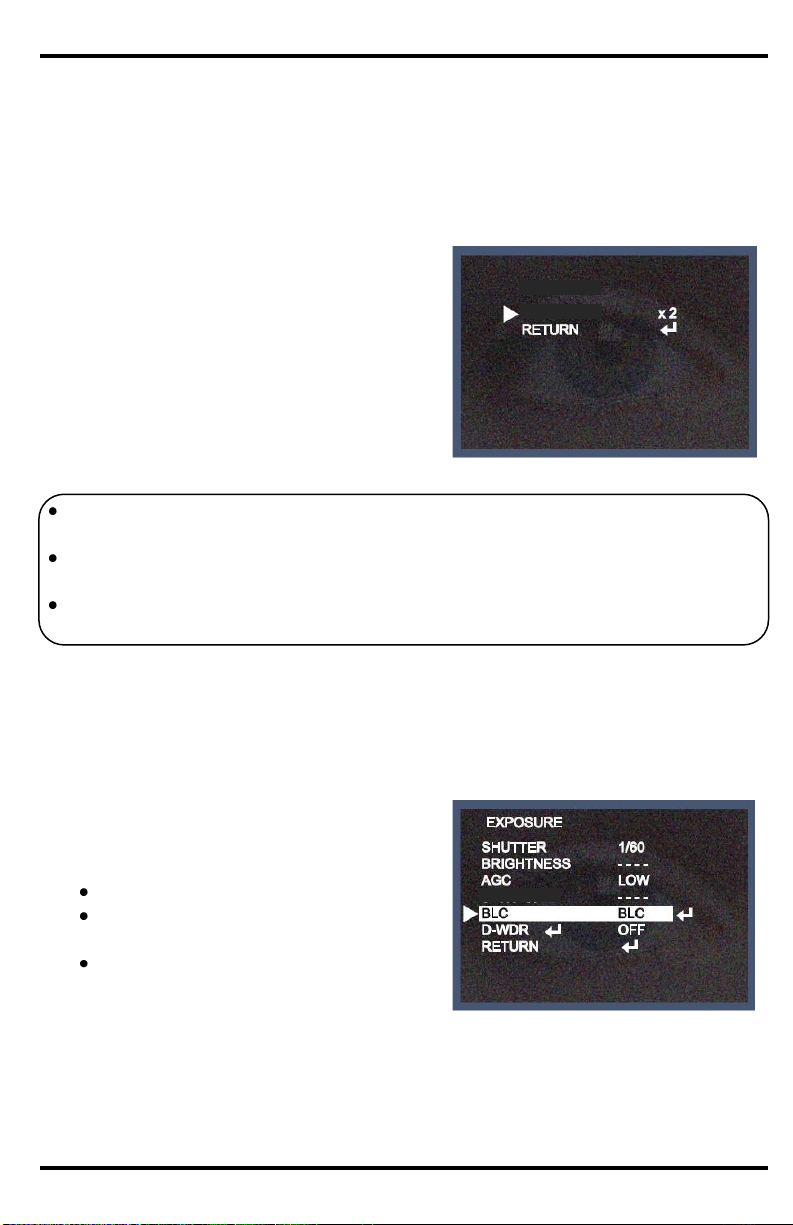

SENSE-UP:Selecting this will magnify existing

light sources so the camera can pick up images at

night. The values range from 2x~258x.

If the AGC mode is turned OFF, the SENSE-UP

function will be disabled.

Note:

Pressing the SET button in AUTO mode lets you adjust the image brightness by increasing

or decreasing the shutter speed (2x~258x).

The higher the level, the brighter the image becomes. However, an afterimage (ghosting)

may appear.

When SENSE-UP is activated, the increased magnification may induce noise and pixelation.

This is normal.

BLC (BACKLIGHT COMPENSATION): This camera provides intelligent light-level

control to overcome strong backlight conditions.

A. Move the indicator to BLC using the UP and DOWN buttons on the

EXPOSURE menu screen.

B. Select the desired level by using the

LEFT and RIGHT buttons.

OFF: Turns BLC function off.

BLC: Users can select and define a

specific area, and view that area clearly.

HSBLC (High Spotlight Back Light

Compensation): When there are both

bright and dark image areas,

HSBLC makes both distinct.

SENSE-UP

On-Screen Display Manual

SECO-LARM U.S.A., Inc.

BLC OFF

BLC ON

C. Select a mode using the LEFT and RIGHT buttons, then press the SET button.

Select BLC to adjust the desired BLC area and GAIN level.

GAIN: Adjust the BLC sensitivity.

DEFAULT: Go back to factory setting.

LEFT / RIGHT and TOP / BOTTOM:

Select the desired area position.

WIDTH: Change the cell width using the

LEFT and RIGHT buttons.

HEIGHT: Change the cell height using

the LEFT and RIGHT buttons.

RETURN: Save changes and return to

the EXPOSURE menu.

D. Select HSBLC by using the LEFT and RIGHT buttons and then press the SET UP button

to set up the desired area and GAIN level.

HSBLC OFF

HSBLC ON

LEVEL: Adjust the HSBLC sensitivity.

DEFAULT: Return to factory setting.

LEFT / RIGHT and TOP / BOTTOM:

Select the desired area position.

WIDTH: Change the cell width using the

LEFT and RIGHT buttons.

HEIGHT: Change the cell height using

the LEFT and RIGHT buttons.

RETURN: Save changes and return to

the EXPOSURE menu.

BLC, continued

On-Screen Display Manual

SECO-LARM U.S.A., Inc.

D-WDR (Digital Wide Dynamic Range):

A. Select D-WDR using the UP and DOWN

buttons on the EXPOSURE menu screen.

B. Select the desired feature by using the

LEFT and RIGHT buttons.

D-WDR : When there are both bright

and dark image areas, D-WDR makes

both of them distinct. User can

choose between OUTDOOR and

INDOOR settings.

OFF: Disable D-WDR function.

RETURN: Save changes in the

EXPOSURE menu and return to the

SETUP menu.

White Balance:

The White Balance function is used to control the on-screen colors.

1. Select WHITE BAL on the SETUP screen using

the UP and DOWN buttons.

2. Select the desired mode using the LEFT and

RIGHT buttons.

There are four White Balance settings available:

A. ATW (Auto Tracking White Balance):

Normal setting. The color temperature

range is from 1,800°~10,500° K. (Ex: A

fluorescent lamp or outdoors.)

B. AWB : The White Balance is

automatically adjusted to a specific

environment.

C. AWCSET: To obtain the best results,

press the SET button while the camera is

focused on white paper. If the

environment and/or light source changes,

the White Balance will require re-

adjustment.

D. MANUAL: Used for fine adjustment of

White Balance. Set White Balance using

ATW or AWC, then change to MANUAL

and press the SET UP button. Increase

or decrease the value of R-Gain (Red)

and B-Gain (Blue) while monitoring the

color of the image.

SENSE-UP

On-Screen Display Manual

SECO-LARM U.S.A., Inc.

Day / Night:

1. Select DAY / NIGHT using the UP and

DOWN buttons on the SETUP menu screen.

2. Select the desired mode using the LEFT

and RIGHT buttons.

A. DELAY: Set the delay before switching to

NIGHT mode.

Adjustable range: 1~63 seconds.

B. S-LEVEL (start level): Define light level to

trigger B/W mode.

Adjustable range: 0~100.

C. E-LEVEL (end level): Define the light level

to trigger COLOR mode.

Adjustable range: 0~100.

COLOR: The picture is always displayed in color.

B / W: The picture is always displayed in black and

white.

AUTO: The mode automatically switches to

COLOR in normal situations and B / W when

ambient light is low. To set the time and speed in

AUTO mode, press the SET button.

3DNR (DNR with 3D filtering):

1. Select 3DNR using the UP and DOWN

buttons. Configure the settings to filter

background noise in low-light environments.

2. Activate 3DNR by using the LEFT and RIGHT

buttons.

ON: Activate 3DNR. Digital noise ratio can be

adjusted between 0~100.

OFF: Deactivate 3DNR. Noise is not reduced.

3. Select RETURN by using the UP and DOWN

buttons to return to the SETUP menu.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere SECO-LARM Sicherheitskamera Handbücher

SECO-LARM

SECO-LARM ENFORCER EV-N1506-2W4Q Bedienungsanleitung

SECO-LARM

SECO-LARM Enforcer EV-N6506-3W4Q Bedienungsanleitung

SECO-LARM

SECO-LARM ENFORCER EV-N4206-2S4Q Bedienungsanleitung

SECO-LARM

SECO-LARM CBA series Bedienungsanleitung

SECO-LARM

SECO-LARM Enforcer EV-N4206-2S4Q Bedienungsanleitung

SECO-LARM

SECO-LARM ENFORCER MVE-PB020Q Bedienungsanleitung

SECO-LARM

SECO-LARM Enforcer EV-1323B12DW Bedienungsanleitung

SECO-LARM

SECO-LARM EV-2166-N3WQ Bedienungsanleitung

SECO-LARM

SECO-LARM ENFORCER EV-7605-NYWQ Bedienungsanleitung

SECO-LARM

SECO-LARM Enforcer EV-5120-N3WQ Bedienungsanleitung

SECO-LARM

SECO-LARM ENFORCER EV-N2506-2W4WLQ Bedienungsanleitung

SECO-LARM

SECO-LARM Enforcer Video EV-1354C12(PAL) Bedienungsanleitung

SECO-LARM

SECO-LARM Enforcer Video EV-122C-DXA3 Bedienungsanleitung

SECO-LARM

SECO-LARM Dome Color Camera EV-2605-NKEQ Bedienungsanleitung

SECO-LARM

SECO-LARM Enforcer Video Elite Series Bedienungsanleitung

SECO-LARM

SECO-LARM SLI ENFORCER VIDEO EV-133C-DWAVQ Bedienungsanleitung

SECO-LARM

SECO-LARM EV-122C-DXB3Q Bedienungsanleitung

SECO-LARM

SECO-LARM Enforcer EV-122C-FVB3Q Bedienungsanleitung

SECO-LARM

SECO-LARM Enforcer EV-2866-NKGQ Bedienungsanleitung

SECO-LARM

SECO-LARM Enforcer EV-1186-N3GQ Bedienungsanleitung

SECO-LARM

SECO-LARM SLI ENFORCER EV-Y6501-A3WQ Bedienungsanleitung

SECO-LARM

SECO-LARM Enforcer EV-2240-N3B Bedienungsanleitung

SECO-LARM

SECO-LARM Enforcer EV-122C-FVA3Q Bedienungsanleitung

SECO-LARM

SECO-LARM SLI ENFORCER VIDEO EV-1224C12 Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
