Security Camera King PRIME Series Bedienungsanleitung

User Manual

Thank you for purchasing our product. If there are any

questions, or requests, do not hesitate to contact the

dealer.

This manual may contain several technical incorrect

places or printing errors, and the content is subject to

change without notice. The updates will be added to

the new version of this manual. We will readily improve

or update the products or procedures described in the

manual.

TVIOD-PRM2EXIR

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection

against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European

standards listed under EMC Directive 2014/30/EU, the

RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new equipment, or

dispose of it at designated collection points. For more

information see: www.recyclethis.info.

2006/66/EC (battery directive): This

product contains a battery that cannot be

disposed of as unsorted municipal waste in

the European Union. See the product

documentation for specific battery

information. The battery is marked with

this symbol, which may include lettering to indicate

cadmium (Cd), lead (Pb), or mercury (Hg). For proper

recycling, return the battery to your supplier or to a

designated collection point. For more information see:

www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

Safety Instruction

These instructions are intended to ensure that user can

use the product correctly to avoid danger or property

loss.

The precaution measure is divided into “Warnings” and

“Cautions”

Warnings: Serious injury or death may occur if any of

the warnings are neglected.

Cautions: Injury or equipment damage may occur if any

of the cautions are neglected.

Warnings

In the use of the product, you must be in strict

compliance with the electrical safety regulations of

the nation and region.

Refer to technical specifications for detailed

information.

Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 24 V

AC or 12 V DC according to the IEC60950-1 standard.

Refer to technical specifications for detailed

information.

Do not connect several devices to one power adapter

as adapter overload may cause over-heating or a fire

hazard.

Make sure that the plug is firmly connected to the

power socket.

When the product is mounted on wall or ceiling, the

device shall be firmly fixed.

If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cable, and

then contact the service center.

If the product does not work properly, contact your

dealer or the nearest service center. Never attempt to

disassemble the camera yourself. (We shall not

assume any responsibility for problems caused by

unauthorized repair or maintenance.)

Cautions

Make sure the power supply voltage is correct before

using the camera.

Do not drop the camera or subject it to physical

shock.

Do not touch senor modules with fingers. If cleaning

is necessary, use clean cloth with a bit of ethanol and

wipe it gently. If the camera will not be used for an

extended period, replace the lens cap to protect the

sensor from dirt.

Warnings Follow

these safeguards to

prevent serious injury

or death.

Cautions Follow these

precautions to prevent

potential injury or

material damage.

Do not aim the camera at the sun or extra bright

places. Blooming or smearing may occur otherwise

(which is not a malfunction), and affect the

endurance of sensor at the same time.

The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that

the surface of sensor will not be exposed to the laser

beam.

Do not place the camera in extremely hot, cold, dusty

or damp locations, and do not expose it to high

electromagnetic radiation.

To avoid heat accumulation, good ventilation is

required for operating environment.

Keep the camera away from liquid while in use.

While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

Improper use or replacement of the battery may

result in hazard of explosion. Replace with the same

or equivalent type only. Dispose of used batteries

according to the instructions provided by the battery

manufacturer.

1Introduction

1.1 Product Features

The camera is applicable for both indoor and outdoor

conditions, and the application scenarios include road,

warehouse, parking lot, bar, etc..

The main features are as follows:

High performance CMOS sensor and high resolution

brings high-quality image

Low illumination, 0.01 Lux @ (F1.2, AGC ON), 0 Lux

with IR

IR cut filter with auto switch

OSD menu with configurable parameters

Auto white balance and internal synchronization

SMART IR mode

True WDR

3-axis adjustment

1.2 Overview

1.2.1 Overview of Turret Camera

Trim Ring

Enclosure

Mounting Base

Camera

Video Cable (TVI )

Power Cable

Switch Cable

Figure 1-1 Overview of Turret Camera

2Installation

Before you start:

Make sure that the device in the package is in good

condition and all the assembly parts are included.

Make sure that all the related equipment is power-off

during the installation.

Check the specification of the products for the

installation environment.

Check whether the power supply is matched with

your required output to avoid damage.

Make sure the wall is strong enough to withstand

three times the weight of the camera and the

mounting.

If the wall is cement, insert expansion screws before

installing the camera. If the wall is wooden, use

self-tapping screw to secure the camera.

If the product does not function properly, please

contact your dealer or the nearest service center. Do

not disassemble the camera for repair or

maintenance by yourself.

2.1 Installation of Turret Camera

Steps:

1. Stick the dill template to the ceiling.

2. Drill the screw holes, and the cable hole (optional)

in the ceiling according to the drill template.

Note:

Cable hole is required when you adopt ceiling outlet to

route the cable.

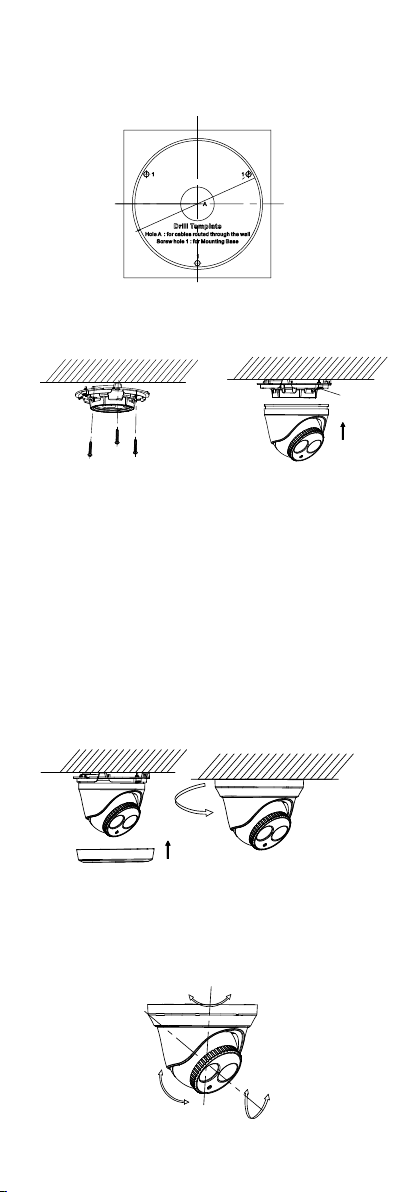

Figure 2-1 Drill Template

3. Fix the mounting base to the ceiling with supplied

screws.

Lock Screw

Figure 2-2 Fix the Mounting Base and Camera

Note:

In the supplied screw package, both self-tapping

screws and expansion blots are contained.

If the wall is cement, expansion blots are required

to fix the camera. If the wall is wooden,

self-tapping screws are required.

4. Route the cables through the cable hole and

connect the corresponding cables.

5. Install the main body into the mounting base and

insert the clip plate.

6. Tighten the screw with the wrench.

7. Attach the trim ring to the camera and rotate it

according to the direction of the arrow to secure the

camera.

Figure 2-3 Attach the Trim Ring

8. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle.

T: 0-75°

P: 0-360°

R: 0-360°

Figure 2-4 3-axis Adjusting

3Menu Description

Two methods are available to call the menu. This

section takes method b) as an example to state the

menu operation.

a) Call the menu and adjust the camera parameters

with a coaxial camera controller (purchase

separately).

b) Call the menu with supported TVI DVR by clicking

button on the PTZ interface, or by calling preset No.

95.

Camera

TVI DVR

Monitor

Figure 3-1 Connection

Steps:

1. After the connection is done, power on the analog

camera, TVI DVR, and the monitor to view the image

on the monitor.

2. Click PTZ Control to enter the PTZ Control interface.

3. Call the camera menu by clicking button, or call

preset No. 95.

4. Click up/down direction button to select the item,

click Iris + to confirm the selection, and click

left/right direction button to adjust the value of the

selected item.

MAIN

FORMAT

DAY & NIGHT

VIDEO

SETTING

FUNCTION

RESET

SAVE & EXIT

BRIGHTNESS

AGC

AUTO

MANUAL

COLOR

B/W

EXIT

CONTRAST

SHARPNESS

COLOR GAIN

3D NR

MIRROR

DETECTION

MASKING

ZOOM IN

AE MODE

SENS-UP

Figure 3-2 Main Menu Overview

3.1 Format

Move the cursor to FORMAT, and press Iris+ to enter

the FORMAT sub menu. And then you can set the

format of the camera.

3.2 Main Menu

3.2.2 AE (Auto Exposure)

AE describes the brightness-related parameters. You

can adjust the image brightness by the BRIGHTNESS,

EXPOSURE MODE, and GAIN in different light

conditions.

EXPOSURE

BRIGHTNESS

EXPOSURE MODE

GAIN

RETURN

BLC

MIDDLE

Figure 3-3 AE

BRIGHTNESS

Brightness refers to the brightness of the image. You

can set the brightness value from 1 to 10 to darken or

brighten the image. The higher the value, the brighter

the image is.

EXPOSURE MODE

You can set AE mode as GLOBAL, BLC, and WDR.

GLOBAL

GLOBAL refers to the normal exposure mode which is

for adjusting the situations including unusual lighting

distribution, variations, non-standard processing, or

other conditions of under exposure to get an optimum

image.

BLC (Backlight Compensation)

BLC (Backlight Compensation) compensate light to the

object in the front to make it clear, but this causes the

over-exposure of the background where the light is

strong.

When BLC is selected as the exposure mode, the BLC

level can be adjusted from 0 to 8.

WDR (Wide Dynamic Range)

The wide dynamic range (WDR) helps the camera

provide clear images even under back light

circumstances. WDR balances the brightness level of

the whole image and provides clear images with details.

GAIN

It optimizes the clarity of image in poor light scene. The

GAIN level can be set to HIGH, MIDDLE, and LOW.

Select OFF to disable the GAIN function.

Note:

The noise will be amplified if the GAIN is on.

3.2.3 WB (White Balance)

White balance is the white rendition function of the

camera to adjust the color temperature according to

the environment. It can remove the unrealistic color

casts in the image. You can set WB mode as ATW, and

MWB.

ATW

In ATW mode, white balance is being adjusted

automatically according to the color temperature of the

scene illumination.

MWB

You can set the R GAIN/B GAIN value from 0 to 255 to

adjust the shades of red/blue color of the image.

MODE

R GAIN

BGAIN

RETURN

MWB

Figure 3-4 MWB Mode

3.2.4 DAY-NIGHT

Color, B/W, and SMART are selectable for DAY and

NIGHT switches.

COLOR

The image is colored in day mode all the time.

B/W

The image is black and white all the time, and the IR

LED turns on in the low-light conditions.

SMART

You can select to turn on/off the INFRARED and set the

value of SMART IR in this menu.

DAY/NIGHT

MODE

INFRARED

SMART IR

RETURN

SMART

OPEN

Figure 3-5 Day & Night

INFRARED

You can select to turn on/off the IR LED to response to

the requirements of different circumstances.

SMART IR

The Smart IR is used to adjust the light to its most

suitable intensity, and to prevent the image from over

exposure. The SMART IR value can be adjusted from 0

to 3. The higher the value, the more obvious effects are,

and it is disabled when the value is 0.

3.2.5 VIDEO SETTING

Move the cursor to VIDEO SETTING and press Iris+ to

enter the submenu. CONTRAST, SHARPNESS, COLOR

GAIN, DNR and MIRROR are adjustable.

VIDEO SETTING

CONTRAST

SHARPNESS

COLOR GAIN

DNR

MIRROR

RETURN

DEFAULT

Figure 3-6 Video Setting

CONTRAST

This feature enhances the difference in color and light

among parts of an image. You can set the CONTRAST

value from 1 to 10.

SHARPNESS

Sharpness determines the amount of detail an imaging

system can reproduce. You can set the SHARPNESS

value from 1 to 10.

COLOR GAIN

Adjust this feature to change the saturation of the color.

The value ranges from 1 to 10.

DNR (Digital Noise Reduction)

The DNR function can decrease the noise effect,

especially when capturing moving images in low light

conditions and delivering more accurate and sharp

image quality.

You can set the DNR value from 1 to 10.

MIRROR

DEFAULT, H, V, and HV are selectable for the mirror.

DEFAULT: The mirror function is disabled.

H: The image flips 180 degree horizontally.

V: The image flips 180 degree vertically.

HV: The image flips 180 degrees both horizontally and

vertically.

3.2.6 RESET

Reset all settings to the default.

3.2.7 SAVE & EXIT

Move the cursor to SAVE & EXIT and press Iris+ to save

the setting and exit the menu.

Andere Handbücher für PRIME Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Security Camera King Sicherheitskamera Handbücher

Security Camera King

Security Camera King IPOB-ELS2IR12XA-EP Bedienungsanleitung

Security Camera King

Security Camera King IPOB-EL2IRE Bedienungsanleitung

Security Camera King

Security Camera King IPVD-EL3MPIR Series Bedienungsanleitung

Security Camera King

Security Camera King QUADBRID HDVD-SB2IRZW Bedienungsanleitung

Security Camera King

Security Camera King HDIR7907VF Bedienungsanleitung

Security Camera King

Security Camera King EL2MPIR250L30X Bedienungsanleitung

Security Camera King

Security Camera King DS-2CD63C5G0-IVS Bedienungsanleitung

Security Camera King

Security Camera King IPPTZ-EL2MPIR250L30X-AT Bedienungsanleitung

Security Camera King

Security Camera King IPOB-EL1MPIR50-E Bedienungsanleitung

Security Camera King

Security Camera King CVIOB-ELV22MPIR100LZ2712-D2 Bedienungsanleitung

Security Camera King

Security Camera King CVIPTZ-EL2L12X-F Bedienungsanleitung

Security Camera King

Security Camera King TVIVD-PR5EXIR28 Bedienungsanleitung

Security Camera King

Security Camera King IPVD-EL3MPIR100 Bedienungsanleitung

Security Camera King

Security Camera King IPVD-PR12FA Bedienungsanleitung

Security Camera King

Security Camera King CVIPTZ-EL1MPL20X Bedienungsanleitung

Security Camera King

Security Camera King TVIPTZ-TP2IR18XME Bedienungsanleitung

Security Camera King

Security Camera King PRIME TVIVD-PR5EXIRZ Bedienungsanleitung

Security Camera King

Security Camera King IPPTZ-EL1MPIR250L20X Bedienungsanleitung

Security Camera King

Security Camera King HDBC-LX1080 Bedienungsanleitung

Security Camera King

Security Camera King OD-LX700IR50-W Bedienungsanleitung

Security Camera King

Security Camera King CVIOD-EL2MPIR50 Bedienungsanleitung

Security Camera King

Security Camera King IPOD-EL2IRE Bedienungsanleitung

Security Camera King

Security Camera King PRIME Series Bedienungsanleitung

Security Camera King

Security Camera King OD-CM600IR50-B Series Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
