The super-cardioid 608 is a dynamic microphone ideal

for almost invisible clip-miking of drums, percussions,

brass and woodwind (except certain flutes). The goose-

neck mounting enables the capsule to be positioned close

to the signal source for high realism and high-level

output.

Extensive damping and shock mounting isolates the

capsule and signal from extraneous vibrations, impact and

handling noise

. The humbucking coil protects against

electromagnetic interference.

Features

Rugged reinforced glass-fibre body

Shock-mounted capsule provides low sensitivity to

impact and handling noise

Humbucking coil

Extremely robust connection cable with XLR-

plug

Delivery includes

608 microphone

Microphone clamp MZQ 800

Connection cable

Pouch

Instructions for use

yWarranty Certificate

e 608_094285_0206_Sp6.book Seite 3 Dienstag, 28. Februar 2006 9:03 09

Positioning the microphone

Wind instruments

To reduce ambient noise (at the expense of the true

“Saxophone sound”) direct the microphone into the bell.

In order to prevent interference due to crosstalk between

adjacent sound sources, try to position the microphone so

that the interfering sound source is located in the angle

area of the highest cancellation of the microphone

(approx. 120°; see polar diagram).

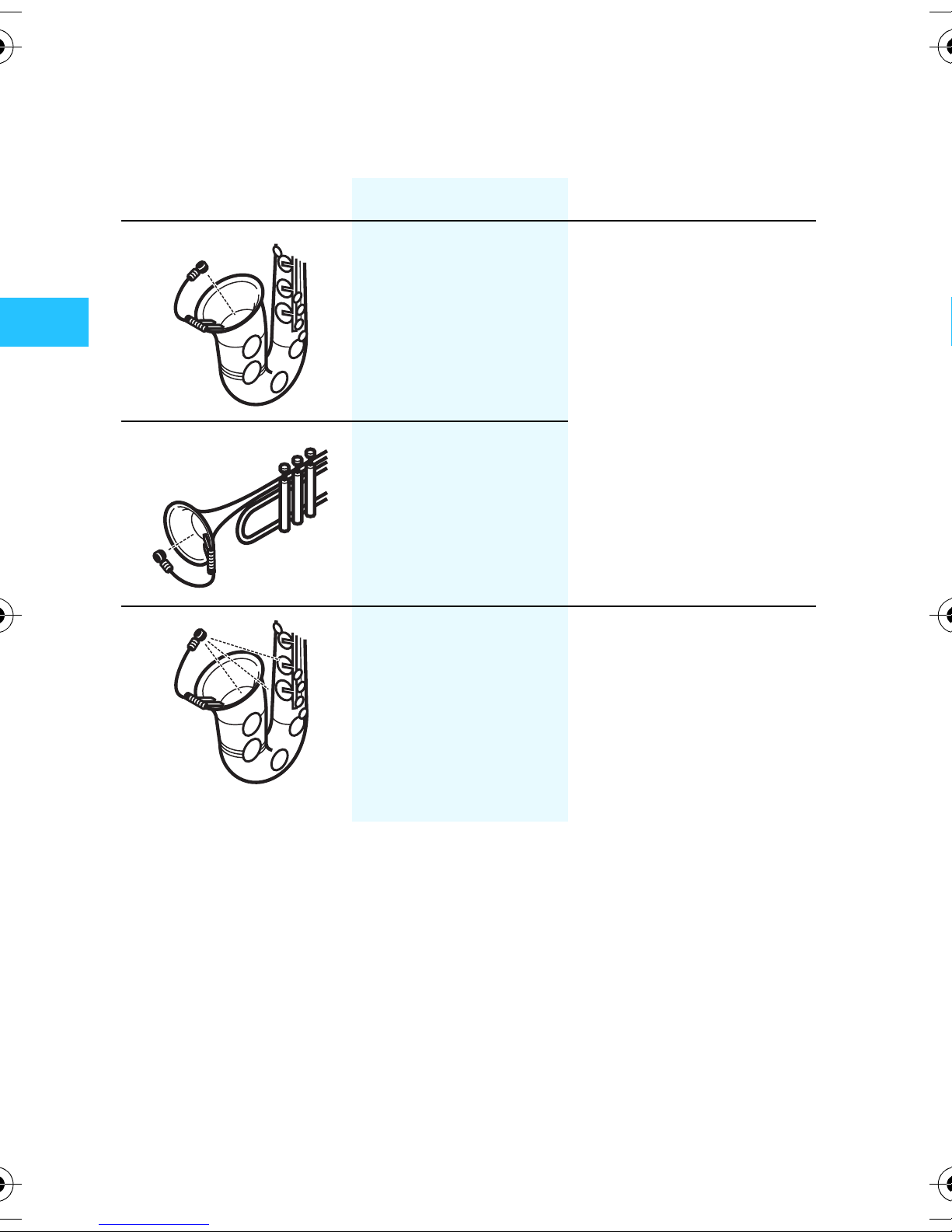

Position Resulting sound Commentary

Reduced ambient

noise

Use the supplied

clamp to attach the

microphone to the bell

of the instrument.

Clear, powerful

sound

Balanced, natural

sound

For a Saxophone, the

microphone should

normally be directed

partly towards the

bell and partly

towards the body of

the instument.

e 608_094285_0206_Sp6.book Seite 4 Dienstag, 28. Februar 2006 9:03 09

Polar diagram

Frequency response curve

000

8000

6000

500

000

- 7

500

000

5000

0000

5 c

- 4

e 608_094285_0206_Sp6.book Seite 5 Dienstag, 28. Februar 2006 9:03 09

Specifications

Transducer principle dynamic

Frequency response 40.....16,000 Hz

Pick-up pattern super-cardioid

Sensitivity

(free field, no load) (at 1 kHz) 0.8 mV/Pa

Nominal impedance (at 1 kHz) 250 Ω

Min. terminating impedance 1 kΩ

Connector XLR-3

Connection cable 3 m, with XLR-plug

Dimensions Ø 17 x 185 mm

Weight 20 g

Pin assignment of XLR-3 connector

12 3

XLR

XLRXLR

e 608_094285_0206_Sp6.book Seite 6 Dienstag, 28. Februar 2006 9:03 09

Overview of microphone applications

Variant

Application

e602-II

e604

e606

e608

e614

e815

e825

e835

e840

e845

e865

Vocals xxxxxx

Choirs x

Studio,

acoustic instruments

Orchestra x

Brass / Saxophone xx x

Acoustic guitar x

Acoustic bass x

Guitar amplifiers x

Bass amplifiers x

Leslie xxx

Piano, grand piano x

Kick drums x

Snare drums xxx

Rack toms xxx

Floor toms xxx

Congas xxx

Cymbals x

Percussion xxxx

Overheads x

e 608_094285_0206_Sp6.book Seite 7 Dienstag, 28. Februar 2006 9:03 09

Manufacturer declarations

Warranty

2 years

Approval

Sennheiser electronic GmbH & Co. KG declare that this device

is in compliance with the applicable CE standards and regula-

tions.

WEEE Declaration

Please dispose of this product at the end of its operational li-

fetime by bringing it to your local collection point or recycling

centre for such equipment.

e 608_094285_0206_Sp6.book Seite 8 Dienstag, 28. Februar 2006 9:03 09

Sennheiser electronic GmbH & Co. KG

30900 Wedemark, Germany

Phone +49 (5130) 600 0

Fax +49 (5130) 600 300

www.sennheiser.com

Printed in Germany Publ. 01/07094285/A02
