e 901

Instruction manual

e 901 | 2/7

Delivery includes

• e 901

• pouch

• quick guide

• safety guide

Product overview

1. Sound inlet basket

2. XLR-3 connector

3. Rubber damping plate

4. Mounting slots

Installation

Connecting the microphone

Connect the XLR-3 socket of the microphone cable (optional accessories) to the XLR-3 socket of

the microphone.

e 901 | 3/7

Operation

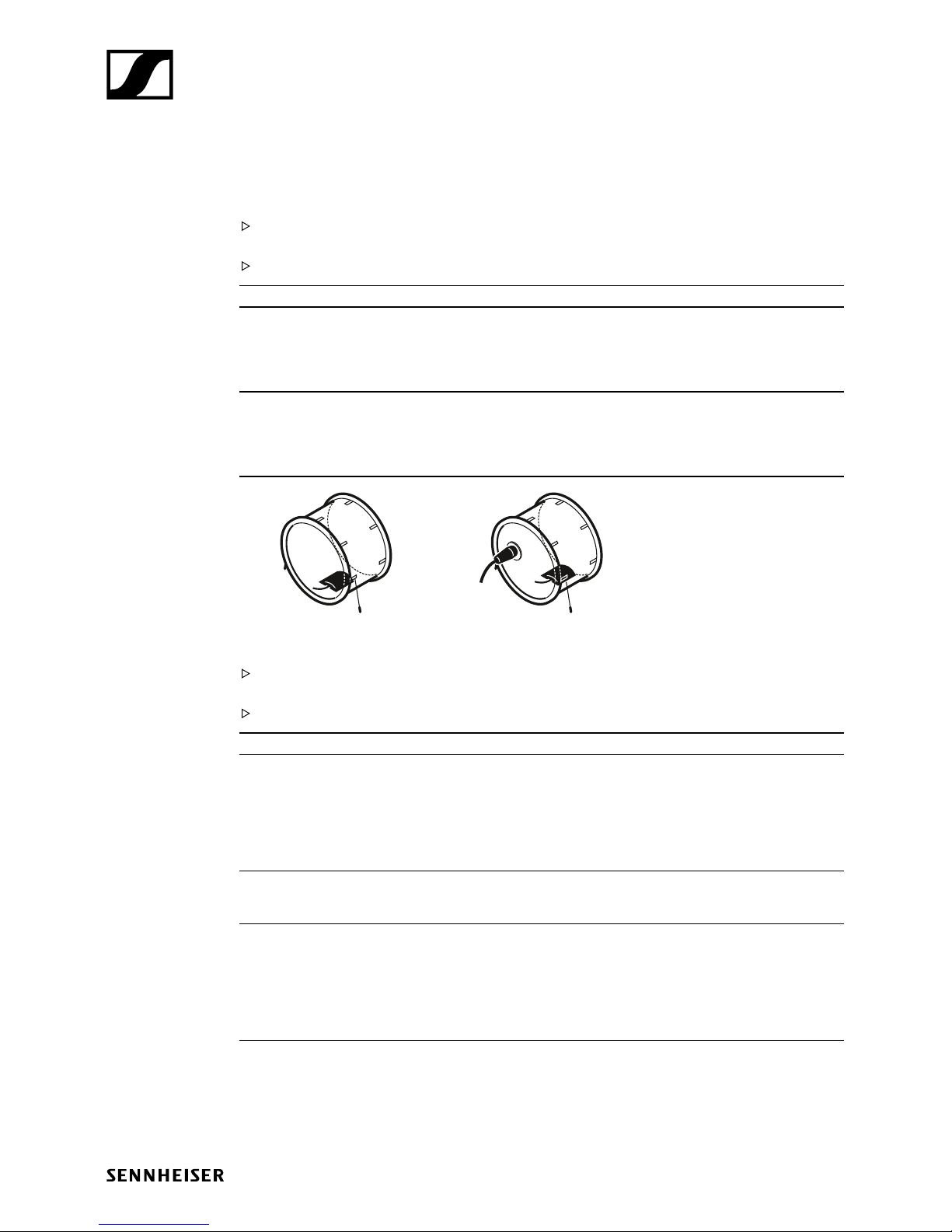

Positioning the microphone in a drum

Place the e 901 in the drum. Position the microphone so that its sound inlet basket is directed

upwards.

It is vital to observe the following notes:

Position Resulting sound Commentary

A Much resonance

Much attack

Less attack: Turn the micro-

phone away from where the

beater strikes.

Position the microphone at the bottom of the kick

drum, approx. 10–20 cm from the batter head.

B The e 901 is used for picking

up the attack, the e 902 for

picking up the fundamental.

Combined with an e 902 positioned at the resonant

head. The lower micro-phone must be phase-rever-

sed to avoid phase-cancellation effects due to the

second microphone being on the other side of the

drumskin.

A B

Positioning the microphone on sound-reﬂecting surfaces

Place the e 901 on the desired sound-reﬂecting surface. Position the microphone so that its sound

inlet basket is directed towards the sound source.

It is vital to observe the following notes:

Position Resulting sound Commentary

C Less room resonance por-

tions or comb ﬁlter elements

Improved speech intelligi-

bility

Greater gain reserves in

contrast to free-standing

microphones

Lying on the altar or lectern. Unobtrusive due to ﬂat

design. No microphones in the ﬁeld of vision.

D Less room resonance in

contrast to free-standing

microphones

Lying on the conference table, directed towards the

conference participants. Microphone must not be

covered by papers, folders or similar objects.

E Less room resonance in

contrast to free-standing

microphones

Improved speech intelligi-

bility

Lying at the edge of the stage and directed towards

the stage. As spot microphone of the PA system or

for monitoring purposes in the theater cloakrooms.

Excellent rejection of rumble noise; if necessary, pla-

ce the microphone on a soft pad (e.g. mousepad).

If necessary, combine with overhead microphones

(e.g. Sennheiser ME 36 with MZH 30B & MZC 30).

e 901 | 4/7

Operation

EDC

Positioning the monitor loudspeakers

To prevent feedback and crosstalk, postion your monitor loudspeakers in the angle area of the

highest cancellation of the microphone (approx. 180°).

180°

e 901 | 5/7

Cleaning and maintaining the e 901

CAUTION

LIQUIDS CAN DAMAGE THE ELECTRONICS OF THE PRODUCT!

Liquids entering the housing of the product can cause a short-circuit and damage the electronics.

Keep all liquids away from the product.

Do not use any solvents or cleansing agents.

Disconnect the products from the power supply system and remove rechargeable batteries and

batteries before you begin cleaning.

Clean all products only with a soft, dry cloth.

e 901 | 6/7

Speciﬁcations

Transducer principle pre-polarised condenser microphone

Frequency response 20 - 20,000 Hz

Pick-up pattern half-cardioid

Sensitivity (free ﬁeld, no load) 0.5 mV/Pa

Nominal impedance (at 1 kHz) < 100 Ω

Min. terminating impedance 1 kΩ

Max. sound pressure level (at 1 kHz) 154 dB

Phantom powering 48 V

Connector XLR-3

Dimensions 126.5 x 105 x 26.5 mm

Weight 550 g

Polar pattern

125 Hz

250 Hz

500 Hz

1,000 Hz

2,000 Hz

4,000 Hz

8,000 Hz

16,000 Hz

30°

0°

180°

150°

120°

60°

90°

30°

0°

180°

150°

120°

60°

90°

Frequency response

-40

-50

-60

-70

-80

-90

100

200

500

1,000

2,000

5,000

10,000

20,000

dBV

0°, 1 m

0°, 5 cm

e 901 | 7/7

Overview of applications

Connector assignment

+ +

XLR 6.3 mm

XLRXLR XLR

BALANCED

Overview of applications

Primary application

Secondary application

•••••

••

••••

••

•••

••

••••• •

•• ••• •••

•• •

•••

•• •

••

••••

••

••••• •

••

••• •

••••• •••

••

••• ••

e 602 II

e 604

e 608

e 609 silver

e 614

e 835

e 845

e 865

e 901

e 902

e 904

e 906

e 908

e 914

e 935

e 945

e 965
