Sennheiser EVOLUTION E908 Bedienungsanleitung

e 908

Bedienungsanleitung

Instruction manual

Notice d‘emploi

Istruzioni per l‘uso

Instrucciones de uso

Manual de utilização

Gebruiksaanwijzing

Инструкция по эксплуатации

使用说明

Stage Microphones























125 Hz

250 Hz

500 Hz

1,000 Hz

2,000 Hz

4,000 Hz

8,000 Hz

16,000 Hz

30°

0°

180°

150°

120°

60°

90°

30°

0°

180°

150°

120°

60°

90°

- 50

- 60

- 70

- 80

- 90

- 40

dBV

0°, 1 m

0°, 5 cm

456

Important safety information

• Please read this instruction manual carefully and completely before

using the product.

• Make this instruction manual easily accessible to all users at all

times.

• Always include this instruction manual when passing the product on

to third parties.

Before operation

• Never open the housing of the product. If products are opened by

customers in breach of this instruction, the warranty becomes null

and void.

• Only use attachments, accessories or spare parts specified by

Sennheiser.

During operation

• Liquids entering the product can short-circuit the electronics or

damage the mechanics. Keep all liquids away from the product.

• Solvents or cleansing agents can damage the surface of the product.

Only use a soft, slightly damp cloth to clean the product.

• Do not expose the product to extreme temperatures.

After operation

• Handle the product with care and store it in a clean, dust-free

environment.

Intended use

Intended use includes:

• having read this instruction manual, especially the chapter “Impor-

tant safety information”,

• using the product within the operating conditions and limitations

described in this instruction manual.

“Improper use” means using the product other than as described in

this instruction manual, or under operating conditions which differ

from those described herein.

The e 908 B/e 908 B ew/e 908 D

These microphones are professional pre-polarized condenser micro-

phones. An extended dynamic range and a well balanced frequency

response deliver an outstanding signal quality with excellent projec-

tion and the lowest possible distortion. An excellent directivity across

the whole frequency range enables the mics to handle the highest

signal levels without feedback.

The e 908 D has been developed especially for drums and percussion.

The e 908 B is designed for wired use with wind instruments, but

thanks to its instrument clamp it is also suitable for drums with sus-

pension systems or for congas. When combined with an ew bodypack

transmitter (SK 100 G3, SK 300 G3, SK 500 G3), the e 908 B ew is an

ideal way to give wireless freedom to saxophones.

For wired applications, please use the MZA 900 P phantom power

adapter, which adds phantom powering capability making these mics

suitable for direct connection to professional mixing consoles.

Extensive damping and shock mounting isolates the capsules from

extraneous vibrations, impact and handling noise.

The long, flexible goosenecks enable the mics to be optimally posi-

tioned on the instrument.

Features

• Exceptionally vivid, clear sound

• Optimum positioning on the instrument due to flexible gooseneck

• Shock-mounted capsule provides low sensitivity to impact and

handling noise

• Rugged metal housing

• Extremely robust connection cable

• Can optionally be used with any ew bodypack transmitter or the

MZA 900 P phantom power adapter

Package contents

e 908 D e 908 B e 908 B ew

e 908 D microphone e 908 B microphone e 908 B ew microphone

MZA 900 P phantom

power adapter

MZA 900 P phantom

power adapter

—

MZH 908 D micro-

phone clamp

MZH 908 B micro-

phone clamp

MZH 908 B microphone

clamp

Pouch Pouch Pouch

Instruction manual Instruction manual Instruction manual

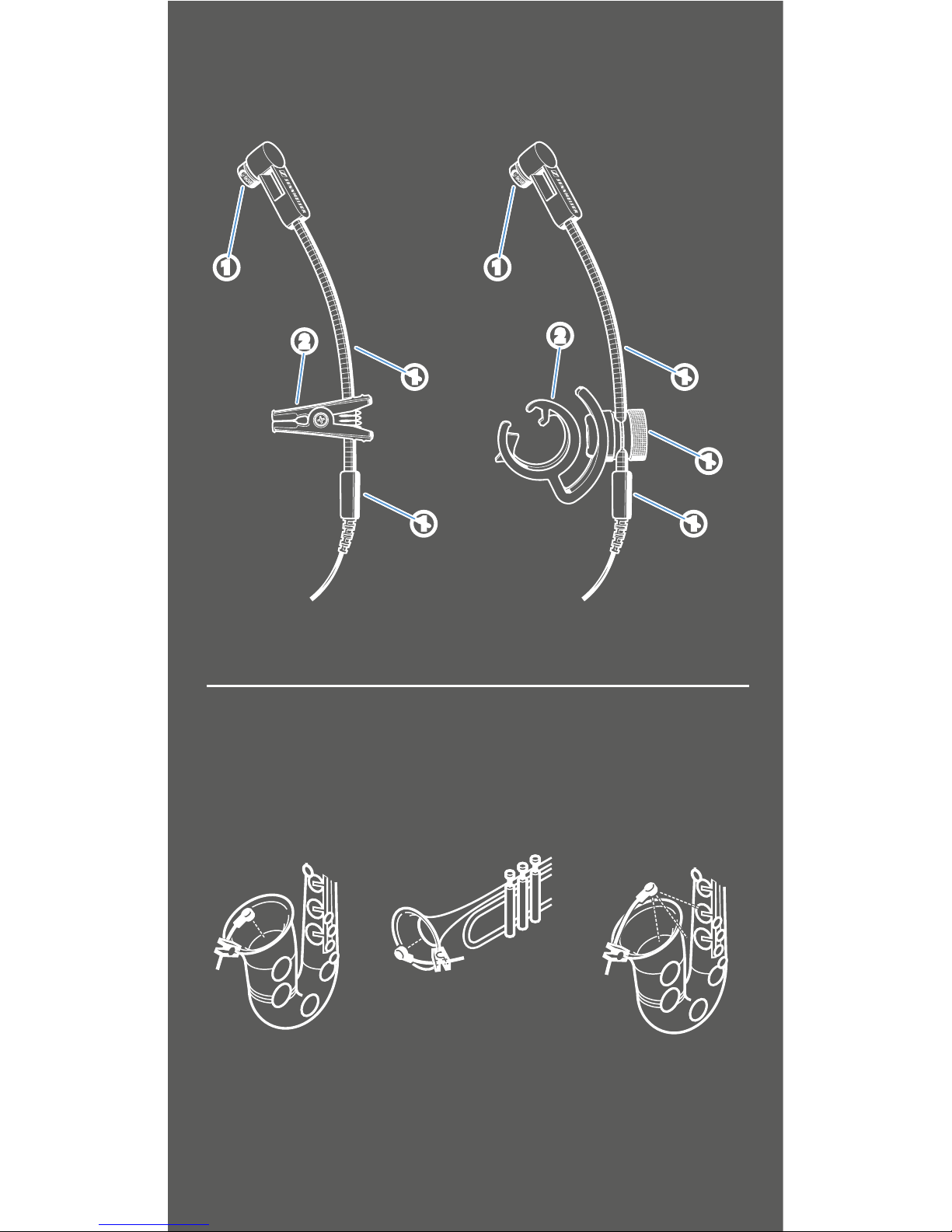

Product overview A*

e 908 D A.1e 908 B A.2e 908 B ew A.2

1 Microphone head

2 MZH 908 D micro-

phone clamp

3 Gooseneck

4 XLR-3 connector

5 Clip

6 Knurled screw

1 Microphone head

2 MZH 908 B micro-

phone clamp

3 Gooseneck

4 XLR-3 connector

1 Microphone head

2 MZH 908 B micro-

phone clamp

3 Gooseneck

4 3.5 mm jack

Diagrams can be found on the cover pages.

Using the microphone

Positioning the microphone on a wind instrument B

(e 908 B, e 908 B ew)

XUse the microphone clamp 2to attach the e 908 to the bell of the

instrument.

Pos. Resulting sound Commentary

B.1 • Reduced ambient noise Directed into the bell of the

instrument.

B.2 • Clear, powerful sound

B.3 • Balanced, natural

sound

Directed partly towards the bell

and partly towards the body of

the instrument.

Positioning the microphone on a drum B(e 908 D)

XAttach the drum clamp 2to the rim of the drum by putting the

upper part of the clip 5onto the rim and clipping it on by push-

ing down the drum clamp 2 in a rotating action until it snaps into

place.

XLoosen the knurled screw 6.

XInsert the gooseneck 3from the side into one of the two slots.

XTighten the knurled screw 6.

Pos. Resulting sound Commentary

B.4 • More fundamental

• Little overtones

Position on the drum: 3–5 cm

above the drumskin, directed

towards the center of the

drumskin, the fundamental to

overtones ratio can be adjusted

by changing the angle of the

microphone.

The most balanced results are

obtained at an angle of 30–60°.

B.5 • Less fundamental

• Many overtones

B.6 • Pronounced proximity

effect

Optional: tangential position of

the gooseneck in order to reduce

the distance to the drumskin.

You can attach two microphones to the drum clamp (e.g. for picking up

two toms in cramped space conditions). To do so, use both slots of the

drum clamp.

The various adjustment possibilities of the MZH 908 D and MZH 908 B

clamps together with the flexible gooseneck enable the microphone

to be optimally positioned on the sound source (see arrows in the

diagrams C).

Positioning the monitor loudspeakers

XTo prevent feedback and crosstalk, postion your monitor loudspeak-

ers in the angle area of the highest cancellation of the microphone

(approx. 180°).

Cleaning and maintaining the e 908

Caution Liquids can damage the electronics of the product!

Liquids entering the housing of the product can cause a

short-circuit and damage the electronics.

XKeep all liquids away from the product.

XDo not use any solvents or cleansing agents.

XOnly use a soft, slightly damp cloth to clean the product.

Specifications

Transducer principle pre-polarized condenser microphone

Frequency response 40 ... 20,000 Hz

Pick-up pattern cardioid

Sensitivity

(free field, no load at 1 kHz) 4.0 mV/Pa

Nominal impedance (at 1 kHz) 100 Ω(balanced)*

Min. terminating impedance 2 kΩ*

Connector

XLR-3*

3.5 mm jack

e 908 B, e 908 D

e 908 B ew

Dimensions Ø 47 x 193 mm

Weight 140 g

* with MZA 900 P (e 908 B/e 908 D)

e 908 B ew for direct connection to ew transmitters

The polar diagram and the frequency response curve Dcan be found

on the cover pages.

Connector assignment

e 908 B/e 908 D

3,5 mm 3,5 mm

e 908 B ew

3,5 mm

Manufacturer Declarations

Warranty

Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months

on this product.

For the current warranty conditions, please visit our website at

www.sennheiser.com or contact your Sennheiser partner.

FOR AUSTRALIA ONLY

Sennheiser goods come with guarantees that cannot be excluded

under the Australian Consumer Law. You are entitled to a replacement

or refund for a major failure and compensation for any other reason-

ably foreseeable loss or damage. You are also entitled to have the

goods repaired or replaced if the goods fail to be of acceptable quality

and the failure does not amount to a major failure.

This warranty is in addition to other rights or remedies under law.

Nothing in this warranty excludes, limits or modifies any liability of

Sennheiser which is imposed by law, or limits or modifies any remedy

available to the consumer which is granted by law.

To make a claim under this warranty, contact

Sennheiser Australia Pty Ltd, Unit 3, 31 Gibbes Street Chatswood NSW

2067, AUSTRALIA.

Phone: (02) 9910 6700, email: [email protected].

All expenses of claiming the warranty will be borne by the person

making the claim.

The Sennheiser International Warranty is provided by Sennheiser

Australia Pty Ltd (ABN 68 165 388 312), Unit 3, 31 Gibbes Street

Chatswood NSW 2067 Australia.

In compliance with the following requirements

• WEEE Directive (2012/19/EU)

Please dispose of this product at the end of its operational

lifetime by taking it to your local collection point or recycling

center for such equipment.

CE Declaration of Conformity

• RoHS Directive (2011/65/EU)

• EMC Directive (2004/108/EC)

The declaration is available at www.sennheiser.com.
