Sentry360 FS-IP8180 Bedienungsanleitung

©Sentry360 2014

FS-IP8180

User Manual

Ver 1.0

Table of Contents

1. Overview............................................................................................................................ 3

1.1 Features ...................................................................................................................... 3

1.2 Package Contents........................................................................................................ 3

1.3 Dimensions.................................................................................................................. 4

1.4 Connectors .................................................................................................................. 5

2. System Requirements ...................................................................................................... 6

3. Access Camera ................................................................................................................. 7

3.1 Web Browser Configuration......................................................................................... 9

1. Overview

The FS-IP8180 camera is an MJPEG or H.264 encoding, 8.0 Megapixel resolution, IP-

addressable, 180 degree camera. It is designed to deliver full-motion, high-definition,

progressive scan digital video across local area networks. The FS-IP8180 features a design

with no moving parts, creating a full 180-degree view with no blind spots. An optically corrected

fish-eye lens, designed exclusively for the FullSight™ camera, allows for immersive 180 degree

live view. The FS-IP8180 is equipped with a mechanical IR cut filter that filters infrared light to

display high-quality video images in low-light environments.

1.1 Features

•8.0 Megapixel CMOS Sensor

•Maximum Resolution: 3840 x 2100

•Maximum Framerate: 12 fps

•IR Cut Filter

•1.4mm f-theta Fisheye Lens

•Full Onvif Compatibility

•Motion Detection

•PoE 802.3af

•0.1 Lux (Color) at F/1.2

•100/10 LAN Connection

•Protocols: UDP, TCP, HTTP, TFTP, RTSP

•Automatic Exposure

•Automatic White Balance

•Brightness, Contrast, Saturation Controls

1.2 Package Contents

Please check the package contains the following items listed below.

•Camera with Lens

•Quick Start Guide

1.3 Dimensions

The FS-IP8180 camera and lens dimensions are shown below.

1.4 Connectors

The diagram below shows the FS-IP8180 connections.

Designation

Description

DC Power

12V DC Power Connector

LAN Port

PoE and Ethernet Port

2. System Requirements

To connect to the FS-IP8180 via web browser, please ensure your PC has a good network

connection, and meets system requirements as described below.

Items

System Requirement

Web Browser

Microsoft Internet Explorer

Mozilla Firefox

Google Chrome

Apple Safari

3. Access Camera

Step 1. Power your camera using the correct power source (PoE switch, PoE injector, or

12V adapter).

Step 2. Download, install, and run sentryView™, Sentry360’s camera configuration tool,

here: http://sentry360.com/product/sentryview/

Step 3. Click the Scan button in sentryView™ to scan your network for connected cameras.

Step 4. To automatically configure your camera network settings, check the boxes of the

cameras you want to configure. Then click Auto Configure.

Step 5. Confirm your network settings and click Configure.

Step 6. To manually configure your cameras, click Edit Camera Values at the bottom right,

enter your IP Address, Subnet Mask, Gateway, and DHCP settings. Click Apply to

save these values.

Step 7. Your cameras are now configured. If you are using sentryCore™ as your Video

Management System, please download the latest version here:

http://sentry360.com/product/sentrycore/

Step 8. Right click on a camera and select Browse. The prompt for entering the default

username and password will appear for logging in to the FS-IP5000-M.

3.1 Web Browser Configuration

Camera configuration is accessed through the web browser interface by clicking the Show

Settings button.

When configuration is complete, click the System Tab -> Save to commit settings to permanent

memory.

Inhaltsverzeichnis

Andere Sentry360 Sicherheitskamera Handbücher

Sentry360

Sentry360 FS-IP5000-M Bedienungsanleitung

Sentry360

Sentry360 FS-IP6360-V Bedienungsanleitung

Sentry360

Sentry360 FS-IP14K-DN Bedienungsanleitung

Sentry360

Sentry360 FS-IP12180 Bedienungsanleitung

Sentry360

Sentry360 FS-IP12360-V Bedienungsanleitung

Sentry360

Sentry360 IS-DM200 Bedienungsanleitung

Sentry360

Sentry360 IS-IP14K Bedienungsanleitung

Sentry360

Sentry360 IS-BL800 Bedienungsanleitung

Sentry360

Sentry360 IS-IP200-IRB Bedienungsanleitung

Sentry360

Sentry360 IS-IP200-IRB Bedienungsanleitung

Sentry360

Sentry360 IS-DM830 Bedienungsanleitung

Sentry360

Sentry360 IS-DM260 Bedienungsanleitung

Sentry360

Sentry360 FS-IP10K Bedienungsanleitung

Sentry360

Sentry360 IS-IP200-DN Bedienungsanleitung

Sentry360

Sentry360 FS-IP5000 Bedienungsanleitung

Sentry360

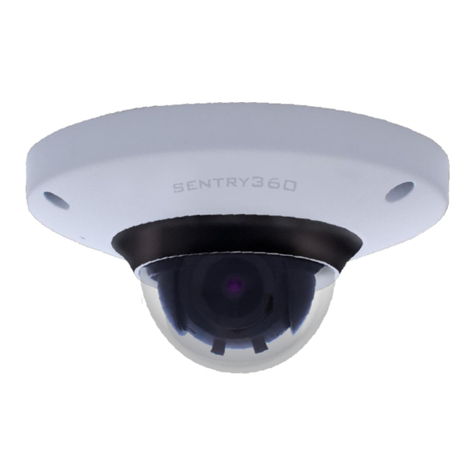

Sentry360 FS-IP3000-M Bedienungsanleitung
