SEWOO LK-P20II Bedienungsanleitung

2-inch Label

Mobile Printer

Mobile PrinterMobile Printer

Mobile Printer

Technical Manual

Technical ManualTechnical Manual

Technical Manual

SEWOO TECH

SEWOO TECHSEWOO TECH

SEWOO TECH CO., LTD

CO., LTD CO., LTD

CO., LTD

www.miniprinter.com

www.miniprinter.comwww.miniprinter.com

www.miniprinter.com

Rev 1.0

2008.07.24

2-inch Label Technical Manual

TABLE OF CONTENTS

1. Programming Introduction 5

2. Printer Commands 6

A. Printer Commands

B. PRINT Command

C. FORM Command

D. JOURNAL Command

E. UNITS Command

F. Using Commend

3. TEXT 10

A. TEXT Command

B. FONT-GROUP(FG) Command

C. TEXT CONCATENATION Command

D. MULTILINE(ML) Command

E. COUNT Command

F. SETMAG Command

4. Linear Bar Codes 15

A. BARCODE Command

B. BARCODE-TEXT Command

5. Two-Dimensional Bar Codes 17

A. PDF417 (PORTABLE DATA FILE)

B. MAXICODE

6. Graphics 20

A. BOX Command

B. LINE Commands

C. INVERSE-LINE Commands

D. PATTERN Command

E. GRAPHICS Commands

F. PCX Commands

2-inch Label Technical Manual

7. Advanced Commands 24

A. CONTRAST Command

B. TONE Command

C. JUSTIFICATION Commands

D. PAGE-WIDTH Command

E. PACE Command

F. NO-PACE Command

G. WAIT Command

H. SPEED Command

I. SETSP Command

J. ON-OUT-OF-PAPER Command

K. ON-FEED Command

L. PREFEED Command

M. POSTFEED Command

N. COUNTRY/CODE PAGE Command

O. USING FORMAT FILES

P. BEEP Command

8. Line Print Mode 31

A. SETLP Command

B. SETLF Command

C. Moving With X and Y Coordinates

D. LMARGIN Command

E. SETBOLD Command

F. SETSP Command

G. PAGE-WIDTH Command

H. PAGE-HEIGHT Command

I. Special ASCII Characters

J. SETFF Command

K. SET-TOF Command

L. SETLP-TIMEOUT

2-inch Label Technical Manual

9. Advanced Utilities 35

A. VERSION Utility

B. CHECKSUM Utility

C. DEL Utility

D. DIR Utility

E. DEFINE-FILE(DF) Utility

F. TYPE Utility

G. BAUD Utility

H. TIMEOUT Utility

I. ON-LOW-BATTERY Command

J. LT Command

K. SET-TIME Utility

L. GET-TIME Utility

M. SET-DATE Utility

N. GET-DATE Utility

O. Printing a Time Stamp

P. Printing a Date Stamp

Q. PAPER-JAM Utility

10. Printer Escape Commands 41

A. SET AND READ CODE Command

B. STATUS/INFORMATION

C. POWER OFF Command

11. Configuration/Control Commands 43

A. Command Format

B. Commands/Parameters

2-inch Label Technical Manual

1. Programming introduction

This manual details the various commands in the CPCL language which allow the programmer to utilize

the built in text, graphics, bar code printing and communications capabilities. The following notation

conventions are used throughout this manual.

{

Required item

[]

Optional item

()

Abbreviated command

Literal item

A space character is used to delimit each field in a command line.

Getting Printer Information

The printer can print a report containing information about the application resident in the printer memory.

This information can be printed by following these procedures.

1. Turn off the printer

2. While holding the FEED key down, turn the printer on.

3. When printing begins, release the FEED key.

The printing will contain information about printer model, ROM version, serial number, baud rate, USB, Bluetooth,

font extra information which has been saved in the printer. In addition, certain amount of ASII hex codes will be

printed to check the printing quality.

If you require to set for communication Diagnostic Mode, press FEED button again after printing information by

following the steps above. The printer then indicates received information with hexadecimal.

Label aker

As LaberMaker has similar interface as general graphic edit tool, you can design readily without specific expertise

for programming and print the data through LUKHAN Portable Printer. Moreover, you are able to save the label

image into your PC with LBL file format. Saved label file can be reopening and edited.

Apart from the function of designing, you can save the file by communicating with printer, reopen saved file or see

the state information of the printer.

2-inch Label Technical Manual

2. Printer commands

A label file always begins with the “!” character followed by an “x” offset parameter, “x” and “y” axis

resolutions, a label length and finally a quantity of labels to print. The line containing these parameters is

referred to as the Command Start Line.

A label file always begins with the Command Start Line and ends with the “PRINT” command. The

commands that build specific labels are placed between these two commands.

☞

☞☞

☞ NOTE:

NOTE: NOTE:

NOTE:

Every line in the command session must be terminated with both carriage-return and line –feed

characters. All printer Commands must be in uppercase character ONLY.

A. PRINTER Commands

Form

<!> {offset <200> <200> {height {qty

<!>

Session start

{offset

The value of label horizontal offset

<200>

Horizontal resolution

<200>

Vertical resolution

{height

Maximum value of Label Height

The Maximum height of the label is the numerical value deducted 1/16” (1.5mm) from the value which

is measured from first bar (or gap) to the next bar (or gab). (In dots: 12donts on 203 dpi).

The quantity of label. The maximum value is 1024

2-inch Label Technical Manual

B. Print command

The print command terminates and prints the file. This must always be the last command (except

when in Line Pint Mode). Upon execution of the Print command, the printer will exit from a control

session. Be sure to terminate this and all commands with both carriage-return and line-feed characters.

Format

{command

Command & option

{command

C. FOR Command

The Form command will execute a form feed after the label is printed and instructs the printer to feed

to top of form after printing.

Format

{command

Command & option

{command

FORM

D. JOURNAL Command

Be default, the printer will check for correct media alignment if it encounters the eye-sense mark

during a print cycle. If necessary, the Journal command can be used to disable this automatic

correction feature.

Format

{command

Command & option

{command

JOURNAL

2-inch Label Technical Manual

E. UNITS Command

The Units commands are used to specify a measurement system for all subsequent command fields

in a control session. Coordinates, widths, and heights for all control commands can be entered with

precision for four decimal places. The printer measurement system will default to dots until a units

command is issued.

Format

{command

Command & option

IN-INCHES Measurement in inches.

IN-CENTIMETERS Measurement in centimeters

IN-MILLIMETER Measurement in millimeters.

{command

IN-DOTS Measurement in dots

2-inch Label Technical Manual

F. Using Comments

Comments can be added between the first line of a command start line and the print command.

A comment is placed in the file by starting a line with the ‘;’ character in the first column. Any

remaining text to the end of the line will be ignored. Comments are illegal between the CONCAT and

ENDCONCAT commands.

2-inch Label Technical Manual

3. TEXT

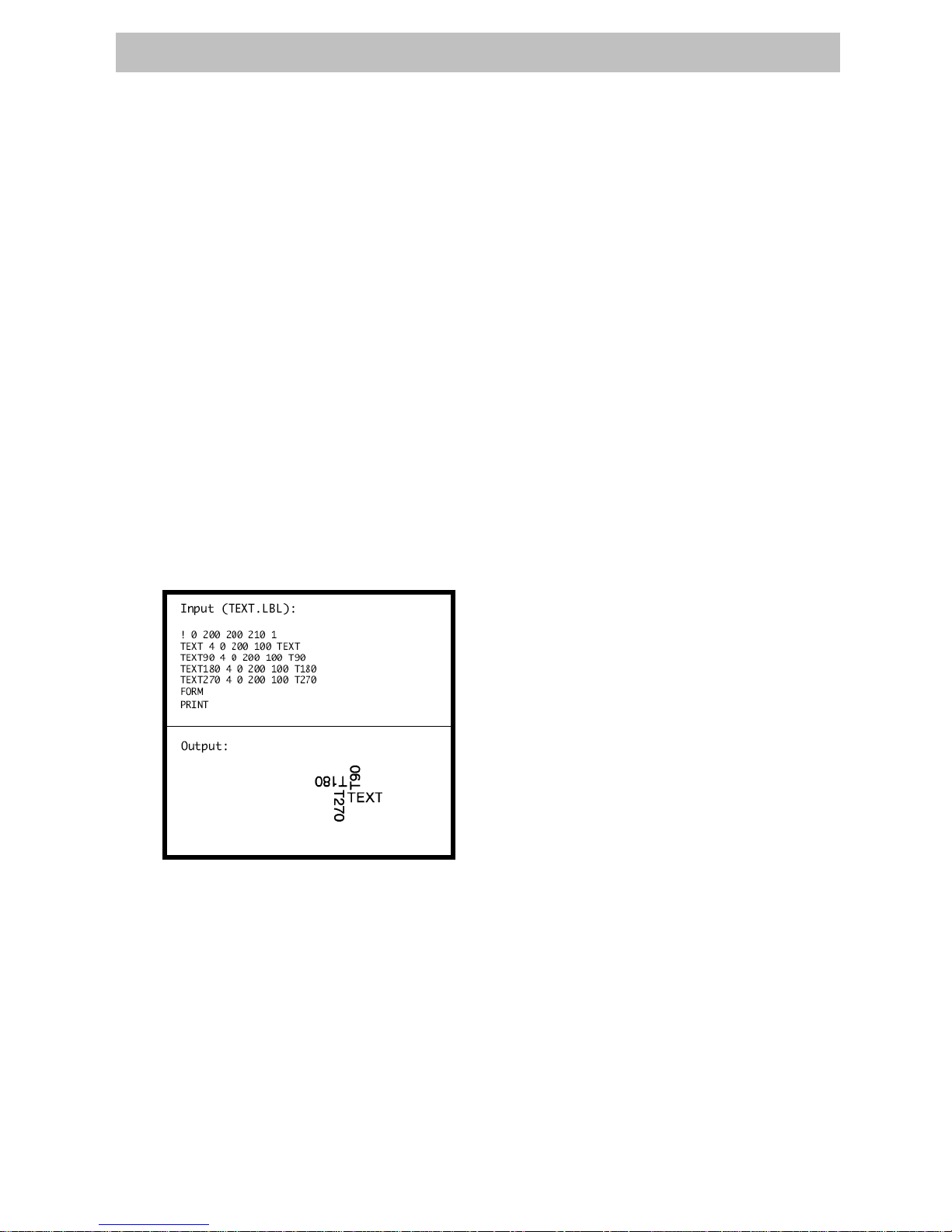

A. TEXT Commands

The TEXT command is used to place text on a label. This command and its variants control the

specific font number and size used, the location of the text on the label.

Format

{command {font {size {x {y {data

Command & option

TEXT (or T) Prints text horizontally

VTEXT (or VT) Prints text (vertically) rotated 90degrees counterclockwise

TEXT90 (or T90) Same as VTEXT above.

TEXT180 (or T180)

Prints text (upside down) rotated 180 degrees

counterclockwise

{command

TEXT270 (or T270)

Prints text (vertically) rotated 270 degrees

counterclockwise

{font

font의 Name/number

{size

font의 size

Horizontal starting position

Vertical starting position

{data

The text to be printed
