SEWOO LK-T12 Bedienungsanleitung
Receipt Printer User’s Manual
MODEL : LK-T12
전자파 적합등록
A급 기기(업무용)
▶ 이 기기는 업무용(A급)으로 전자파 적합등록을 한 기기이오니 판매자 또는 사용자는 이점을
주의하시기 바라며, 가정 외의 지역에서 사용하는 것을 목적으로 합니다.
인증 사항
인증자 상호 ㈜세우테크
LK-T12
2009. 06. 11
㈜세우테크 / 한국
SWP-LK-T12(A)
MINI PRINTER
모델명
제조년
제조자/제조국가
인증번호
기기의 명칭
이 사용설명서와 제품은 저작권법에 의해 보호되어 있습니다.
본 제품을 분류되지 않은 자치단체 쓰레기로 처리하지 마십시오,
본 제품은 재활용이 가능하며, 해당 지역의 기준에 따라 재활용해야 합니다.
Disposal of Old Electrical&Electronic Equipment(Applicable in the European
Union and other European countries with separate collection systems)
2
1. Parts Identications 3
2. Setting up the printer 4
2.1 Unpacking 4
2.2 Connecting the cables 5
2.3 Loading the roll paper 9
2.4 Dip switch setting 11
3. Control panel and other functions 14
3.1 Control panel 14
3.2 Error Indicating 14
4. Self Test 15
5. Hexadecimal Dump 16
6. Specications 17
6.1. General Specications 17
6.2. Auto Cutter Specications 19
6.3. Interface 19
6.4. Electrical Characteristics 19
6.5. Environmental Requirements 20
6.6. Reliability 20
6.7. Certication 20
7. Command List 21
Table of Contents
3

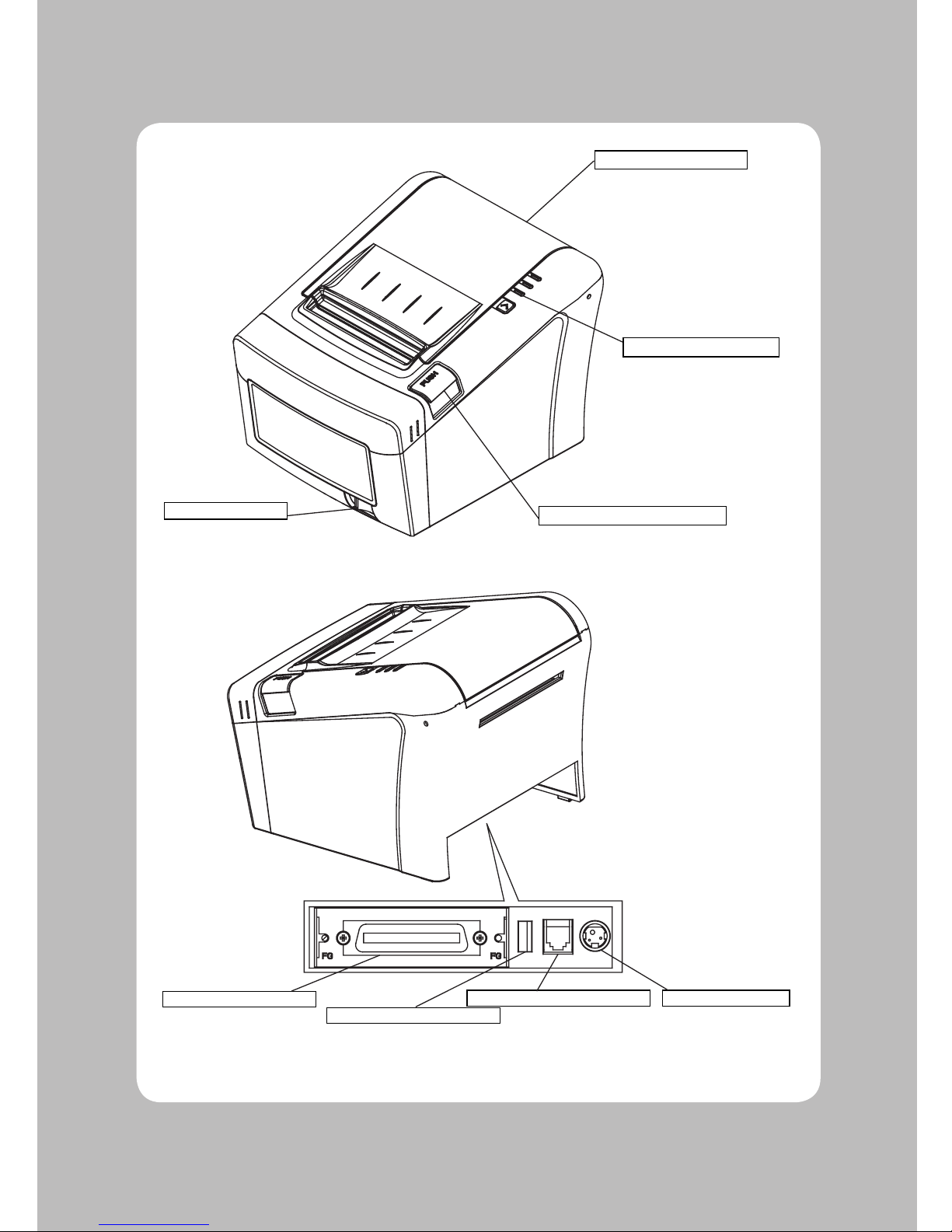

1. Parts Identifications
PRINTER COVER
POWER SWITCH
CONTROL PANEL
COVER OPEN PUSH BUTTON
INTERFACE CONNECTOR PERIPHERAL DRIVE CONNECTOR POWER CONNECTOR
INTERFACE CONNECTOR (USB)
Open this cover to load or
replace a paper.
Used to turn on/off
power to the printer.
Features LED indicators
to indicate printer status
and switches to operate
the printer.
Push down this button to
open the printer cover.
4

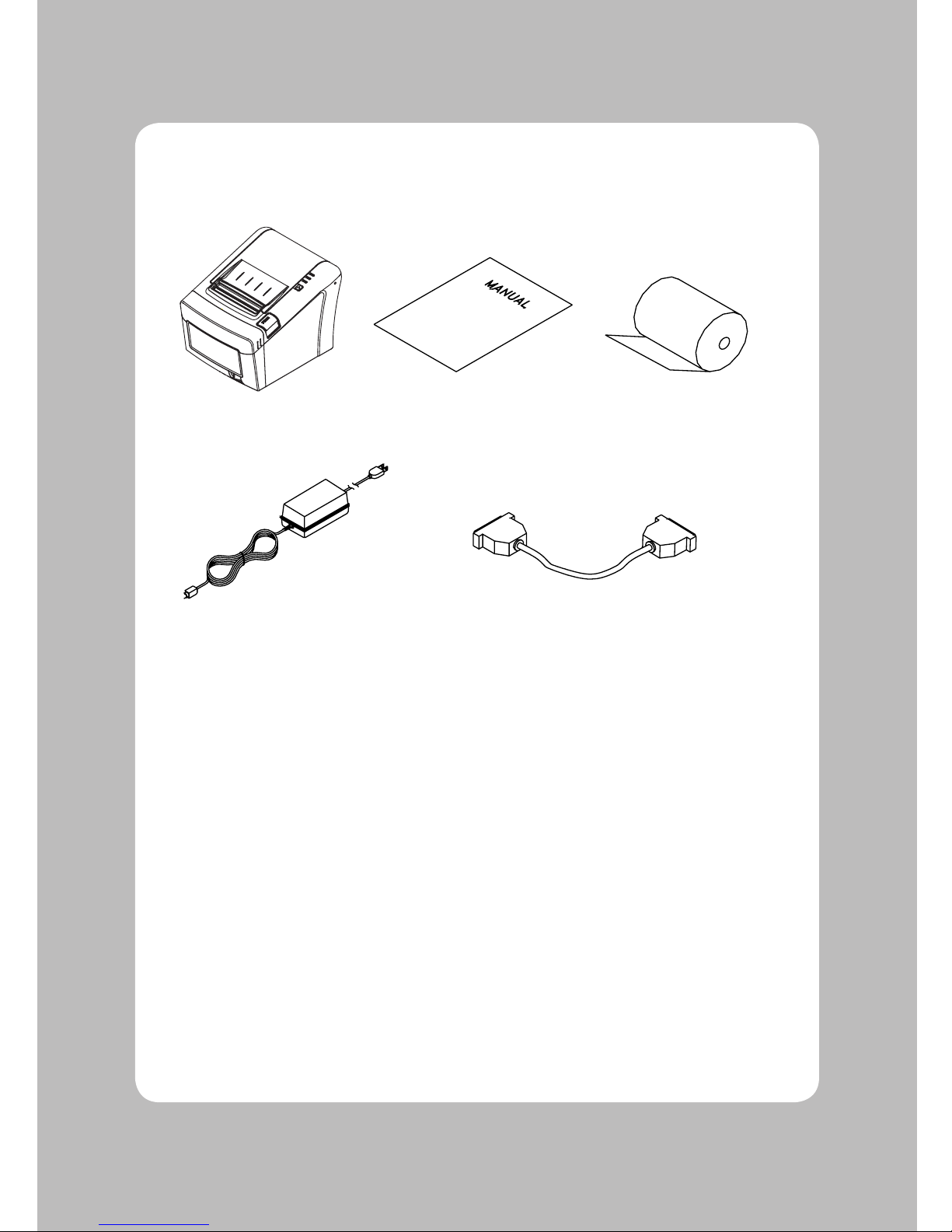

2-1. Unpacking
Your printer box should include these items. If any items are damaged or missing, please contact your
dealer for assistance.
The Printer User's Manual Roll Paper
Adaptor(Option) Interface Cable(optional)
2. Setting Up the Printer
5

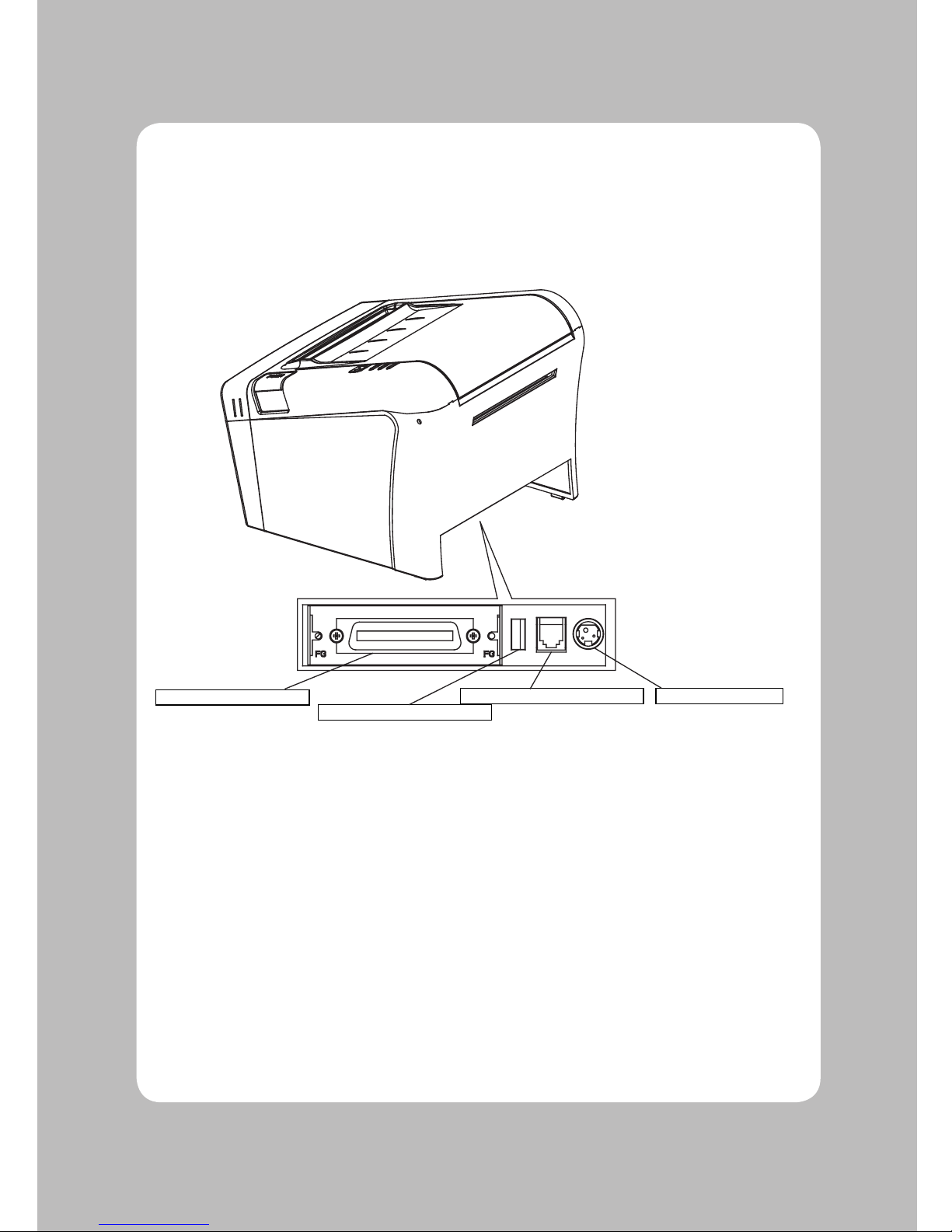

2-2. Connecting the Cables
All cables connect to the connector panel on the back of the printer which is shown below:
Before connecting any of the cables, make sure that both the printer and the computer are turned off.
INTERFACE CONNECTOR PERIPHERAL DRIVE CONNECTOR POWER CONNECTOR
INTERFACE CONNECTOR (USB)
For connection to a
host computer. For connection to a
host computer.
For connection of the
AC adapter.
Never unplug the AC
adapter while the
printer is on.
Connects to peripheral
units such as cash
drawer, etc.
Do not connect this to a
telephone.
6

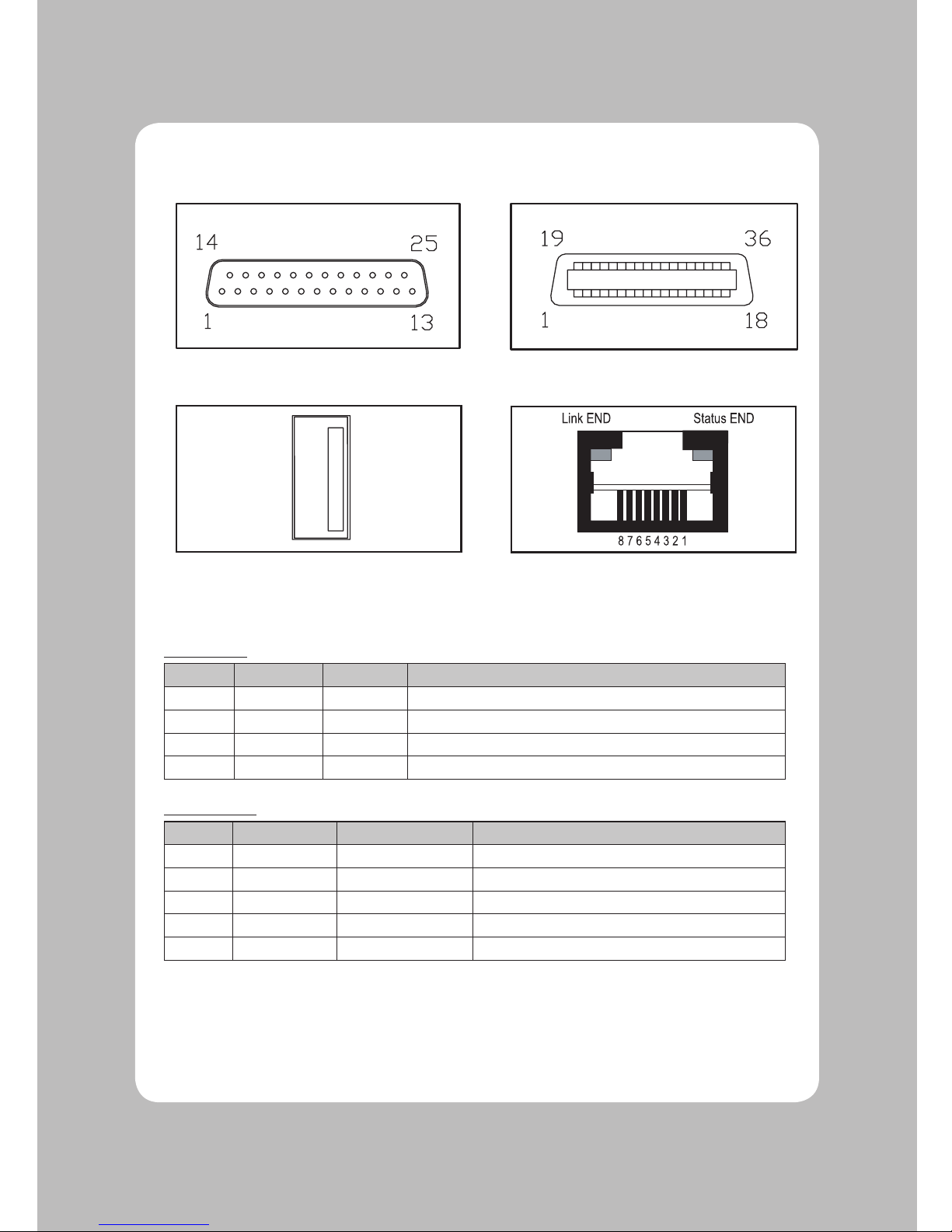

2-2-1. Interface Connector
<D-SUB 25 Female Serial> <Centronics Parallel>
<USB “A” Type> <Ethernet>
USB Interface
PIN SIGNAL I/O DESCRIPTION
1 +5V - +5V
2 DATA- - Printer transmit data line
3 DATA+ - Printer transmit data line
4 GND - System Ground
Serial Interface
PIN SIGNAL I/O DESCRIPTION
2 TxD Output Printer transmit data line RS-232C level
3 RxD Input Printer receive data line RS-232C level
4, 20 DTR Output Printer handshake to host line RS-232C level
6 DSR Input Data Send Ready
1, 7 GND - System Ground
7
Centronics Parallel Interface
PIN SIGNAL I/O DESCRIPTION
1 STROBE- Input Synchronize signal Data received
2~9 DATA0~7 Input/Output Data bit Transmitted 0~7
10 ACK- Output Data receiving completed.
11 BUSY Output Impossible to print of data receiving.
12 PE Output Paper empty
13 SELECT Output Printer status for ON/OFF line
14 AUTO FEED- Input Paper auto feed signal
15 GROUND - System ground
16 GROUND - System ground
17 NC -
18 LOGIC-H - +5V
19~30 GROUND - System ground
31 INIT- Input Initialize
32 ERROR- Output Printer error
33 GROUND - System ground
34 NC -
35 +5V - +5V
36 SELLECT IN- Input Printer select signal
Ethernet Interface
PIN SIGNAL I/O
1 Data Out + Output Data +
2 Data Out - Output Data -
3 GND Ground
4 Data IN + Input Data +
5 Data IN - Input Data -
6 N.C
7 N.C
8N.C
8
2-2-2. Cash Drawer Connector
The printer can operate two cash drawers with a 6 pin RJ-11 modular connector.
The driver is capable of supplying a maximum current of 0.1A for 510ms or less when not printing.
PIN SIGNAL DESCRIPTION
1 Signal GND -
2 Drawer kick-out drive signal 1 Output
3 Drawer open/close signal Input
4 +24V -
5 Drawer kick-out drive signal 2 Output
6 Signal GND -
9

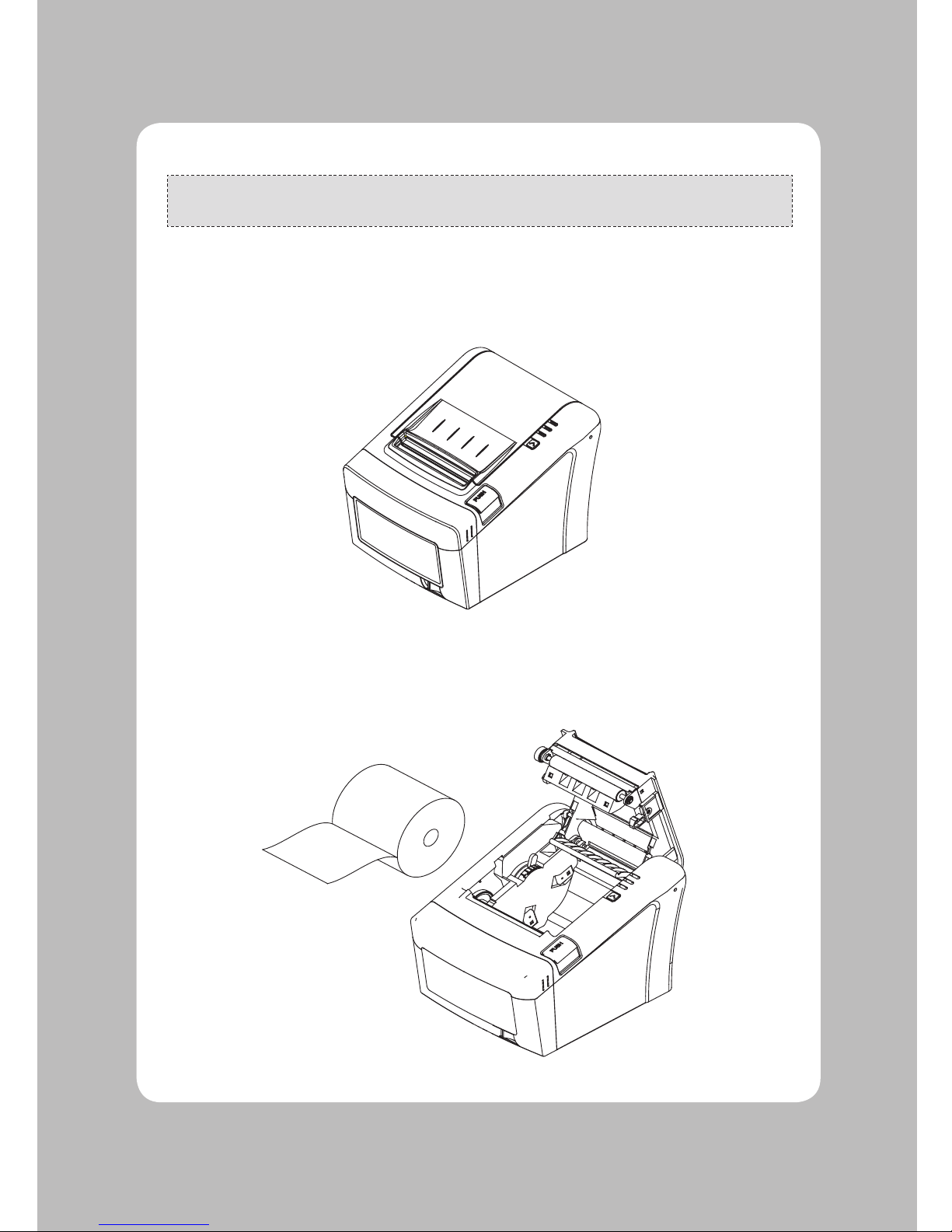

2-3. Loading the Roll Paper
Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the
paper glued to the core because the printer cannot detect the paper end correctly.
♣Turn off power switch.
1. Make sure that the printer is not receiving data; Otherwise, data may be lost.
2. Open the paper roll cover by pushing down the cover open push button.
3. Remove the used paper roll core if there is one inside.
4. Insert new paper roll as shown.
