Shenchen Precision Pump ZG600x Bedienungsanleitung
Peristaltic Pump
Manual of ZG600x
Important information：
Please read the instructions carefully before operation。
warning：
Please connect the power cord directly to a wall outlet and avoid using
extension cords.
If the power cord or plug is worn or otherwise damaged, unplug the power
cord (with the plug unplugged instead of the power cord).
Turn off the power and unplug the power plug (holding the plug and not the
power cord) if:
1. Fluid splashed on the machine.
2. You think the machine needs to be repaired or repaired.
The customer's electrical outlet must be grounded and reliably grounded。
Note: The foot switch and other external control plugs must be loaded and
unloaded in the power-off state to prevent burned external control interface。
Catalogue
1. ZG600x Pump Introduction ........................................................................-1-
2. ZG600x Appearance...................................................................................-1-
3. ZG600x Application...................................................................................-2-
4. ZG600x Technidal Specification................................................................-2-
5. ZG600x Operation Instruction....................................................................-3-
6. External Control Interface...........................................................................-4-
7. Product Dimension.....................................................................................-6-
8. Product Maintenance..................................................................................-6-
9. Warranty and After Sales Service................................................................-7-
Pump ZG600x Series
-1-
1. Product Introduction
ZG600X peristaltic pump easy to operate, high precision, corrosion resistance,
remote control, practicality, commonly used in industrial fields, such as chemical
plants in the production process to add accessories and so on. Can also be used to
do a variety of laboratory liquid cell filtration, supporting the use of plate filters.
With external control start and stop functions, remote control start and stop, 0-5V,
0-10V, 4-20mA three kinds of analog signals optional control speed can be
achieved with other equipment supporting
Pump head: YZ35.
2. ZG600X Appearance
A---Pump head
B----Drive
Pump ZG600x Series
-2-
C. External control interface
D. Built-in fuse
E. Power socket
3. ZG600x Typical Application
Form a complete set of filtration system or plate filter
Molecular tangential flow ultrafiltration solution
Large liquid cans
Large flow transmission
4. ZG600x Technical Specification
Speed
60～660rpm，Reversible
reversible
Power
supply
AC220V±10%，
50Hz/60Hz(Standard)
Power
consumption
＜300W
AC110V±10%，50Hz/60Hz(chose)
Speed mode
Multi-turn potentiometer
adjust speed
Temperature
0-40℃
Display
method
4 LED display the current
speed
Relative
humidity
<80%
Pump ZG600x Series
-3-
External
control mode
Passive switch signal
Dimension
(L*W*H)
325mm*236mm*193mm
External
control speed
0-5V/0-10V/4-20mA
Optional
Weight
17Kg
Pump Head
YZ35
IP rate
IP31

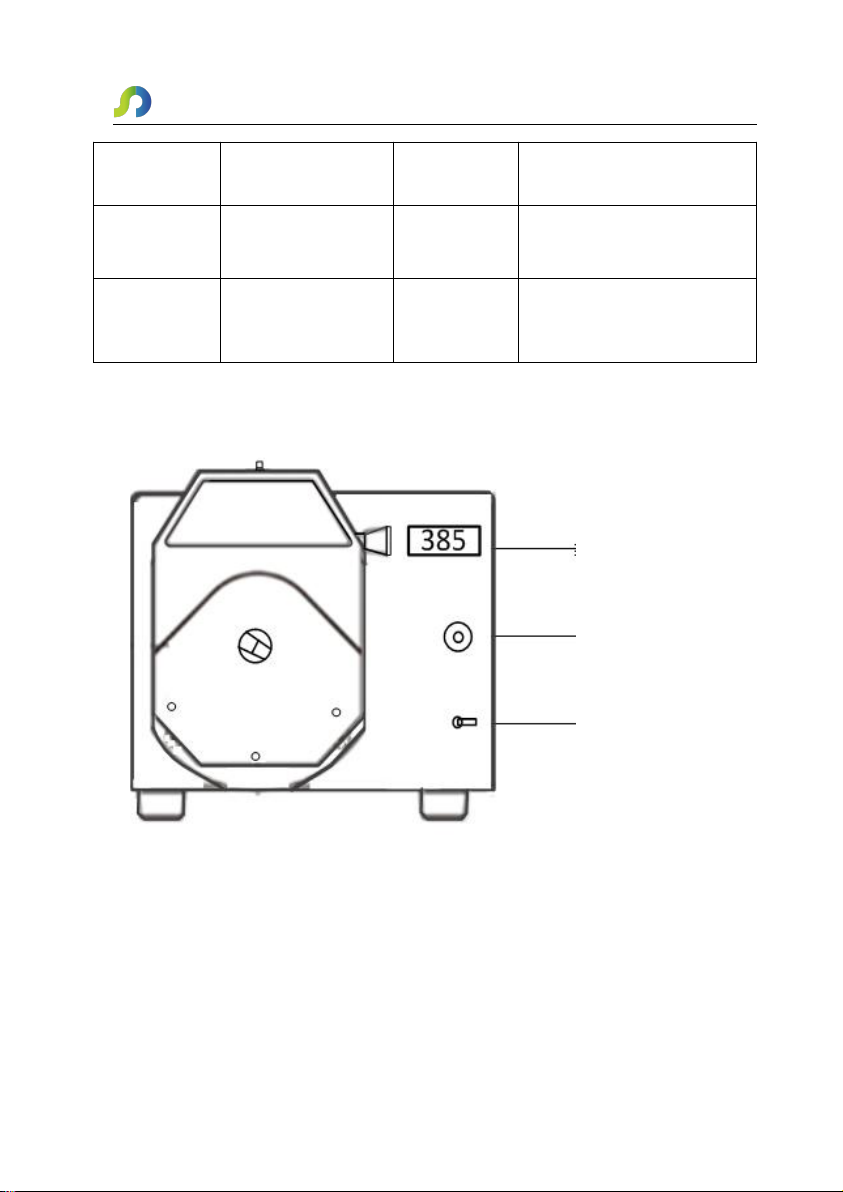

5. ZG600x Pump Operation
Digital Speed Display
Speed Control Knob
Left/Stop/Right Switch
Digital LED Speed Display
Display the pump working speed, it changed according with the control knob
rotation.
Pump ZG600x Series
-4-
Start/Stop, Working direction control
When the left-stop-right switch is set to "left", the pump runs counterclockwise at
the set speed; when it is set to "right", the pump runs clockwise at the set speed;
Pump stopped running。
Speed control function
Clockwise rotation speed control knob, the motor speed increase; turn speed control
knob counterclockwise, motor speed decrease.
6. External Control Interface Instruction
External control interface as shown below：
(1) Internal and external control switch
Pin 5 （EXCHANGE ）:Internal control and external control signal mode
Pump ZG600x Series
-5-
switch port. The port is shorted to GND to switch to the external control mode,
the external control start-stop signal and the external control analog speed
control signal are effective; the port is disconnected from the GND for the
internal control mode, the external control start-stop signal and the external
control analog speed control signal invalid；
(2) External control start/stop
Pin 4（YKSTART）:Start-stop signal port in external control mode. Start and
stop signal port and shorted to GND pump to stop running, disconnect the
pump to start running。
(3) Analog control speed
External control mode, the signal can control the motor from minimum speed
to maximum speed.
Pin 1 (I4-20mA): 4-20mA current signal input
Pin 2 (0-5V): 0V to 5V voltage signal input
Pin 3 (0-10V): 0V to 10V voltage signal input
(4) Pin 9/Pin 10/Pin 11/Pin 12/Pin 13: GND
Note: 1. External control start/stop signal is passive signal (normally open
start, normally closed stop).
2. Must pull out or insert the external control connector when the pump is
power off, to prevent the external control interface from buring.
Pump ZG600x Series
-6-
7. Product Dimension （mm）
8. Maintenance
When pump is not working, please loose the cartridges of pressing the tubing
for avoiding changing the shape of tubing because of longtime extrusion.
Keep the rollers of pump head clean and dry, otherwise it can quicken the
tubing wearing, reduce the useful life of tubing and lead the rollers to damage
in earlier.
Pump head can not resist super corrosive liquid. Please pay attention to it when
it is using.
Keep the rollers of pump head clean and dry. If the surface of rollers is not
clean, it can quicken the tubing wearing, and reduce the useful life of tubing. If
liquid were on the rollers, please dry it. Longtime moisture can damage the
rollers.
Pump ZG600x Series
-7-
9. Warranty and After Service
Products have 3 year warranty (not including tubing). During the warranty, the
products are damaged because of users’ wrong operation or other human damages,
our company do not responsibility for warranty. Beyond the warranty, we only
charge the cost of maintenance. Refer to all maintenance including in and beyond
the warranty, we do not bear any freight charges because of maintenance.
