Shimano SC-M500 Bedienungsanleitung
3
English
Cycle Computer
SC-6501 / SC-M500
INDEX
1. Display Modes • • • • • • • • • • • • • • • • • • •
5
2. Display Contents •••••••••••••••••
6
3. Name and function of each part ••••
8
•
Current speed (VEL)
•••••••••••••••••
9
•
Gear indicator (bar)
•
Time display (CLK)
•
Trip distance group (TIM, DST, MAX, AVE)
••••
10
•
Pace Arrow
•
ODO meter (ODO)
•••••••••••••••••
11
•
Stopwatch (STW) group
•
Cadence (rpm)
••••••••••••••••••••
12
•
Main display cadence (VEL)
•
Lap counter (CNT)
•
Digital number of gear teeth (F-R)
••••••••
13
•
Low battery display (LO BAT)
•
Power saver function
4. Changing the setting data ••••••••
14
and the bicycle number
5. Viewing data after removing the •••
15
computer from the bracket mount
6. Setting tolerances •••••••••••••••
15
7. Installation to the bicycle •••••••••
16
8. Data input •••••••••••••••••••••
17
Replacing the battery •••••••••••••••
23
Using the sticker •••••••••••••••••••
24
Trouble Shooting ••••••••••••••••••
24
4
Be careful not to pay excessive
attention to the computer data while
riding, otherwise you might have an
accident.
NOTE;
* The all clear (AC) button is used to clear the main unit memory.
* Never disassemble the main unit, as it cannot be reassembled.
* The main unit is fully waterproofed to withstand wet weather
conditions; however, do not deliberately place it into water.
* Avoid leaving the main unit exposed to extremely hot weather
conditions.
* Handle the main unit carefully, and avoid subjecting it to any shocks.
* Do not use thinner or other solvents to clean parts such as the main
unit and sensor, as they may dissolve the part casings.
* To clean these parts, wipe them with a cloth soaked in a weak mixture
of neutral detergent and water.
* If using the SM-6501/M/MD together with an LED lamp from another
manufacturer, the speed measurement function may not work
correctly.
If using an LED lamp from another manufacturer, it is recommended
that you use the SM-6500-RS.
Specifications
Meter
Bracket/Sensor unit
SC-6501 / SC-M500
SM-6501 SM-6501-MD
STI lever
ST-7700-C
ST-6510
ST-5500-CA
ST-4400
ST-3300/3303
ST-M510
SL-M510
SM-6501-M
ST-M952 SL-M952
ST-M750 SL-M750
ST-M570 SL-M570
WARNING
5

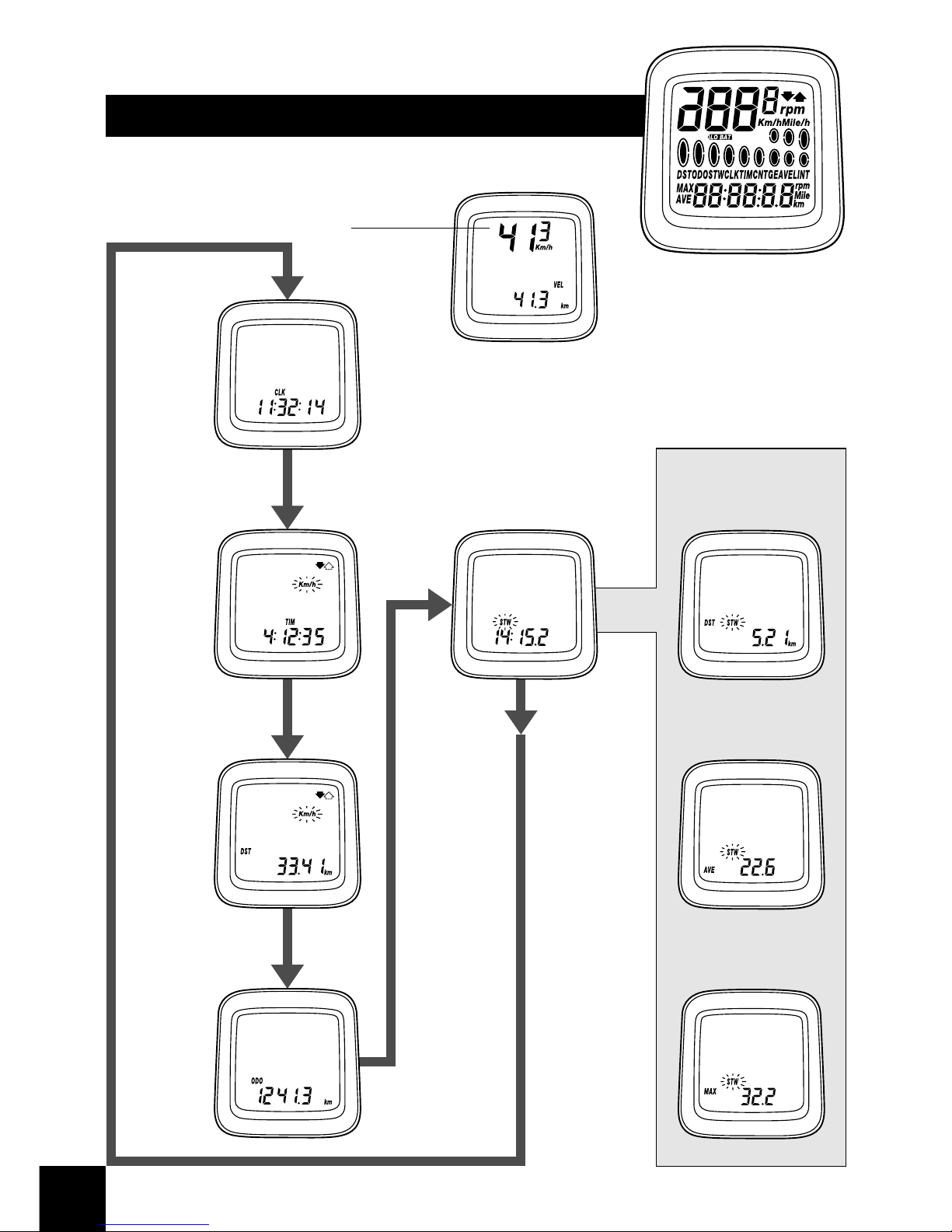

1. Display Modes
“Current speed” and “Gear indicator (bar)” are always displayed
mode 1 mode 2
TIM Trip time
DST Trip distance
ODO ODO meter
STW Stop watch
CLK Clock rpmCadence
VEL
Main display cadence
MAX
Maximum speed
AVEAverage speed
CNTLap counter
Press mode button
once
Press mode button continuously
for 2 seconds or more
Mode Button
SM-6501-MD
Mode Button
SM-6501
SM-6501-M
ST/SP button
Mode button
6
2. Display Contents
mode 1
Current
speed
(VEL)
Clock
(CLK)
Trip time
(TIM)
Trip distance
(DST)
ODO meter
(ODO)
Stop watch–
trip distance
(DST STW)
Stop watch–
average speed
(AVE STW)
Stop watch–
maximum speed
(MAX STW)
Stop watch
7
mode 2
Cadence
(rpm)
Main display
cadence
Maximum
speed
Average
speed
No. of gear teeth
(digital)
Gear indicator
(bar)
Pace Arrow
Low battery display
Lap counter
8

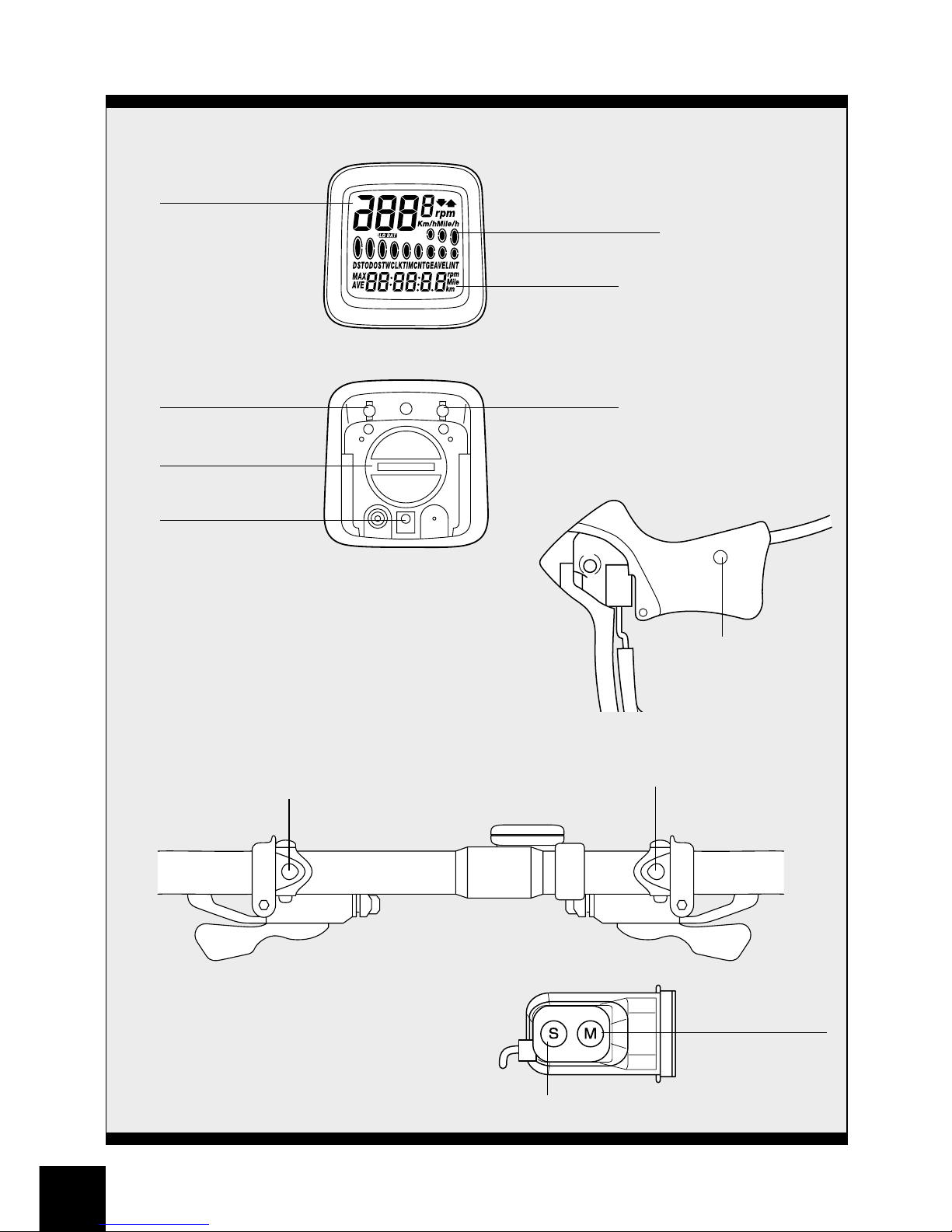

3.
Name and function of each part
Front
Rear
STI Brake Bracket
<ST- 7700-C, ST- 6510, ST- 5500-CA,
ST- 4400, ST- 3300/3303 >
<ST- M510, SL- M510 >
ST/SP button Mode button
Main Display
1. Current speed
(VEL)
8. Cadence Sub Display
3
-
7, 9 -10
2. Gear indicator
(bar)
Switch B
AC All clear
Switch
Battery cap
Switch A
R.H. side lever :
Mode button
L.H. side lever :
ST/SP button
<ST-M952, ST-M750, ST-M570,
SL-M952, SL-M750, SL-M570 >
ST/SP button
Mode button
9
(1)Current speed (VEL)km/h, mph
When main
display cadence
appears on top
Current speed
will appear in
the sub - display
0.0 (2.0) - 130.0km/h
0.0 (1.2) - 80.0mph (Range)
The current speed will appear at
the top of the main display.
(2)Gear indicator (bar)
Front display
Rear display
For double : Low position • • • • • • •
For triple : Middle position ••••
For single : ••••••••••••••••••••••••
Displays;
Top for smallest sprocket
Low for largest sprocket
(3)Time display (CLK)24-hours clock
Gear indicator bar will not appear
if the sensor wire is not connected
or it has been turned off.
Clock will appear when changing
mode 2 to mode 1 and during
power saver function.
7th sprocket for 9-sprocket set •••
7th sprocket for 8-sprocket set •••
7th sprocket for 7-sprocket set •••
10

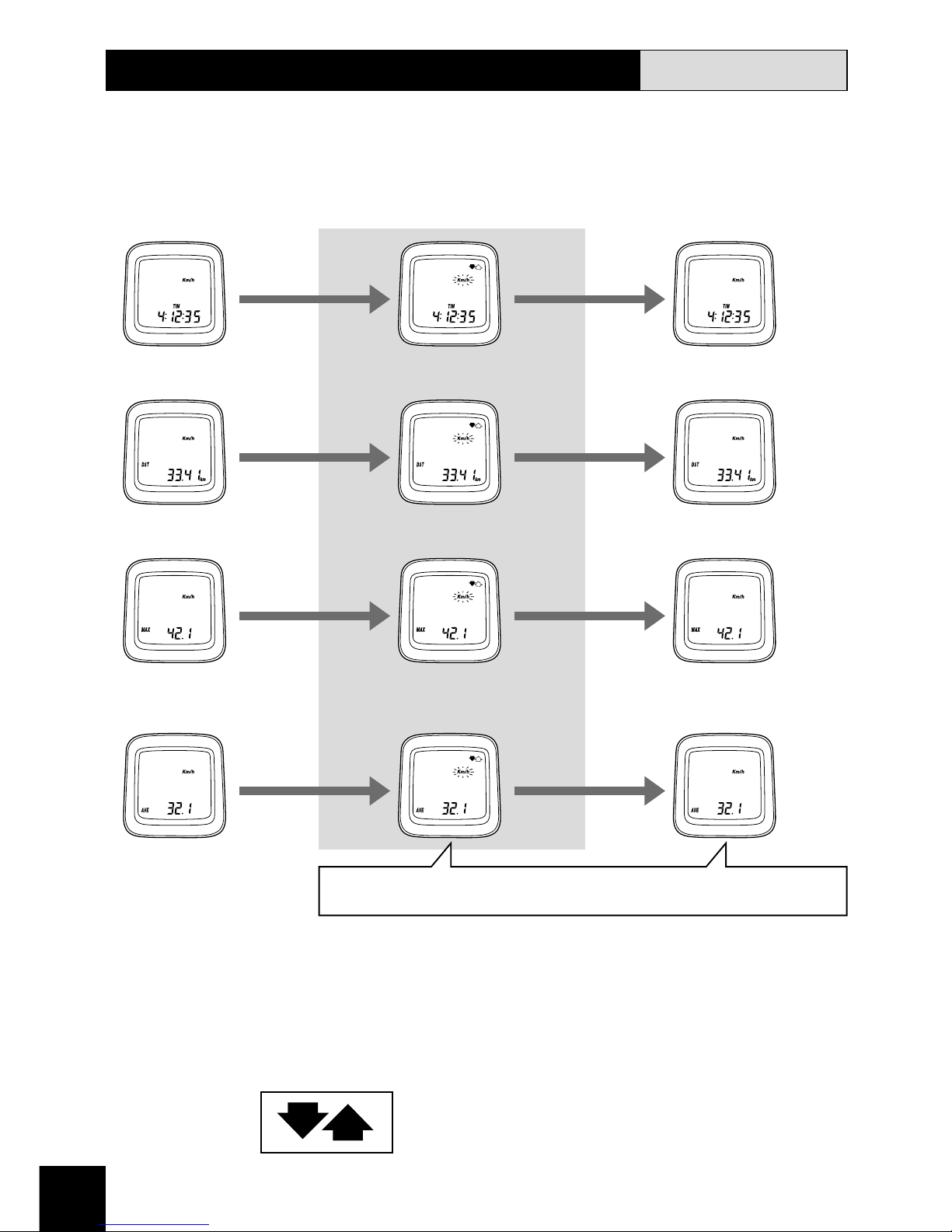

(4)
Trip distance group (TIM, DST, MAX, AVE)
The trip distance group includes the trip time (TIM), trip distance (DST), maximum
speed during the trip (MAX) and the average speed during the trip (AVE). To activate
the trip distance group, press the Mode button until “TIM”is displayed, and then
press the ST/SP button.
< Reset to zero > Press the ST/SP button and the Mode button
simultaneously while this group is active.
Average speed (AVE)
0.0 (2.0) - 130.0km/h
0.0 (1.2) - 80mph.
Trip time (TIM)
0 - 99:59:59 (h ; min ;sec)
Trip distance (DST)
0 - 999.99 (km, mile)
Maximum speed (MAX)
0.0 (2.0) - 130.0km/h
TIM group (automatic stop
and start) start is activated
TIM group is deactivated
km/mile flashes
Note;
•
To calculate the average speed, You must
travel for more than 10 seconds or more.
•
If the trip time exceeds 100hours or the trip
distance exceeds 1,000kilometers (620miles),
“ER”will be displayed and the pace arrow
comparison will disappear. However, TIM
and DST measurements will start again from
zero and the MAX speed will be retained.
Pace Arrow
Moves when distance time is
operating.
The upward arrow indicates that
the current speed is faster and
the downward arrow indicates
that the current speed is slower
than the
average speed
for the trip.
ST/SP buttonST/SP button
11
(5)ODO meter (ODO)
0-99999.9
km, mile
(6)Stopwatch (STW)group
This group includes stopwatch trip distance average speed and maximum speed.
The stopwatch is activated by pressing ST/SP button. While the stopwatch
group is operating the stopwatch (STW) display will flash.
Stopwatch trip distance (DST,STW) records total during STW function.
Stopwatch average speed (AVE,STW) records the average speed during STW
function.
Maximum speed (MAX,STW) records the Maximum speed during the stopwatch
function.
Displays the cumulative distance
travelled.
Note;
The functions of this group are
only available when
stopwatch is activated.
If the trip distance mode is
also activated simultaneously,
it is not possible to view at the
distance. However the trip
distance, average speed and
maximum speed will still be
recorded during this time.
Stop
Reset to zero
ST/SP button
ST/SP
button
Press ST/SP button
and Mode button
simultaneously
Mode button
(STW) Group mode
is displayed
Start
< Starting and stopping >
Stopwatch
(STW)
0.0 -90:00 (min,sec)
Stopwatch trip
distance (DST,STW)
km mile
Stopwatch average
speed (AVE,STW)
km/h mile/h
Stopwatch maximum
speed (MAX, STW)
km/h mile/h
switch “B”
12

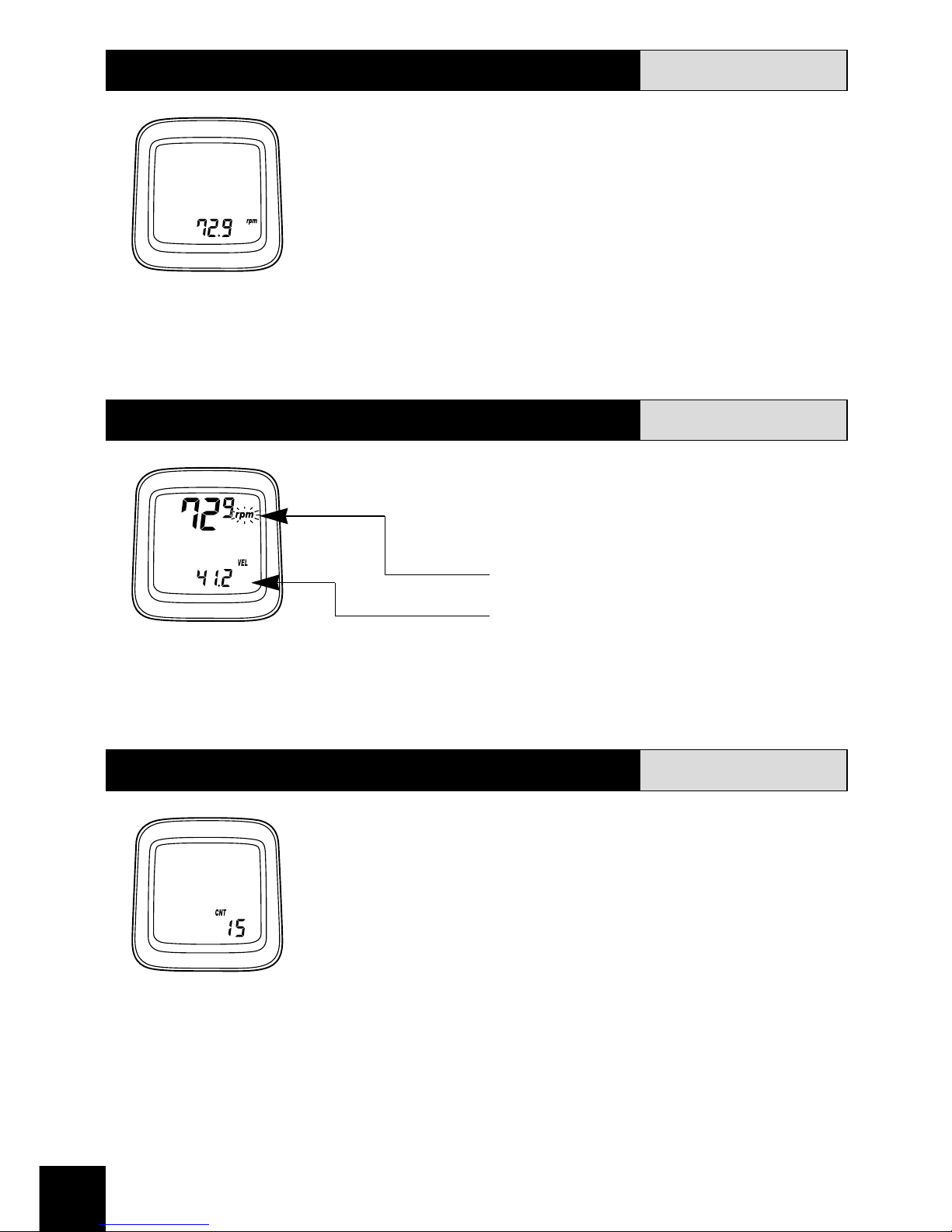

(7)Cadence (rpm)
Cadence is calculated from the F-R
gear tooth numbers and current
speed.
Note;
Cadence always appears during
bicycle movement regardless if the
crankarms are rotating.
(9)Lap counter (CNT)
This function is used to count laps,
etc. (range 0 - 99)
Lap counter is activated by
pressing the ST/SP button.
To reset the counter to zero, press
mode and ST/SP button
simultaneously.
(8)Main display cadence (VEL)
Cadence (rpm) can also be shown
in main display. Current speed
will move to sub-display.
Cadence on main display
Current speed on sub-display
