5000X
Auto-darkening Welding Helmet
WARNING Read and Understand All Instructions Before
Using the Equipment.
SAFETY WARNINGS
The automatic welding mask is a new generation product for
labor protection. Some new and high science and technology
such as LCD, optoelectronics detection, solar power,
microelectronics, etc are integrated into it.The automatic welding
mask not only can efficiently protect operator’s eyes from injuries
caused by arc, but also can make both hands free and strike arc
accurately. Therefore, the quality of products and work efficiency
may be raised considerably. It may be widely used for various
welding, cutting, spraying and arc gouging, etc.
Read and understand all instructions before using.
•Be sure that the dark shade of the lens in the welding helmet
is the correct shade number for your application.
•This helmets and lenses are not suitable for
“overhead”welding application, laser welding, or laser cutting
applications.
•Welding helmets are designed to protect the eyes and face
from sparks, spatter, and harmful radiation under normal
welding conditions.
•This helmet will not protect against explosive devices or
corrosive liquids. Machine guards or eye splash protection
must be used when these hazards are present.
•Impact resistant, primary eye protection, spectacles or
goggles that meet current CE specifications, must be worn at
all times when using thiswelding helmet.
•Avoid work positions that could expose unprotected areas of
the body to spark, spatter, direct and/or reflected radiation.
Use adequate protection if exposure cannot be avoided.
•Check for light tightness before each use. Before each use,
check that the protection plates are clean and that no dirt is
covering the sensors on the front of the lens.
•Inspect all operating parts before each use for signs of wear
or damage. Any scratched, cracked, or pitted parts should be
replaced immediately.
•Do not make any modifications to either the welding lens or
helmet, other than those specified in this manual. Do not use
any replacement parts other than those specified in this
manual.
Unauthorized modifications and replacement parts will void the
warranty and expose the user to the risk of personal injury.
•If this lens does not darken when striking arc, stop welding
immediately and contact representative.
•Do not immerse this lens in water if this model is not water
proof.
•Do not use any solvents on any lens or helmet components.
•The recommended operating temperature range for welding
lens is -10°C-65°C (14°F-149°F ). Do not use this device
beyond these temperature limits.
Failure to follow these warnings and/or failure to follow all ofthe
operating instructions could result in severe personal injury.
If any of the manual conditions is not kept or followed, the
warranty of two years is automatically invalid.
CONTENTS
1. Characteristics
2. Warranty
3. Technical data
4. Operation instructions
5. Headband
6. Important notes

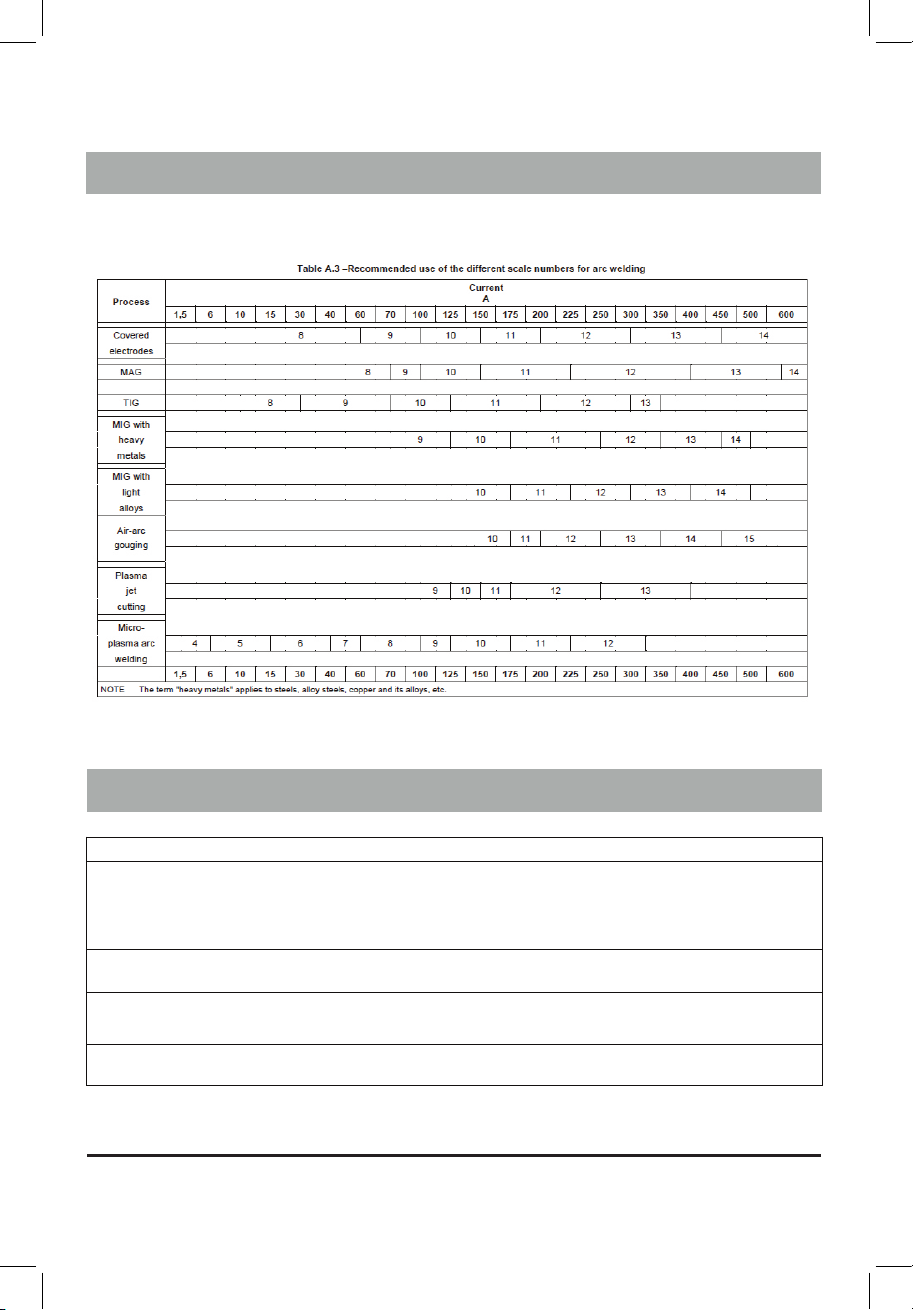

7. Recommended shade settings
8. Troubleshooting

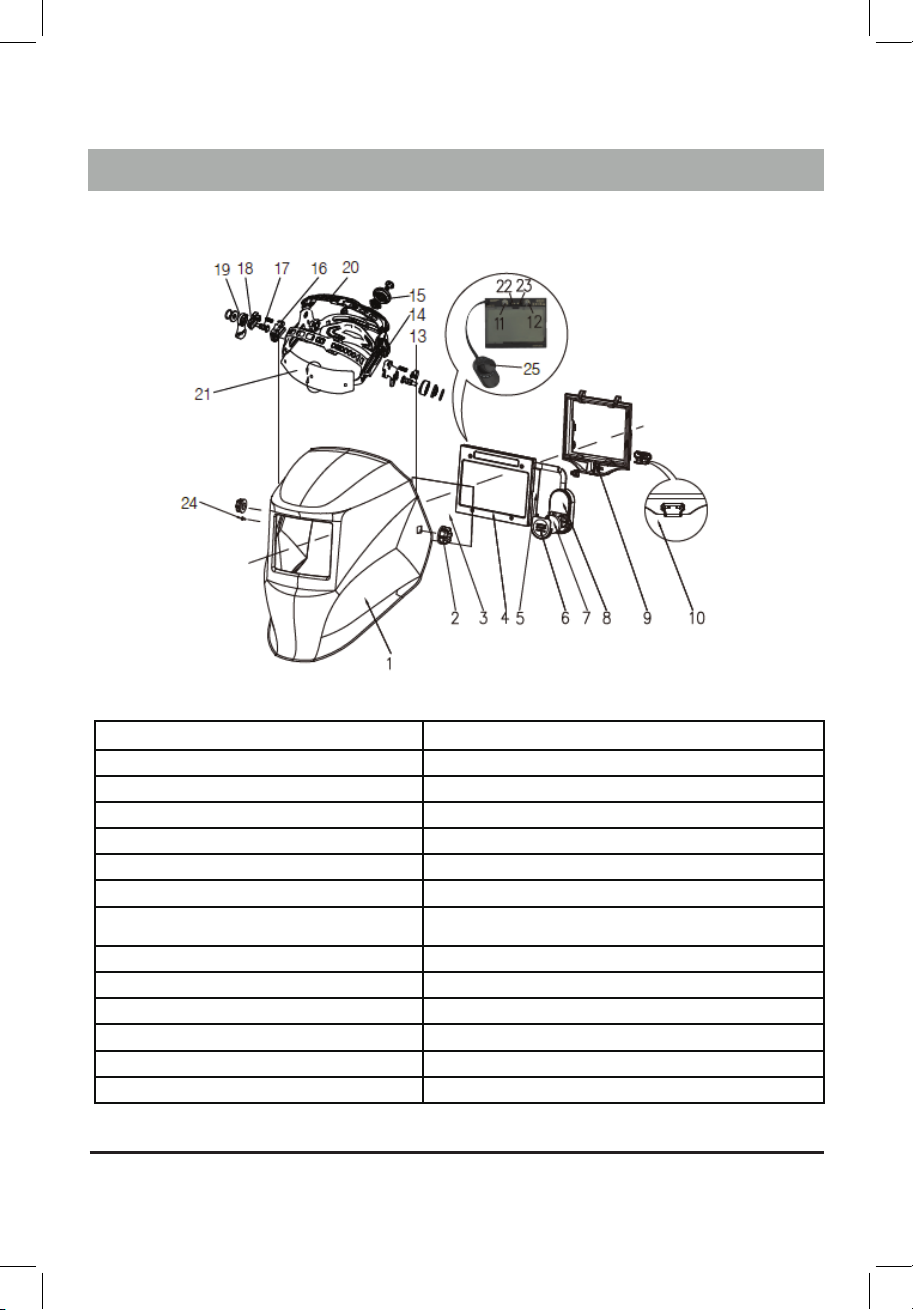

9. Parts breakdown
1. CHARACTERISTICS
The Shine 5000X automatic welding helmet is equipped with a
filter set that can become dark. The filter is transparent before
welding, so the operators may observe the work surface clearly.
When striking arc, the filter darkens automatically immediately.
When arc goes out, the filter will become transparent again. The
switching time from light to dark is about 0.08 ms.The switching
time from dark to light may be set up within 0.1-0.9 second.
The mask is equipped with continuous darkness-adjusting unit,
so the operator may select an arbitrary dark shade number
ranging from 9-13.
The Shine 5000X automatic welding mask gives the operators
permanent complete protection against UV/IR even in
transparent condition.The UV/IR protection level is up to DIN15
at all times. The power is provided by solar cells and replaceable
battery.
The mask is equipped with 4 sets of photosensors to sense arc
light. In addition, the mask is also provided with an outer
protection plate made of high polymer materials. The plate is
wear-resistant, thermostable, and has no dregs-sticking, thus a
very long service life.
The auto-darkening helmets are warranted for 2 years from the
date of purchase. The duration of use depends on various factors
such as use, cleaning storage and maintenance. Frequently
inspections and replacement if it is damaged are recommended.
If any of the manual conditions is not kept or followed, the
warranty is automatically invalid.
