ShopBot D2418 Bedienungsanleitung
*Tool shown with optional spindle and speed controller.
© Copyright 2016 ShopBot Tools, Inc. page 1
ShopBotTools.com888-680-4466 •
Desktop Quick-Start Guide
Desktop Quick-Start Guide • September 13, 2016
© Copyright 2016 ShopBot Tools, Inc. page 2
Desktop Quick-Start Guide • September 13, 2016
© Copyright 2016 ShopBot Tools, Inc. page 3
Table of Contents
In the Crate..............................................................................................................................................7
Main Parts of the ShopBot Desktop D2418............................................................................................9
Introduction ...........................................................................................................................................10
Uncrating...............................................................................................................................................10
Assemble Parts .....................................................................................................................................11
Install Dust Enclosure (Optional) ...........................................................................................................12
Load Software .......................................................................................................................................14
Computer Conguration........................................................................................................................14
Connect Power......................................................................................................................................15
Launch Software ...................................................................................................................................17
Move the Desktop Tool ........................................................................................................................18
The “Easy” Control Panel .............................................................................................................18
The Keypad ..................................................................................................................................18
Zero the X- and Y-Axes .........................................................................................................................21
Zero the Z-Axis......................................................................................................................................22
Move to Home Position.........................................................................................................................24
Warm Up (Spindle Models Only) ...........................................................................................................25
Desktop Spindle RPM Settings.............................................................................................................26
Preparing to Cut ....................................................................................................................................27
Trim Deck and Rout Jig Holes...............................................................................................................28
Switch to ShopBot FULL.......................................................................................................................30
Surfacing the Deck................................................................................................................................30
Maintenance..........................................................................................................................................32
Resources .............................................................................................................................................33
Desktop Quick-Start Guide • September 13, 2016
© Copyright 2016 ShopBot Tools, Inc. page 4
Desktop Quick-Start Guide • September 13, 2016
© Copyright 2016 ShopBot Tools, Inc. page 5
General Safety and Precautions
This safety summary contains general safety warnings that should be understood during operation of
this machine. Failure to observe these precautions could result in injury.
Learn and understand safe use of the machine. Do not allow untrained individuals
to operate the machine without supervision. Be aware of the location of the Emer-
gency Stop switches at all times.
Eye and ear protection MUST be worn by the machine operator as well as any
bystanders or observers. Flying sawdust, material chips, and other debris can
cause serious eye injury.
Wear closed-toe shoes at all times.
Ensure material is properly secured before cutting, and be aware of any small
parts that may come loose after being cut. If a small part catches the edge of a
spinning bit, it can be thrown forcefully in any direction, causing injury or damage.
DO NOT place hands on the rails of the ShopBot. Be aware that the machine may
move unexpectedly in any direction, which can cause serious injury if hands are
in the path of movement.
Never wear gloves while operating the machine. As with any power tool, a glove
can get caught in moving or spinning parts and pulled into the machinery.
Never leave a machine running and unattended. A spinning tool generates friction
and heat, creating a risk of re. This risk is minimized by using correct chip load,
using sharp bits, and by always double-checking les before cutting. Be prepared
to pause or stop the cut if something seems incorrect or unsafe.
Keep a working re extinguisher within reach of the machine.
Desktop Quick-Start Guide • September 13, 2016
© Copyright 2016 ShopBot Tools, Inc. page 6
Desktop Quick-Start Guide • September 13, 2016
© Copyright 2016 ShopBot Tools, Inc. page 7

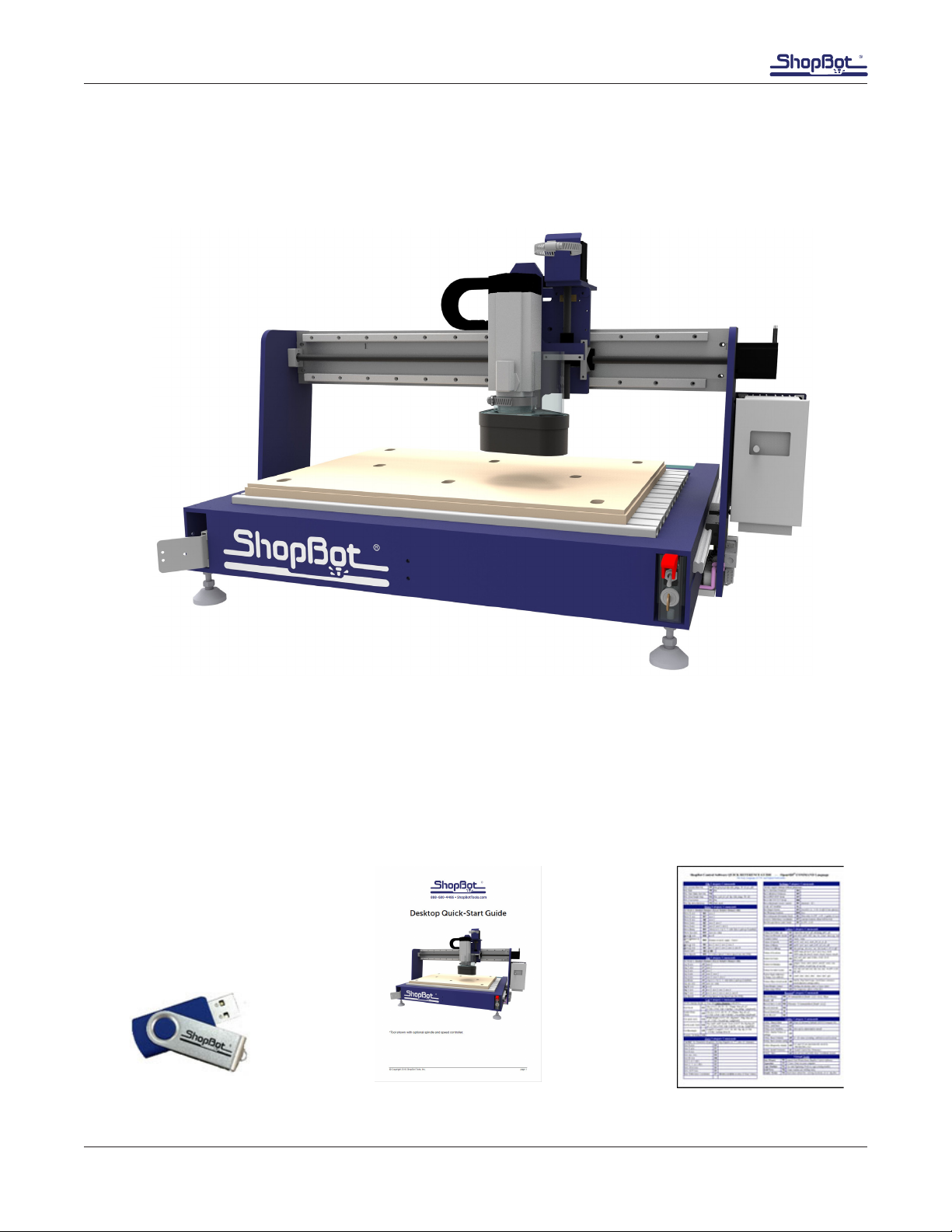

In the Crate
Desktop D2418
Shown with optional spindle and speed controller.
Thumb drive with software Quick-Start Guide Command Reference Guide
Desktop Quick-Start Guide • September 13, 2016
© Copyright 2016 ShopBot Tools, Inc. page 8
Dust Enclosure (Optional)
1/4” and 1/2” Spindle or Router Collet Sets Collet Wrenches Bit Kit (Optional)
Z Zero Assembly Power Cord Hold Down Bolts
Desktop Quick-Start Guide • September 13, 2016
© Copyright 2016 ShopBot Tools, Inc. page 9
Main Parts of the ShopBot Desktop D2418
Back View
Desktop Quick-Start Guide • September 13, 2016
© Copyright 2016 ShopBot Tools, Inc. page 10
Introduction
This quick start guide covers the basics of computer number controlled (CNC) digital routing using
the ShopBot Desktop tool. It also provides essential information about machine set up and operation
- information used almost every time the machine is run. Additional training and web resources that
go beyond the basics are located in the back of this guide. For questions or technical help, contact
ShopBot technical support. Also feel free to visit the forum at TalkShopBot.com, as many questions
are answered there.
Uncrating
Tools Required:
Hammer, Claw
CAUTION: clips are under tension and can cause damage
when sprung.
Remove cardboard packing materials, and the sides of
the crate.
Lift Desktop tool onto a sturdy table or bench.
CAUTION: The ShopBot Desktop can weigh up to 150 lbs. Have
AT LEAST one more person help lift the tool.
