Show Tec 43020 Bedienungsanleitung

LED Club Scan

ORDERCODE 43020

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec LED Club Scan brings excitement to any venue. Whether you want simple plug-&-play action or

a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec LED Club Scan™Product Guide

Warning..…...................................................................................………………………………………………………...

Safety-instructions……………………………………………………………………………………………………….…

Operating Determinations…………………………………………………………………………………………..…..

Description..…..............................................................................……….……………………………………………..…

Features and Overview ………………………………...….……………….………….……….……….……………….

Backside…………………………………………………...…...….……………….…………………...…………………..

Set Up and Operation.....................................................................……..……………………………………………….

Master/Slave-operation……...........................................……..………………………………………………….…..

Remote Control socket..............................………………..…...................……………………………………..…...

Addressing...........................................……..……………………………………………………………………………

DMX-protocol ………………………………………………………………………………………………………………

Maintenance...................................................................................………..………….…….…………………………..

Changing the Fuse........................................................................…………………….………………………..…...

Troubleshooting............................................................................………………….………………….………………...

Product Specifications.................................................................……………….…….………………………………...

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should there

be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance

of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never leave any cables lying around.

Do not insert objects into air vents.

Do not open the device and do not modify the device.

Do not connect this device to a dimmerpack.

Do not shake the device. Avoid brute force when installing or operating the device.

Do not switch the device on and off in short intervals, as this would reduce the system’s life.

Only use device indoor, avoid contact with water or other liquids.

Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always keep case closed while operating.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

CAUTION!

Keep this device away from rain and moisture!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

The user is responsible for correct positioning and operating of the LED Club Scan. The manufacturer

will not accept liability for damages caused by the misuse or incorrect installation of this device.

For adult use only. The device must be installed out of the reach of children. Never leave the unit

running unattended.

For replacement use fuses of same type and rating only.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

• The installation of the device has to be built and constructed in a way that it can hold 10 times the weight

for 1 hour without any harming deformation.

•The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch

net. This secondary safety attachment must be constructed in a way that no part of the installation can fall

down if the main attachment fails.

•When rigging, derigging or servicing the device staying in the area below the installation place, on

bridges, under high working places and other endangered areas is forbidden.

•The operator has to make sure that safety-relating and machine-technical installations are approved by

an expert before taking into operation for the first time and after changes before taking into operation

another time.

•The operator has to make sure that safety-relating and machine-technical installations are approved by

an expert after every four year in the course of an acceptance test.

•The operator has to make sure that safety-relating and machine-technical installations are approved by a

skilled person once a year.

Procedure:

The device should be installed outside areas where persons may walk by or be seated.

IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to)calculating

working load limits, installation material being used, and periodic safety inspection of all

installation material and the device. If you lack these qualifications, do not attempt the installation yourself,

but instead use a professional structural rigger. Improper installation can result in bodily injury and damage to

property.

•The device has to be installed out of the reach of people.

•If the device shall be lowered from the ceiling or high joists, professional trussing systems have to be used.

•The device must never be fixed swinging freely in the room.

Caution: Devices in hanging installations may cause severe injuries when crashing down! If you have doubts

concerning the safety of a possible installation, do NOT install the device!

Before rigging make sure that the installation area can hold a minimum point load of 10 times the device's

weight.

Mount the device to your trussing system using an appropriate clamp.

For overhead use, always install a safety-rope that can hold at least 12 times the weight of the fixture. You

must only use safety-ropes with quick link with screw cap. Pull the safety-rope through the attachment eyelet

and over the trussing system or a safe fixation spot. Insert the end in the quick link and tighten the safety

screw.

The maximum drop distance must never exceed 20 cm.

A safety rope which already held the strain of a crash or which is defective must not be used again.

Adjust the desired inclination-angle via the mounting-bracket and tighten the fixation screws.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

If the device will be directly connected with the local power supply network, a disconnection switch with a

minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.

The device must only be connected with an electric installation carried out in compliance with the

IECstandards. The electric installation must be equipped with a Residual Current Device (RCD) with a

maximum fault current of 30 mA.

Lighting effects must never be connected to dimming-packs.

Make sure that the device is always connected properly to the earth!

Description of the device

Features

• Gobo rotation via LED matrix

• Strobe-effect with adjustable speed

• Equipped with 40 LEDs: 16 x red, 12 x blue, 12 x green

• 100 000 hours LED life

• ¼" jack-socket for remote control

• Fuzzy-Sound-Control: program continues automatically during periods without music or bass-beat

• DMX-controlled operation or stand alone operation with Master/Slave-function (up to 4 slaves)

• Sound-controlled via built-in microphone

• Control-Board with 4-digit display

• Advantages of LED-technology: extremely long life, low power consumption, minimal heat emission,

defacto maintenance free with brilliant light radiation

• DMX-control via every standard DMX-controller

NOTE: Knowledge of MIDI and DMX is required to fully utilize this unit

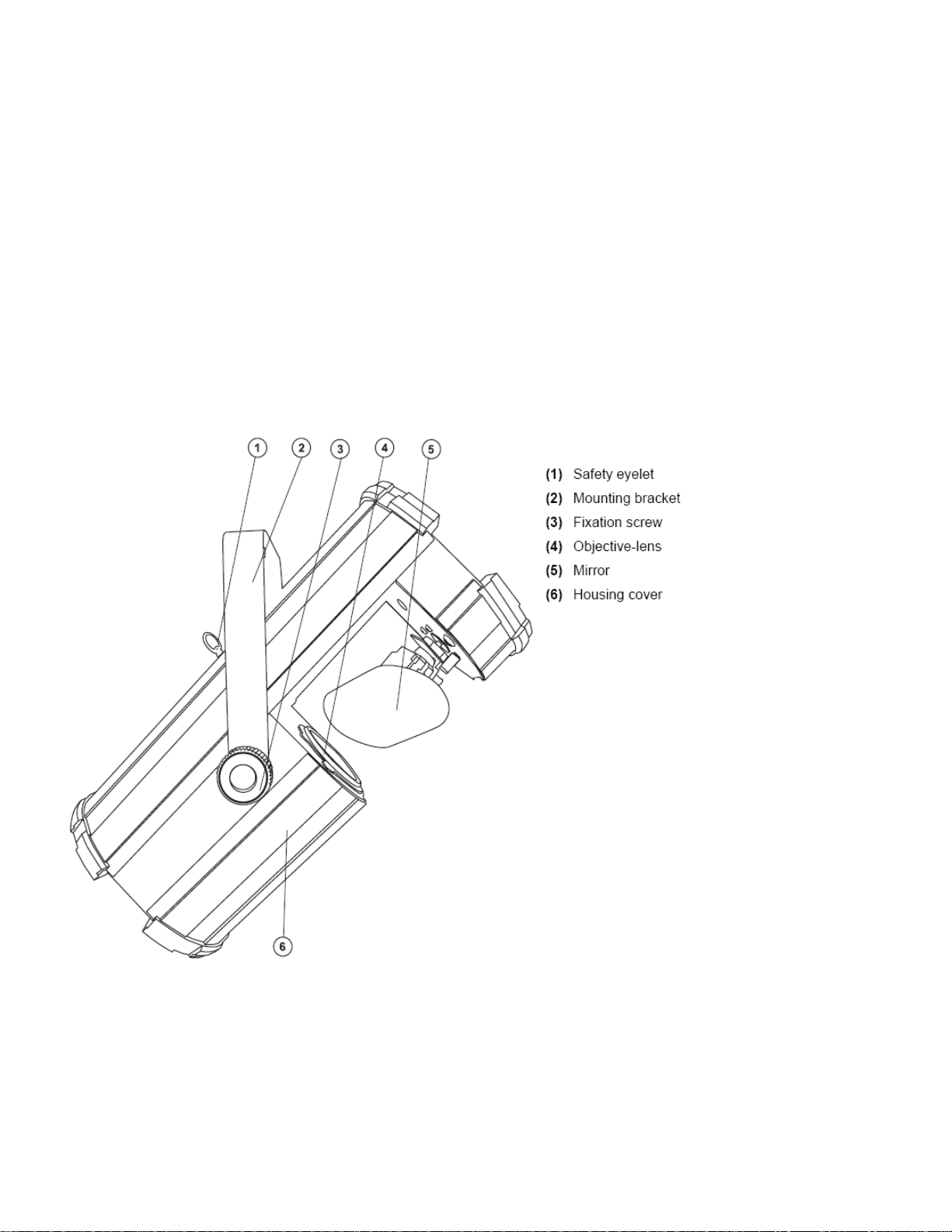

Overview

Fig. 1

Fig. 2

Fig. 3

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

After you connected the effect to the mains, the LED SCAN starts running. During the Reset, the motors are

trimmed and the device is ready for use afterwards.

Master/Slave-operation

The master/slave-operation enables that several devices can be synchronized and controlled by one master

device.

On the rear panel of the LED SCAN you can find an XLR-jack (DMX Out) and an XLR-plug (DMX In),

which can be used for connecting several devices.

Choose the device which is to control the effects. This device then works as master-device and controls all

other slave-devices, which are to be connected to the master-device via a balanced microphone lead.

Connect the DMX OUT-jack with the DMX IN-plug of the next device.

Set the desired Master-mode for the master-device. Set the respective Slave-mode for all slave-devices.

Please note: The function G-3- is only meant for service-purposes. Please do only use this function if you

want to set the unit shortly into standby mode.

Pan Reverse

With this function you can reverse the Pan-movement.

Tilt Reverse

With this function you can reverse the Tilt-movement.

Display close time

With this function you can shut off the LED display.

Remote Control socket

If you wish to lock the light output - via an optional remote control, connect your remote control to the

remote control socket.

The remote control can be used for switching the gobos and the Auto/Manual mode. In Auto Mode,

the gobos are switched sound-controlled. In Manual Mode, the gobos are switched via remote control.

DMX-512 connection / connection between fixtures

Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with

the fixture or one fixture with another.

Inhaltsverzeichnis

Andere Show Tec DJ-Equipment Handbücher

Show Tec

Show Tec Dreamwave V1 Bedienungsanleitung

Show Tec

Show Tec Bar Cameleon Bar 16 Q4 Bedienungsanleitung

Show Tec

Show Tec Spectral PC 400Z IP65 V2 Bedienungsanleitung

Show Tec

Show Tec Stardrape White LED WhiteCloth V1 Bedienungsanleitung

Show Tec

Show Tec Showmaster 24 Bedienungsanleitung

Show Tec

Show Tec ACT Profile 50 RGBAL Bedienungsanleitung

Show Tec

Show Tec 30907 Orion Chase set Bedienungsanleitung

Show Tec

Show Tec Energetic V3 Bedienungsanleitung

Show Tec

Show Tec Solar FL-550 Bedienungsanleitung

Show Tec

Show Tec EVENTLITE 6/3 Bedienungsanleitung

Show Tec

Show Tec Tracker 300 V3 Bedienungsanleitung

Show Tec

Show Tec Performer 2000 RGBAL V1 Bedienungsanleitung

Show Tec

Show Tec SnowStorm Bedienungsanleitung

Show Tec

Show Tec COMPACT POWER LIGHTSET 4 RGBW Bedienungsanleitung

Show Tec

Show Tec Galactic RGB300 Bedienungsanleitung

Show Tec

Show Tec LED Bar DMX Bedienungsanleitung

Show Tec

Show Tec Compact Par 7/15 Q4 Bedienungsanleitung

Show Tec

Show Tec Aura 4 Bedienungsanleitung

Show Tec

Show Tec Mirrorball Motor until 50 cm V2 Bedienungsanleitung

Show Tec

Show Tec Floodlight 1 kW Symmetric Bedienungsanleitung

Show Tec

Show Tec Followspot LED 120W Bedienungsanleitung

Show Tec

Show Tec Polar 1920 Wash Bedienungsanleitung

Show Tec

Show Tec Star Dream 6x4m 128 LED RGB Bedienungsanleitung

Show Tec

Show Tec Flexstrip Set UV V1 Bedienungsanleitung

Beliebte DJ-Equipment Handbücher anderer Marken

ALPHA LITE

ALPHA LITE ALPHA 1500 Betriebsanleitung

Chauvet

Chauvet OVATION E-930VW Bedienungsanleitung

Zumtobel

Zumtobel APHRODITE Home Bedienungsanleitung

Snow Masters

Snow Masters Zig Oscillator Bedienungsanleitung

EuroLite

EuroLite 50530554 Bedienungsanleitung

Beamz

Beamz BUV243 Bedienungsanleitung

thomann

thomann Stairville DJ Lase 40-G MK-III Bedienungsanleitung

Eagletone

Eagletone 6 Eyes Flower Bedienungsanleitung

EuroLite

EuroLite FLD-1508 Bedienungsanleitung

Technical Pro

Technical Pro LG8xSEA Bedienungsanleitung

JB Systems

JB Systems Lounge Laser DMX Bedienungsanleitung

Lightmaxx

Lightmaxx Vega Halo 90 Bedienungsanleitung

Elation

Elation FUZE WASH Z350 Bedienungsanleitung

Maverick

Maverick MK3 WASH Bedienungsanleitung

Infinity

Infinity TF-260C7 Fresnel Bedienungsanleitung

Chauvet

Chauvet EVE E-50Z Bedienungsanleitung

Eliminator Lighting

Eliminator Lighting E 138 Bedienungsanleitung

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Bedienungsanleitung
