Show Tec LED Commander Pro Bedienungsanleitung

LED Commander Pro V2

ORDERCODE 50725

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec LED Commander Pro brings excitement to any venue. Whether you want simple plug-&-play

action or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec LED Commander Pro™Product Guide

Warning ...............................................................................................................................................................................2

Safety Instructions .........................................................................................................................................................2

Operating Determinations ..........................................................................................................................................3

Return Procedure..........................................................................................................................................................4

Claims..............................................................................................................................................................................4

Description of the device.................................................................................................................................................5

Overview ........................................................................................................................................................................5

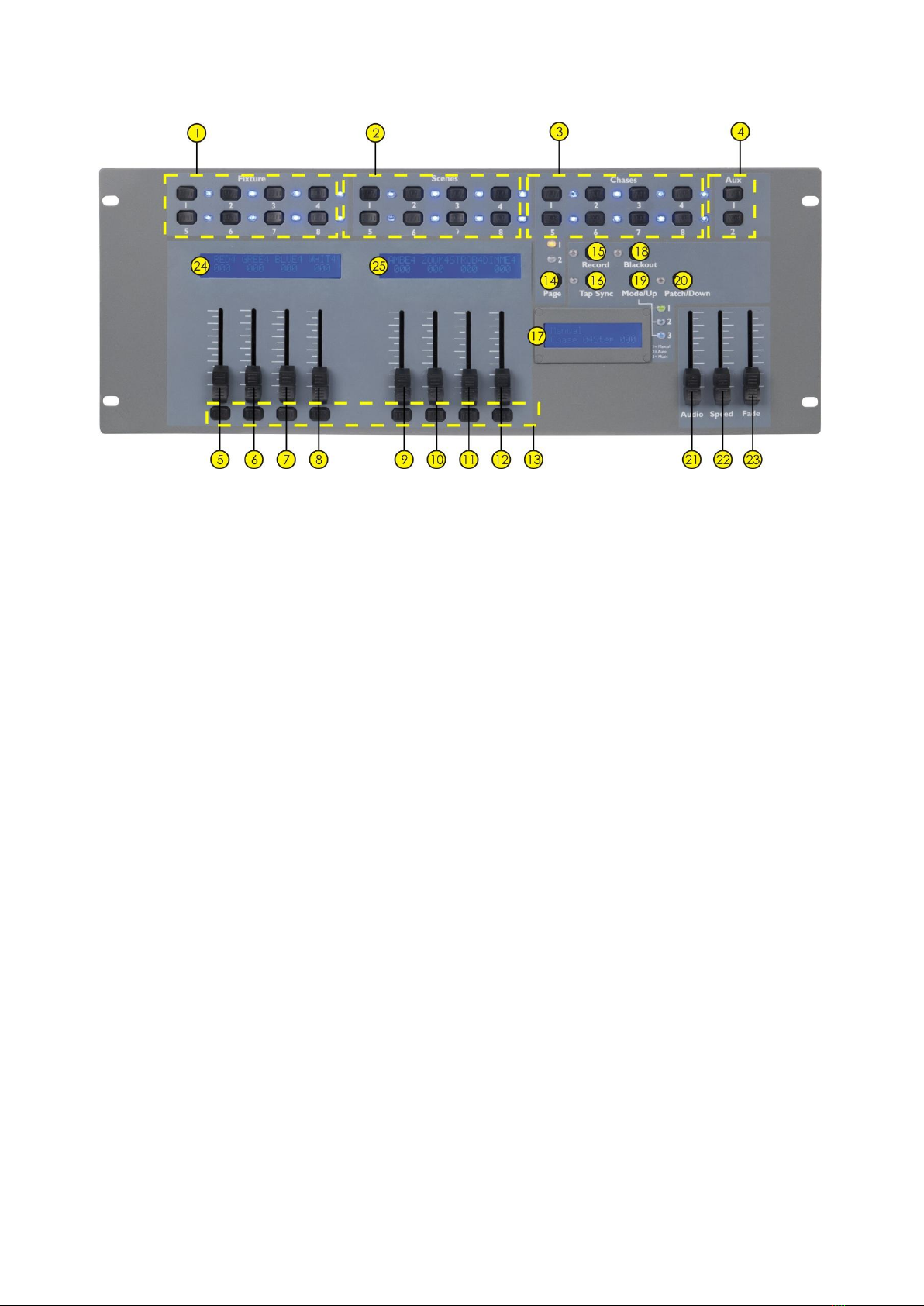

Controller Front..............................................................................................................................................................6

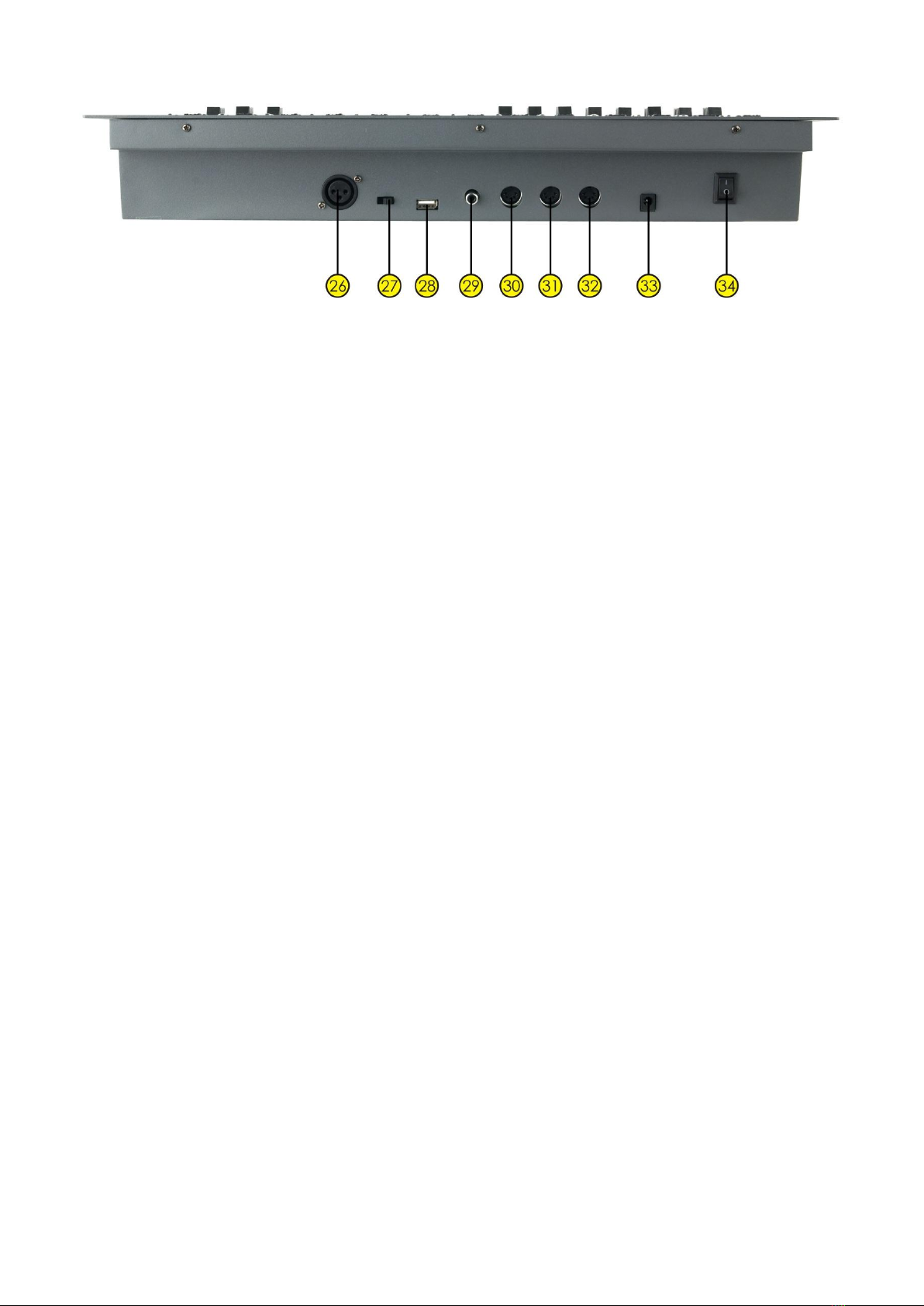

Controller Backside......................................................................................................................................................7

Set Up and Operation.......................................................................................................................................................7

1. Patch Modes .............................................................................................................................................................8

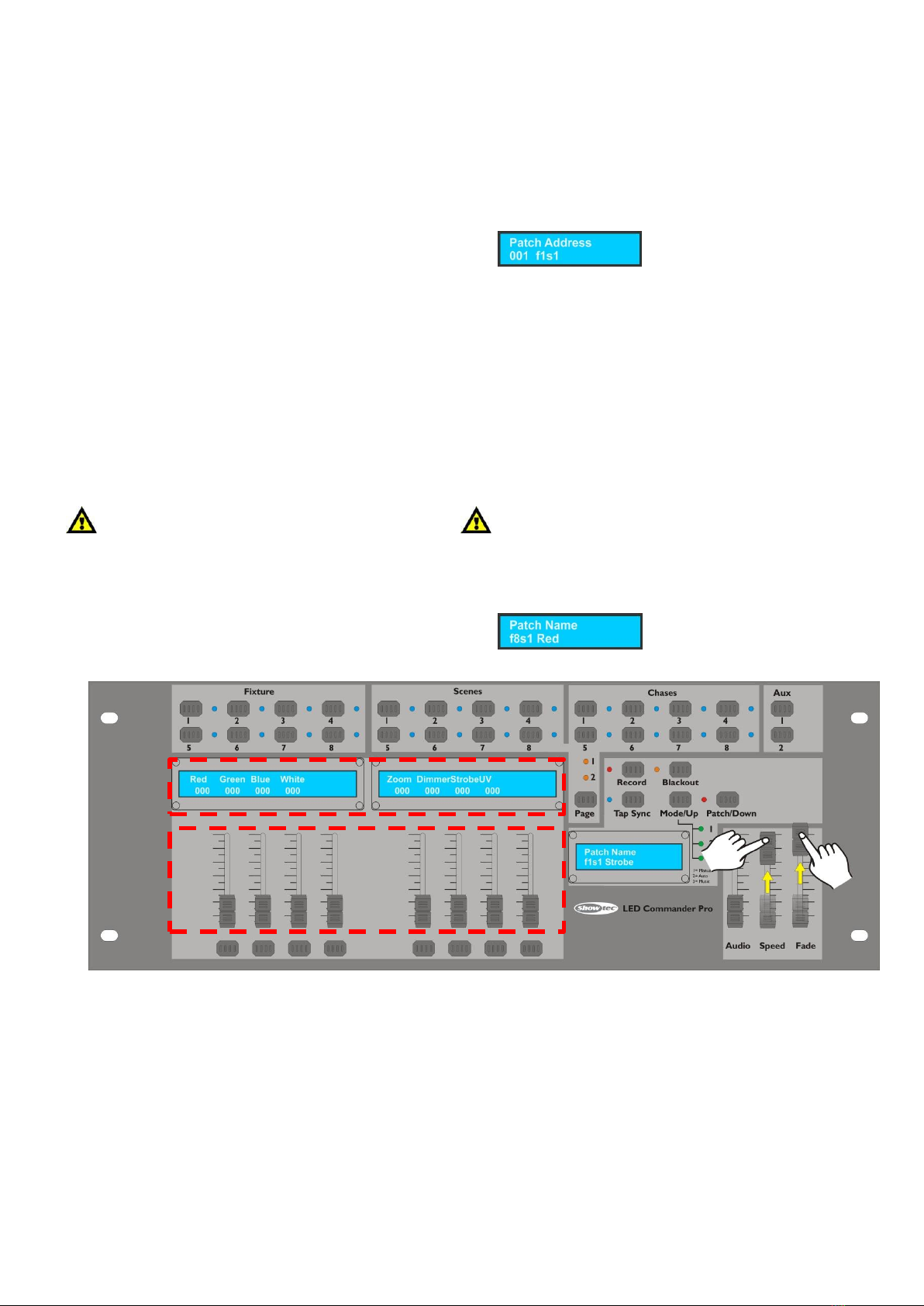

1.1 Patch Address.....................................................................................................................................................8

1.2 Patch Name........................................................................................................................................................8

1.3 MIDI .....................................................................................................................................................................10

1.4 AUX .....................................................................................................................................................................10

1.5 Patch more than ONE DMX Channel to the same slider.........................................................................10

2. Factory Reset...........................................................................................................................................................10

3. Scenes.......................................................................................................................................................................11

3.1 Record a Scene ...............................................................................................................................................11

3.2 Play a Scene .....................................................................................................................................................11

3.3 Delete a Scene.................................................................................................................................................11

4. Chases ......................................................................................................................................................................12

4.1 Record a Chase...............................................................................................................................................12

4.2 Play a Chase.....................................................................................................................................................12

4.3 Program Fade Time and Speed per Chase Step ......................................................................................12

4.4 Delete a Chase ................................................................................................................................................13

4.5 Add an extra Step to an existing Chase .....................................................................................................13

4.6 Delete a Step from an existing Chase .........................................................................................................13

4.7 Manual/Auto / Music Mode .........................................................................................................................14

4.8 Manual Fixture Control....................................................................................................................................14

Maintenance....................................................................................................................................................................15

Troubleshooting................................................................................................................................................................15

No Light.........................................................................................................................................................................15

No Response to DMX..................................................................................................................................................15

Product Specification .....................................................................................................................................................16

Revision 2: 4.8 Manual Fixture Control has been added (Page 14)

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

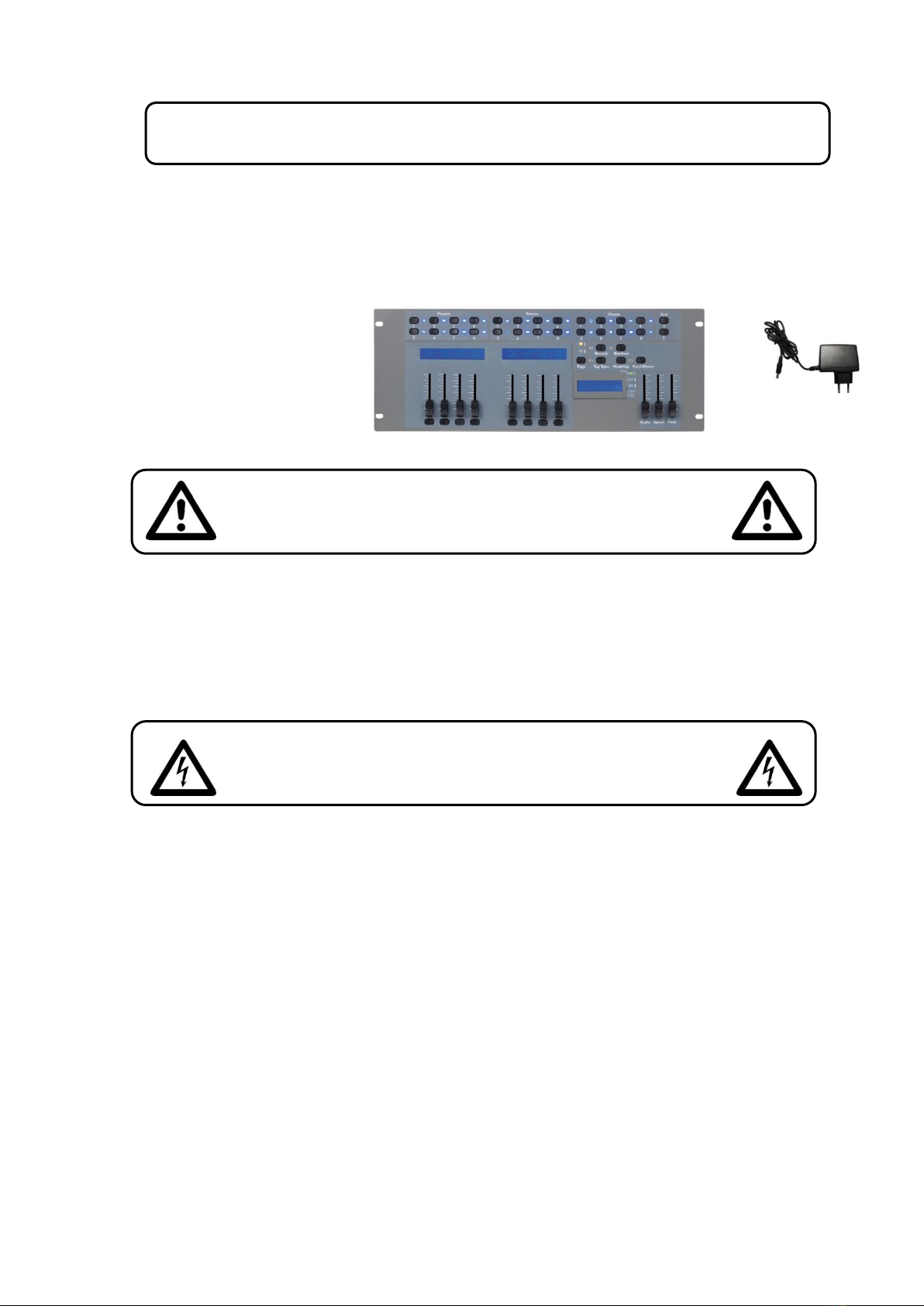

Your shipment includes:

• LED Commander Pro

• Incl. Power adapter 1,75m

• User manual

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Do not open the device and do not modify the device.

CAUTION!

Keep this device away from rain and moisture!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

Never use anything to cover the ground contact.

Never leave the device run without a lamp!

Never look directly into the light source.

Never leave any cables lying around.

Do not insert objects into air vents.

Do not connect this device to a dimmerpack.

Do not switch the device on and off in short intervals, as this would reduce the device’s life.

Do not shake the device. Avoid brute force when installing or operating the device. The LED-Foot

4 reacts very sensitive to movement.

Never use the device during thunderstorms, unplug the device immediately.

Only use device indoor, avoid contact with water or other liquids.

Do not touch the device’s housing bare-handed during its operation (housing becomes hot).

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always keep case closed while operating.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only

handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

If the external cable is damaged, it has to be replaced by a qualified technician.

If the glass is obviously damaged, it has to be replaced. So that its functions are not impaired, due

to cracks or deep scratches.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. Lighteffect must be installed out of the reach of children. Never leave the unit

running unattended.

For replacement use fuses of same type and rating only.

Allow time to cool down, before replacing lamp.

The user is responsible for correct positioning and operating of the LED-Foot 4. The manufacturer

will not accept liability for damages caused by the misuse or incorrect installation of this device.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

Operating Determinations

•This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

•The minimum distance between light-output and the illuminated surface must be more than 0.5 meter.

•The maximum ambient temperature ta= 45°C must never be exceeded.

•The relative humidity must not exceed 50 % with an ambient temperature of 45° C.

•If this device is operated in any other way, than the one described in this manual, the product may

suffer damages and the warranty becomes void.

•Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

1) Your name

2) Your address

3) Your phone number

4) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

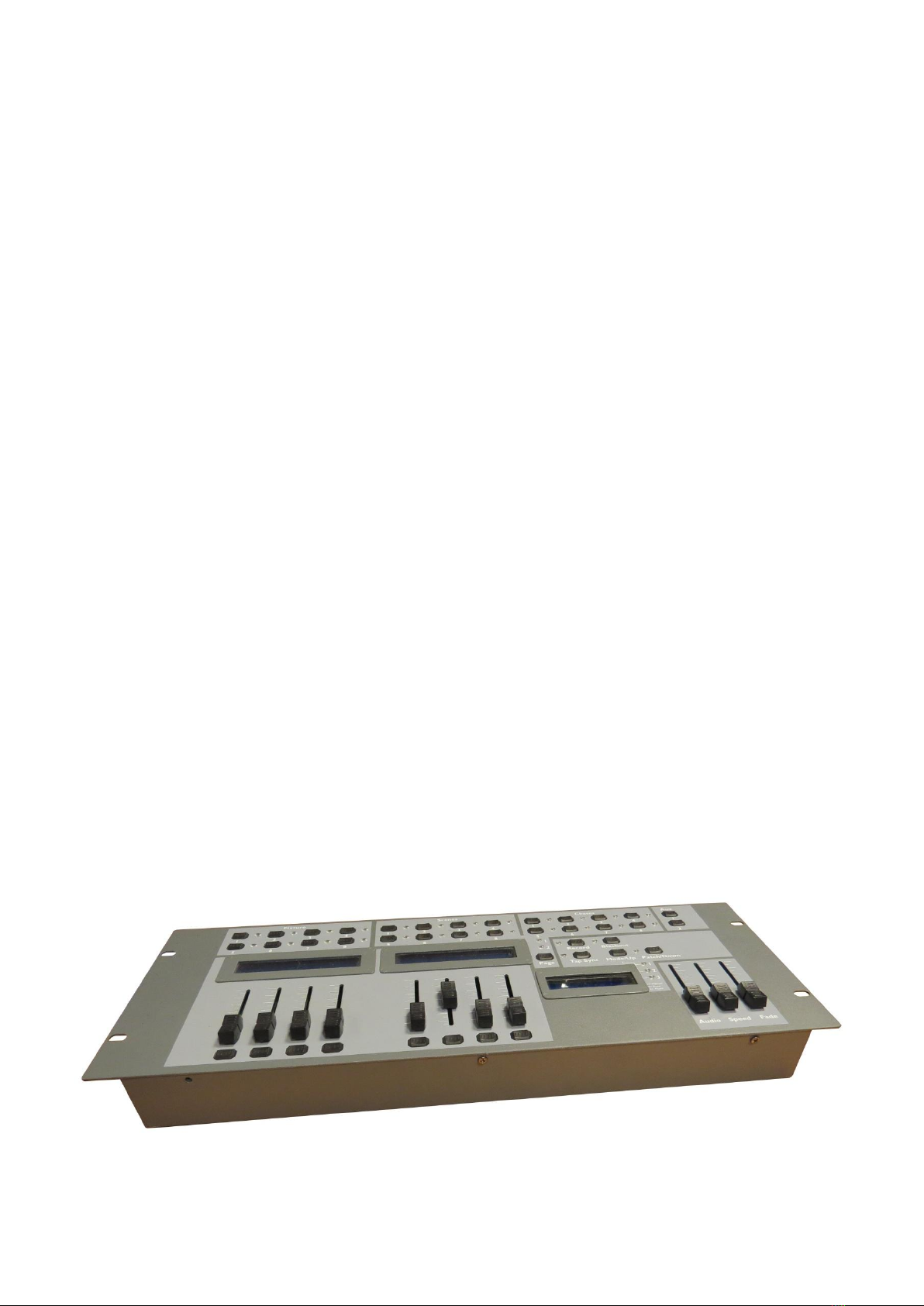

Description of the device

Features

The LED Commander Pro is a light controller from Showtec and features:

•The LED Commander Pro is the successor of the LED commander

•The upgrade is simple but unique and very useful

•Easy to use

•Control 8 RGB fixtures

•Adjustable Speed control

•Adjustable fade time

•Free patchable RGB and dimmer channels

•Power supply: AC 12V- 1A

•Power connector: Adapter (included)

•All functions and faders patchable

•Memory for 16 scenes and 16 chases

•2 Auxiliary channels to control foggers and strobes

•3 Bright LCD displays

•3 and 5 pole XLR output

•Auto program

•Music Control

•19" rackmounting

•DMX-512: XLR 3 pole

•Record Function to Record Colors and Chases

•Speed & Fade faders for Chase control

•Free patchable channels

•Run mode: Auto, Music, Manual

•Fixtures: 8 + 2 Aux channels

•Control 8 LED fixtures up to 8 channels each

•DMX-512: 66 Channels

•USB: 5VDC for mini-light

•Audio input: RCA, 100mv - 1Vpp

•MIDI: In, Out, Thru

•MIDI connector: 5P DIN

•Power consumption: 20W

•Dimensions: 482 x 178 x 75mm (LxWxH)

•Weight: 3,1Kg

NOTE:

Knowledge of DMX is required to fully utilize this unit.

Overview

Fig. 1

Controller Front

Fig. 2

1) Fixture buttons and LED indicators 1-8: Use Fixture button 1-8 to select a fixture.

2) Scenes buttons and LED indicators 1-8: Push a scene button to activate a scene.

3) Chase buttons and LED indicators 1-8: Push a chase button to activate a chase.

4) Aux Buttons: AUX 1 and AUX 2

5-12)8 Faders: Use the faders to manually set the intensity.

13) Flash buttons 1-8

14) Page button + Page 1/2 LED indicators : When the Page 1 indicator is lit, scenes 1-8 and chases 1-8

are active. When the Page 2 indicator is lit, scenes 9-16 and chases 9-16 are active.

15) Record button: Use the Record button to enter Record Mode.

16) TAP SYNC button

17) LCD Display 1

18) Black Out button: Press the Black Out button to cut all output.

19) Mode/Up button incl Auto/Music/Manual LED

20)Patch/Down button

21) AUDIO Fader: Use the Audio fader to set the audio sensitivity in Music Mode.

22) SPEED Fader: Use the Speed fader to manually set the chase speed during playback.

23) FADE TIME Fader: Use the Fade Time fader to manually set the Fade Time during playback.

24) LCD Display 2

25)LCD Display 3

Controller Backside

Fig. 3

26) DMX OUT

27) DMX Polarity Switch

28) USB Light

29) Audio Input: This jack accepts a line level audio input signal ranged from 100 mV to 1Vpp.

30) MIDI Thru: MIDI port for connection to a sequencer or MIDI device.

31) MIDI Out: MIDI port for connection to a sequencer or MIDI device.

32) MIDI In: MIDI port for connection to a sequencer or MIDI device.

33) DC power DC 12V 1A

34) ON/OFF

Set Up and Operation

Remove all packing materials from the LED Commander Pro. Check that all foam and plastic padding is

removed. Connect all cables.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Remove all packing materials from the LED-Foot 4. Check that all foam and plastic padding is removed.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

1. Patch Modes

There are 4 Patch Modes: 1) Patch Address

2) Patch Name

3) MIDI

4) AUX

1.1 Patch Address

1. Press and hold the Patch/Down button (20) for 3 seconds to enter Patch Mode.

2. The red LED next to the button lights up.

3. Press the Tapsync button (16), until the display shows .

4. Use the Speed slider (22) to select the Fixture you want to patch.

The displays (A) above the 8 sliders (5-12) show the DMX addresses and with the 8 Sliders (B) below

you can patch the slider of a Fixture to a DMX address.

With the Speed slider you are able to set the channels in groups of 8, example:

001 f1s1, 009 f2s1, 017 f3s1, 025 f4s1, 033 f5s1, 041 f6s1, 049 f7s1, 057 f8s1, 065 AUX1, 073 NULL,., 505 NULL

With the Fade slider you are able to view the channels in the selected group,example:

001 f1s1, 002 f1s2, 003 f1s3, 004 f1s4, 005 f1s5, 006 f1s6, 007 f1s7, 008 f1s8

5. Press the Record button (15) to save the patch. All LEDs will flash 3 times, indicating your operation

has been successful.

6. Press and hold the Patch/Down button (20) for 3 seconds to exit Patch Mode.

The Audio Slider has no function in Patch Mode

1.2 Patch Name

1. Press and hold the Patch/Down button (20) for 3 seconds to enter Patch Mode.

2. The red LED next to the button lights up.

3. Press the Tapsync button (16), until the display shows .

4. Use the Speed and Fade sliders (22+23).

With the Speed slider you are able to set the fixtures: f1s1 –f8s1.

With the Fade slider you are able to set desired Slider (5-12).

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Show Tec DJ-Equipment Handbücher

Show Tec

Show Tec Single WDP-1 Bedienungsanleitung

Show Tec

Show Tec Single WDP-1 Pro V1 Bedienungsanleitung

Show Tec

Show Tec Titan Strobe Bedienungsanleitung

Show Tec

Show Tec LED Par 36 DMX Bedienungsanleitung

Show Tec

Show Tec 50405 Bedienungsanleitung

Show Tec

Show Tec Star Dream 6x4m 192 LED White Bedienungsanleitung

Show Tec

Show Tec SF-250 Bedienungsanleitung

Show Tec

Show Tec Parcan 56 Short V1 Bedienungsanleitung

Show Tec

Show Tec LED BLINDER 2 COB Bedienungsanleitung

Show Tec

Show Tec PHANTOM 65 V1 Bedienungsanleitung

Show Tec

Show Tec Sustrip II Stageblinder Bedienungsanleitung

Show Tec

Show Tec Atmos 2000 Bedienungsanleitung

Show Tec

Show Tec LED Bar DMX Bedienungsanleitung

Show Tec

Show Tec Cameleon Flood 15 Q4 V4 Bedienungsanleitung

Show Tec

Show Tec White-PIX V1 Bedienungsanleitung

Show Tec

Show Tec Performer 1500 Fresnel Q6 Bedienungsanleitung

Show Tec

Show Tec Solaris 3.0 Bedienungsanleitung

Show Tec

Show Tec Pinspot Bar 4 RGBW Bedienungsanleitung

Show Tec

Show Tec Performer 2000 Fresnel DDT MKII V1 Bedienungsanleitung

Show Tec

Show Tec Performer 2000 Fresnel DDT MKII V2 Bedienungsanleitung

Show Tec

Show Tec LED Sphere Direct Control 100 V2 Bedienungsanleitung

Show Tec

Show Tec COMPACT POWER LIGHTSET RGB-UV V1 Bedienungsanleitung

Show Tec

Show Tec Galactic RGB-2000 Bedienungsanleitung

Show Tec

Show Tec Energetic V1 Bedienungsanleitung

Beliebte DJ-Equipment Handbücher anderer Marken

ALPHA LITE

ALPHA LITE ALPHA 1500 Betriebsanleitung

Chauvet

Chauvet OVATION E-930VW Bedienungsanleitung

Zumtobel

Zumtobel APHRODITE Home Bedienungsanleitung

Snow Masters

Snow Masters Zig Oscillator Bedienungsanleitung

EuroLite

EuroLite 50530554 Bedienungsanleitung

Beamz

Beamz BUV243 Bedienungsanleitung

thomann

thomann Stairville DJ Lase 40-G MK-III Bedienungsanleitung

Eagletone

Eagletone 6 Eyes Flower Bedienungsanleitung

EuroLite

EuroLite FLD-1508 Bedienungsanleitung

Technical Pro

Technical Pro LG8xSEA Bedienungsanleitung

JB Systems

JB Systems Lounge Laser DMX Bedienungsanleitung

Lightmaxx

Lightmaxx Vega Halo 90 Bedienungsanleitung

Elation

Elation FUZE WASH Z350 Bedienungsanleitung

Maverick

Maverick MK3 WASH Bedienungsanleitung

Infinity

Infinity TF-260C7 Fresnel Bedienungsanleitung

Chauvet

Chauvet EVE E-50Z Bedienungsanleitung

Eliminator Lighting

Eliminator Lighting E 138 Bedienungsanleitung

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Bedienungsanleitung
