Showline SL LEDSPOT 300 Bedienungsanleitung

Shwline

SL LEDSPOT 300

Automated Luminaire

SL LEDSPOT 300 Luminaire Quickstart Guide

SL LEDSPOT 300 QuickStart Guide 1

Showline Offices

DallasAuckland

10911 Petal Street19-21 Kawana Street

Dallas, TX 75238Northcote, Auckland 0627

Tel: +1 214-647-7880New Zealand

Fax: +1 214-647-8030Tel: +64 9 481 0100

Fax: +64 9 481 0101

AsiaEurope

Unit C, 14/F, Roxy Industrial CentreRondweg zuid 85

No. 41-49 Kwai Cheong RoadWinterswijk 7102 JD

Kwai Chung, N.T., Hong KongThe Netherlands

Tel: +852 2796 9786Tel: +31 (0) 543-542516

Fax: +852 2798 6545

www.philips.com/showline

The material in this manual is for information purposes only and is subject to change without notice. Showline assumes no responsibility for any

errors or omissions which may appear in this manual. For comments and suggestions regarding corrections and/or updates to this manual, please

contact your nearest Showline office.

El contenido de este manual es solamente para información y está sujeto a cambios sin previo aviso. Showline no asume responsabilidad por errores

o omisiones que puedan aparecer. Cualquier comentario, sugerencia o corrección con respecto a este manual, favor de dirijirlo a la oficina de

Showline más cercana.

Der Inhalt dieses Handbuches ist nur für Informationszwecke gedacht, Aenderungen sind vorbehalten. Showline uebernimmt keine Verantwortung

für Fehler oder Irrtuemer, die in diesem Handbuch auftreten. Für Bemerkungen und Verbesserungsvorschlaege oder Vorschlaege in Bezug auf

Korrekturen und/oder Aktualisierungen in diesem Handbuch, moechten wir Sie bitten, Kontakt mit der naechsten Showline-Niederlassung

aufzunehmen.

Le matériel décrit dans ce manuel est pour information seulement et est sujet à changements sans préavis. La compagnie Showline n'assume aucune

responsibilité sur toute erreur ou ommission inscrite dans ce manuel. Pour tous commentaires ou suggestions concernant des corrections et/ou les

mises à jour de ce manuel, veuillez s'il vous plait contacter le bureau de Showline le plus proche.

SL LEDSPOT 300 Luminaire QuickStart Guide

Special Product Information

In addition to the information contained in “Warnings and Notices” on page4, please read the special product information below.

Note: Information contained in this document may not be duplicated in full or in part byany person without prior written approval of Vari-Lite. Its

sole purpose is to provide the user with conceptual information on the equipment mentioned. The use of this document for all other purposes is

specifically prohibited.

CAUTION: Replace the lenses if they have become visibly damaged to such an extent that their effectiveness has become impaired, for example

by cracks or deep scratches.

CAUTION: Risk Group 3. Possible hazardous optical radiation may be emitted from the products described herein. Do not stare directly into light

sources. May be harmful to the eyes.

Note: The light source contained in this luminaire shall only be replaced by the manufacturer, authorized service center or similar qualified person

CAUTION: Replace the lenses if they have become visibly damaged to such an extent that their effectiveness has become impaired, for example

by cracks or deep scratches.

2 SL LEDSPOT 300 QuickStart Guide

Table of Contents

Showline Offices .................................................................................................................................................................................................1

Special Product Information................................................................................................................................................................................1

Introduction .........................................................................................................................................................................................................3

About Quickstart Guide.......................................................................................................................................................................................3

Included Items .....................................................................................................................................................................................................3

Warnings and Notices..........................................................................................................................................................................................3

Service and Maintenance.....................................................................................................................................................................................3

Power Requirements............................................................................................................................................................................................3

AC Power Operation............................................................................................................................................................................................3

Connecting Power................................................................................................................................................................................................4

AC and DMX Input / Output Connections ..........................................................................................................................................................5

Connecting to the DMX Network........................................................................................................................................................................5

Mounting Luminaire............................................................................................................................................................................................5

Floor ....................................................................................................................................................................................................................5

Floor Mounting....................................................................................................................................................................................................5

Menu System.......................................................................................................................................................................................................6

LCD Display Menu .............................................................................................................................................................................................6

LCD Display and Menu System Operation .........................................................................................................................................................6

Menu Settings......................................................................................................................................................................................................6

DMX CONTROL................................................................................................................................................................................................8

SL LEDSPOT 300 Luminaire DMX Mapping....................................................................................................................................................8

Product Specifications.......................................................................................................................................................................................14

Features .............................................................................................................................................................................................................14

Color System.....................................................................................................................................................................................................14

Gobos / Effects ..................................................................................................................................................................................................14

Prisms................................................................................................................................................................................................................14

Zoom: ................................................................................................................................................................................................................14

Power Consumption...........................................................................................................................................................................................14

Movement..........................................................................................................................................................................................................15

Safety distance...................................................................................................................................................................................................15

Weight...............................................................................................................................................................................................................15

AC Power Input.................................................................................................................................................................................................15

Luminaire Dimensions.......................................................................................................................................................................................16

SL LEDSPOT 300 Luminaire Quickstart Guide

SL LEDSPOT 300 QuickStart Guide 3

Introduction

Included Items

Each SL LEDSPOT 300 includes the following items:

Figure 1: Included Items

Warnings and Notices

When using electrical equipment, basic safety precautions should always be followed including the following:

READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

·Do not use outdoors.

·Do not mount near gas or electric heaters.

·Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized personnel.

·The use of accessory equipment not recommended by the manufacturer and may cause an unsafe condition..

·Do not use this equipment for other than intended use.

·Refer service to qualified personnel.

SAVE THIS DOCUMENT FOR FUTURE REFERENCE! READ COMPLETELY BEFORE INSTALLING AND USING PRODUCT!

WARNING: You must have access to a main circuit break error other power disconnect device before installing any wiring. Be sure that power is

disconnected by removing fuses or turning the main circuit breaker off before installation. Installing the device with power on may expose you to

dangerous voltages and damage the device.A qualified electrician must perform this installation.

WARNING: Refer to National Electrical Code® and local codes for cable specifications. Failure to use proper cable can result in damage to

equipment or danger to personnel.

WARNING: This equipment is intended for installation in accordance with the National Electric Code® and local regulations. It is also intended for

installation in indoor applications only. Before any electrical work is performed, disconnect power at the circuit breaker or remove the fuse to avoid

shock or damage to the control. It is recommended that a qualified electrician perform this installation.

Service and Maintenance

For all service and maintenance issues, please contact your local Showline office or an Authorized Service Center.

Power Requirements

The SL LEDSPOT 300 operates onAC input voltages from 100 to 240 VAC.

WARNING: This unit does not contain an ON/OFF switch. Always disconnect power input cable to completely remove power from unit when

not in use.

AC Power Operation

When connected to an AC source, the unit operates on 100 to 240 volts AC (+/- 10%, auto-ranging). The luminaire contains an auto-ranging power

supply.

Each luminaire can draw up to 450Watts.

About Quickstart Guide

This Quickstart Guide is intended for a knowledgeable user to unpack, install, and use SL LEDSPOT 300 in a short time period. For the complete

manual in PDF format, please visit our web site at :www.philips.com/showline and click the user manual download link on the product page. The

complete manual provides you all information related to accessories, menu structures, DMX channel mapping/modes, and care for your new

luminaire.

4 SL LEDSPOT 300 QuickStart Guide

WARNING：Maximum amount of units that may be daisy-chained is (A) 2 units AC 100V~(5.3Amps) or (B) 4 units AC 240V~ (2.08

Amps).Refer to Table1 for detailed information at various voltages.

Note: For wiring of AC input connector, refer to Connecting SL LEDSPOT 300 toAC Power.

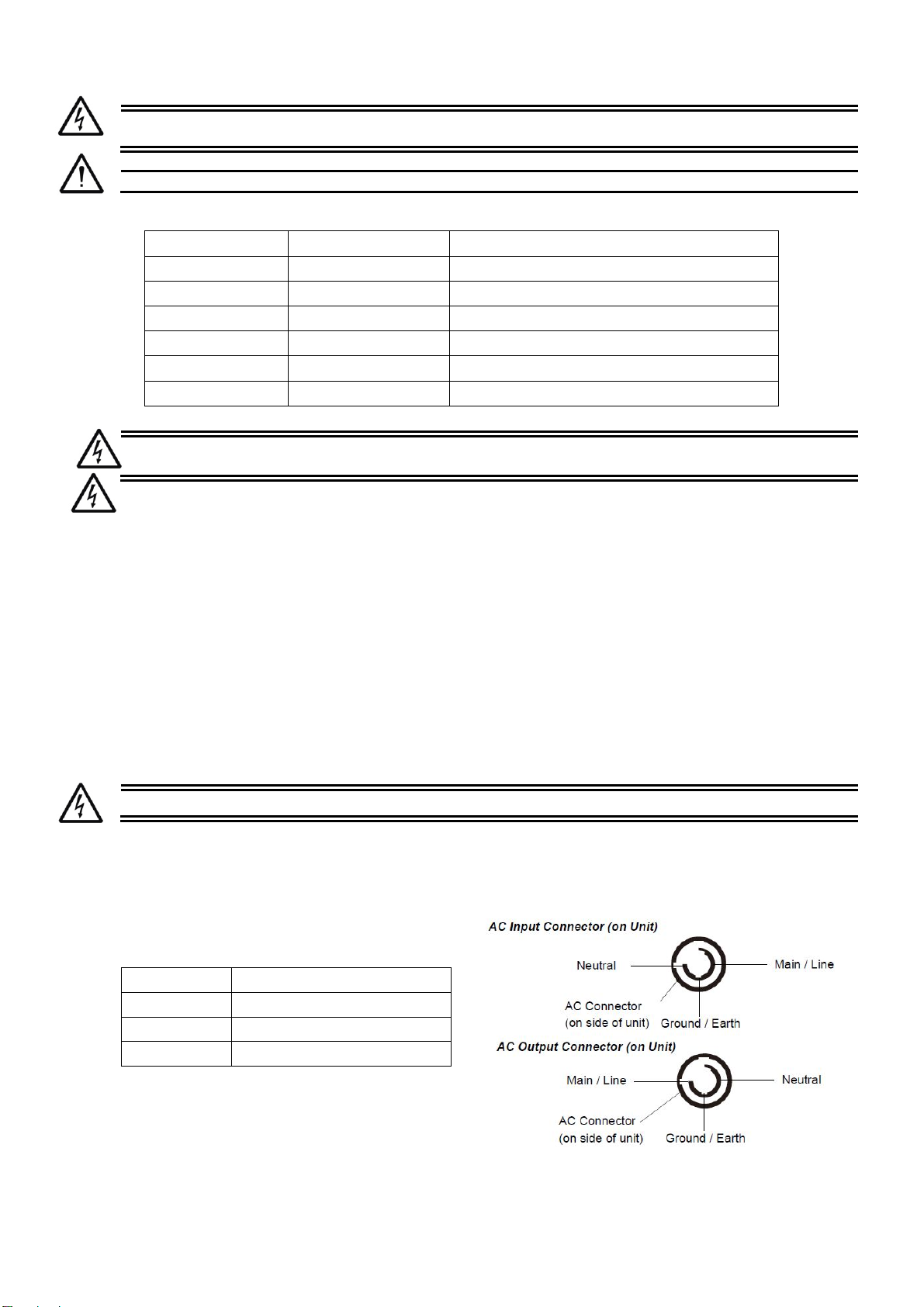

Table 1: SL LEDSPOT 300 Voltage vs. Current

Voltage(AC) Total Current(A) Maximum Number of units that can be linked together*

100 4.199 2

110 3.784 2

120 3.446 2

220 1.869 4

230 1.793 4

240 1.724 4

WARNING: *These figures are based on the Maximum Allowable Input Current of each fixture (and the Maximum powersupply limit of

450 Watts ).Do not overload circuits!

IMPORTANT AC POWER CONNECTION NOTES:

·When using the daisy-chain connection method, only connect the SL LEDSPOT 300 to the AC Output connection of another SL LEDSPOT

300 luminaire.

·DO NOT CONNECT OTHER TYPES OF LUMINAIRES OR DEVICES!

·Only use approved cable types.

·Do not overload circuits!

·Do not connect the SL LEDSPOT 300 to dimmed circuits.

Connecting Power

Units can be powered in one of two ways:

·Direct connection to a AC power source using an AC input cable. For wiring of AC input connector, refer to Connecting SL LEDSPOT 300 to AC

Power.

·Connection from theAC output of another SL LEDSPOT 300. When using this method, it is very important not to connect any other type of

equipment.

WARNING: Only connect other SL LEDSPOT 300 luminaires to the AC Output (Thru) connector of another SL LEDSPOT 300.

Connecting SL LEDSPOT 300 Luminaires toAC Power

Table 2, AC Input Connections describes how to connect power to your SL LEDSPOT 300. Field wiring of the SL LEDSPOT 300 is straight-forward.

A total of 3 wires/conductors is supplied to this unit.

Table 2:AC Input Connections

Wire Color Purpose

Black Main/Line(100 to 240 VAC)

White Neutral

Green Ground(Earth)

SL LEDSPOT 300 Luminaire Quickstart Guide

SL LEDSPOT 300 QuickStart Guide 5

AC and DMX Input / Output Connections

Figure 2:AC Input and Output connection

Connecting to the DMX Networ

Basic DMX512 installation consists of connecting multiple SL LEDSPOT 300

Luminaires together (up to 32 luminaires) in "daisy-chain" fashion. A cable runs from

the control console (or DMX512 control source) to the DMX connector on the first SL

LEDSPOT 300 Luminaire. Another cable runs from the other DMX connector on the

first unit to a DMX connector on the next SL LEDSPOT 300 Luminaire (or DMX512

device to be controlled).

Table 3: DMX512 Connections

DMX512 Signal XLR Pin

Common (Drain) 1

DMX512- 2

DMX512 + 3

Note: Remaining pins on each connector are not used.

Mounting Luminaire

The SL LEDSPOT 300 Luminaire is provided with the ability to hang via truss hooks, clamps, etc. (sold separately). Install Omega Clamps and

attach hook, clamp, etc. to the Omega Clamps in the provided mounting holes. It is recommended (and may be required by local and national safety

codes) to use and install a safety cable (included with unit) in the safety cable anchor point. When hanging the fixture, be sure to leave enough space

around the luminaire to allow for free movement and uninterrupted airflow for cooling.

Figure 3:

Mounting

Luminaire

Floor

Floor Mounting

The SL LEDSPOT 300 Luminaire is designed to sit directly on its base (Omega Clamps must be removed) in a floor installation application. When

used in this type of application, be sure to leave enough space around the luminaire to allow proper, uninterrupted airflow for cooling and movement.

SAFETY CABLE: Recommended

for all hanging installations and may be

required by national and local codes. Use

safety cable anchor points for safety cable

attachment for this fixture as shown.

PAN AND TILT LOCKS:

This unit is supplied with

pan and tilt lock. Be sure

to DISENGAGE pan and

tilt locks before putting

the unit into use.

Figure 3: Mounting Luminaire

6 SL LEDSPOT 300 QuickStart Guide

Menu System

LCD Display Menu

The SL LEDSPOT 300 Luminaire’s LCD Display and Menu System provides local control for accessing the fixture’s settings:

Note: If there are multiple luminaires in a system, changes would need to be made at each LCD Menu as desired.

Upon power up, the LCD will display the main screen showing the product name. If DMX is enabled, the programmed address will appear after

power up.

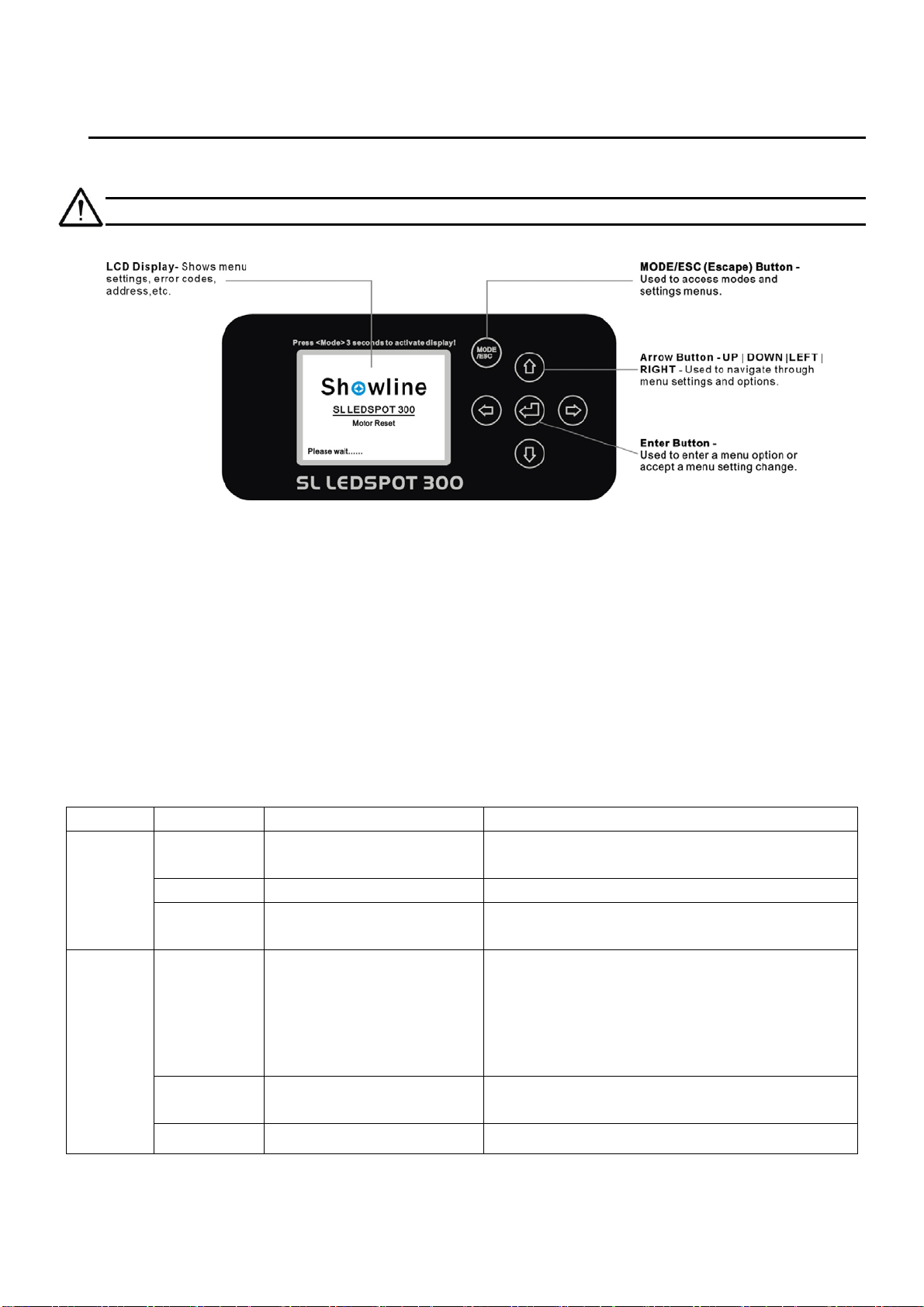

Figure 4: LCD Display and Menu System

LCD Display and Menu System Operation

The LCD Display Menu system consists of several categories. Use the Menu Buttons to access and make changes to the menu items. When the

desired menu item is reached, press the desired Menu Button to display the menu options and to navigate and configure the menu options as

required.

To navigate and access menu settings/selections:

Step 1. Make sure unit is powered on.

Step 2. Press the desired button ( as shown in Figure 4) to access menu categories.

Step 3. Use UP/DOWN/LEFT/RIGHT buttons to navigate through the various options and settings.

Step 4. Make changes as desired.

Step 5. Press RETURN button to accept changes.

Menu Settings

The following menu settings and options are available in the SL LEDSPOT 300 Luminaire menu system.

Table 4: Menu Setting

First Level Second Level Third Level Description

Function

Set Dmx

Address 001~XXX Sets the DMX Address. 001 is default value.

Dmx Value ALL：or Control Displays DMX values for various parameters. ALL: is default.

Auto Program Simple ten step Factory pre-programmed colour and movement

chase.

Information

Time Information

Current Time XXXX(Hours)

Total Run Time XXXX(Hours)

Last Run Time XXXX(Hours)

Last Run Password XXX

Clear Last Run ON or OFF

Running time since unit was powered on.

Total hours fixture has run.

Fixture running time since last clear of hours.

Entered to clear fixture timer. Password is “038”

Clears fixture last run time. Default is OFF.

Temperature

Info

Head Temperature XXX℃/℉Displays current temperature of the luminaire head.

Ethernet IP Ethernet IP xxx.xxx.xxx.xxx Displays luminaire’s IP address.

SL LEDSPOT 300 Luminaire Quickstart Guide

SL LEDSPOT 300 QuickStart Guide 7

Fan Info

2U01_Fan1: XXXRPM

：

Displays fans RPM / status

Software

Version

1U01：V1.0.0

2U01：V1.0.0

：

Displays software installed in luminaire.

Personality

Status Settings

No DMX Status CLOSE / HOLD /

AUTO

Pan Reverse ON or OFF

Tilt Reverse ON or OFF

Feedback ON or OFF

Hibernation OFF / 1 to 99 Minutes

Defines fixture behaviour on loss of DMX signal. Default is

HOLD.

Setting to reverse the pan movement. Default is OFF.

Setting to reverse the tilt movement. Default is OFF.

Pan & Tilt motor position feedback. Default is ON.

Sets standby mode. Default is 15 minutes.

Service Setting Password XXX Password for RDM PID editing. Password is “050”

RDM PID XXXXXX Displays RDM PID Code.

Fans Control Auto

High This setting sets the fans speed. Default is Auto.

Display Setting

Shutoff Time 2 to 60 minutes Sets the amount of time the LCD display will stay on after last

button press. Default is 5 minutes.

Display Reverse AUTO / ON / OFF This menu option flips the LCD Display 180 degrees. Default is

AUTO (automatic flips according to luminaire orientation).

Key Lock ON or OFF This option can be set to prevent unauthorized changes (locks

display). Default is OFF.

Temperature C/F Celsius or Fahrenheit Displays temperature values in the set scale. Default is Celsius.

Initial Status Control =XXX Selection and manual adjustment of fixture parameters for initial

power up preset.

Select Signal DMX Only / Art-Net On IP2 / Art-Net

On IP10 Selects the control system the luminaire will operate. Default is

DMX Only.

Set Universe 000~255 Sets the Art-Net Universe.

Reset Default ON or OFF Restores the fixture to factory defaults. Default is OFF.

Reset

Function

Reset All Resets (re-calibrates) all motors in the luminaire.

Reset Pan&Tilt Resets (re-calibrates) Pan and Tilt.

Reset CMY&Colors Resets (re-calibrates) CMY wheels and color wheels.

Reset Gobos Resets (re-calibrates) gobos.

Blade Reset Resets (re-calibrates) Blade.

Reset Others Resets (re-calibrates) Zoom, Prism, Frost and Focus.

Effect Adjust

Test Channel Control = XXX Manual selection of fixture parameters for ramping up and down.

Manual Control Control = XXX Select and adjust fixture parameters for local control.

Calibration Calibrate Password Password is “050”

Pan=XXX Sets centre points for parameter ranges.

8 SL LEDSPOT 300 QuickStart Guide

DMX CONTROL

This section contains information for operating the luminaire using DMX control.

Note: This table assumes a DMX start address of 1. When a different starting address is used, this address

ecomes channel 1 function and othe

functions follow in se

uence.

SL LEDSPOT 300 Luminaire DMX Mapping

Table 5 provides DMX channel mapping of all DMX512 control values for the SL LEDSPOT 300 Luminaire.

Table 5: SL LEDSPOT 300 Luminaire DMX Channel Mapping

DMX Parameter Range

DMX Range % Defaults* Description Notes

1 Pan High 0-65535 0-100% 32767 Fixture Pan -

2 Pan Low

3 Tilt High 0-65535 0-100% 32767 Fixture Tilt -

4 Tilt Low

5 Intensity High

0-65535 0-100% 0 16 Bit Dimming

6 Intensity Low

7 Shutter / Strobe 0-255 0-100% 0

0-31 Closed

32-63 Open

64-95 Strobe Slow to Fast

96-127 Open

128-159 Pulse

160-191 Open

192-223 Random Strobe Slow to fast

224 - 255 Shutter Open

8 Color Wheel 0-255 0-100%

0-15 Open

16-25 Color 1

26-35 Color 2

36-45 Color 3

46-55 Color 4

56-65 Color 5

66-75 Color 6

76-85 Color 7

86-95 Open

96-105 open + Color 1 Split

106-115 Color 1 + Color 2 Split

116 - 125 Color 2 + Color 3 Split

126 - 135 Color 3 + Color 4 Split

136 - 145 Color 4 + Color 5 Split

146 - 155 Color 5 + Color 6 Split

156 - 165 Color 6 + Color 7 Split

166 - 175 Color 7 + open Split

176 - 185 open

186 - 216 Scroll Clockwise fast to

SL LEDSPOT 300 Luminaire Quickstart Guide

SL LEDSPOT 300 QuickStart Guide 9

slow

217 - 247 Scroll counter Clockwise

slow to fast

248 - 255 Open

9 Cyan Color Flag

High 0-65535 0-100% 0 16 Bit Color Control

10 Cyan Color Flag

Low

11 Magenta Color

Flag High 0-65535 0-100% 0 16 Bit Color Control

12 Magenta Color

Flag Low

13 Yellow Color

Flag High 0-65535 0-100% 0 16 Bit Color Control

14 Yellow Color

Flag Low

15 CTO Color Flag 0-65535 0-100% 0

0 - 50 open

51-100 CTO on

101 - 255 reserved for use - Open

16 Zoom High 0-65535 0-100% 3840 16 Bit Zoom control

17 Zoom Low

18 Focus High

0-65535 0-100% 29440 16 Bit Focus Control

19 Focus Low

Gobo Wheel 1

(Rotating Gobo

Wheel)

0-255 0-100% 0

0-5 Open

6 - 10 Gobo 1 Circles of Holes Index 11

- 15 Gobo 2 Blades Index

16 - 20 Gobo 3 Punch Card Index

21 - 25 Gobo 4 Sliced Index

26 - 30 Gobo 5 Wavy Triangle Index

31 - 35 Gobo 6 Spiral Index

36 - 40 Open

41 - 45 Gobo 1 Circle of Holes Rotation

46 - 50 Gobo 2 Blades Rotation

51 - 55 Gobo 3 Punch Card Rotation

Default should

be fixture in

focus as open

spot in default

zoom @6m

distance

Inhaltsverzeichnis

Andere Showline Laterne Handbücher

Showline

Showline SL STRIP 10IP Bedienungsanleitung

Beliebte Laterne Handbücher anderer Marken

KYOWA

KYOWA KW-9114 Bedienungsanleitung

Stahl

Stahl ECOLUX 6610 Series Bedienungsanleitung

SNOWJOE

SNOWJOE SUNJOE 24V-LGT500-CT Bedienungsanleitung

PRG

PRG VARI LITE VL5 Bedienungsanleitung

Raytec

Raytec VARIO2 series Bedienungsanleitung

ENSA

ENSA LEDBT18WS2 Bedienungsanleitung

LUG

LUG OFFICE LB LED N/T Bedienungsanleitung

GE Wallighter 250 Bedienungsanleitung

Draper

Draper RLEDL19/B Bedienungsanleitung

Green Lighting

Green Lighting TRI-SENSOR GL4612LU Bedienungsanleitung

Panasonic

Panasonic EY3741B57 Bedienungsanleitung

Clas Ohlson

Clas Ohlson LCC8T Bedienungsanleitung

Coolon

Coolon WDN-140 Bedienungsanleitung

Holiday Travel

Holiday Travel 834873 Bedienungsanleitung

BEGA

BEGA 84 036 Bedienungsanleitung

BEGA

BEGA 33 596 Bedienungsanleitung

Dale Tiffany

Dale Tiffany GT701162 Bedienungsanleitung

Wagan

Wagan Brite Nite Pop-Up USB Lantern Bedienungsanleitung
