Sigma V KT848 Bedienungsanleitung

Sigma V

KT848 Business Telephone

System

Installation Guide

(Release 1.1)

CONTENTS

I. System Overview...............................................................................1

i. System Operation........................................................................................1

ii. System Configuration...................................................................................1

iii. Hardware Diagram.......................................................................................2

1. Main Unit...............................................................................................2

2. Power Supply........................................................................................2

3. Mother Board........................................................................................3

4. 4 ports CO line board (CO 1~4)............................................................3

5. 4 ports CO line expansion board (CO 5~8)...........................................4

6. Caller ID board......................................................................................4

7. 8 ports Extension expansion board.......................................................4

8. Feature phone ......................................................................................5

9. DSS Console........................................................................................6

II. Specifications.....................................................................................7

i. System Capacity..........................................................................................7

ii. Power Specifications....................................................................................7

iii. Environmental Limits....................................................................................7

iv. Cable Requirements ....................................................................................7

v. Physical Dimensions and Weights...............................................................7

vi. Peripheral.....................................................................................................8

III. Installation....................................................................................9

i. Main unit installation .............................................................................9

ii. Power Supply installation....................................................................10

iii. Co line connection .............................................................................. 11

iv. Station connection .............................................................................. 11

v. CO line expansion board installation................................................... 11

vi. Extension expansion board installation...............................................12

vii. Caller ID board....................................................................................12

viii. External Music-On-Hold installation....................................................13

ix. External Speaker installation ..............................................................13

x. SMDR installation ...............................................................................14

xi. Power Failure Transfer installation......................................................14

IV. System Programming................................................................16

i. Numerical Program Overview....................................................................16

ii. Alphabetical Program Overview.................................................................17

iii. Ways of using feature phone to access system programming:..................18

iv. Ways of using the single line phone to access system programming: .......18

Program 00: Time and Date Settings......................................................19

Program 01: CO setting #1......................................................................19

Program 02: CO setting #2......................................................................20

Program 03: System speed dialing ........................................................20

Program 04: System setting #1...............................................................21

Program 05: System setting #2...............................................................21

Program 06: System setting #3...............................................................22

Program 07: System setting #4...............................................................22

Program 08: Night transfer......................................................................23

Program 09: Outgoing call setting (Day mode).....................................23

Program 10: Outgoing call setting (Night mode) ..................................23

Program 11: Incoming call setting (Day mode).....................................24

Program 12: Incoming call setting (Night mode) ..................................24

Program 13: Setting of delay ringing / DISA setting.............................24

Program 14: Class of Service .................................................................25

Program 15: Restriction code A .............................................................25

Program 16: Restriction code B .............................................................26

Program 17: Unrest code C.....................................................................26

Program 18: Public restriction code D...................................................26

Program 19: PBX access code ...............................................................27

Program 20: Account code setting.........................................................27

Program 21: DISA (Trunk-to-trunk transfer) access code setting .......28

Program 22: Extension setting #1..........................................................28

Program 23: Extension setting #2..........................................................29

Program 24: Pickup group assignment .................................................29

Program 25: Executor (Boss) /Secretary function................................30

Program 26: System password...............................................................30

Program 27: Special port setting............................................................31

Program 28: Initialize the system...........................................................31

Program 29: Extension number assignment.........................................32

Program 30: Unit price setting of international distance call...............32

Program 31: Unit price setting of domestic distance call ....................32

Program 32: Unit price setting of local call ...........................................32

iii

Program 33: Displaying of telephone charges......................................33

Program 34: Review password of extension lock.................................33

Program 35: Review system charge counting.......................................33

Program 36: Presetting call charges......................................................34

V. Sample for special feature...............................................................35

VI. Station Operation.......................................................................40

VII. Troubleshooting.........................................................................43

1.1 System down .............................................................................................44

1.2 Station Dial Tone Faults.............................................................................44

1.3 CO Line Dial Tone Faults...........................................................................44

Page 1

I. System Overview

i. System Operation

Sigma V KT848 system is a stored program controlled electronic key telephone

system ready to use as soon as it is turned on. A powerful microprocessor digitally

controls all speech paths and system functions. The operating program with default

memory is stored in non-volatile ROM. Customer data is stored in RAM and protected

by a Ni-Cd battery for up to at least one month’s continuous loss of system power.

When AC power is restored, the Ni-Cd battery will be recharged.

ii. System Configuration

Sigma V KT848 system has a basic capacity of 4 CO line ports and 16 extension ports,

which can be extended to 8 CO and 48 extensions in maximum by adding optional

expansion boards. This system can be used for both feature phones and single line

phones. Extension ports 1 to 4 are assigned for either feature phone or single line

phones. The extension ports can be connected with single line phones as well as

faxes, recording machines and cordless phones etc.

Sigma V KT848 system has three kinds of expansion boards:

y4 ports CO line expansion board (1 pc. expandable at max.)

y8 ports Extension expansion board (4 pcs. expandable at max.)

y7 ports Caller ID board (1 pc. at maximum)

Combining the strapping options of basic KSU with all the combinations of expansion

boards, Sigma V KT848 system is extremely flexible. The maximum numbers of each

circuit type available in a fully configured Sigma V KT848 system are listed below.

Circuit Type Maximum Number Available

Feature Phone 4

Single Line Phone 48 (if no any feature phone)

CO Line (Loop Start) 8

Remarks: Two features will reduce the system capacity:

1. Caller ID occupy 1 CO port

2. DISA Trunk-to-Trunk occupy 1 Ext port

Page 2

iii. Hardware Diagram

1. Main Unit

2. Power Supply

Page 3

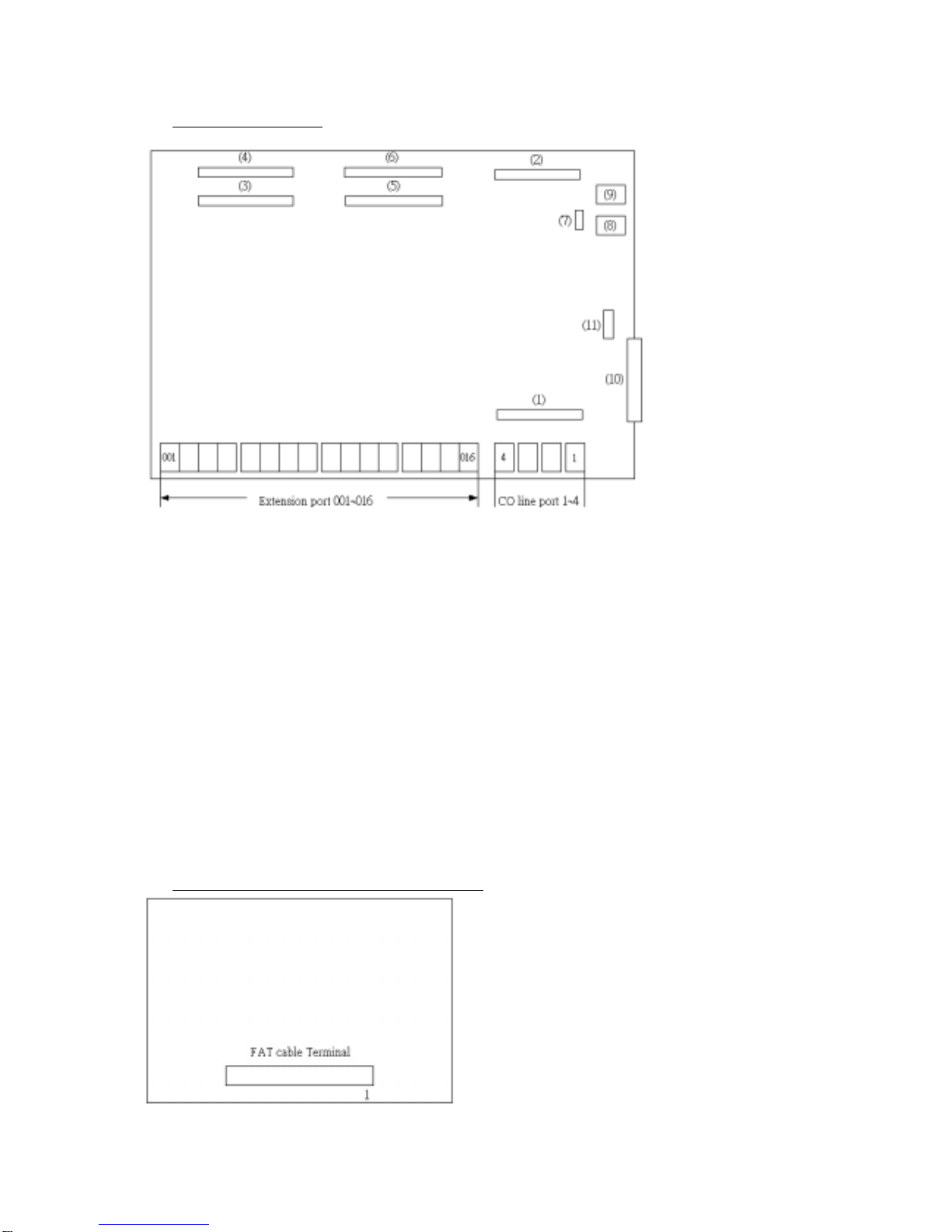

3. Mother Board

(1) 4 ports CO line board terminal (CO 1~4)

(2) 4 ports CO line expansion board terminal (CO 5~8)

(3) 8 ports Extension expansion board terminal (017~024)

(4) 8 ports Extension expansion board terminal (025~032)

(5) 8 ports Extension expansion board terminal (033~040)

(6) 8 ports Extension expansion board terminal (041~048)

(7) Jumper for internal/external music selection

(8) External music input for MOH

(9) External paging output

(10) Parallel interface (Printer)

(11) Serial interface (PC)

4. 4 ports CO line board (CO 1~4)

Page 4

5. 4 ports CO line expansion board (CO 5~8)

6. Caller ID board

7. 8 ports Extension expansion board

Page 5

8. Feature phone

(1) Handset

(2) LCD display

(3) Flexible/function buttons: red/green LED indicators

Button 1~8: Co line

Button 9~32: One touch key for station or outside telephone number

Button 33: FNC

Button 34: CLEAR

Button 35: DND

Button 36: SCROLL

(4) Dial pad

(5) Panel display light switch

(6) Fixed buttons

/ : Volume up / down

(7) Handset socket

(8) Telephone set socket

(9) DSS1 terminal

(10) Not use

(11) Microphone

(12) Speaker

Page 6

9. DSS Console

(1) DSS button

Button 1~48:extension port 001~048

Button 49~64: not use

(2) DSS terminal
