SignaMax FO-065-7732A Bedienungsanleitung

Manageable Gigabit Switch

User’s Manual 1

SignamaxConnectivity Systems

Manageable Gigabit Switch

Model FO-065-7732A

SER

’

UIDE

SignamaxConnectivity Systems

Manageable Gigabit Switch

Model FO-065-7732A

User’s Guide

Signamax



FO-065-7732A Manageable Gigabit Switch

User’s Manual 1

Preface

This manual describes how to install and use the Signamax

Connectivity Systems FO-065-7732A Manageable Gigabit Switch.

This switch introduced here is designed to deliver full scalability

with SNMP/RMON web-based management functions by

providing:

l24 x 10/100BaseTX fixed ports and optional 2 x

1000BaseT/SX/LX ports.

For the two Gigabit ports, it allows options of fiber type and

wavelength at user’s discretion. This switch brings a simple answer

to today’s complicated networking environments.

To get the most out of this manual, you should have an

understanding of Ethernet networking concepts.

In this manual, you will find:

lFeatures on the SignamaxConnectivity Systems FO-065-7732A

Manageable Gigabit Switch

lIllustrative LED functions

lInstallation instructions

lManagement Configuration

lSNMP, DHCP, IGMP…

lSpecifications

Signamax



FO-065-7732A Manageable Gigabit Switch

2User’s Manual

Table of Contents

PREFACE 1

TABLE OF CONTENTS 2

PRODUCT OVERVIEW 4

SIGNAMAXFO-065-7732A MANAGEABLE GIGABIT SWITCH 4

PACKAGE CONTENTS 4

PRODUCT HIGHLIGHTS 5

Basic Features 5

Management Support 5

FRONT PANEL DISPLAY 7

PHYSICAL PORTS 8

SWITCH MANAGEMENT 9

Administration console via RS-232 serial port 9

Web-based browser interface 9

External SNMP-based network management application 9

INSTALLATION 10

SELECTING A SITE FOR THE SWITCH 10

CONNECTING TO POWER 10

CONNECTING TO YOUR NETWORK 11

Cable Type & Length 11

Cabling 12

SWITCH MANAGEMENT 13

MANAGEMENT ACCESS OVERVIEW 13

ADMINISTRATION CONSOLE 14

Direct Access 14

Modem Access 14

WEB MANAGEMENT 15

SNMP-BASED NETWORK MANAGEMENT 15

PROTOCOLS 16

MANAGEMENT ARCHITECTURE 16

MENU-DRIVEN CONSOLE MANAGEMENT 17

LOGGING ON TO THE SWITCH 18

At the screen prompt 18

SWITCH MANAGEMENT SCREEN 19

Navigating Through the Console Interface 19

PERFORMING BASIC MANAGEMENT ACTIVITIES 20

Start with Selection Menu 20

General Management Configurations 21

LAN Port Configurations 22

Signamax



FO-065-7732A Manageable Gigabit Switch

User’s Manual 3

Console Port Configurations 25

PERFORMING ADVANCED MANAGEMENT ACTIVITIES 27

Start with Selection Menu 27

L2 Switching DataBase 28

IP Networking 36

Bridging 38

Static Filtering 39

MAC Address In-Filters 41

Spanning Tree Functions 42

SNMP Functions 47

Other Protocols 49

Port Trunking 50

Port Mirroring 51

QoS Setup 52

Sending and Receiving Files 60

LOGOUT 61

SAVE SETTINGS 61

RESTORE DEFAULT SETTINGS 62

REBOOT 62

WEB-BASED BROWSER MANAGEMENT 63

LOGGING ON TO THE SWITCH 63

UNDERSTANDING THE BROWSER INTERFACE 64

PERFORMING FILE ACTIVITIES 66

Start with Selection Menu 66

PERFORMING BASIC SETUP ACTIVITIES 67

Start with Selection Menu 67

LAN Port Configuration 69

Console Port Configuration 72

PERFORMING ADVANCED SETUP ACTIVITIES 74

Start with Selection Menu 74

MAC Address Management 74

Per Port Statistics 78

Bridging 79

Static MAC Filter 80

IP Multicast Group 83

Spanning Tree Perspective 84

SNMP 87

Other Protocols 88

Port Trunking 91

Port Mirroring 92

QoS 93

SNMP & RMON MANAGEMENT 99

OVERVIEW 99

SNMP AGENT AND MIB-2 (RFC 1213) 99

RMON MIB (RFC 1757) AND BRIDGE MIB (RFC 1493) 100

RMON Groups Supported 100

Bridge Groups Supported 101

SPECIFICATIONS 102

CONTACT INFORMATION 104

Signamax



FO-065-7732A Manageable Gigabit Switch

4User’s Manual

Product Overview

Signamax



FO-065-7732A Manageable Gigabit

Switch

Front View

Package Contents

When you unpack the product package, you shall find the items

listed below. Please inspect the contents, and report any apparent

damage or missing items immediately to yourauthorized reseller.

PThe SignamaxConnectivity Systems FO-065-7732A

Manageable Gigabit Switch

PUser’s Manual

PAC power cord

PRS232 cable

PRackmount brackets with screws

Signamax



FO-065-7732A Manageable Gigabit Switch

User’s Manual 5

Product Highlights

Basic Features

l24 x 10/100BaseTX ports with RJ-45 connectors, plus options of 2 x

1000BaseT/SX/LX ports, auto-MDIX on port 17 ~ port 24

lAuto-negotiation for speed and duplexity on all 10/100BaseTX ports

lFull wire-speed forwarding rate

lStore-and-forward mechanism

lBack-pressure and IEEE 802.3x compliant flow control

lSupports 12K MAC addresses

lProvides 2MBytes memory buffer

lFront panel reset button

lFront panel port status LEDs

lStandard 19” rackmount size, one-unit-height

Management Support

VLAN

lPort-based VLAN

l802.1Q tagged VLAN

TRUNKING

lMAC-based Trunking, up to three groups,two groups with a maximum

of four 10/100TX/100FX ports each group, one group with a maximum

of two 1000T/SX/LX ports

lLoad sharing based on source and destination MAC addresses

PORT-SECURITY

lLimit number of MAC addresses learned per port

lStatic MAC addresses stay in the filtering table

PORT-MIRRORING

lPort-mirroring provided through dedicated ports

COS (IEEE802.1p Classification of Service)

l4-level transmission priorities: 4 queues per output port

lPacket transmission scheduled using Weighted Round Robin (WRR)

lUser-defined weights

lClassification of packet priority can be based on either a VLAN tag on

packet or a user-definable port priority

INTERNETWORKING PROTOCOLS

lBridging:

802.1D Spanning Tree

802.1p/Q –GARP/GVRP

Signamax



FO-065-7732A Manageable Gigabit Switch

6User’s Manual

lIP Multicast:

IGMP Snooping

Maximumof 128 VLANs and IP multicast sessions

lRate Control

NETWORK MANAGEMENT METHODS

lConsole port access via RS-232 cable

lTelnet remote access

lSNMP agent:

MIB-2 (RFC1213)

Bridge MIB (RFC1493)

RMON MIB (RFC1757) –statistics, history, alarm and events

VLAN MIB (802.1Q/RFC2674)

Private MIB

lJava applet-based MIB browser

lWeb browser support based on HTTP server and CGI parser

lKermit/TFTP software-upgrade capability

Signamax



FO-065-7732A Manageable Gigabit Switch

User’s Manual 7

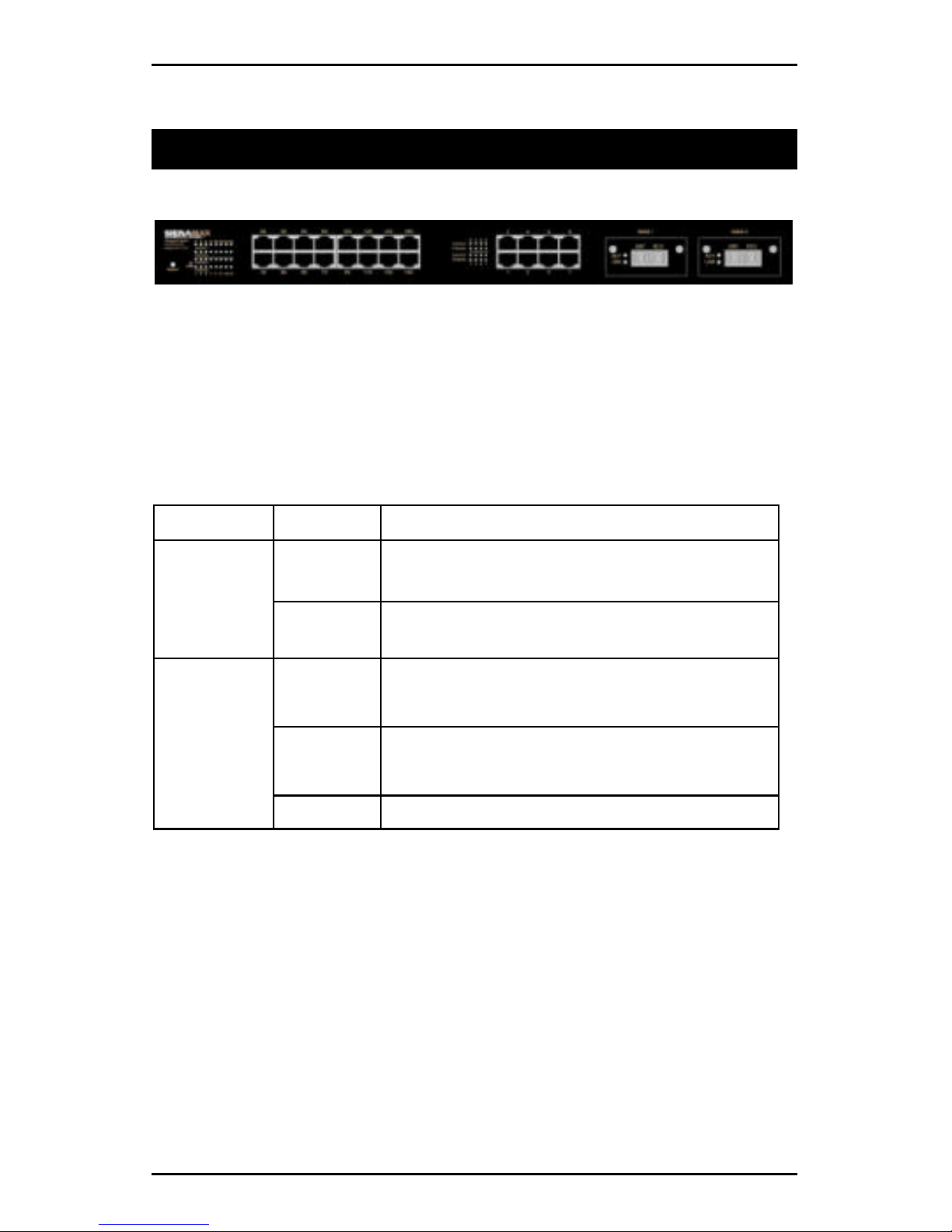

Front Panel Display

•POWER

This LED comes on when the switch is properly connected to power and

turned on.

‚Port Status LEDs

The LEDs are located at the left side of each section, displaying status for

each respective port. Please refer to the following table for more details.

LED State Indication

On A valid network connection established.

LNK stands for LINK.

LNK/ACT Flashing Transmitting or receiving data.

ACT stands for ACTIVITY.

On Connection in full duplex mode.

FDX stands for FULL-DUPLEX.

Flashing Collision occurred.

COL stands for COLLISION.

FDX/COL

Off Connection in half-duplex mode.

ƒGigabit Port Status LEDs

The LEDs are located at the left side of each Gigabit module, displaying

status for each respective port. Please refer to the following table for more

details.

Signamax



FO-065-7732A Manageable Gigabit Switch

8User’s Manual

LED State Indication

Flashing Transmitting or receiving data.

ACT stands for ACTIVITY.

ACT Off No activity.

On A valid network connection established.

LNK stands for LINK.

LNK

Off No connection.

Physical Ports

The SignamaxConnectivity Systems FO-065-7732A

Manageable Gigabit Switch provides:

l24 x 10/100TX fixed ports and options of 2 x 1000T/SX/LX

ports.

CONNECTIVITY

lSC connectors on Gigabit ports

lRJ-45 connectors on TX ports

MODE SELECTION

• 10BaseT full-duplex mode

• 10BaseT half-duplex mode

• 100BaseTX full-duplex mode

• 100BaseTX half-duplex mode

•1000BaseT/SX/LX full-duplex mode

• 1000BaseT/SX/LX half-duplex mode

• Auto-negotiating mode
