User‘s Guide

8 port Nway Fast Ethenet

Web Smart Switch

Model:065-7508

1 SIGNAMAX LLC • www.signamax.eu

Web Smart Switch

Configure

Please follow the steps to configure this Web Smart switch.

Step 1:

Use a twisted pair cable to connect this switch to your PC.

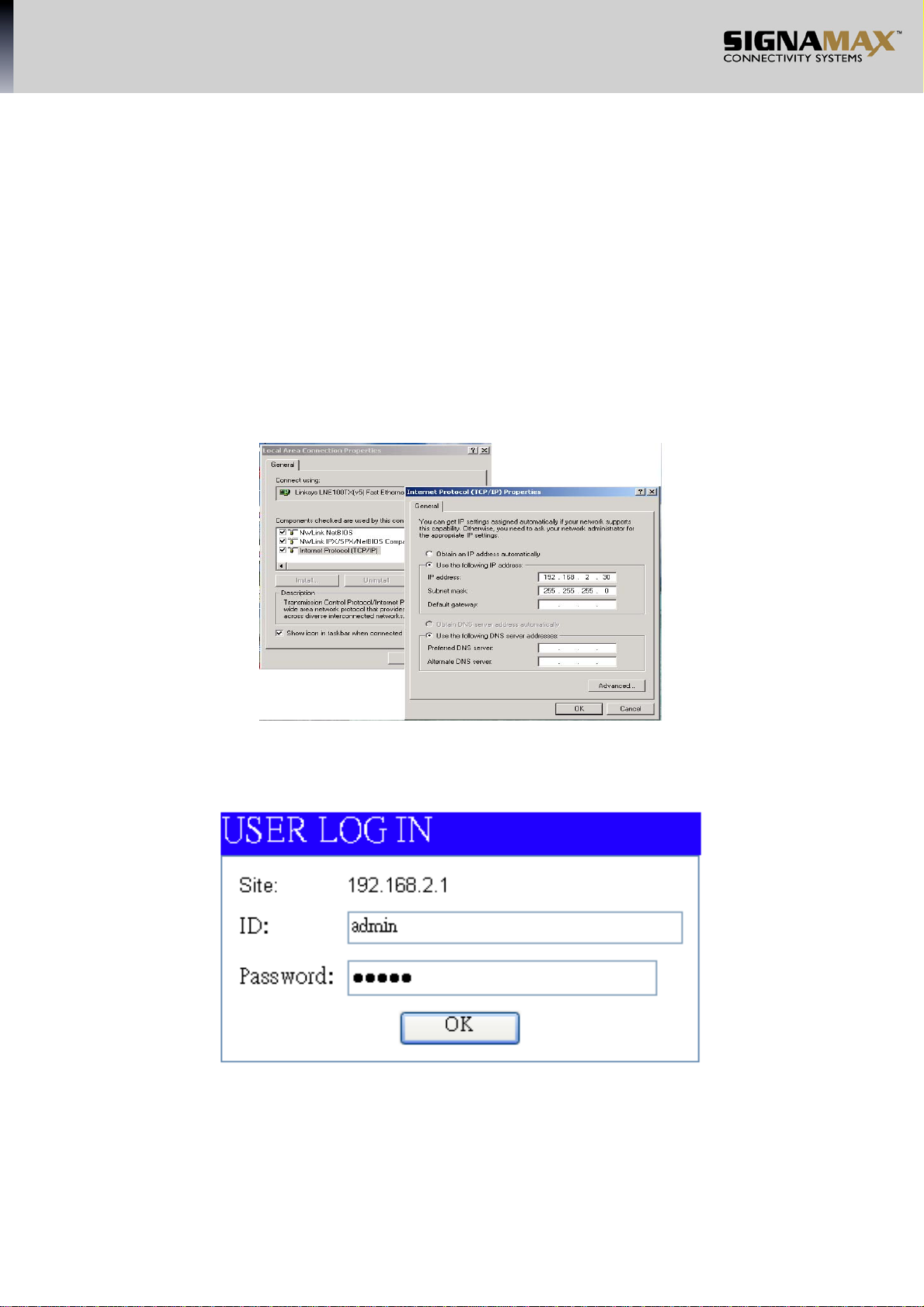

Step 2:

Set your PC’s IP to 192.168.2.xx.

Step 3:

Open the web browser (like IE…), and go to 192.168.2.1 site, and then you will

see the login screen.

ID and the password: admin

2 SIGNAMAX LLC • www.signamax.eu

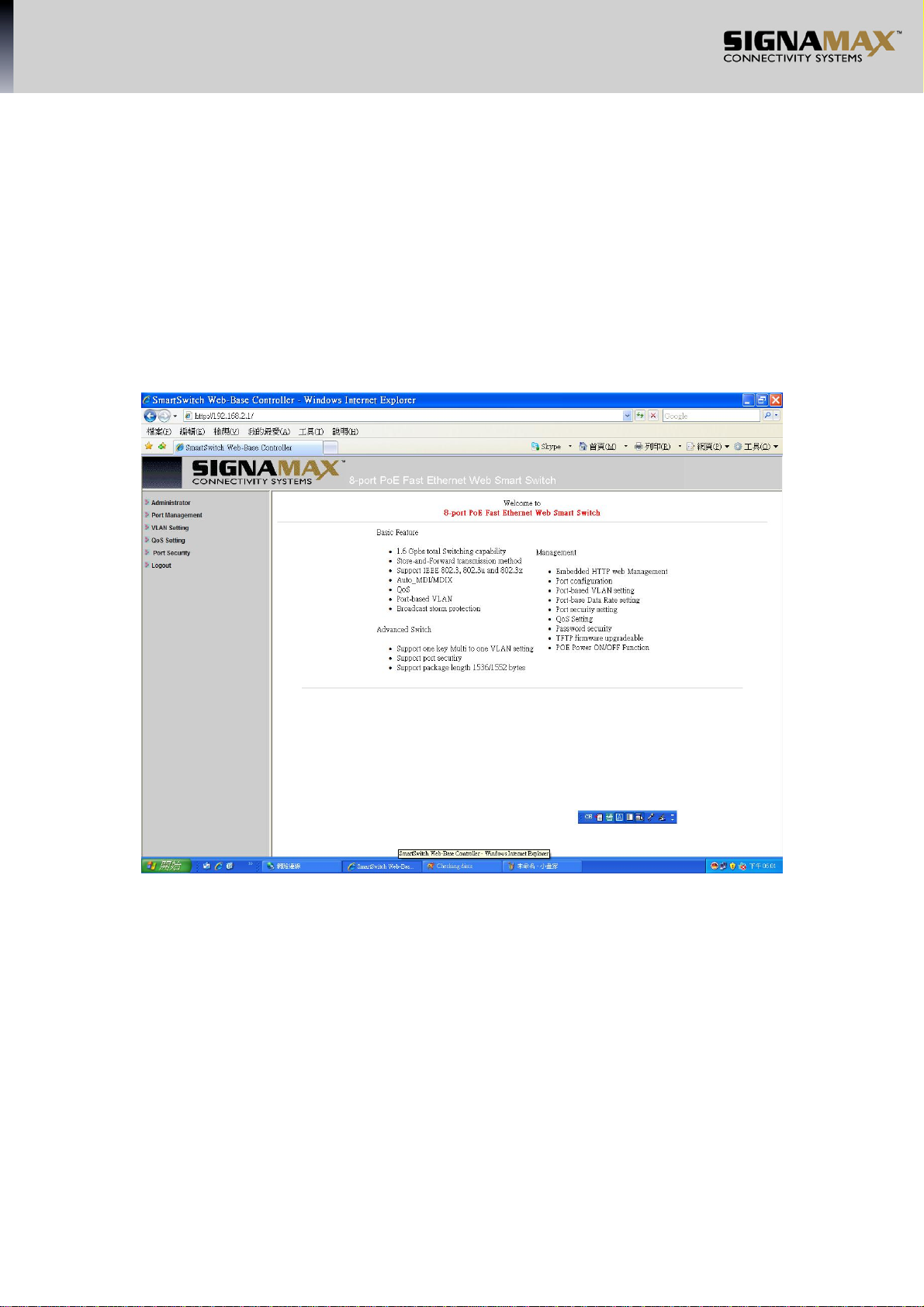

Step 4: After the authentication procedure, the home page shows up.

Select one of the configurations by clicking the icon.

- Administrator

- Port Management

- VLAN Setting

- QoS Setting

- Port Security

- Logout

3 SIGNAMAX LLC • www.signamax.eu

Administrator: Authentication

Configuration

1. Change the user name and the password.

2. Click “Update” to confirm the new change.

3. Turn off the power and reset this switch.

4. After resetting, turn on the switch for the new change.

Now, you can use the new user name and the password.

4 SIGNAMAX LLC • www.signamax.eu

Administrator: System IP Configuration

1. Change the IP address: type the new IP address or select DHCP IP

configuration.

2. Click “Update” to confirm the new change.

“Setting Process OK!!” will be shown on the screen.

3. Turn off the power and reset this switch.

4. After resetting, turn on the switch for the new change.

Now, the setting of “System IP Configuration” is finished.

5 SIGNAMAX LLC • www.signamax.eu

Administrator: System Status

It MAC address and system version will be shown on the screen.

1. Change the new comment of this switch by typing the new comment.

2. Click “Update” to confirm the new change.

6 SIGNAMAX LLC • www.signamax.eu

Administrator: Load Default Setting to EEPROM

1. Click “Load” to back to the factory default setting.

2. Turn off the power and reset this switch.

3. After resetting, turn on the switch for the new change.

Now, the default is loaded.

7 SIGNAMAX LLC • www.signamax.eu

Administrator: Firmware Update

Follow the instruction on the screen to update the new firmware.

Please contact with your sales agents to get the latest firmware

information.

.

8 SIGNAMAX LLC • www.signamax.eu

Port Management: Port Control Configuration

Select the “Port No.” - configure the mode below:

1. “Link Capability” – Auto-Nego. or 100M or 10M mode.

2. “Duplex” - select the port to full or half-duplex mode.

3. “Tx & Rx” - enable/disable Tx & Rx capability of the

port.

9 SIGNAMAX LLC • www.signamax.eu

Port Management: Bandwidth Control

Select the “Port No.” - configure the mode below:

1. “TX Rate” : set the maximum transmission rate of this

selected port and choose the full speed or in

128K/256K/512K/1M/2M/4M/8M speed.

2. “RX Rate” : set the maximum receiving rate of this selected

port and choose full speed or in

128K/256K/512K/1M/2M/4M/8M speed.
