FiberOptic Converters

Quick Installation Guide

This quick installation guide provides instructions for installing a FiberOptic

Converter.

1-1 Introducing the FiberOptic Converter

The FiberOptic Converters are used to convert Fast Ethernet

100Base-TX to fiber optic 100Base-FX network connection. The

Converters can be used as a stand-alone unit or as a slide-in module

to the 19" converter rack (up to 10 units) for use at a central wiring

closet. The following models are available:

• FiberOptic Converter-ST (multi-mode)

• FiberOptic Converter-SC (multi-mode)

Feature/Specifications

•Standards: IEEE 802.3u Fast Ethernet 100Base-TX /FX

•Connectors:

UTP port: RJ-45

Fiber optic port: ST or SC, 1300nm

•Cable:

Fiber optic: 50/125, 62.5/125 or 100/140 µm (multi-mode)

UTP: Category 5 UTP

•Data Transfer Rate:

Half-duplex: up to 100Mbps; Full-duplex: up to 200Mbps

•Cable Connection Parameters: 100Base-TX/FX (multi-mode)

network allows 512-bit time delay between any two node

stations in a collision domain. The overall bit-time of TP/Fiber

wires and devices must be within 512 bit in a segment. You

may use a switch to break up collision domain and extend the

cabling distance.

•Power Requirement: 1.0A @ +5V

•Operating Temperature: 32° to 122° (0° to 50°C)

•Storage Temperature: -40° to 158°F (-40° to 70°C)

•Relative Humidity: 5% to 90%, non-condensing

•Dimensions: 26.2mm (H) x 70.3mm (W) x 94mm (D)

04-0180A

•LED Indicators:

LED Color Function

FX ACT Green Blinks when any FX traffic is present

FX LNK Green Lit when Fiber connection is good

TX ACT Green Blinks when any TP traffic is present

TX LNK Green Lit when TP connection is good

FDX Green Lit when full-duplex mode is active

PWR Green Lit when +5V power is coming up

•DC Jack and AC/DC Power Adapter:

AC Input: 100–240VAC 50/60Hz

DC Output: 1A @ +5VDC

UTP Cable Length (Max.):

Full- or Half-duplex Node to Node 100 m

Node to Switch 100 m

Fiber Optic Cable Lengths (Max.):

Half-duplex Node to Node: 412 m

(multi-mode) Node to Switch: 412 m

Full-duplex Node to Node: 2000 m

(multi-mode) Node to Switch: 2000 m

Connecting to 10/100Mbps NWay Device:

TP Port Non-NWay, supports 100Mbps only. Force the

partner to 100Mbps speed at Fdx or Hdx.

Fiber Port Non-NWay, supports 100Mbps only. Force the

partner to 100Mbps speed at Fdx or Hdx.

Fdx/Hdx Selectable to match partner's operation mode.

Default: Hdx

Unpacking

Before setting up your FiberOptic Converter, verify that the following

items are included in the packaging carton:

• FiberOptic Converter

• AC/DC Power Adapter

• This Quick Installation Guide

Please notify your dealer if any item is damaged or missing.

2-1 Installing the FiberOptic Converter

1. Insert the power jack from the AC/DC power adapter into the

5VDC jack on the Converter.

2. Connect the cables for the network connection.

a. Connect a fiber cable between the Converter's Tx (transmit) port

andconnectingdevice'sRx (receive) port.Connectanotherfiber

cablebetweentheConverter'sRx(receive)portandtheconnecting

device's Tx (transmit) port.

b. Connect a UTP Cat. 5 cable between the Converter's TP port and

the connecting device's TP port.

3. Full- or half- (default) duplex mode is selectable and must match

the remote link device's mode.

NOTE: Wiring pin-outs for connections from the TP port:

-To a Switch or Hub/Repeater (MPR) :

Straight-through cable 1, 2, 3, 6 to 1, 2, 3, 6

-To a workstation (DTE) or NIC:

Cross-over cable 1 to 3, 2 to 6, 3 to 1, 6 to 2

100Bas

Netw

Fiber

Network

Hdx

Fdx

TP-to-SC

100Base-FX

Fiber Network

100Base-TX

Network

RX FiberOptic

Converter

Basic Network Connection

Duplex Mode

Switch

Mode Selection

x F

5VDC

HDX FDX

Fdx Pwr

TX RX

FX TX

ACT

LNK

PWRFDX

AC/DC

Jack

TP Port

ST/SC

Fiber Port

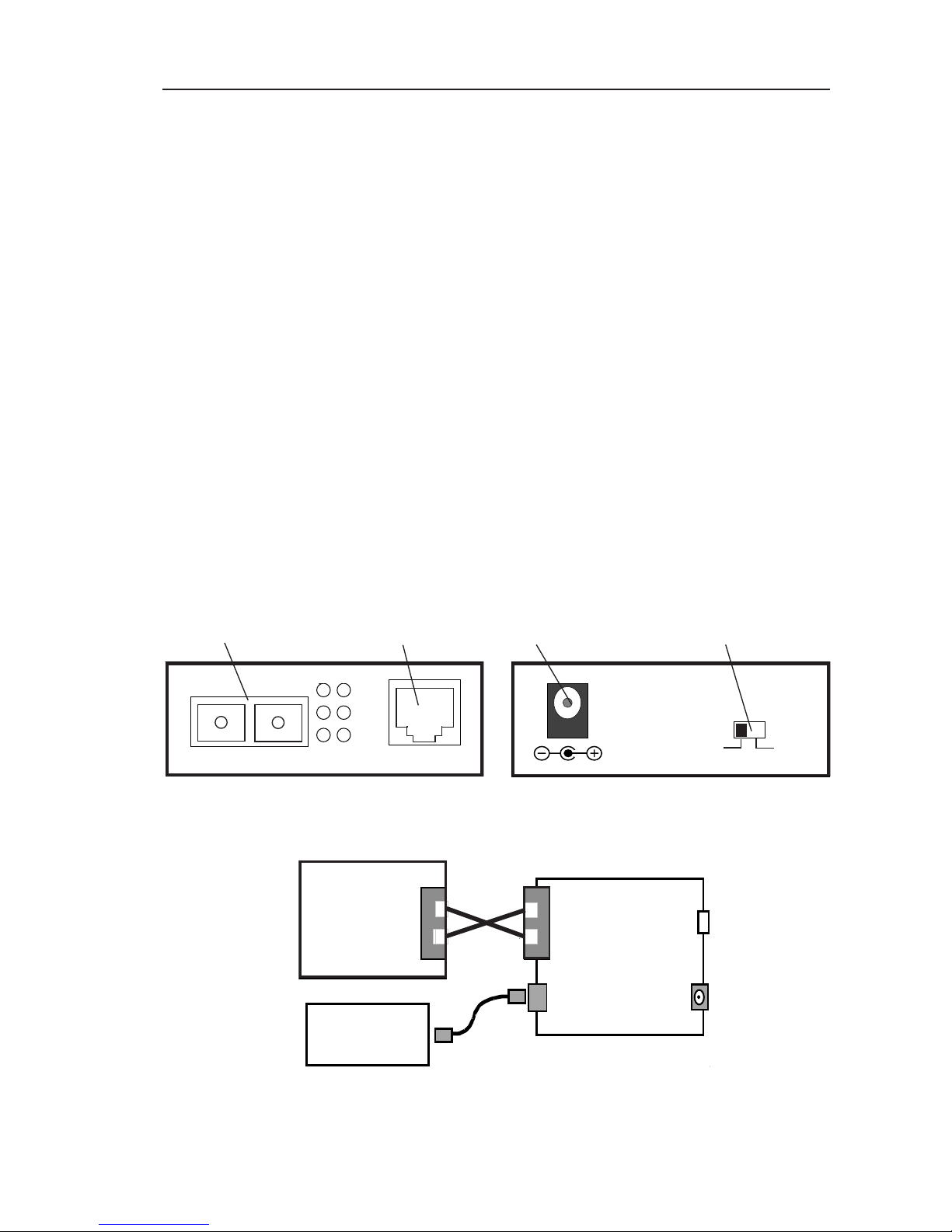

FiberOptic Connector/Switch Locations

NOTE: If connecting to a Router, Bridge, or Switch, please refer to the

device's technical manual.

3-1 Technical Support & RMA

Questions? SIIG’s On-line Support has the answers! Simply visit

our web site at www.siig.com and click on the ON-LINE SUPPORT

icon for instant technical support. You may also e-mail us online at:

http:\www.siig.com/technical_support_form.html

If you need additional help, Tech Support Specialists are available

from 8:00 a.m. to 5:00 p.m. Mon. – Fri., PST at (510) 353-7542.

In order for SIIG’s Technical Support to give you prompt service,

you will need the following information.

Part Number: ______________________________________

Computer Configuration: ___________________________

Return Merchandise Authorization (RMA)

SIIG warrants to the original buyer of the product that the hardware

is free of defects in materials and workmanship for a period of five

years from the date of purchase. If your product fails to be in good

working order during the warranty period, you may return it to SIIG

for repair or replacement at SIIG's option. To return a product:

Step 1: Call SIIG's RMA Department

Callthe RMADepartment at(510) 413-5333for aReturn Merchandise

Authorization (RMA) number. To get a RMA number, you must

have your product serial number. The serial number is located on

the side of the box it came in and on the back of the product.

Step 2: Complete the RMA form

• Fill out the RMA form and include it with the product.

• Properly pack the product for shipping. All software, cable(s) and

accessories that came with the original package must be included.

• Clearly write your RMA number on the top of the returned package

andontheaccompanyingRMAform.SIIGwillrefuseanyshipping

package, and not be responsible for a product returned without

a RMA number posted on the outside of the shipping carton.

Step 3: Ship the product

You are responsible for the shipping cost to SIIG at the following

address:

SIIG, Inc. RMA#_______________

6078 Stewart Ave.

Fremont, CA 94538

SIIG will ship the repaired or replaced product via UPS Ground or US

Mail at no cost to you.
