SilverStar MX-COLOR Bedienungsanleitung
USER MANUAL
MX-COLOR
LED110
Version 1.0
WWW.YAGANG.COM
PART 1 PRODUCT (GENERAL)..............................................................1
1.1--PRODUCT INTRODUCTION....................................................................................... 2
1.2--PRODUCT FEATURES...............................................................................................2
1.3--TECHNICAL SPECIFICATIONS...................................................................................3
1.4--PHOTOMETRIC DATA................................................................................................4
1.5--SAFETY WARNING....................................................................................................4
PART 2 INSTALLATION.........................................................................5
2.1--MOUNTING................................................................................................................6
2.2-- SETTINGUP (STAND ALONE)....................................................................................7
2.3--SETTING UP (MASTER/SLAVE)..................................................................................7
2.4--SETTING UP(DMX512 CONTROLLER).......................................................................8
PART 3 DISPLAY PANEL OPERATION................................................... 9
3.1--BASIC......................................................................................................................10
3.2--MENU......................................................................................................................11
3.3--SETTING DMX512ADDRESS...................................................................................12
3.4--RUN MODE.............................................................................................................12
3.5--EDIT PROGRAM......................................................................................................13
3.6--SPECIAL OPTIONS..................................................................................................14
PART 4 OPERATION WITH DMX512.....................................................15
4.1--BASIC ADDRESSING...............................................................................................16
4.2--CHANNEL ASSIGNMENT..........................................................................................16
4.3--FUNCTION EXPLANATION.......................................................................................18
Part 1
Part 1
1.1 PRODUCT INTRODUCTION
1.2 PRODUCT FEATURES
1.3 TECHNICAL SPECIFICATIONS
1.4 PHOTOMETRIC DATA
1.5 SAFETY WARNING
PRODUCT (GENERAL)
1
This product is designed for indoor use only. Suitable applications include wash or effect
lighting for architectural, stage or nightclub applications. Direct input of DMX512 signal
allows the fixtures to be controlled from any DMX512 controller. The fixture is fully
programmable with one custom program available and is supplied with two automatic
programs and two music-active programs (all accessible from DMX512 controller). This
product can beoperated as a single unit or with multiple unitsfor large applications.
1.1 PRODUCT INTRODUCTION
RGB Dimmer 0-100%
Strobe
Automatic programs
Music-active programs
Custom program (programmable)
Auto-color sequence (variable speed)
LCD display
Fan speed control
DirectDMX512 input

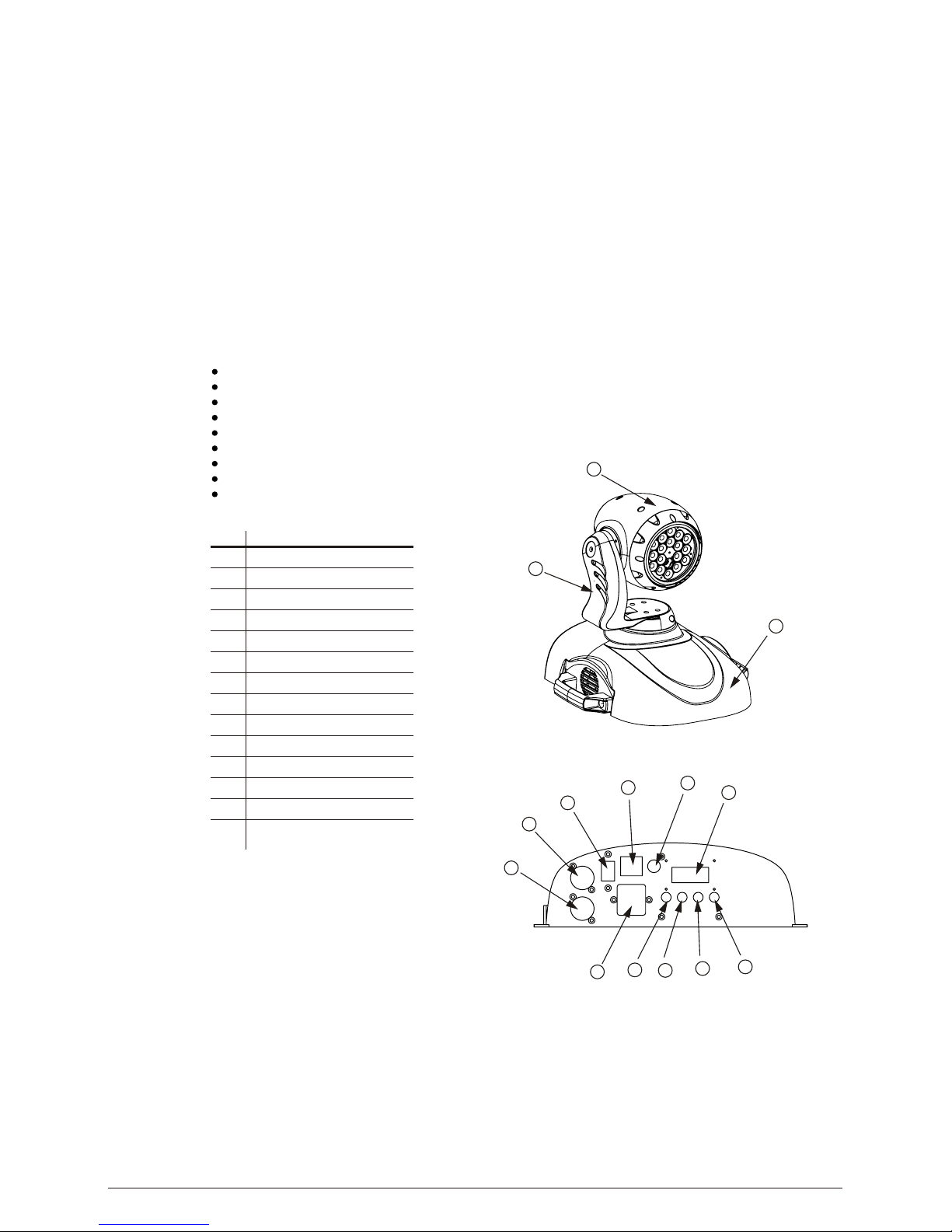

1.2 PRODUCT FEATURES
1
2
3
4
5
6
789
10
11
12
13
14
DMX OUT
DMX IN
110V~230V
POWER IN PUT
POWER
MIC
MODE UP DOWN ENTER
PRODUCT (GENERAL) 22006.11.15
No
1
2
3
4
5
6
7
8
9
10
11
12
13
14
ITEM
Arm
Head
Base
Power selector switch
DMX OUT
DMX IN
Power switch
Mic
LCD display
Enter
Down
Up
Mode
Power connector
115
250
359
300
135
135
15
540
90 102
43.78
149.25
94.25
278.5
PRODUCT (GENERAL) 32006.11.15
1.3 TECHNICAL SPECIFICATIONS
100~120V...50/60Hz 220~240V...50/60Hz50W
50W
18pcs (6 XRED / 6X GREEN /6 X BLUE)
1W
15 (30 Optional)
Forced air convection
356 x 300 x356mm
8.9Kg
Voltage
Rated Power
LED/Unit
Output/LED
LED Beam Angle
Cooling
Dimensions
Weight
1.5 SAFETY WARNING
IMPORTANT
ALWAYS READ THE USER MANUAL BEFORE OPERATION.
PLEASE CONFIRM THAT THE POWER SUPPLY STATED ON THE
PRODUCT IS THE SAME AS THE MAINS POWER SUPPLY IN YOUR AREA.
This product must be installed by a qualified professional.
Always operate the equipment as described in the user manual.
A minimum distance of 0.5m must be maintained between the equipment and
combustible surface.
The product must always be placed in a well ventilated area.
Always make sure that the equipment is installed securely.
DO NOT stand close to the equipment and stare directly into the LED light
source.
Always disconnect the power supply before attempting and maintenance.
Always make sure that the supporting structure is solid and can support the
combined weight ofthe products.
The earth wire must always be connected to the ground.
Do not touchthe power cables if your hands are wet.
ATTENTION
This product leftthe place of manufacture in perfect condition. In orderto
maintain this condition and for safe operation, the user must always follow the
instructions and safety warnings described in this user manual.
Avoid shaking or strong impacts to any part of the equipment.
Make sure thatal parts of the equipment are kept clean andfree of dust.
Always make sure that the power connections are connected correct and
secure.
If there is any malfunction of the equipment, contact your distributor
immediately.
When transferring the product, it is advisable to use the original packaging in
which the productleft the factory.
Shields, lenses orultraviolet screens shall be changed ifthey have become
damaged to such an extent that their effectiveness is impaired.
The lamp (LED) shall be changed if it has become damaged or thermally
deformed.
PRODUCT (GENERAL) 42006.11.15
GREEN
1
2
3
0
1
2
3
2468
10 Diameter(m)
515 130 62 31 25 LUX
15
BLUE
1
2
3
0
1
2
3
2468
10 Diameter(m)
600 150 70 34 30 LUX
15
RED
1
2
3
0
1
2
3
2468
10 Diameter(m)
645 170 72 50 40 LUX
15
WHITE
1
2
3
0
1
2
3
2468
10 Diameter(m)
1500 370 170 93 80 LUX
15
RGB 100%
1
2
3
0
1
2
3
2468
10 Diameter(m)
1600 430 180 95 90 LUX
15
1.4 PHOTOMETRIC DATA
Part 2
Part 2

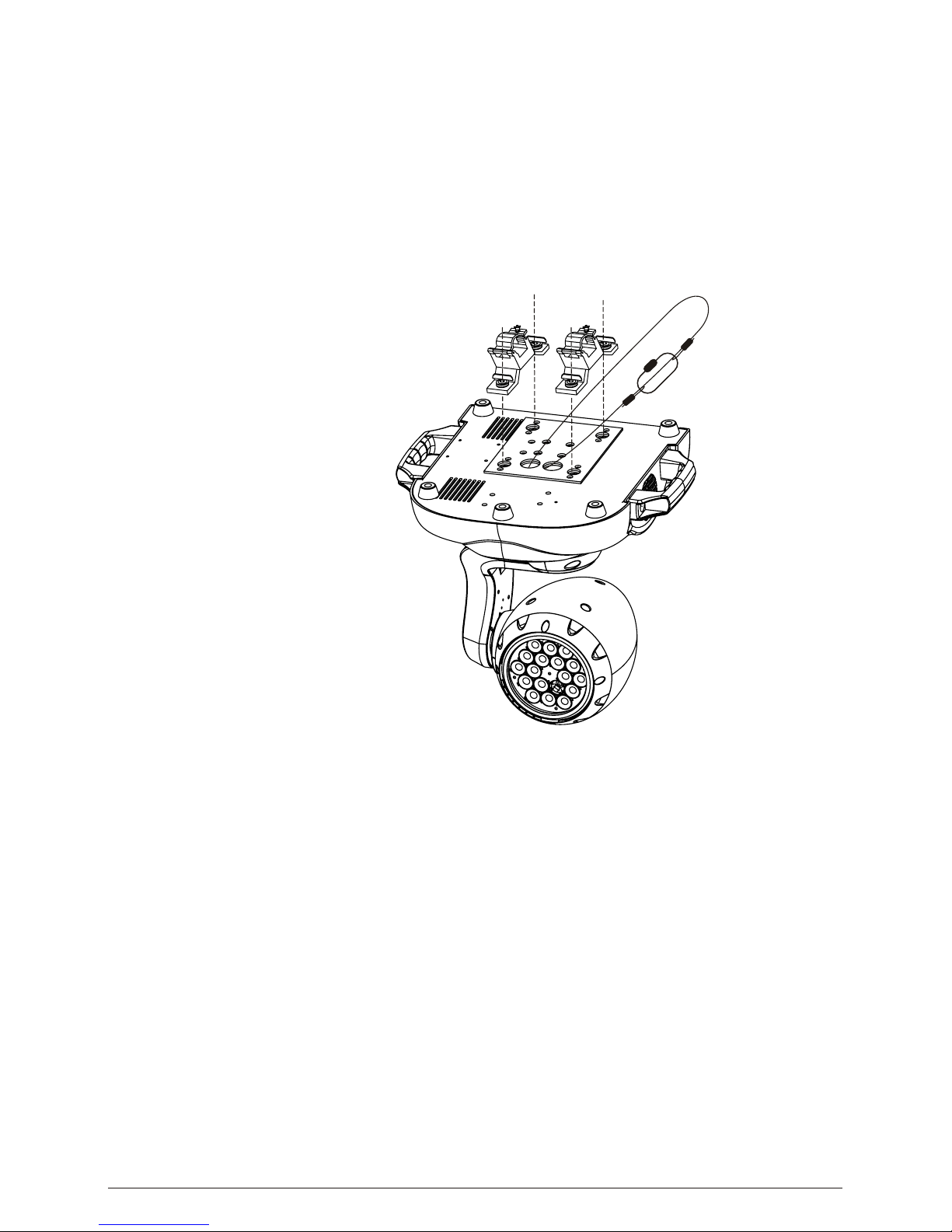

2.1 MOUNTING
2.2 SETTING UP (STAND ALONE)
2.3 SETTING UP (MASTER/SLAVE)
2.4 SETTING UP (DMX512 CONTROLLER)
INSTALLATION
5
The LED fixture can be operated in any position at any angle. When mounted on a flat
surface, the surface must be strong enough to support 10 times the weight of the fixture and
stable so that the will be no damage caused to the fixture or surrounding people or objects
because of movements of the fixture on the surface.
When the unit is mounted in a hanging position, the fixture is attached using the mounting
brackets and a standard truss clamp or other clamping device. The mounting brackets
supplied are mounted using quick-release locks allowing simple mounting or removal.
2.1 MOUNTING
IMPORTANT SAFETY NOTE!!
Always use asafety cable when installing this unit!!
Be sure that the safety cable is connected to a solid load-bearing structure.
INSTALLATION 62006.11.15
Quick-release lock
Safety cable
INSTALLATION 72006.11.15
2.2 SETTING UP (STAND ALONE)
The LED fixture can be used as a stand alone unit. The stand alone functions AUTO 1,
AUTO 2, SOUND 1, SOUND 2, CUSTOM 1 can be activated without the need to connect to
any controller orconnecting to any other equipment.
Simply, access the <RUN> menu from the DISPLAY and select the target program to
activate.
When units are connected in series using DMX512 signal cable connect the units as shown
in the diagram below
Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin
connector of the first (MASTER) fixture.
Connect the end of the cable coming from the MASTER fixture which will have a (female) 3
pin connector to the input connector of the next fixture consisting of a (male) 3 pin
connector.
Then proceed to connect from the output asstated above to the input ofthe following fixture
and so on.
Set the first unit in the series to one of the STAND ALONE modes as described in section
2.2
All other units in the series should be set to <SLAVE> from the <RUN> menu.
2.3 SETTING UP (MASTER/SLAVE)
MASTER SLAVE SLAVE
When units are connected in series to a DMX512 controller and other DMX512 equipment,
connect the equipment as shown in the diagram below.
Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin
connector of the controller.
Connect the end of the cable coming from the controller which will have a (female) 3 pin
connector to the input connector of the next fixture consisting of a (male) 3 pin connector.
Then proceed to connect from the output as stated above to the input of the following fixture
and so on.

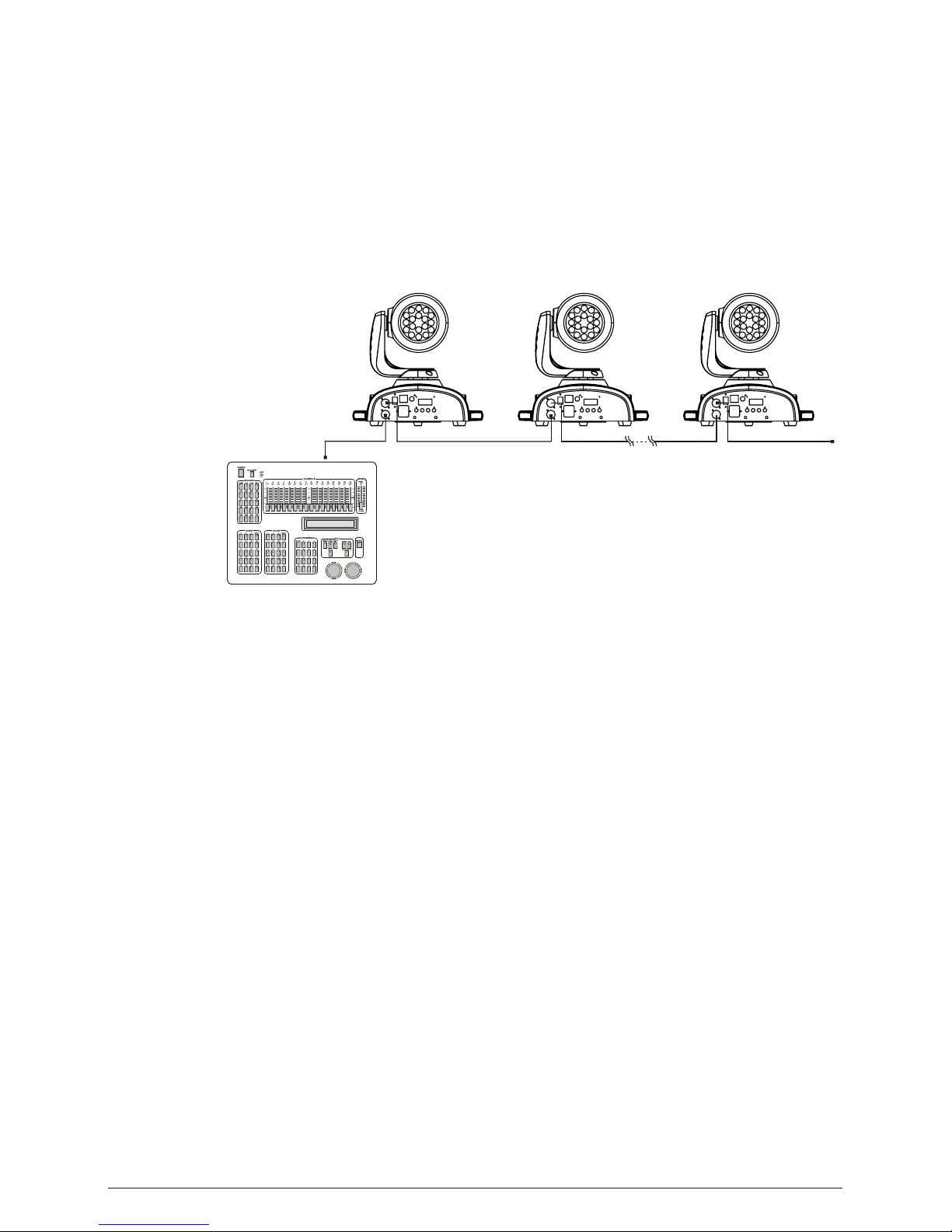

2.4 SETTING UP (DMX512 CONTROLLER)
INSTALLATION 82006.11.15
DMX512
CONTROLLER
