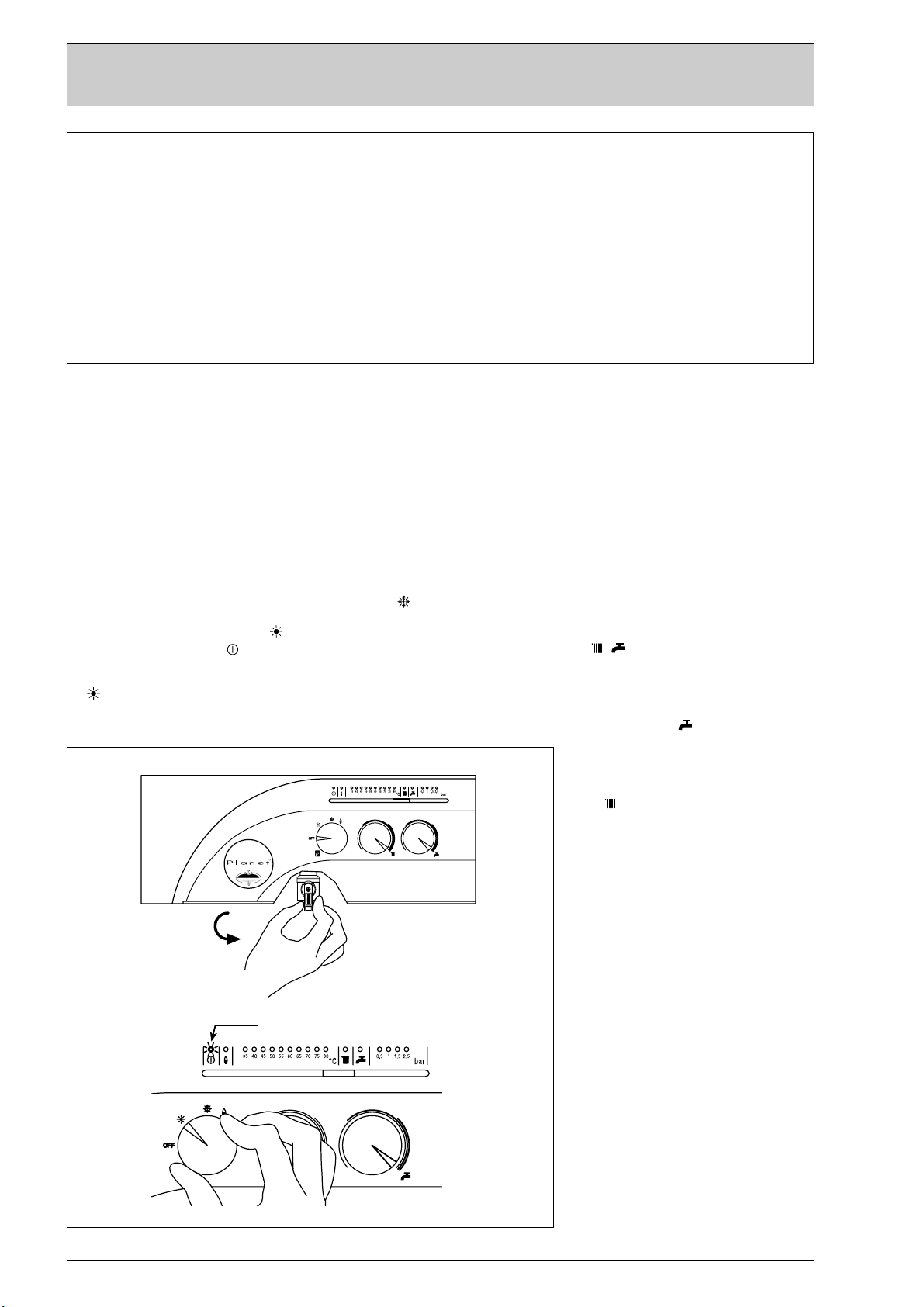

BOILER IGNITION (fig. 1)

Open the gas cock, lower the cover of the

control and activate the boiler by turning

the selector knob to the summer ( ).

position. When the green led ( ) lights up,

electricity is present in the boiler.

– With the selector knob on the summer

( ) position, the boiler increases the

temperature of the hot water to the

set value.

– With the selector knob on the winter

position ( ) the boiler, once it has

reached the temperature set on the

heating potentiometer, will begin to mod

ulate automatically in order to supply the

system with the effective power request

ed. The boiler will stop functioning if the

room stat or “Logica Remote Control”

intercede.

TEMPERATURES ADJUSTMENT (fig. 2)

The panel of the red leds is graduated from

40÷80 °C and shows the temperature in

the D.H.W. tank when the two service leds

( ) are off; it shows the temperature

of the primary circuit when one of the two

leds is lit up.

– Regulation of the D.H.W. temperature is

carried out by acting on the hot water

service knob ( ). The set temperature

is displayed on the scale of the red leds

from 40 ÷80 °C.

– Regulation of the C.H. temperature is

carried out by acting on the heating knob

( ). The set temperature is shown on

the scale of the red leds from 40÷80 °C.

To guarantee an always optimal output

from the generator it is advised not to

go below a minimum operating tempera

ture of 50 °C.

TURNING OFF BOILER (fig. 1)

To turn the boiler off place the selector

knob on the OFF position.

IF THE BOILER IS NOT GOING TO BE

USED FOR A LENGTHY PERIOD IT IS

ADVISED TO TURN OFF THE ELECTRICI

TY SUPPLY, CLOSE THE GAS COCK, AND

IF LOW TEMPERATURES ARE FORESEEN,

EMPTY THE BOILER AND THE

HYDRAULIC SYSTEM TO AVOID FROST

DAMAGE.

CLEANING AND MAINTENANCE

T e programmed maintenance of t e

appliance must be carried out annually by

aut orised tec nical staff.

USER INSTRUCTIONS

LIGHTING AND OPERATION

REMOTE

CONTROL

APRE

SPIA VERDE

Fig. 1

GREEN LED

OPEN

VERY IMPORTANT!

PLEASE MAKE SURE YOUR LOG BOOK ENCLOSED IS FILLED IN CORRECTLY.

ALL CORGI REGISTERED INSTALLERS CARRY A CORGI ID CARD.

BOTH SHOULD BE RECORDED IN YOUR CENTRAL HEATING LOG BOOK.

YOU CAN CHECK YOUR INSTALLER IS CORGI REGISTERED

BY CALLING ON 01256 372300

FAULTS FINDING

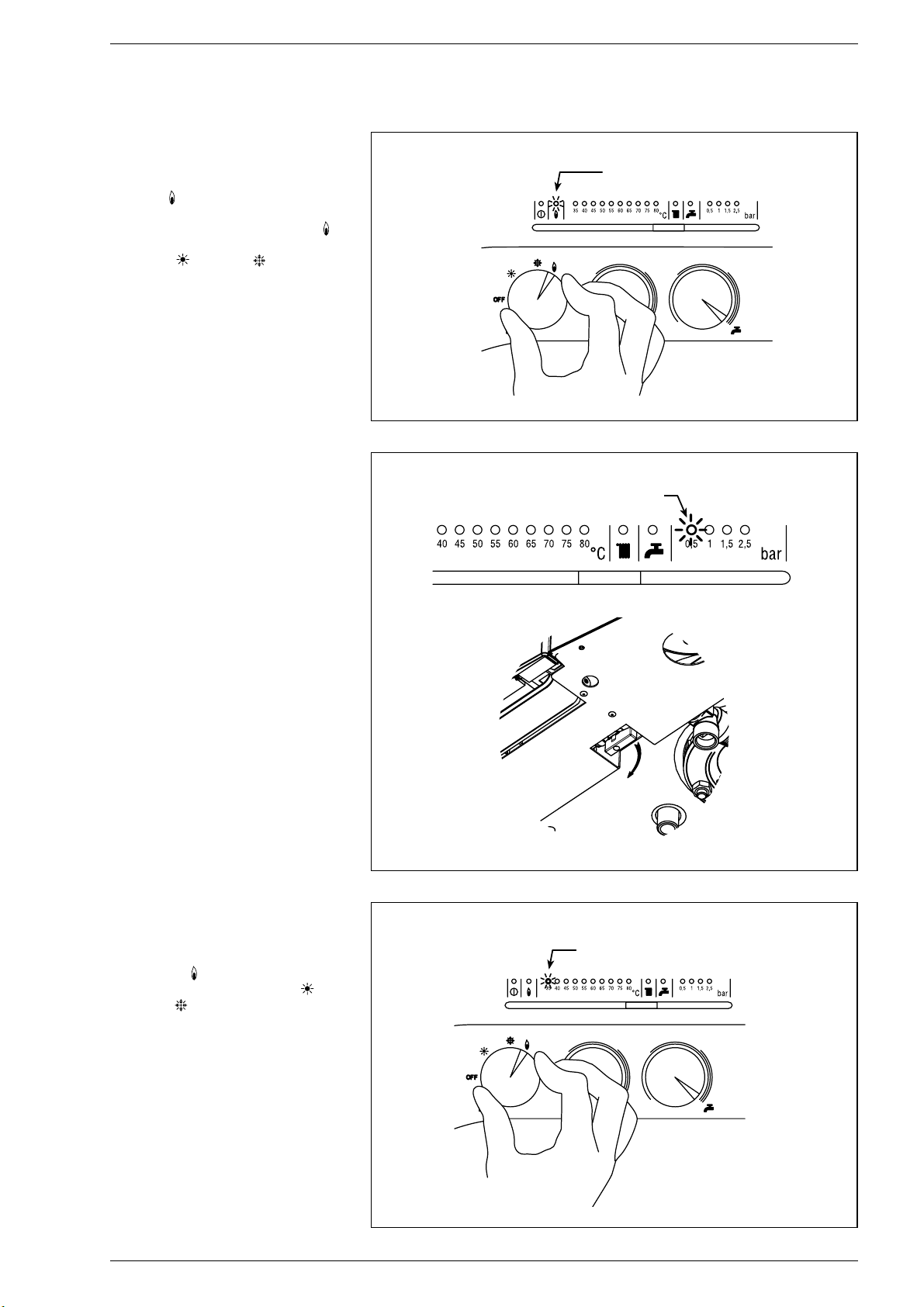

–Ignition failure (fig. 3)

If the burner fails to start the red led will

light up ( ).

To attempt starting it again, the selector

knob must be turned to the position

()

and released soon after, returning to the

summer ( ) or winter ( ) position.

If t e failure s ould occur again, call

t e aut orised tec nical staff for

assistance.

–Insufficient water

pressure (fig. 4)

If the red led “0.5 bar” intermittently

lights up, the boiler is not functioning. To

restore functioning open the filling cock

until the green led “1 bar” lights up.

Once filled close t e filling tap.

If all the leds are off, call the authorised

technical staff.

–Safety stat interception (fig. 5)

If the safety stat intercedes the red led

“35°C” intermittently lights up. To start

the boiler again, turn the selector knob in

the position

()

and then release immedi

ately, returning it to the winter

()

summer

( ) function

If t e failure s ould occur again, call

t e aut orised tec nical staff for

assistance.

SPIA ROSSA

Fig. 3

Fig. 4

SPIA ROSSA INTERMITTENTE

IN CONDIZIONE DI SICUREZZA

RED LED

FLASHING RED LED

IN SAFETY CONDITION

SPIA ROSSA INTERMITTENTE

Fig. 5

FLASHING RED LED

–Ot er faults (fig. 6)

When one of the leds is flashing from

“40÷ 80°C”, deactivate the boiler and

try to start it again. The operation may

be repeated 2 or 3 times, and if there is

no success call the authorised technical

staff for assistance.

When “

PLANET SUPER 4 W.M.

”is con

nected to the “Logica Remote Control”

regulator, the selector

CR/OFF/EST/INV/UNBLOCK must be

placed in the position ( ); the knobs of

the D.H.W. and C.H. potentiometers do

not have any effect and all of the func

tions will be managed by the regulator

(fig. 7).

If the “Logica Remote Control” breaks

down, the boiler will function by placing

the selector on the ( or ), posi

tion, obviously without consequent con

trol of the room temperature.

The functioning instructions are inside

the lid (fig. 8). Every setting or modifica

tion is displayed and confirmed on the

display (fig. 9).

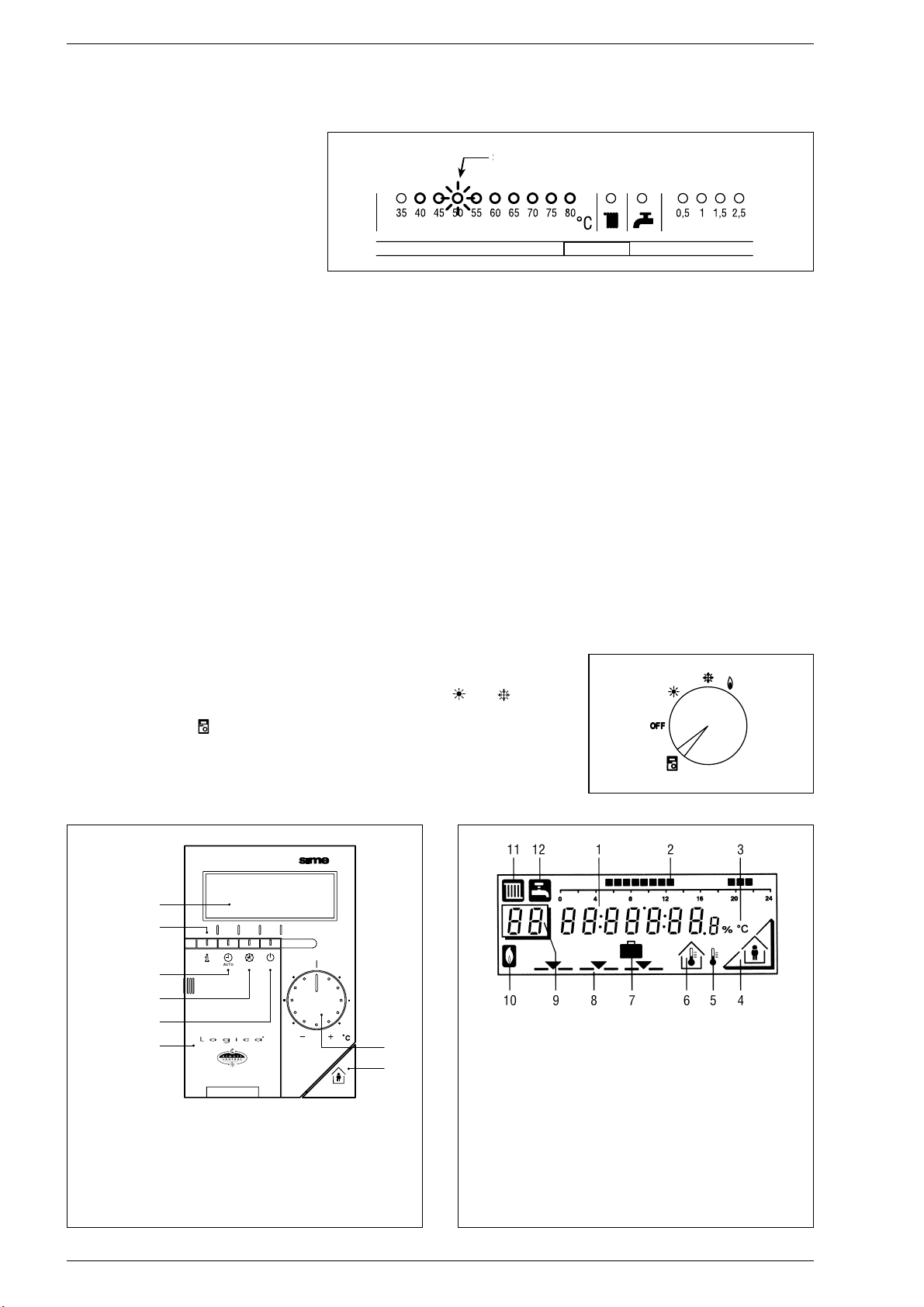

LOGICA REMOTE CONTROL

KEY

1 Display

2 Info key

3 Operating mode key: automatic functioning

4 Operating mode key: manual functioning

5 Operating mode key: availability

6 Lid with instructions space

7 Temperature knob

8 On line key Fig. 8

KEY

1 Digits, hour

2 Heating programme

3 Unit (%/°C)

4 On line key display

5 External temperature

6 Room temperature

7 Vacation function

8 Operating mode

9 Line number, day

10 Burner lit

11 Heating functioning

12 Hot water temperature/load hot water Fig. 9

Fig. 7

Fig. 6

SPIA ROSSA INTERMITTENTE

FLASHING RED LED

If it is too hot or too cold in your apartment, you can easily adjust the fixed

temperature with the temperature knob.

Before adjusting it again, owever, allow t e temperature to stabilise first.

Note: With the temperature knob you can only adjust the fixed temperature, whilst the

reduced temperature remains the same.

–Adjusting t e temperature

If you turn the knob towards the + sign, the fixed temperature is

increased by about 1 °C for every notch.

If you turn the knob towards the sign, the fixed temperature is

decreased by about 1 °C for every notch.

Before adjusting t e temperature of t e Logica controller, t e t ermostatic valves, w ic

may be present, ave to be regulated to t e desired temperature.

For every operation of the Info key the follow

ing list of items, one after the other, are dis

played. The thermosensor continues to func

tion independently of the display.

Day, hour, room temperature

External temperature*

D.H.W. temperature*

* This data appear only if the relative sensor

is connected or if they are transmitted by

the regulator of the boiler.

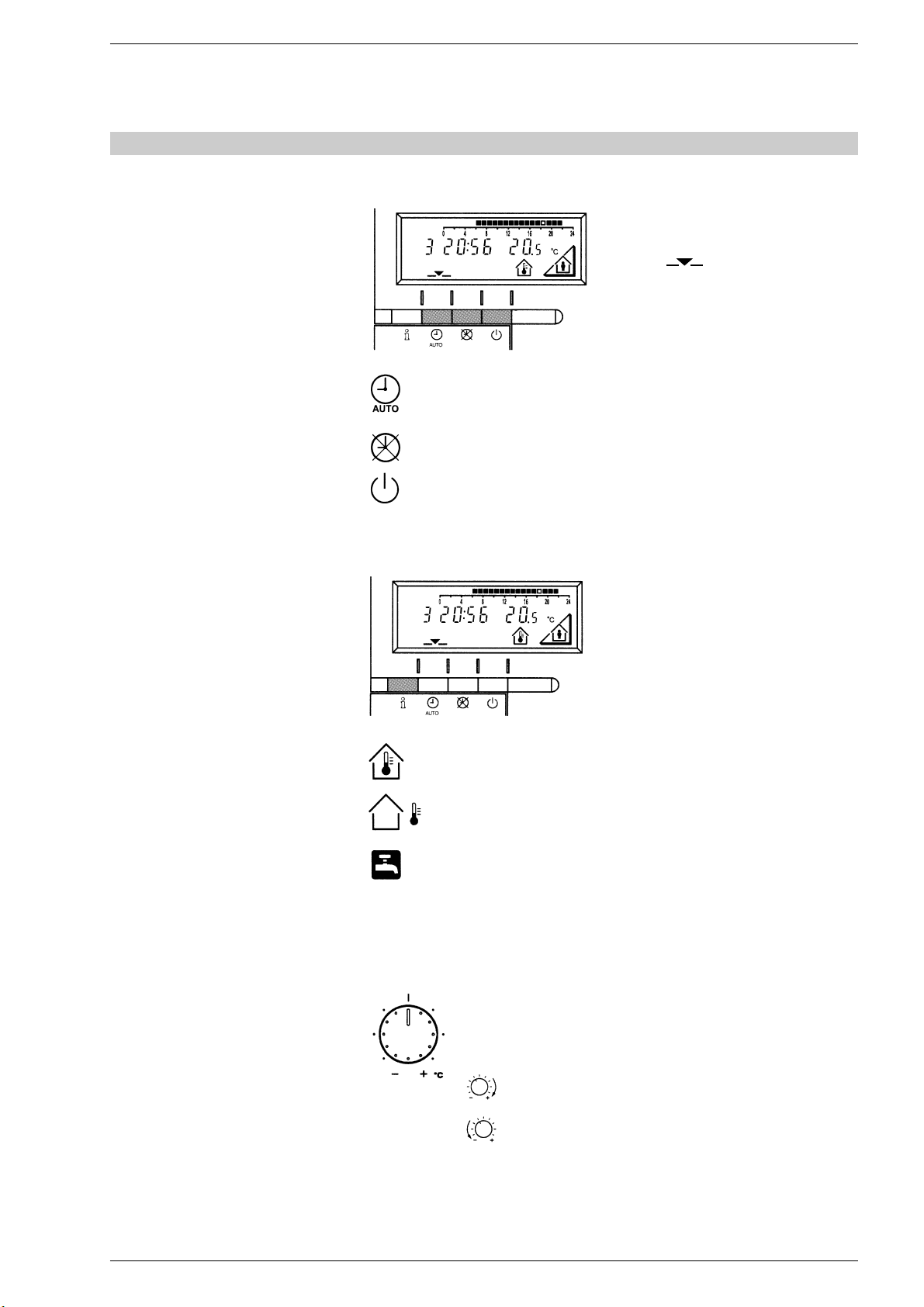

–Info key

(reference key grey colour)

The operating mode desired is selected by

pressing the relative key with the correspond

ing symbol. The choice is displayed with the

symbol

Automatic functioning: the heating functions automatically according to the heat

ing programme entered. The programme may be excluded for brief periods with the

on line key.

Manual functioning: the heating functions manually according to the choice made

with the on line key.

Availability: the heating is deactivated.

–Selection of t e operating mode

(reference keys grey colour)

ACTIVATING

During operation t e lid of t e Logica controller must be closed.

If the rooms remain unused for a long period of time, the temperature

can be reduced with the on line key, in this way saving energy. When

the rooms are occupied again, press the on line key to re heat them.

The current choice is displayed on the display:

–On-line key

Fixed temperature heating

Reduced temperature heating

NOTA:

In automatic mode, the apparatus switches from the fixed temperature to the reduced tem

perature according to the temporal programme. The manual switching of the temperature is

done manually with the on line key.

–Temperature regulation

Fixed temperature:

temperature when the rooms are occupied

(basic setting)

Reduced temperature:

temperature during periods of absence or night

Comfort D.H.W. temperature:

desired temperature of domestic hot water

Reduced temperature of domestic hot water:

temperature desired for domestic hot water at reduced level.

To have access to the “reduced D.H.W. temperature” parameter, press the and

keys at the same time for at least 5 seconds and then go along the entered

lines with the key until parameter 61 is reached. Regulate the value with

and .

Before proceeding wit t e adjustment in t e temperature on t e Logica controller, t e t er-

mostatic valves, w ic may be present, ave to be regulated to t e desired temperature.

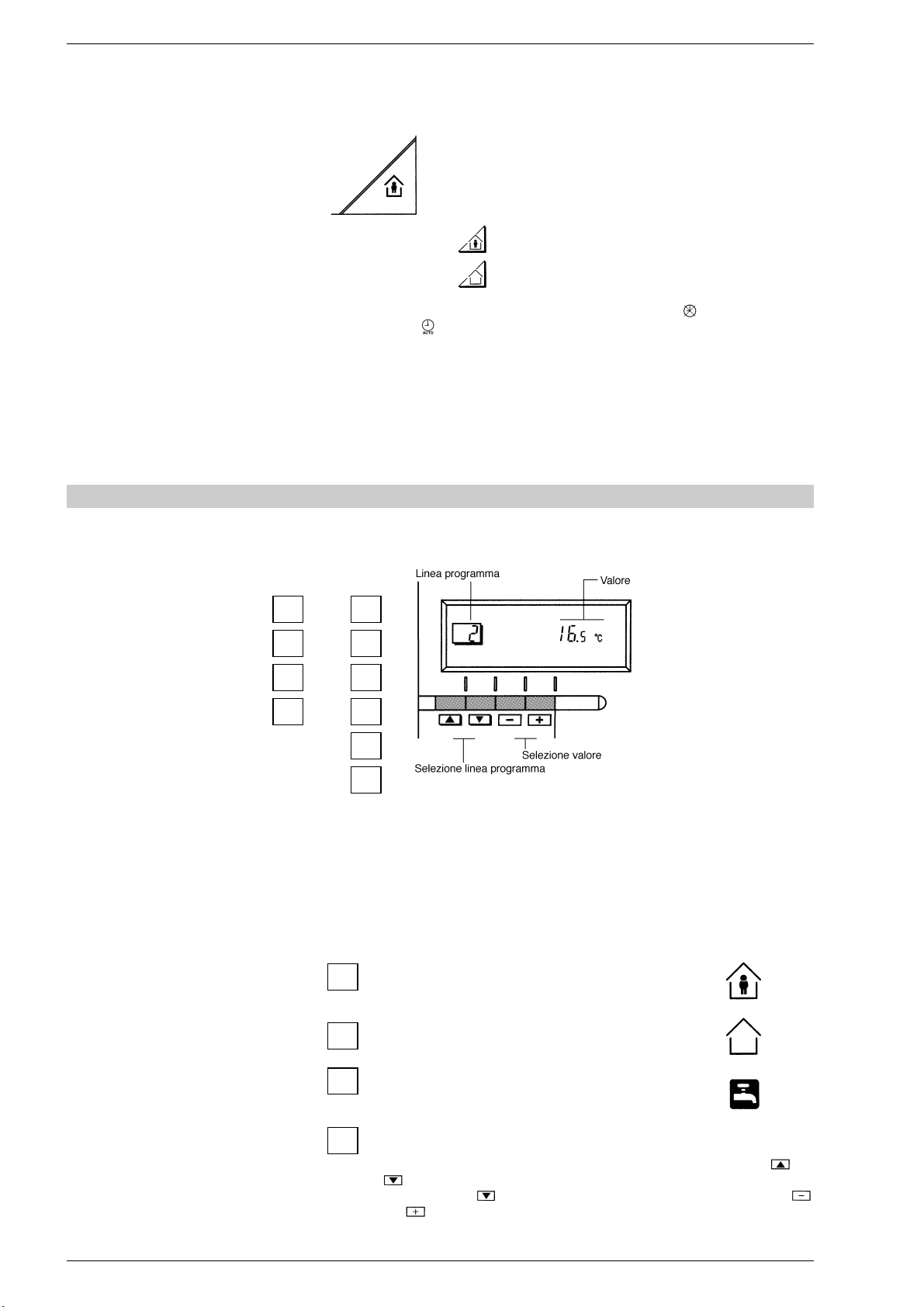

PROGRAMMING

For t e programming t e lid of t e regulator must be open.

As soon as the cover is open,

the display and the key functions

are switched on.

The number in the square rep

resents the programme lines

that may selected with the

arrow keys.

You can set or display the following values:

• Temperatures up to

• Heating programme up to

• Day of the week and hour up to

• Current values up to

• Vacation period

• Return to the default values

1 3

411

12 14

15 17

The choice made will work in a permanent way when manually , carried out, instead, if

automatic it will work up to the next switching according to the heating programme.

–D.H.W. programme

Select the days that correspond with the heating phase.

1= Monday, ... 7 = Sunday/8 = hot water service programme

Start of phase 1: heating with fixed modality

End phase 1: heating with reduced modality

Start phase 2: heating with fixed modality

End phase 2: heating with reduced modality

Start phase 3: heating with fixed modality

End phase 3: heating with reduced modality

Copying of the daily programme

By pressing this key it is possible to repeat the current heating programme

for the next day.

By pressing this key it is possible to repeat the current heating programme

for the previous day.

As a confirmation the following day is displayed.

With the Logica Remote Control it is possible to manage the temperature of D.H.W. tank on

two levels (a comfort level and one at reduced temperature) in accordance with the pro

gramme chosen with parameter 62 (load domestic hot water). To have access to the para

meter press the and keys for at least 5 seconds and then go along the entered lines

with the key until parameter 62 is reached. At this point four different programmes may

be selected with o keys, with the following characteristics:

0= 24 hours/ day Hot water is always available at the temperature set with user parame

ter n°3.

1= standard Hot water according to the daily heating programme.

In the comfort areas of heating the temperature of the D.H.W. tank is regulated to the

value set with user parameter n° 3.

In the reduced areas of heating the temperature of the D.H.W. tank is regulated to the

value set with parameter n° 61 of the service level.

2= service disconnected

second daily programme (8) Every day of the week the temperature of the hot water is set

according to programme 8. In this case there is a single programming for all the days of the

week and three time zones are available. In the time spans set the temperature of the D.H.W.

tank is regulated according to that set in parameter n°3. In the remaining hours the D.H.W.

tank is controlled to the temperature set with parameter n° 61 the of service level.

Start phase 1: preparation of the D.H.W. tank to the comfort temperature

End phase 1: Temperature of D.H.W. tank maintained at the reduced value

Start phase 2: Preparation of D.H.W. tank to the comfort temperature

End phase 2: Temperature of D.H.W. tank maintained at the reduced value

Start phase 3: preparation of D.H.W. tank to the comfort temperature

End phase 3: Temperature of D.H.W. tank maintained at the reduced value

–Heating programme With the heating programme it is possible to set the switching times of the temperature for a

period of a week. The weekly programme consists of 7 daily programmes. One daily pro

gramme allows 3 phases of heating. Each phase is defined by a ignition time and a finishing

time. The n° 8 daily programme is for the domestic hotwater service. If a period is not required,

the same ignition and finishing time may be entered.

–Display of t e functioning faults on t e display

Ignition failure

Turn the selector CR/OFF/EST/INV/UNBLOCK on the boiler control panel to the unblock posi

tion ( ) to restore functioning (fig. 3). If the failure should occur again, call the authorised tech

nical staff for assistance.

Safety stat interception

Turn the selector CR/OFF/EST/INV/UNBLOCK of the boiler control panel to the unblock posi

tion

()

to restore functioning (fig. 5). If the failure should occur again, call the

authorised tech

nical staff

for assistance.

Air pressure switc failure

Call the

authorised technical staff

for assistance.

–Default values To take the setting to the default values, press the and keys at the

same time for at least 3 seconds. As confirmation a sign will appear on the display.

ATTENTION

The values of the following line numbers previously entered will be lost.

• Temperature and time programme to

• Vacation period

110

–Vacation function To enter the number of days of absence.

In the display the vacation symbol will be shown ( ), on the left the day of activa

tion (1 = Monday/7 = Sunday) and on the right the number of vacation days.

During the vacation the regulator will be on the availability mode.

When the set days have elapsed, the regulator will go on to the automatic function.

NOTE:

The vacation period may be cancelled by pressing a key of the operating mode.

–Current values Display and setting of the gradient of the heating characteristics curve.

When the room temperature set is not reached choose the gradient

indicated in point 2.10.3

Display of the current boiler temperature.

Display of the current power of the burner and of the current operating mode

( = = heating/ = D.H.W. service)

–Setting t e time To set the current day of the week

(1 = Monday/7 = Sunday)

To set the current hour

To set the current minute

Once the hour is completed, the setting of the hour changes.

With and keys the current hour is regulated. Pressing these keys together, the

regulation is speeded up in an increasing sense.

Air pressure switc does not return to rest position

Call the

authorised technical staff

for assistance.

D.H.W. sensor fault (SB)

Call the

authorised technical staff

for assistance.

192

193

194

195

C.H. sensor fault (SM)

Call the

authorised technical staff

for assistance.

Insufficient water pressure

Restore functioning by opening the filling cock of the boiler (fig. 4)

System overpressure

Call the

authorised technical staff

for assistance.

Safety stat interception

Call the

authorised technical staff

for assistance.

Air pressure switc interception

Call the

authorised technical staff

for assistance.

Failure of t e modulating coil

Call the

authorised technical staff

for assistance.

Communication failure between t e Logica Remote Control and t e boiler

Call the

authorised technical staff

for assistance.

Inhaltsverzeichnis

Andere Sime Kessel Handbücher

Sime

Sime Format.zip 25 OF Bedienungsanleitung

Sime

Sime MURELLE EQUIPE 220 BOX Benutzerhandbuch

Sime

Sime SOLIDA 5 PL Bedienungsanleitung

Sime

Sime Planet Super 4 F.S. Versionshinweis

Sime

Sime Brava One 25 OF ErP Handbuch

Sime

Sime MURELLE HM 35 R (M) Bedienungsanleitung

Sime

Sime VERA 25 OF ErP Handbuch

Sime

Sime SOLIDA 5 PL Bedienungsanleitung

Sime

Sime MURELLE HE 110 R Bedienungsanleitung

Sime

Sime MURELLE ADVANCED HE ErP Handbuch

Sime

Sime BRAVA ONE Bedienungsanleitung

Sime

Sime ESTELLE HE 3 ErP Bedienungsanleitung

Sime

Sime BRAVA ONE 12-25 BF Handbuch

Sime

Sime 2R HE Series Bedienungsanleitung

Sime

Sime MURELLE HE 25-55 ErP Bedienungsanleitung

Sime

Sime MURELLE EQUIPE 220 BOX Bedienungsanleitung

Sime

Sime Brava Slim HE 25 T Handbuch

Sime

Sime RONDO 3 OF Bedienungsanleitung

Sime

Sime BRAVA DGT HE 25 Bedienungsanleitung

Sime

Sime UNIQA REVOLUTION Bedienungsanleitung

Sime

Sime ALU PLUS HE 360 Handbuch

Sime

Sime MURELLE HE 110 R ErP Bedienungsanleitung

Sime

Sime SOLIDA Series Bedienungsanleitung

Sime

Sime FORMAT DGT 25/55 Bedienungsanleitung

Beliebte Kessel Handbücher anderer Marken

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Bedienungsanleitung

Radijator

Radijator BIO max 23.1 Bedienungsanleitung

Brunner

Brunner BSV 20 Bedienungsanleitung

Buderus

Buderus Logamax GB062-24 KDE H V2 Bedienungsanleitung

Potterton

Potterton 50e Datenblatt

UTICA BOILERS

UTICA BOILERS TriFire Bedienungsanleitung

Joannes

Joannes LADY Series Handbuch

ECR International

ECR International UB90-125 Gebrauchsanweisung

Froling

Froling FHG Turbo 3000 Bedienungsanleitung

Froling

Froling P4 Pellet 8 - 105 Bedienungsanleitung

U.S. Boiler Company

U.S. Boiler Company K2 Bedienungsanleitung

Henrad

Henrad C95 FF Bedienungsanleitung

NeOvo

NeOvo EcoNox EF 36 Bedienungsanleitung

Potterton

Potterton PROMAX SL 12 Bedienungsanleitung

Eco Hometec

Eco Hometec EC 25 COMPACT Bedienungsanleitung

Viessmann

Viessmann VITODENS 200 Leitfaden

Baxi

Baxi Prime 1.24 Bedienungsanleitung

REXNOVA

REXNOVA ISA 20 BITHERMAL Bedienungsanleitung

Sime benchmark Planet Super 4 W. M. Bedienungsanleitung

Beliebte Kessel Handbücher anderer Marken
