Simpler Networks HP200SA64 Bedienungsanleitung

HomePlug AV Ethernet Adapter User’s Manual

Rev

1.0

Nov. 2009

HomePlug AV Powerline Ethernet Adapter

User’s Manual

HP200SA64

HomePlug AV Ethernet Adapter User’s Manual

Table of Contents

IMPORTANT SAFETY NOTICE: ...............................................................................................2

INTROD CTION ...............................................................................................................1

1.1

ENERAL

EATURES

...................................................................................................1

1.2

ACKAGE

ONTENTS

...................................................................................................1

1.3

YSTEM

EQUIREMENT

...............................................................................................1

HOMEPL G AV ETHERNET ADAPTER OVERVIEW .....................................................2

2.1

LED

ESCRIPTION

......................................................................................................2

2.2

USH

UTTON

ESET HOLE

.........................................................................................3

2.3

NSTALLING YOUR

OME

LUG

THERNET

DAPTERS

..............................................3

2.4

ORMING A

OME

LUG

OGICAL

ETWORK

............................................................4

2.5

OINING

LEAVING THE

OWERLINE NETWORK

.............................................................5

INSTALLING POWER PACKET TILITY ........................................................................6

SING POWER PACKET TILITY ..................................................................................7

4.1

SER

NTERFACE

.........................................................................................................7

4.1.1

Main Tab ...............................................................................................................7

4.1.2

Pri acy Tab ...........................................................................................................9

4.1.3

Diagnostics Tab ................................................................................................. 10

4.1.4

About Tab .......................................................................................................... 11

4.1.5

Preferences ........................................................................................................ 11

TRO BLE SHOOTING .................................................................................................. 12

5.1.1

The Power LED does not turn on after plug into power outlet ........................... 12

5.1.2

The LNK LED does not turn on or not flashing .................................................. 12

5.1.3

The Ethernet LED does not turn on ................................................................... 12

5.1.4

No any HP200SA64 de ice be displayed on Power Packet Utility .................... 12

APPENDIX A. SPECIFICATIONS .................................................................................. 13

APPENDIX B. POWERLINE NETWORK APPLICATION ............................................. 14

HomePlug AV Ethernet Adapter User’s Manual

Important Safety Notice:

 This device is not for outdoor use that may cause the risk of electric

shock from lightning

 Do not use this device near the water like swimming pool,

wet environment.

 Do not use liquid /aerosol cleaner to clean this device and must unplug

this product before cleaning.

 Do not open the cover of device when plug into power socket. These

expose you to the risk of high voltage damage.

 Do not put any other things into/on this device especially sharp

conductive object.

 Do not open or remove this Powerline Ethernet Adapter case personally,

it may result in exposure to dangerous voltage points or other risks

HomePlug AV Ethernet Adapter User’s Manual

1. Introduction

The HP200SA64 HomePlug AV Powerline Ethernet Adapter (called HP200SA64, hereafter)

provides the fast data and video transmission through your existing Powerline environment.

It’s simple to plug into your power socket to every room in your home and easy to extend your

network without any extra wires and configuration. HP200SA64 provides high speed transmit

data rates of up to 200Mbps and the QoS support let you enjoy the HD videos, IPTV /VoIP

services, online game and other multimedia contents transmission smoothly. The built-in

AES-128 bit data encryption algorithms can achieve a secure and safety Powerline network.

HP200SA64 enable you to a high speed home networking experience!.

1.1 General Features

 High speed transfer PHY rate up to 200 Mbps for HD/IPTV and VOD services and whole

triple-play connectivity.

 Easy to build or extend home networking environment use the existing power outlet, no

extra wire required.

 Simple plug-and-play and zero configuration between the routers, computers, and your

gaming console.

 Integrated Quality of Service (QoS) and low power consumption.

 128-bit AES data encryption algorithm.

 Co-existence with HomePlug 1.0 nodes.

 Mini size with stylish outlook design.(80mmx66mmx37.5mm)

1.2 Package Contents

 2 x HP200SA64 HomePlug AV Powerline Ethernet Adapters. (dual pack)

 2 x Ethernet R -45 Cat5.Cables.

 1 x Printed Quick Start Guide.

 1 x CD-ROM. (Contains Power Packet utility software / User’s Manual / Quick start guide )

1.3 System Requirement

In order to use the HomePlug AV Ethernet Adapters to establish the network connection in

your home, you must have the following:

 Free AC wall outlet for plug into Powerline Ethernet adapter.

 ADSL or Cable service with at least one public Internet address for your LAN

if you want to use Powerline devices to get on to the internet.

 One or more computers each containing an Ethernet network interface card (NIC)

 Operating system:

Windows 98/SE,Me,2000,XP,Vista for install/configure/remove Power Packet utility.

HomePlug AV Ethernet Adapter User’s Manual

2. HomePlug AV Ethernet Adapter Overview

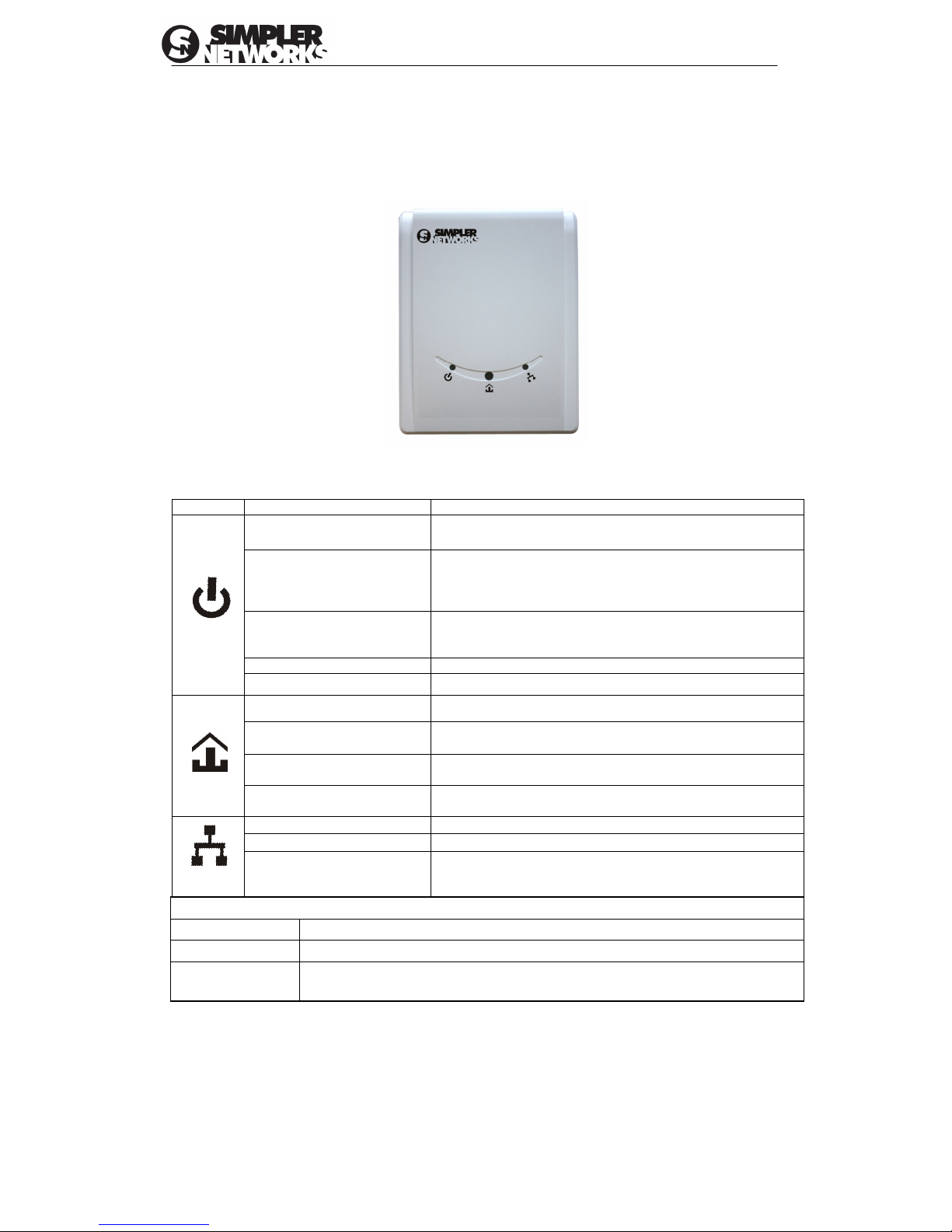

2.1 LED Description

The front bottom side contains 3 lights called LEDs that indicate the status of this device:

LED

Color

Status

Description

Off This Adapter is not connected to power

Flashing evenly at

1 second interval

(Dark Red)

This Adapter is in

Power Saving

mode if there is no link on

Ethernet for 10 seconds.

After the link on Ethernet is active, the adapter wakes up

automatically.

Flashing evently at

1 second interval (Green)

The adapter is in configuration mode, an AVLN is being

formed (new AVLAN is formed or a new adapter is being

added to an existing AVLN).

Uneven flashing There was error during configuration process

Green The adapter is connected to power

Off There is no link on Powerline interface

Red If Powerline link present, Estimated application Throughput <

Low Threshold※

Orange If Powerline link present, Low Threshold ≤ Estimated

application Throughput < High Threshold

Green If Powerline link present, Estimated application-Throughput ≥

High Threshold

Off

There is no Ethernet Cable connected to the adapter

Green

There is link on Ethernet interface

Green flash There is activity on Ethernet interface

Function and definition

※Threshold default Low Threshold setting:20Mpbs; default High Threshold:40Mpbs

Factory Default press RESET button for 3~5 sec

NMK

randomization Press NMK button for 10 sec. Finish when all LEDs are OFF and ON again.

HomePlug AV Ethernet Adapter User’s Manual

2.2 Push Button/Reset hole

The right-hand side on the device contains the push button and reset hole for the easy data

encryption/synchronization and reset to the default factory’ settings: .

NMK (Network Membership Key) button

Implements the one-button security configuration and synchronization

please see “2.4 Forming a HomePlug AV Logical Network” for further information.

Reset: (Reset hole for restore the factory default settings)

The Reset button restores the factory default settings in the adapter. You can use a small

paper clip to insert into the rest hole and hold for more than 3 seconds to active the reset

behavior.

2.3 Installing your HomePlug AV Ethernet Adapters

Connect the one end of the Ethernet cable provided in the package to the first PLC

adapter’s Ethernet port.

Connect the other end of the Ethernet cable to PC’s Ethernet port.

Plug the adapter’s power plug into your power socket.

Repeat the step1 for the second PLC adapter and connect the other end of Ethernet

cable to the LAN port of your ADSL router/Cable modem and repeat the step 3..

You can see the Figure 10 in Chapter 7 for this connection reference

e strongly recommend you

directly plug this device into standalone power

outlet, avoid connecting this device to an uninterruptible power supply ( PS),

or connecting same power strip with other AC adapter/Power charger etc

because of this device transferring data using existing electrical wiring in your

home and the data transmission throughput performance probably be affected

by electrical noises, although this HomePlug AV Powerline adapter can

overcome/reduce the noise interference. These electrical noises equipments

are most like: Battery Charger / Hair Dryers / Halogen

light.

HomePlug AV Ethernet Adapter User’s Manual

2.4 Forming a HomePlug AV Logical Network

By default, HP200SA64 come without a network identifier and encryption key. When you plug

two Powerline devices into electrical outlet, It will operate normally but without security

configuration.

The Network Membership Key (NMK) uniquely identifies a Private Network, the HomePlug

AV Logical Network (AVLN). Devices that share the same NMK will form a logical network

when connected to common Powerline media. This permits multiple logical networks to exist

on the same connection. Individual devices can join or leave a specific logical network by

changing NMK. In order to form a HomePlug AV Logical Network between two adapters are

as following 3 steps: (see figure 1.)

1. Press the NMK button on the first device for less than 3 seconds.

2. Press the NMK button on the second device for less than 3 seconds.

3. Wait for connection to complete within 1 minute.

During the configuration process, the Power LED on each device flashes evenly at one

second intervals until the operation succeeds or fails. If an error occurs, the Power LED on

the “adder” flashes unevenly until the pushbutton on the “adder” is pressed again or the

“joiner” is reset by pressing and holding the pushbutton for more than 10 seconds.

The ‘adder’ is the device that gives an NMK to another device. The ‘joiner’ is the device that

takes an NMK from another device. The role of ‘adder’ or ‘joiner’ is determined automatically

by each device when the Simple Connect button is pressed. A device that belongs to an

existing logical network will become an ‘adder’. A device that does not belong to a powerline

network will become a ‘joiner’. Only one ‘adder’ and one ‘joiner’ can participate in any join

operation.

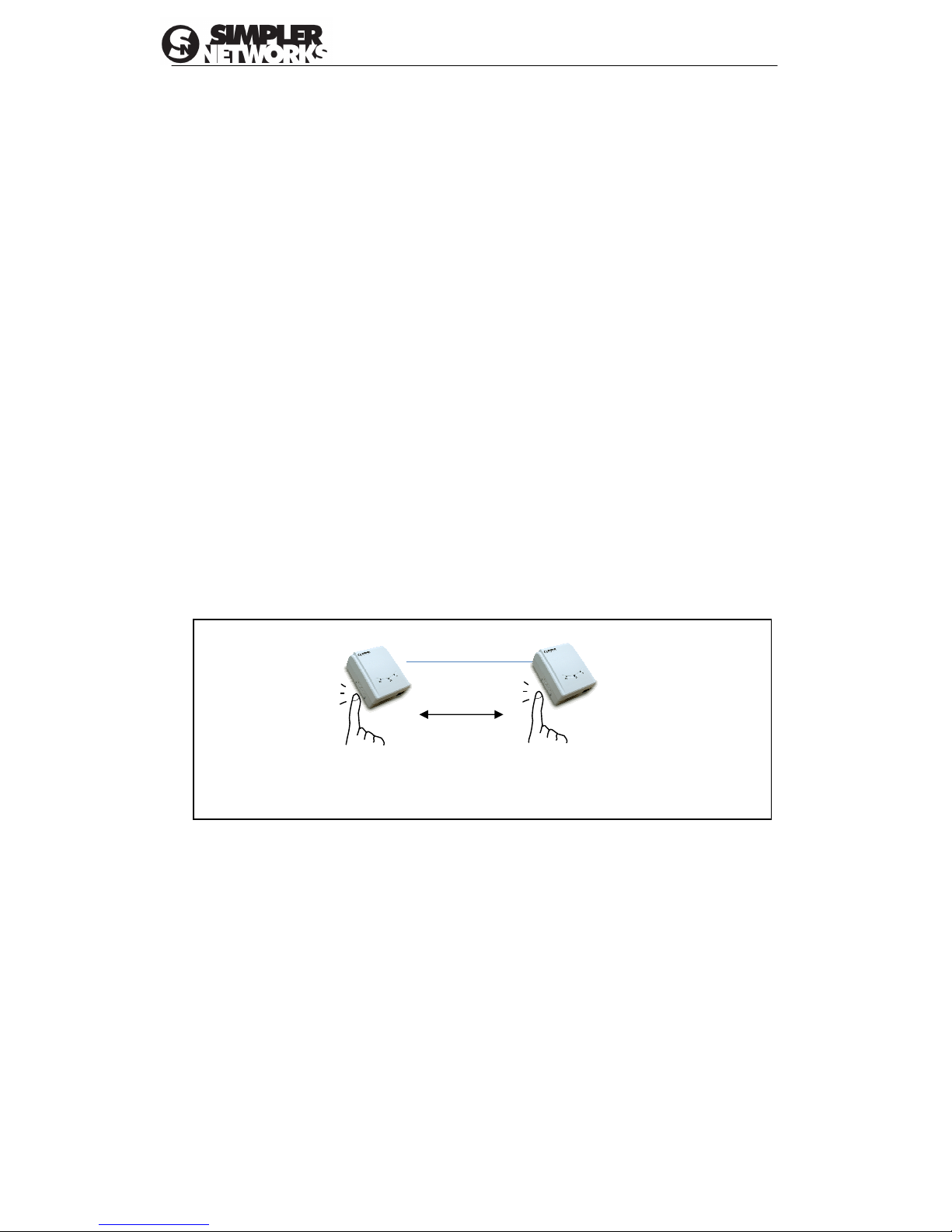

Figure1. Forming a secure private Powerline network (AVLN)

Within 1

minute

Adapter Ⓐ and Ⓑ become “Joiner

JoinerJoiner

Joiner” when press NMK button of both devices want to form a AVLN.

Ⓑ determines that Ⓐ MAC address < Ⓑ MAC address

Ⓑ

becomes a

“

adder

adderadder

adder

”

Powerline network

ress 3 seconds

Press 3 seconds

❶

❷

Ⓐ Ⓑ

HomePlug AV Ethernet Adapter User’s Manual

2.5 Joining & leaving the Powerline network

[Joining a Powerline network]

When both HP200SA64 adapters already on an existing AVLN and you want a new device

(“joiner”) to join the network, please following these steps below:

1. Press the pushbutton on the ‘joiner’ for less than 3 seconds.

2. Press the pushbutton on any network device for less than 3 seconds, making it the ‘adder’.

You have 1 minute, by default, to press this pushbutton.

3. Wait for connection to complete

The Power LED on both devices will flash at 1-second intervals until the process succeeds

or fails. It will illuminate steadily on success. If an error occurs, the Power LED on the

‘adder’ will flash unevenly until the pushbutton on the ‘adder’ is pressed again or the

‘joiner’ is reset by pressing the pushbutton for more than 10 seconds, as described in

Figure 2.

Figure2. oin the Powerline network

[Leaving a Powerline network]

Press the Simple Connect pushbutton on the device for longer than 10 seconds. Wait a few

seconds for the device to reset and leave the network:

1. Press the pushbutton on the ‘leaver’ for at least 10 seconds. The device will reset and

restart with a random NMK.

2. Wait for reset to complete.

[Join Multiple Devices to a Network]

To add several new devices to an existing network, the process in joining a Powerline

network process must be repeated for each ‘joiner’. This lets you press the ‘adder’

pushbutton once then press each ‘joiner’ pushbutton in turn. If pushbuttons are pressed on

two or more joiners, only the first one will respond. The second will not. This makes timing

important.

Powerl

ine network

Adapter Ⓐ and Ⓑ both on the existing AVLN.

Press NMK button on Ⓑ less e than 3 seconds (Ⓑ is the ‘adder’ )

Press NMK button on Ⓒ less e than 3 seconds (Ⓒ is the ‘joiner’ )

ress 3 seconds

❶

❷

Ⓐ Ⓑ Ⓒ

Press 3 seconds

The oin operation can be cancelled by pressing the Simple Connect pushbutton on

the first device again, for less than 3 seconds, instead of pressing the pushbutton on

the second device. If you press pushbuttons on three or more devices, only the first

two will respond. The others will not.

HomePlug AV Ethernet Adapter User’s Manual

3. Installing Power Packet tility

The Power Packet Configuration Utility for Windows OS enables the users to identify

HomePlug devices on the Powerline network; measures data rate performance, ensures

privacy and performs diagnostics by setting user defined secure Powerline networks.

This section will help you to install and configure the Powerline Power Packet utility.

Now please follow the steps below for installation:

1. After start your PC please insert the CD-ROM

into your CD drive.

2. The installation program will be launched

automatically, if does not please run the

“autorun.exe” which can be found in the

CD-ROM’s root directory.

3. Click the “Power Packet utility” to launch

this program

4. you can see the Setup Wizard program

to prepare the installation ,click “Next” to

continue

5. You can browse and select the different

installation folder to install this utility,

Also you can check the Disk space

in advance to determines the destination

folder you prefer to install by click the

“Disk cost..” button , please click the “Next”

to continue the next step.

6. Now the installer program is ready

to install the utility , click the “Next”

to start installation, waiting the installation process is complete and click “Done”

HomePlug AV Ethernet Adapter User’s Manual

4. sing Power Packet tility

In order to start the utility, Click

“Start””Program files””PL64 series Powerline””Power

Packet utility” or you can double click the Power Packet utility icon to execute this program

from the desktop on your laptop/PC. Here is the main screen of utility:

Figure 3. Main Screen of Power Packet Utility

The top panel of the screen shot shows a HomePlug Powerline device connected locally to

the host computer. The bottom panel shows four devices connected remotely to the computer

running the utility

4.1 ser Interface

4. . Main Tab

The Main screen provides a list of all Powerline devices logically connected to the computer

when the utility is running. The top panel shows all local HomePlug devices connected to the

computer’s NIC (Network Interface Card). In most cases, only one device will be seen. In

situations where there are more than one local device being connected, such as a USB or an

Ethernet adapter, the user can select the local device by clicking on it and then click the

Connect button to its right. The status area above the button indicates that your PC is

connected to that same device. Once connected to the local device, the utility will

automatically scan the power line periodically for any other HomePlug devices. If no local

HomePlug devices are discovered, the status area above the connect button will indicate with

a message ‘NO HOMEPL G ADAPTERS DETECTED’.

The bottom panel displays all the HomePlug remote devices, discovered on the current

logical network. The total number of remote devices connected on the same network can be

found on top of the Remote device panel. The Network type (Public or Private) is also

displayed based on the network status of the local device. The scan status option is displayed

on the top right corner above the Remote devices panel showing whether the Auto scan

functionality is turned ON or OFF. The following information is displayed for all devices that

appear in the bottom panel.

Top Panel

Bottom Panel

Inhaltsverzeichnis

Andere Simpler Networks Adapter Handbücher

Simpler Networks

Simpler Networks HP200PT64 Bedienungsanleitung

Beliebte Adapter Handbücher anderer Marken

PCB Piezotronics

PCB Piezotronics 090B274 Bedienungsanleitung

Auvidea

Auvidea J20 Produkthandbuch

Gossen MetraWatt

Gossen MetraWatt AT3-III E Bedienungsanleitung

Akribis

Akribis ITF-21-BISS-MIT Bedienungsanleitung

Tenda

Tenda W54U Bedienungsanleitung

ROHO

ROHO AGILITY Bedienungsanleitung

PROLiNK

PROLiNK WN2001 Bedienungsanleitung

Hawking

Hawking HUF2 Bedienungsanleitung

Airlink101

Airlink101 AWLC4030 Bedienungsanleitung

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Bedienungsanleitung

Philips

Philips SWA4554S/10 Bedienungsanleitung

JVC

JVC TS-C9D2B Gebrauchsanweisung

NETGEAR

NETGEAR A6100 Bedienungsanleitung

D-Link

D-Link DWA-121 Bedienungsanleitung

Philips

Philips SWA2037 Bedienungsanleitung

Basalte

Basalte 0610-20 Bedienungsanleitung

Yealink

Yealink EHS40 Bedienungsanleitung

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Bedienungsanleitung
