Simplicity 2470 Einrichtungshandbuch

Rev. 2/2001

TP-400-2470-00-AT-SMA

Attachment

Illustrated

Parts List

MANUFACTURING, INC.

500 N Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

TP-400-2470-00-AT-SMA

Single-Stage Snowthrower, 46” - Spout Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985782

The above parts group applies to the following Mfg. Nos.:

1693761 Single-Stage Snowthrower, 46”

31 13

322

TP-400-2470-00-AT-SMA

Single-Stage Snowthrower, 46” - Spout Group

1 1702219 4 SPACER

2 1921319 9 WASHER,1/4

3 1960126 4 NUT, Push, 1/4

4 1611945 1 ROD

5 1611939 1 SPRING

6 1721601 1 CHUTE & DEFLECTOR ASSEMBLY

7 1925003 3 SCREW, Hex Head, Taptite, 1/4-20 x 1/2

8 1717481 1 COVER, Pinion

9 1923358 1 NUT, Hex, Centerlock, 1/4-20

10 1717480 1 PINION, 15 Teeth

11 1924009 6 CAPSCREW, Hex Head, 1/4-20 x 7/8

12 1916622 3 NUT, Hex, 1/4-20

13 1916964 6 LOCKWASHER, 1/4

14 1923341 4 CAPSCREW, Hex Head, 1/4-20 x 3/4

15 1721751 1 SUPPORT, Motor

16 1931348 2 CARRIAGE BOLT, 3/8-16 x 3/4

17 1916965 2 LOCKWASHER,3/8

18 1916950 2 NUT, Hex 3/8-16

19 1717483 1 HARNESS ASSEMBLY

20 1715885 1 MOTOR, Eletric

21 1960151 2 WASHER, 1/4

22 1668344 1 PIN, Flat Head Drilled

23 1960221 1 CLIP, Hair Pin

24 1705920 1 BRACKET

25 1721590 1 BRACKET

26 1717482 1 CABLE & KNOB ASSEMBLY

27 1917372 1 NUT, Hex, 5/16-18

28 1917356 1 LOCKWASHER, 5/16

29 1921333 1 CAPSCREW, Hex Head, 5/16-18 x 1

30 1717591 1 ROD & BAR ASSEMBLY

31 1701011 1 CABLE TIE

32 1666613 3 HOLD DOWN

33 1717477 1 GEAR

34 1704446 1 GUARD & SUPPORT ASSEMBLY

35 1960001 3 SCREW, Hex Head Taptite 10-14 x 5/8

36 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4

37 960210 1 WASHER

38 1919326 1 WASHER, 5/16

39 1919438 1 NUT, Hex Lock ESNA 5/16-18

40 1715799 1 HANDLE “T”

41 1930547 1 SCREW, Set Hex #10-24 x 3/8

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1693761 Single-Stage Snowthrower, 46”

TP-400-2470-00-AT-SMA

Single-Stage Snowthrower, 46” - Body & Auger Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985247

The above parts group applies to the following Mfg. Nos.:

1693761 Single-Stage Snowthrower, 46”

TP-400-2470-00-AT-SMA

Single-Stage Snowthrower, 46” - Body & Auger Group

1 1717479 1 BODY & FRAME ASSEMBLY

2 1716532 1 DECAL, Danger, Auger

3 * DECAL, OPEI (Not Serviced)

4 * DECAL, I.D. Plate (Not Serviced)

5 1917372 4 NUT, Hex, 5/16-18

6 1917356 4 LOCKWASHER, 5/16

7 1921959 9 CAPSCREW, Hex Head,1/4-20 x 5/8

8 1931348 4 CARRIAGE BOLT, 3/8-16 x 3/4

9 1713424 2 SKID SHOE

10 1924940 4 WASHER, 3/8

11 1916965 4 LOCKWASHER, 3/8

12 1916950 4 NUT, Hex, 3/8-16

13 1717472 1 SCRAPER BAR

14 1923358 9 NUT, Hex Lock,1/4-20

15 1676632 1 PLATE, Side

16 172279 2 BEARING, Flange

17 1960110 2 SETSCREW, Square Head, Cup Point, 1/4-28 x 1/2, G8

18 173934 2 CARTRIDGE, Auger Bearing

19 172278 2 BEARING, Flange

20 1921332 8 CAPSCREW, Hex Head, 5/16-18 X 3/4

21 1677029 2 SET SCREW, 5/16 -18 x 3/8

22 1676721 1 DOUBLE SPROCKET ASSEMBLY, 29 Teeth

23 151040 1 KEY, 1/4

24 1721842 1 ROTOR ASSEMBLY

25 1923362 2 LOCKNUT, Hex, 5/16-18

26 106774 1 DEFLECTOR

27 1925205 4 CAPSCREW, Hex Head, 5/16-18 x 5/8

28 1919326 2 WASHER, 5/16

29 1935048 6 NUT, Hex Head, Whiz Lock, 5/16-18

30 1716531 1 DECAL, Caution

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

* Not a Service Part

The above parts group applies to the following Mfg. Nos.:

1693761 Single-Stage Snowthrower, 46”

TP-400-2470-00-AT-SMA

Single-Stage Snowthrower, 46” - Drive Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985248

The above parts group applies to the following Mfg. Nos.:

1693761 Single-Stage Snowthrower, 46”

TP-400-2470-00-AT-SMA

Single-Stage Snowthrower, 46” - Drive Group

1 106774 1 DEFLECTOR

2 1925205 4 CAPSCREW, Hex Head, 5/16-18 x 5/8

3 1917356 4 LOCKWASHER, 5/16

4 1917372 4 NUT, Hex, 5/16-18

5 1717484 1 DRIVE SHAFT ASSEMBLY (Incl. Ref. Nos 39-47)

6 1925688 1 CAPSCREW, Hex Head, 1/4-20 x 3

7 1930540 2 SETSCREW, Square Head, 5/16-18 x 5/8, G8

8 922138 2 KEY, Hi-Pro #HP708, 1/4

9 1923358 2 NUT, Hex, Lock,1/4-20

10 1716790 1 PLUG, Socket Head

11 1717547 1 GEAR BOX ASSEMBLY, Right Angle (Serviced as a complete unit)

12 1928352 10 NUT, Hex Flange Whiz Lock, 3/8-16

13 1676053 1 BRACKET,

14 1916965 16 WASHER, Lock, 3/8

15 1921966 4 CAPSCREW, Hex Head, 3/8-16 x 7/8

16 1920415 8 CAPSCREW, Hex Head, 3/8-16 x 1-1/4

17 1676561 1 COUPLER ASSEMBLY, Drive

18 1921965 4 CAPSCREW, Hex Head, 3/8-16 x 3/4

19 1916950 6 NUT, Hex, 3/8-16

20 157424 16 WASHER, Special, 3/8

21 173026 2 COUPLING

22 1717097 1 SHAFT ASSEMBLY, Drive

23 1960475 1 SETSCREW, Hex Socket, 3/8-24 x 3/8

24 154198 1 FLANGE, Drive Shaft

25 1717100 1 COVER ASSEMBLY, Drive Shaft

26 1919326 4 WASHER, 5/16

27 1924856 4 CAPSCREW, Hex Head, Taptite, 5/16-18 x 1/2

28 1676554 1 SUPPORT ASSEMBLY, w/Bearings (Incl. Ref. No. 32)

29 1960244 2 CAPSCREW, Hex Head, Whiz Lock, 3/8-16 x 2-3/4

30 168111 5 WASHER, Hardened, Thrust

31 921133 1 FITTING, Grease, 1/4

32 1679211 2 BEARING, Needle

33 1934654 2 CAPSCREW, Hex Head, Whiz Lock, 3/8-16 x 1

34 1669105 2 SPACER

35 905123 1 KEY, Woodruff #9

36 1676722 1 SHAFT ASSEMBLY, 12 Theeth (Drive, Chain)

37 1676739 1 CHAIN, Roller, #40 - 32” Long

38 1676738 1 GUARD, Chain

39 1709346 1 JOINT & SHAFT ASSEMBLY, w/guard (Incl Ref. Nos. 40-43)

40 1718475 1 REPAIR KIT, Spring Lock

41 1709350 1 YOKE ASSEMBLY, Spring-Lock

42 1679003 1 CROSS & BEARING KIT

43 1709351 1 YOKE & SHAFT ASSEMBLY

44 1709352 1 REPAIR KIT, Nylon

45 1709354 1 GUARD, Outer

46 1709358 1 YOKE

47 1709348 1 JOINT & TUBE ASSEMBLY, w/guard (lncl. Ref. Nos. 42-46)

48 1709353 1 DECAL, Warning, Drive Shaft

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1693761 Single-Stage Snowthrower, 46”

TP-400-2470-00-AT-SMA

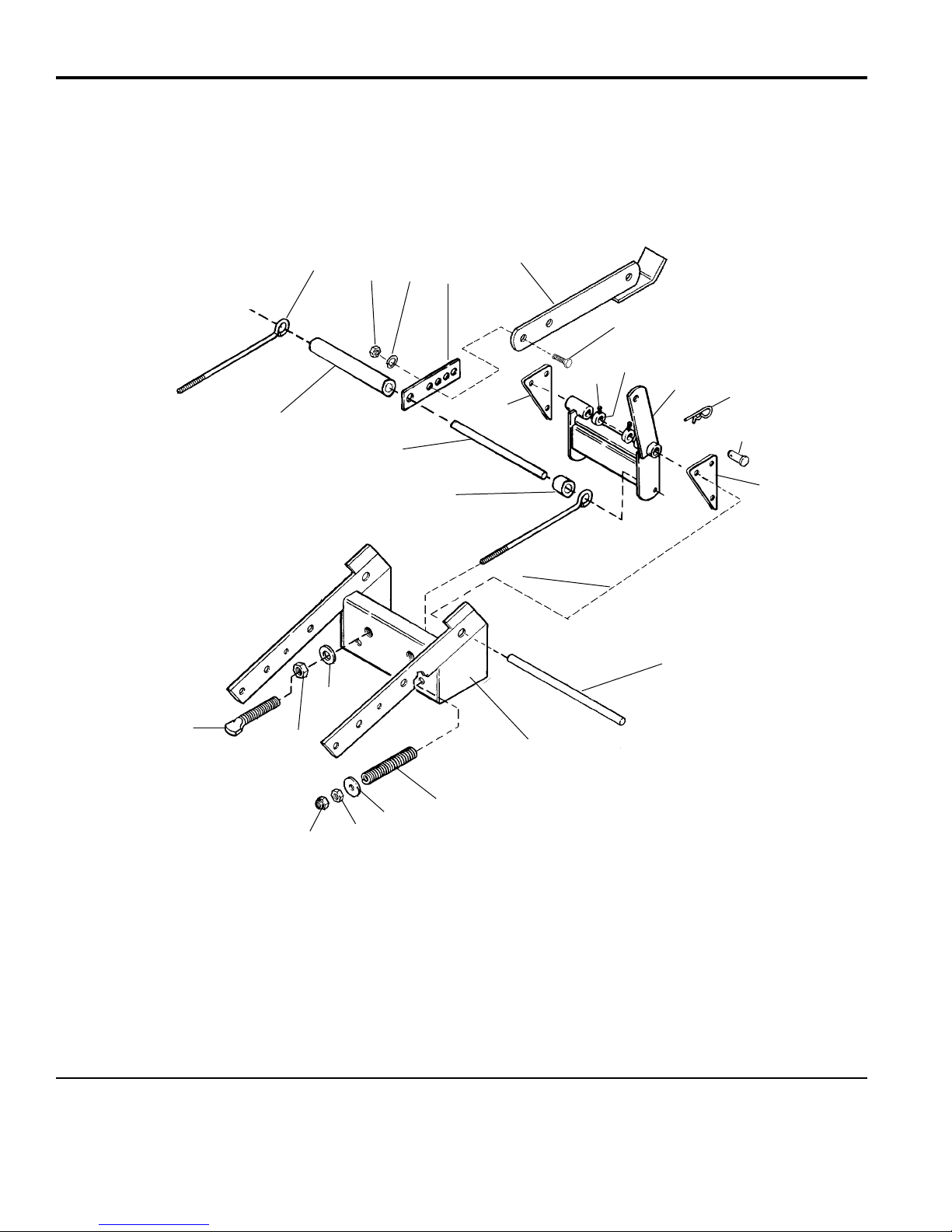

Single-Stage Snowthrower, 46” - Hitch Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985250

The above parts group applies to the following Mfg. Nos.:

1693761 Single-Stage Snowthrower, 46”

345

10 11 12

TP-400-2470-00-AT-SMA

Single-Stage Snowthrower, 46” - Hitch Group

1 1675523 2 EYEBOLT, 3/8-16

2 1716492 1 SPACER

3 1916951 2 NUT, Hex, 1/2-13

4 1916966 2 LOCKWASHER, 1/2

5 1716926 1 BAR, Lift, Front

6 1716920 1 LIFT BAR ASSEMBLY

7 1921525 2 CAPSCREW, Hex Head, 1/2-13 x 1-3/4

8 1716357 2 ANCHOR, Front

9 8031007 2 SET COLLAR

10 1928721 2 SETSCREW, Square Head, Cup Point, 5/16-18 x 1/2, G8

11 1675502 1 PIVOT ASSEMBLY, Hitch

12 176012 2 CLIP, Safety

13 1960038 2 PIN, Clevis, 5/8 x 2-1/4

14 175647 1 SPACER

15 1716460 1 SHAFT

16 1708999 1 SHAFT, Inner

17 1703635 1 HITCH ASSEMBLY

18 1675524 2 SPRING, Compression

19 1917421 2 NUT, Hex Jam, 3/8-16

20 1960071 2 WASHER, 3/8

21 1916950 2 NUT, Hex, 3/8-16

22 1676959 2 STUD, 3/4-10

23 1913160 2 NUT, Hex, 3/4-10

24 1919332 2 WASHER, Lock, 3/4

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1693761 Single-Stage Snowthrower, 46”

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware

Grade

SAE Grade 2 SAE Grade 5 SAE Grade 8

Size Of

in/lbs in/lbs

in/lbs

Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32

2.1

3.4

4.6

8-36

2.3

3.5

4.9

10-24

3.1

4.9

6.8

10-32

3.5

5.5

7.7

1/4-20

7.6 810.9 12 16.3

1/4-28

8.6 10 13.6 14 19.0

5/16-18 11 15.0 17 23.1 25 34.0

5/16-24 12 16.3 19 25.8 27 34.0

3/8-16 20 27.2 30 40.8 45 61.2

3/8-24 23 31.3 35 47.6 50 68.0

7/16-14 30 40.8 50 68.0 70 95.2

7/16-20 35 47.6 55 74.8 80 108.8

1/2-13 50 68.0 75 102.0 110 149.6

1/2-20 55 74.8 90 122.4 120 163.2

9/16-12 65 88.4 110 149.6 150 204.0

9/16-18 75 102.0 120 163.2 170 231.2

5/8-11 90 122.4 150 204.0 220 299.2

5/8-18 100 136 180 244.8 240 326.4

3/4-10 160 217.6 260 353.6 386 525.0

3/4-16 180 244.8 300 408.0 420 571.2

7/8-9 140 190.4 400 544.0 600 816.0

7/8-14 155 210.8 440 598.4 660 897.6

1-8 220 299.2 580 788.8 900 1,244.0

1-12 240 326.4 640 870.4 1,000 1,360.0

Hex Head Capscrew

Hex Nut

Lockwasher

Washer

Carriage Bolt

NOTES

1. These torque values are to be used for all hardware

excluding: locknuts, self-tapping screws, thread forming

screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque

values must meet this specification.

Hardware Identification & Torque Specifications

Common Hardware Types

Screw, 1/2 x 2

Body

Diameter

Body

Length

Inside

Diameter

Nut, 1/2”

Marks

3/8” Bolt or Nut

Wrench—9/16”

3/8

5/16” Bolt or Nut

Wrench—1/2”

5/16

1/4” Bolt or Nut

Wrench—7/16”

1/4

1/2” Bolt or Nut

Wrench—3/4”

1/2

DIA.

7/16

DIA.

7/16” Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

Wrench & Fastener Size Guide

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

, meaning the

inside diameter

is 1/2 inch; if a

second number is present it represent the

threads per inch

When bolt or capscrew is identified as 1/2 - 16 x 2”, this

means the

Nominal size

, or

body diameter

is 1/2 inch; the

second number represents the

threads per inch

(16 in this

example, and the final number is the

body length

of the

bolt or screw (in this example 2 inches long).

The guides and ruler furnished below are designed to

help you select the appropriate hardware and tools.

01/4 3/4

1/2 11/4 3/4

1/2 21/4 3/4

1/2 31/4 3/4

1/2 4

Inhaltsverzeichnis

Andere Simplicity Rasen- und Gartengeräte Handbücher

Simplicity

Simplicity 990225 Bedienungsanleitung

Simplicity

Simplicity Snow Plow/Dozer Blade Bedienungsanleitung

Simplicity

Simplicity 50” Mulch Kit Bedienungsanleitung

Simplicity

Simplicity 696 Bedienungsanleitung

Simplicity

Simplicity 2418 Einrichtungshandbuch

Simplicity

Simplicity 4574 Einrichtungshandbuch

Simplicity

Simplicity 4577 Einrichtungshandbuch

Simplicity

Simplicity 4568 Einrichtungshandbuch

Simplicity

Simplicity 1694402 Bedienungsanleitung

Simplicity

Simplicity 4560 Bedienungsanleitung

Simplicity

Simplicity 1010 Bedienungsanleitung

Simplicity

Simplicity 1690503 Bedienungsanleitung

Simplicity

Simplicity Lawn and Garden Einrichtungshandbuch

Simplicity

Simplicity 552 Bedienungsanleitung

Simplicity

Simplicity 3537 Einrichtungshandbuch

Simplicity

Simplicity 938 Bedienungsanleitung

Simplicity

Simplicity 1687395 Bedienungsanleitung

Simplicity

Simplicity 4545 Einrichtungshandbuch

Simplicity

Simplicity 1687394 Bedienungsanleitung

Simplicity

Simplicity 1692626 Bedienungsanleitung

Simplicity

Simplicity 4084 Einrichtungshandbuch

Simplicity

Simplicity 1691853 Bedienungsanleitung

Simplicity

Simplicity 1694543 Einrichtungshandbuch

Simplicity

Simplicity 2636 Bedienungsanleitung

Beliebte Rasen- und Gartengeräte Handbücher anderer Marken

Vertex

Vertex 1/3 HP Technische Daten

GHE

GHE AeroFlo 80 Bedienungsanleitung

Millcreek

Millcreek 406 Bedienungsanleitung

Land Pride

Land Pride Post Hole Diggers HD25 Bedienungsanleitung

extraspace

extraspace GardenStore Bedienungsanleitung

Yazoo/Kees

Yazoo/Kees Z9 Commercial Collection System Z9A Programmierhandbuch

Premier designs

Premier designs WindGarden 26829 Bedienungsanleitung

Snapper

Snapper 1691351 Bedienungsanleitung

Mosquito Magnet

Mosquito Magnet Patriot Bedienungsanleitung

Perfect

Perfect BG2 Bedienungsanleitung

P.Lindberg

P.Lindberg LS2 Bedienungsanleitung

Gardena

Gardena Easy 1887 Bedienungsanleitung

Makita

Makita UM104D Bedienungsanleitung

AQUA FLOW

AQUA FLOW PNRAD Bedienungsanleitung

Tru-Turf

Tru-Turf RB48-11A Golf Green Roller Benutzerhandbuch

BIOGROD

BIOGROD 730710 Bedienungsanleitung

Land Pride

Land Pride RCF2784 Bedienungsanleitung

Makita

Makita UM110D Bedienungsanleitung
