Simplicity 2400 Series Bedienungsanleitung

Parts Manual

Rev. 04/2007

Coronet / 400 / 2400

Series Riders & Mower Decks

. No. Descri

tion

13HP Product

1694462 Coronet, 13HP Hydro

1694464 2413H, 13HP Hydro

1694510 Coronet, 13HP Hydro (CE/Export)

1694536 2413, 13HP Hydro (CE/Export)

. No. Descri

tion

16HP Product

1694463 Coronet, 16HP Hydro

. No. Descri

tion

Mower Decks

1692543 30" Mower Deck

1694053 30" Mower Deck

1694511 30" Mower Deck (CE/Export)

1694537 30" Mower Deck

1692545 34" Mower Deck

TP 400-4095-00-CO-SMA

1731142

Part No.:

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Frame & Fuel System Group ............................................................................................................................... 4

Steering & Lift Group ............................................................................................................................................ 8

Engine & Electric Clutch Group - 13HP Briggs & Stratton, INTEK ...................................................................... 10

Engine & Electric Clutch Group - 16HP Kohler CV460 ....................................................................................... 12

Engine Group - 13HP Briggs & Stratton (CE/Export) .......................................................................................... 14

Engine Group - 13HP Briggs & Stratton Intek ..................................................................................................... 16

Transmission Group - Hydro-Gear 340-0510 ...................................................................................................... 18

Transmission SERVICE PARTS - Hydro-Gear 340-0510 ................................................................................... 22

Electrical Group .................................................................................................................................................... 28

Electrical Group .................................................................................................................................................... 30

Electrical Group .................................................................................................................................................... 32

Front Column & Dash Group ............................................................................................................................... 34

Wheels & Tires Group .......................................................................................................................................... 38

Decals Group - Brand & Model ............................................................................................................................ 40

Decals Group - Common & Safety ...................................................................................................................... 42

30" Mower Deck - Drive & Arbor .......................................................................................................................... 44

30" Mower Deck - Housing & Height Adjustment (CE/Export) ............................................................................ 46

30" Mower Deck - Housing, Hitch & Height Adjustment ...................................................................................... 50

34" Mower Deck - Drive & Arbor .......................................................................................................................... 54

34" Mower Deck - Height Adjustment .................................................................................................................. 56

34" Mower Deck - Housing, Hitch & Deflector ..................................................................................................... 58

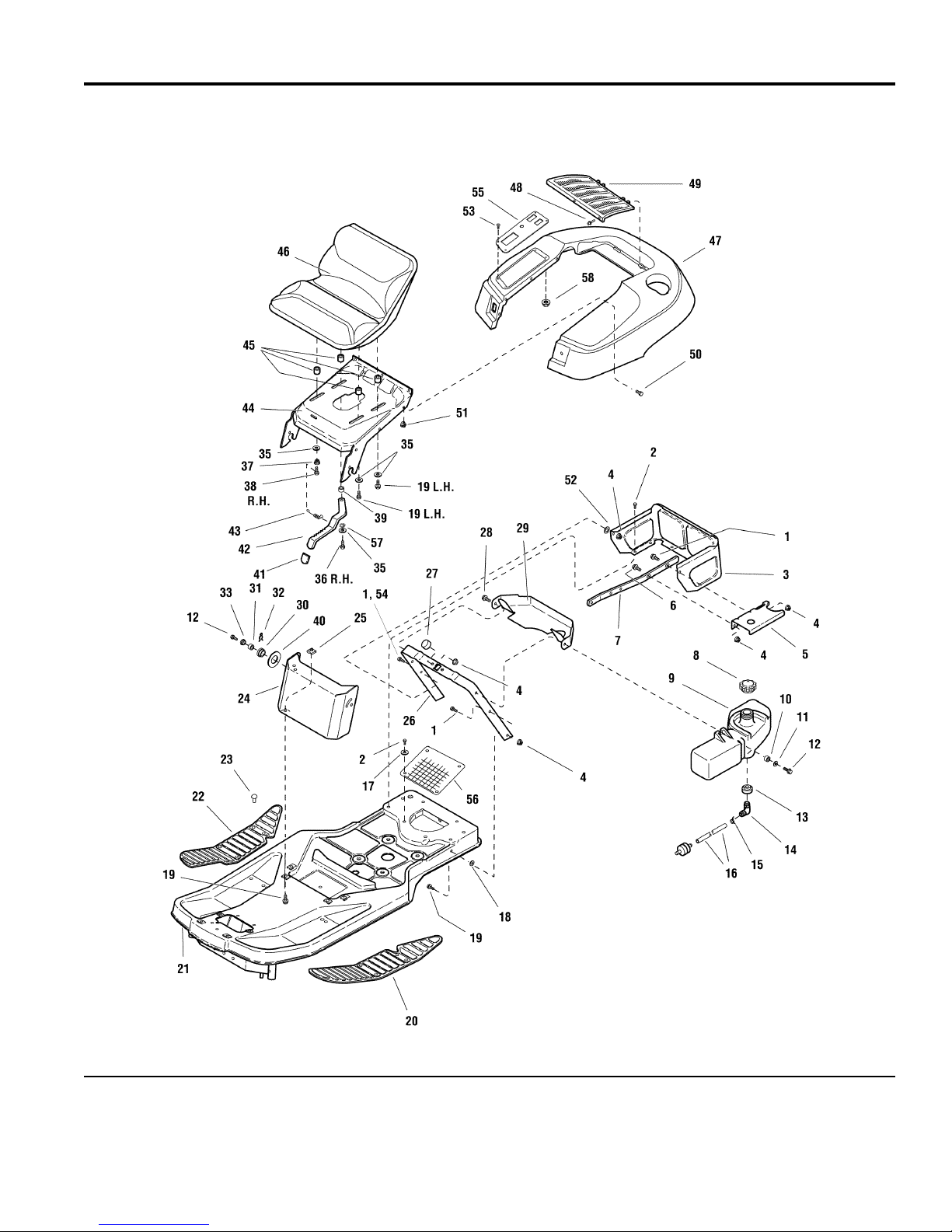

Frame & Fuel System Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986408

The above parts group applies to the following Mfg. Nos.:

2007 4

1694462 - Coronet

1694463 - Coronet

1694464 - 2413H

1694510 - Coronet

1694536 - 2413

TP 400-4095-00-CO-SMA

PART NO. DESCRIPTIONREF NO QTY.

Frame & Fuel System Group

Footnotes

CAPSCREW, Hex Head, 5/16-18 x 11 1921333SM 2

CAPSCREW, Hex Head, Taptite, 1/4-20 x 1/22 1925003SM 8

SHROUD, Rear3 1715962ASM 1

NUT, Hex, Flange, Whizlock, 5/16-184 1931277SM 5

SUPPORT, Fuel Tank5 1726558ASM 1

CARRIAGE BOLT, 5/16-18 x 3/46 1931333SM 1

STRAP, Fuel Tank, Brace7 1708362ASM 1

CAP, Fuel Tank, Vented8 1714020SM 1

TANK, Fuel9 1726635SM 1

SPACER, 21/64 x 1/2 x 21/6410 1710437SM 1

WASHER, Plain, 13/32 x 7/8 x 5/6411 1924940SM 1

CAPSCREW, Taptite, 5/16-18 x 1-1/ (16HP Models)12 1931202SM 1

CAPSCREW, Hex, Taptite, 5/16-18 x 1 (13 HP Models)12 1960373SM 1

BUSHING, Rubber13 1726400SM 1

ELBOW, Fitting with Screen14 1674792SM 1

CLAMP, Hose15 2860112SM 2

HOSE, Fuel Line16 1718678SM 1

WASHER, Plain17 1960044SM 2

PUSH NUT, 5/1618 1933988SM 2

CAPSCREW, Hex Head, Whizlock, 5/16-18 x 3/419 1930591SM 10

PAD, Foot Rest, LH20 1708525SM 1

FRAME ASSEMBLY21 1727222A 1

PAD, Foot Rest, RH22 1708524SM 1

FASTENER23 1704351SM 14

PANEL, Front24 1727685ASM 1

PAL NUT, 5/16-1825 1935255SM 4

SUPPORT, "U", Seat (16 HP Models)26 1726563ASM 1

SUPPORT, "U", Seat (13 HP Models)26 1726563ASM 1

BUMPER, Rubber27 1715970SM 2

CAPSCREW, Hex Head, Taptite, 5/16 x 1/228 1924856SM 1

DUCT, Air Inlet (13 HP Models)29 1708725ASM 1

DUCT, Air Inlet (16 HP Models)29 1726971ASM 1

SPACER, Plastic30 1704626SM 2

SPACER31 1705249SM 2

PIN, Quick32 1704628SM 2

PIVOT, Hood33 1705248SM 2

WASHER35 1917356SM 4

CAPSCREW, Hex Head, 5/16-18 x 1-1/236 1921221SM 1

NUT, Hex, 5/16-1837 1917372SM 1

CAPSCREW, 5/16-18 x 1-1/438 1921977SM 1

SPACER39 1703900SM 1

WASHER, 1"40 2860208SM 2

CAP, Black, Vinyl41 1708881SM 1

The above parts group applies to the following Mfg. Nos.:

2007 5

1694462 - Coronet

1694463 - Coronet

1694464 - 2413H

1694510 - Coronet

1694536 - 2413

TP 400-4095-00-CO-SMA

Frame & Fuel System Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986408

The above parts group applies to the following Mfg. Nos.:

2007 6

1694462 - Coronet

1694463 - Coronet

1694464 - 2413H

1694510 - Coronet

1694536 - 2413

TP 400-4095-00-CO-SMA

PART NO. DESCRIPTIONREF NO QTY.

Frame & Fuel System Group

Footnotes

ADJUSTER, Seat42 1725532ASM 1

SPRING, Extension43 1667286SM 1

SUPPORT, Seat44 1725531ASM 1

SPACER45 1708511SM 4

SEAT ASSEMBLY46 1725486SM 1

DECK, Seat, Orange Simplicity47 1726648SM 1

DECK, Seat, Red47 1726649SM 1

DECK, Seat, Orange Agco Allis47 1686638SM 1

RIVET48 1673320SM 3

SCREEN, Seat Deck Top49 1708504SM 1

CAPSCREW, Hex Head, Whizlock, 1/4-20 x 5/850 1960295SM 7

NUT, Hex, Flange Lock, 1/4-2051 1930642SM 7

WASHER, 5/1652 1919381SM 1

SCREW, Truss Head, 1/4-20 x 3/453 1960715SM 4

CAPSCREW, Hex Head, 5/16-18 x 1-3/4 (16 HP Models)54 1922127SM 1

PLATE, Control55 1726836ASM 1

SCREEN56 1724598SM 1

WASHER, 11/32 x 1 x 1/857 1919381SM 4

NUT, ESNA 1/4-2058 1920397SM 1

The above parts group applies to the following Mfg. Nos.:

2007 7

1694462 - Coronet

1694463 - Coronet

1694464 - 2413H

1694510 - Coronet

1694536 - 2413

TP 400-4095-00-CO-SMA

Steering & Lift Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

984685SL

The above parts group applies to the following Mfg. Nos.:

2007 8

1694462 - Coronet

1694463 - Coronet

1694464 - 2413H

1694510 - Coronet

1694536 - 2413

TP 400-4095-00-CO-SMA

PART NO. DESCRIPTIONREF NO QTY.

Steering & Lift Group

Footnotes

NUT, Hex, 3/8-161 1930645SM 1

PIVOT2 2108512SM 1

ARM ASSEMBLY, Lift3 1708955ASM 1

GRIP, Lever4 1708966SM 1

LEVER, Lift5 1708557ASM 1

SPRING, Compression6 1708884SM 1

WASHER, Plain, 13/32 x 7/8 x 5/647 1924940SM 3

COTTER PIN, 3/32 x 3/48 1918447SM 3

CABLE ASSEMBLY, Lift9 1708556SM 1

NUT, Hex, Esna Lock, 3/8-1610 1919439SM 1

PULLEY, Lift11 1708559SM 1

SPACER12 1708973SM 1

WASHER, Plain, 13/32 x 1-1/2 x 1/813 1924356SM 1

CAPSCREW, Hex Head, 3/8-16 x 1-1/214 1921969SM 1

NUT, Hex, Flange Lock, 3/8-1615 1930645SM 1

ECCENTRIC16 1708514SM 1

WASHER, 13/32 x 7/8 x 1/817 1922755SM 1

CAPSCREW, Hex Head, 3/8-16 x 1-3/418 1921971SM 1

SPINDLE ASSEMBLY, LH19 1706011SM 1

NUT, Hex, Flange Lock, 5/16-1820 1935048SM 3

SPACER21 1960236SM 2

KLIP RING22 1611710SM 2

CARRIAGE BOLT, 5/16-18 x 123 1931335SM 2

TIE ROD, LH24 1708501ASM 1

WASHER25 1919381SM 1

SPACER, 21/64 x 1/2 x 5/826 1710703SM 1

WASHER27 1960170SM 2

LEVER28 1708516ASM 1

ROD, Hitch29 1708521SM 1

CAPSCREW, Hex Head, 1/2-13 x 1-1/230 1920328SM 2

HITCH, Hook31 1709237ASM 1

SPACER32 1709235SM 2

NUT, Hex, Flange Lock, 1/2-1333 1930644SM 2

SPINDLE ASSEMBLY, RH34 1706019SM 1

TIE ROD, RH35 1708500ASM 1

The above parts group applies to the following Mfg. Nos.:

2007 9

1694462 - Coronet

1694463 - Coronet

1694464 - 2413H

1694510 - Coronet

1694536 - 2413

TP 400-4095-00-CO-SMA

Engine & Electric Clutch Group - 13HP Briggs & Stratton, INTEK

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

986211

The above parts group applies to the following Mfg. Nos.:

2007 10

1694462 - Coronet

1694464 - 2413H

TP 400-4095-00-CO-SMA
