SimpLinx SMX-IoT10 Bedienungsanleitung

SMX-IoT10 Cloud & Edge Computing

User's Guide

12/2020

man-en-smx-IoT10.docx

man-en-smx-iot10

- 1 -

Legal Notices

Warning Notice System

The document contains alerts and information indications for the safety of you and your devices.

The symbols and meanings used to draw your attention to these notifications are listed below.

Qualified Personnel

It is assumed that what is described in this document will be applied by qualified personnel for

the specific task.

Disclaimer

We have reviewed the contents of this publication to ensure consistency with the hardware and

software described. Since variance cannot be precluded entirely, we cannot guarantee full

consistency.

The information in this publication is reviewed regularly and any necessary corrections are

included in subsequent editions.

Danger: Indicates the death or severe personal injury will result if proper

precautions are not taken.

Warning: Indicates that death or severe personal injury may result if proper

precautions are not taken.

Info: Indicates advice or information.

man-en-smx-iot10

- 2 -

Change Log

Version

Date

Description

V1.0

12/2020

Initial Release

man-en-smx-iot10

- 3 -

Preface

Purpose of the Document

This document contains information about the following topics;

SMX-IoT10 Product Information

SMX-IoT10 Setup

Use of SMX-IoT10

Required Level of Knowledge

In order to fully understand and apply this document, it is necessary to have knowledge of IT,

Automation and Electricity.

man-en-smx-iot10

- 4 -

Contents

Legal Notices ........................................................................................................................................- 1 -

Warning Notice System ................................................................................................................- 1 -

Qualified Personnel ......................................................................................................................- 1 -

Disclaimer.....................................................................................................................................- 1 -

Change Log ...........................................................................................................................................- 2 -

Preface..................................................................................................................................................- 3 -

Purpose of the Document ............................................................................................................- 3 -

Required Level of Knowledge .......................................................................................................- 3 -

1. Product Description and Certificates...........................................................................................- 5 -

1.1. Properties .......................................................................................................................- 6 -

1.2. Approvals / CE.................................................................................................................- 6 -

2. Physical Properties and Drawings................................................................................................- 7 -

2.1. Drawings.........................................................................................................................- 8 -

3. Setup............................................................................................................................................- 9 -

3.1. Mounting ........................................................................................................................- 9 -

3.2. Removing........................................................................................................................- 9 -

4. Electrical Connection .................................................................................................................- 10 -

5. Device Connections ...................................................................................................................- 10 -

5.1. Ethernet Devices...........................................................................................................- 10 -

5.2. Internet Connection Options........................................................................................- 11 -

5.3. Ethernet Connection with PC (Service IP) (Optional) ...................................................- 11 -

Energizing your device................................................................................................................- 12 -

5.4. Making Basic Settings ...................................................................................................- 12 -

6. Web Interface............................................................................................................................- 13 -

6.1. Ethernet1 and Ethernet2 Pages....................................................................................- 13 -

6.2. Wireless Settings Page..................................................................................................- 14 -

6.3. Advanced Settings Page................................................................................................- 15 -

6.4. Import/Export Page ......................................................................................................- 15 -

6.5. Change Password Page.................................................................................................- 16 -

6.6. Info Page.......................................................................................................................- 16 -

man-en-smx-iot10

- 5 -

1. Product Description and Certificates

The SMX-IoT10 is a Cloud & Edge Computing device. It can collect, save and display data from the field

devices which are desired to be monitored.

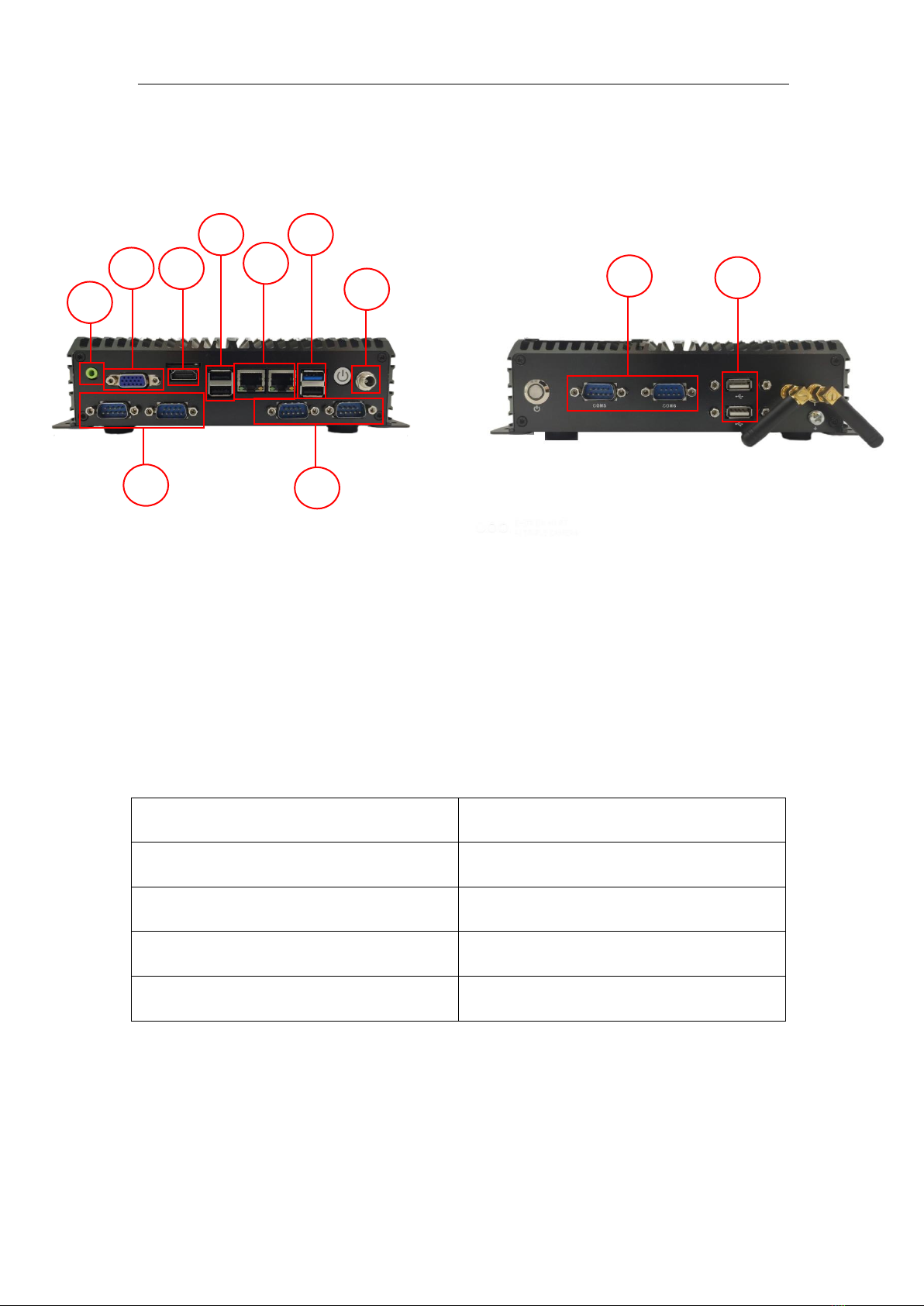

1- USB 2.0 ports

2- USB 3.0 ports

3- Ethernet2/Ethernet1

4- Power supply connection

5- RS-232 Serial Ports

6- VGA Output

7- HDMI Output

8- Audio Output

SMX-IoT10

Processor

Intel®Celeron® J1900 4 Core 2.00Ghz

Ram

Celeron® 4GB

mSATA

64 GB

Wireless ꟾBluetooth

E802.11 b/g/n (Embedded) ꟾBluetooth BT4.1

man-en-smx-iot10

- 6 -

1.1. Properties

High degree of robustness.

The SMX-IoT10 module is approved for indoor use only.

Compact design.

Ethernet and USB interfaces.

Embedded Wireless and Bluetooth

1.2. Approvals / CE

The SMX-IOT10 module has received approval from the CE standards.

man-en-smx-iot10

- 7 -

2. Physical Properties and Drawings

Connection Slots

4x USB 3.0

Type A

2x USB 2.0

Type A

6x RS-232 Serial Port

2x Rj45 Ethernet

10/100/1000 Mbps

1x VGA + 1x HDMI

1x Audio Output

Mounting

Wall Mounted

DIN Rail Mounted (Optional)

Temperature

-10 oC to 60 oC

Work

-20 oC to 60 oC

Storage

Dimensions (mm)

Width : 58,3

Height : 188,6

Depth : 200

Weight (Kg)

1,9

man-en-smx-iot10

- 8 -

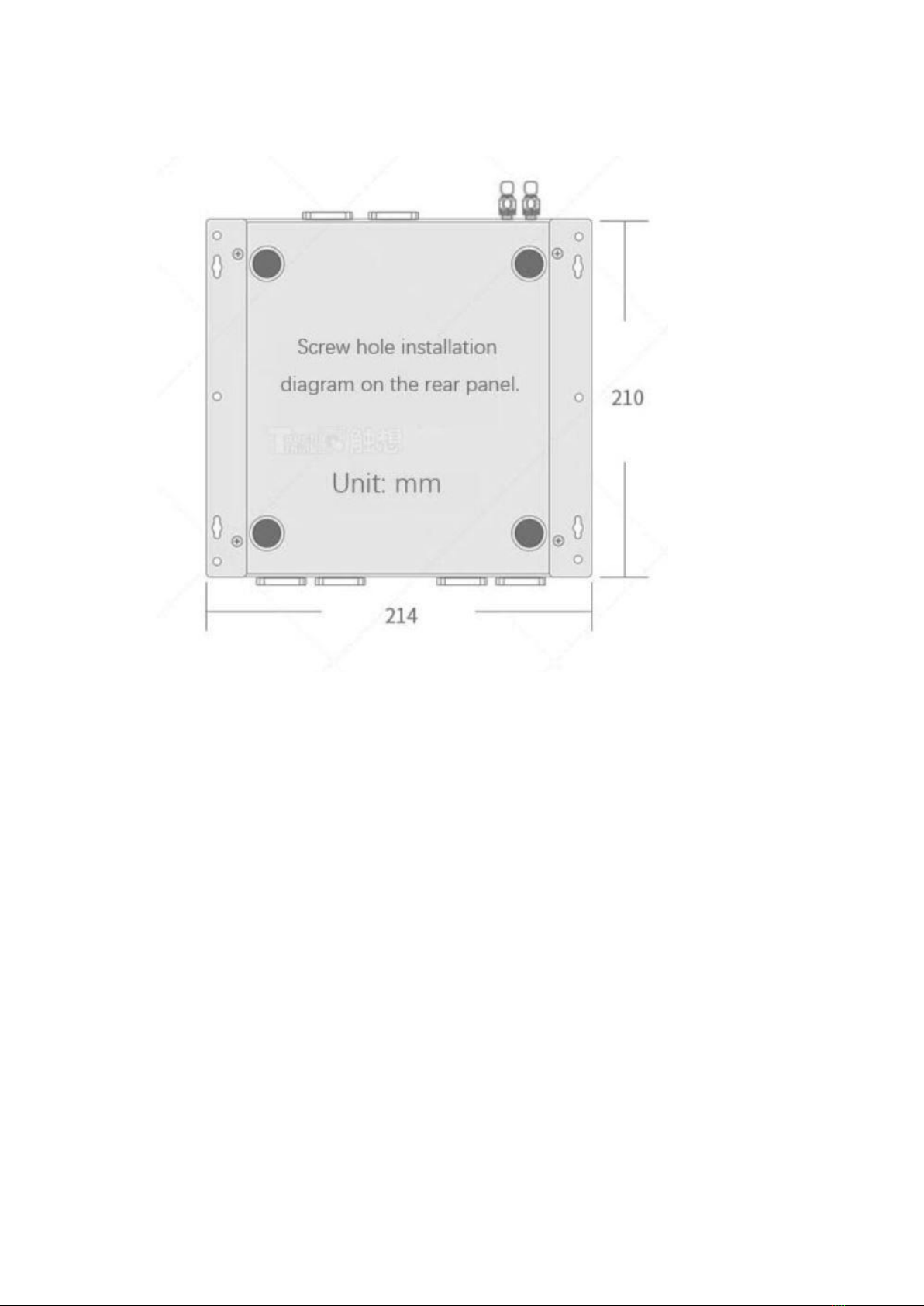

2.1. Drawings

man-en-smx-iot10

- 9 -

3. Setup

3.1. Mounting

Wall Mounting

The SMX-IoT10 can be mounted to wall from the screws which are placed on the back of the

product.

DIN Rail Mounting (Optional)

Bring the top of the device to the top edge of the standard profile rail and place the device on

the rail track.

Push the device towards the standard profile rail. You will hear the device sitting in place with

the click sound.

3.2. Removing

Wall Mounting

The SMX-IoT10 can be dismounted from the wall by screwing off the with the help of

screwdriver.

DIN Rail Mounting (Optional)

With the help of a screwdriver, pull down the locking spring from the bottom of the device.

Separate the screwdriver from the rail line without separating it from its position, by pulling

towards yourself
