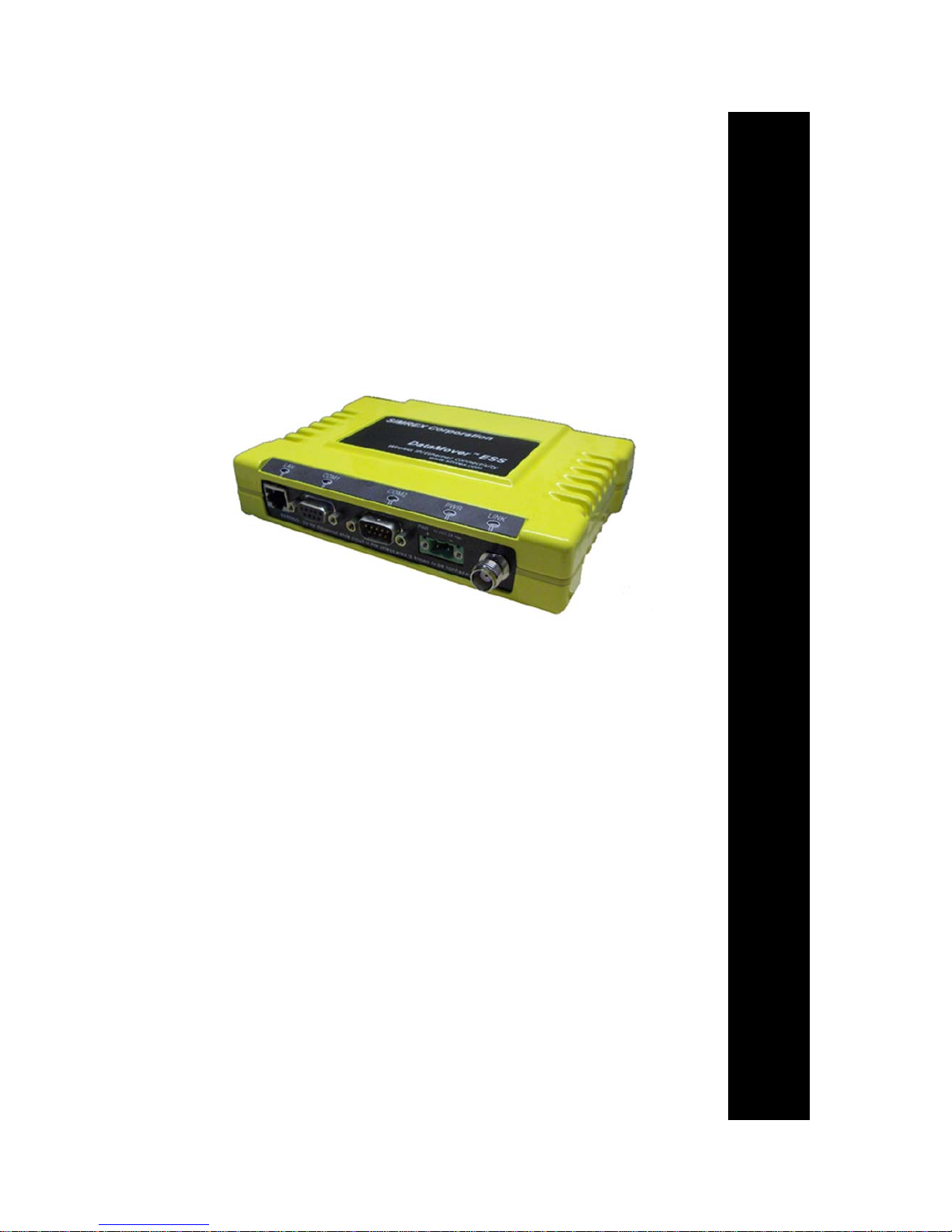

SIMREX DataMover ESS Series Installationshandbuch

Installation & Start-Up

Wireless IP/Ethernet Transceiver

ESS-II Firmware Release 1

ESS Firmware Release 6

SIMREX MAN.ESS-INS, Rev. E

MAY 2006

SIMREX CORPORATION

DataMover™ESS Series

Refer to the Installation Reference Chart

at the middle of this manual for essential

installation and configuration details.

MAN.ESS-INS, Rev. E ESS Series Installation & Start-Up 1

SIMREX CORPORATION

Contents

OPERATIONAL & SAFETY NOTICES ...................................2

PRODUCT DESCRIPTION .....................................................4

SIMREX CYBER SECURITY SUITE.......................................5

INSTALLATION PLANNING ...................................................6

INSTALLATION STEPS.......................................................... 6

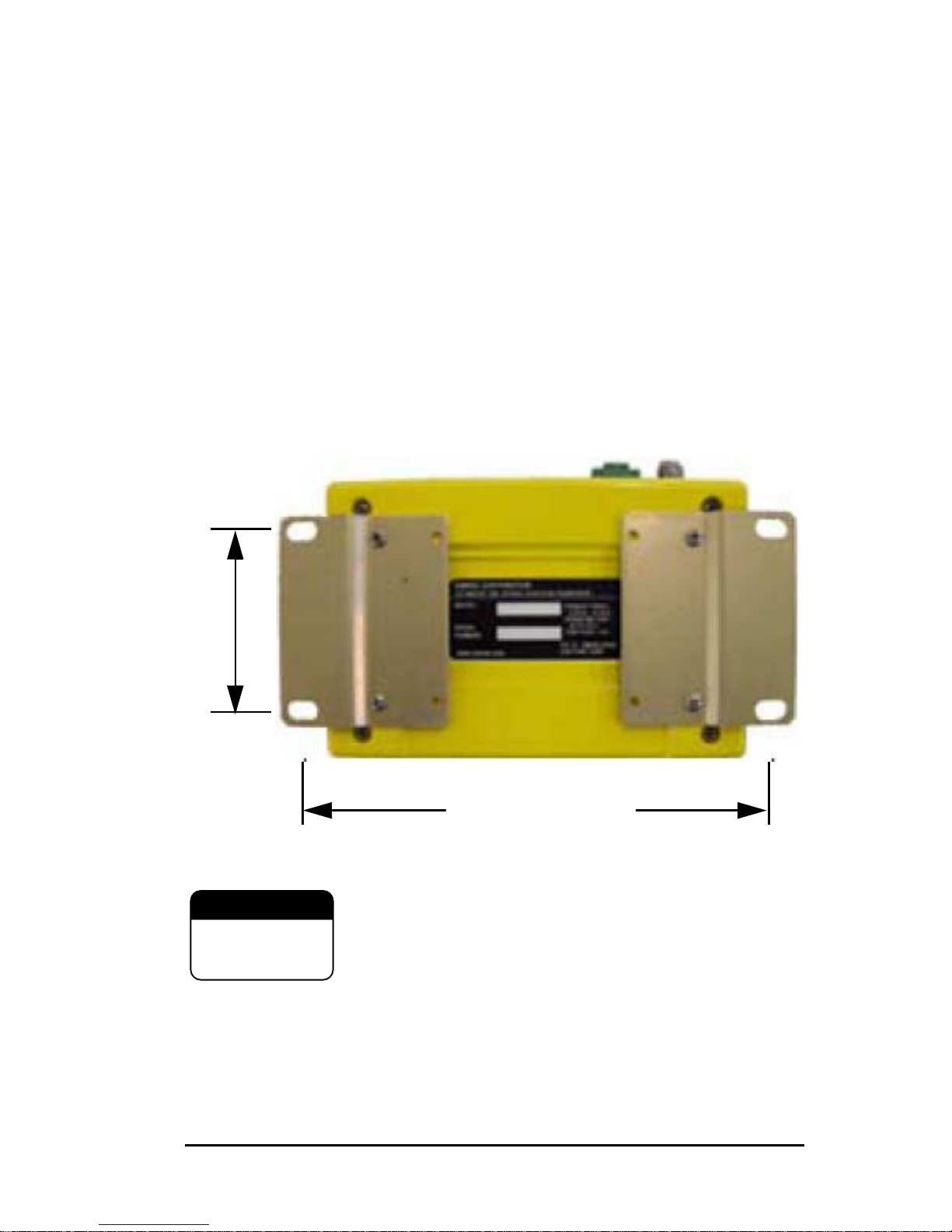

Step 1—Mount the Transceiver ..................................................7

Step 2—Install the Antenna ........................................................8

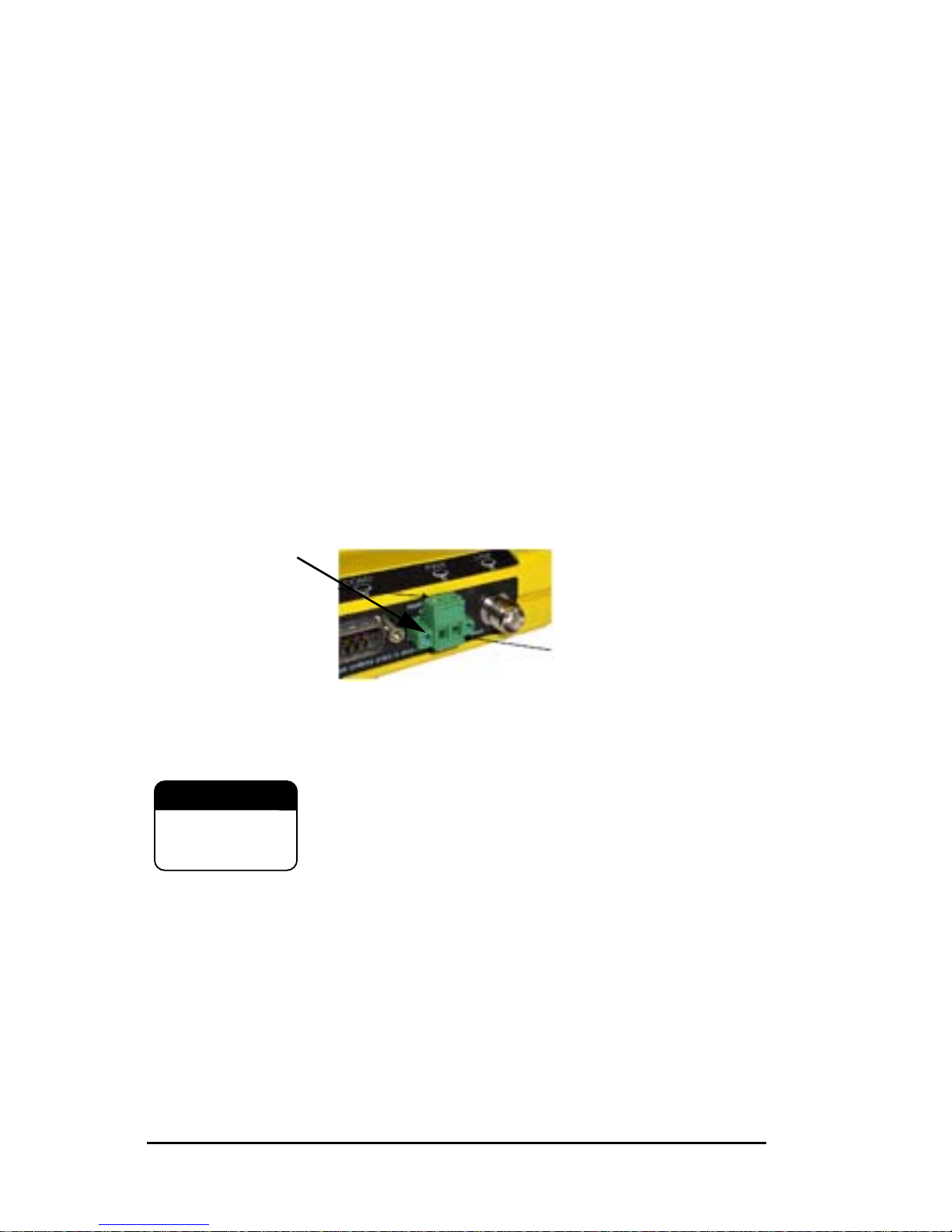

Step 3—Measure & Connect Primary Power ..............................8

Step 4—Review the Transceiver’s Configuration ........................8

Step 5—Connect the Data Equipment ......................................10

Step 6—Check for Normal Operation .......................................11

Resetting to Factory Defaults.....................................................12

Performance Optimization ........................................................12

INSTALLATION REFERENCE CHART .............(Center Insert)

AIMING DIRECTIONAL ANTENNAS ...................................14

TRANSMITTER POWER AND ANTENNA SWR TEST .......15

TROUBLESHOOTING ..........................................................16

SPECIFICATIONS ................................................................19

TECHNICAL ASSISTANCE & FACTORY SERVICE.............20

2ESS Series Installation & Start-Up MAN.ESS-INS,Rev.E

SIMREX CORPORATION

Manual Revision and Accuracy

While every reasonable effort has been made to ensure the accuracy of this manual,

product improvements may result in minor differences between the manual and the

product shipped to you. If you have questions or need an exact specification for a

product, please contact our Technical Services Team using the information at the back

of this guide. SIMREX Corporation reserves its right to correct any errors or omis-

sions. Updated information may also be available on our Web site at

www.simrex.com. This manual is for the use of professionals to guide them in the

installation, operation and basic system maintenance of the equipment described.

OPERATIONAL & SAFETY NOTICES

Professional installation required. The radio equipment

described in this guide emits radio frequency energy.

Although the power level is low, the concentrated

energy from a directional antenna may pose a health

hazard. Do not allow people to come closer than 23 cm

(9 inches) to the antenna when the transmitter is oper-

ating in indoor or outdoor environments. More informa-

tion on RF exposure is on the Internet at

www.fcc.gov/oet/info/documents/bulletins.

UL/CSA Notice

This product is available for use in Class 1, Division 2, Groups A, B, C & D Haz-

ardous Locations. Such locations are defined in Article 500 of the National Fire Pro-

tection Association (NFPA) publication NFPA 70, otherwise known as the National

Electrical Code.

The transceiver has been recognized for use in these hazardous locations by two inde-

pendent agencies —Underwriters Laboratories (UL) and the Canadian Standards

Association (CSA). The UL certification for the transceiver is as a Recognized Com-

ponent for use in these hazardous locations, in accordance with UL Standard 1604.

The CSA Certification is in accordance with CSA STD C22.2 No. 213-M1987.

UL/CSA Conditions of Approval

UL/CSA Conditions of Approval: The transceiver is not acceptable as a stand-alone

unit for use in the hazardous locations described above. It must either be mounted

within another piece of equipment which is certified for hazardous locations, or

installed within guidelines, or conditions of approval, as set forth by the approving

agencies. These conditions of approval are as follows:

1. The transceiver must be mounted within a separate enclosure which is suitable for

the intended application.

2. The antenna feedline, DC power cable and interface cable must be routed through

conduit in accordance with the National Electrical Code.

3. Installation, operation and maintenance of the transceiver should be in accordance

with the transceiver's installation manual, and the National Electrical Code.

4. Tampering or replacement with non-factory components may adversely affect the

safe use of the transceiver in hazardous locations, and may void the approval.

5. A power connector with screw-type retaining screws as supplied by SIMREX must

be used.

RF Exposure

MAN.ESS-INS, Rev. E ESS Series Installation & Start-Up 3

SIMREX CORPORATION

When installed in a Class I, Div. 2, Groups A, B, C or D hazardous location, observe

the following notice: WARNING —EXPLOSION HAZARD Do not disconnect

equipment unless power has been switched off or the area is known to be non-haz-

ardous.

6. Refer to Articles 500 through 502 of the National Electrical Code (NFPA 70) for

further information on hazardous locations and approved Division 2 wiring

methods.

Do not disconnect equipment unless power has

been switched off or the area is known to be

non-hazardous.

Refer to Articles 500 through 502 of the National

Electrical Code (NFPA 70) for further information

on hazardous locations and approved Division 2

wiring methods.

FCC Part 15 Notice, U.S.A.

The transceiver described herein complies with Part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) this device may not cause harmful inter-

ference, and (2) this device must accept any interference received, including interfer-

ence that may cause undesired operation. This device is specifically designed to be

used under Section 15.247 of the FCC Rules and Regulations. Any unauthorized mod-

ification or changes to this device without the express approval of Microwave Data

Systems may void the user’s authorityto operate this device. Furthermore, this device

is intended to be used only when installed in accordance with the instructions outlined

in this manual. Failure to comply with these instructions may also void the user’s

authority to operate this device.

Environmental Information

The manufacture of this equipment has required the extraction and use of natural

resources. Improper disposal may contaminate the environment and present a health

risk due to hazardous substances contained within. To avoid dissemination of these

substances into our environment, and to limit the demand on natural resources, we

encourage you to use the appropriate recycling systems for disposal. These systems

will reuse or recycle most of the materials found in this equipment in a sound way.

Please contact SIMREX or your supplier for more information on the proper disposal

of this equipment.

About This Guide

This guide presents installation and initial operating instructions for the DataMover™

ESS-II 900 or the DataMover™ ESS 900Wireless IP/Ethernet transceiver. Following

installation, we suggest keeping this guide near the equipment for future reference.

The scope of this manual is limited to the safe and effective installation of the unit in

typical office or non-hazardous industrial settings. Users who require optimization of

the equipment’s capabilities and operating range should read the DataMover

ESS Series User’s Guide, P/N MAN.ESS-MAN. This manual provides more in-depth

information on antenna selection and optimization, and extensive coverage on

user-controllable parameters and diagnostic tools.

The most essential installation information is contained on the Installation Reference

Chart found at the center of this manual.

EXPLOSION

HAZARD!

4ESS Series Installation & Start-Up MAN.ESS-INS,Rev.E

SIMREX CORPORATION

PRODUCT DESCRIPTION

The DataMover ESS-II and ESS transceivers are designed to provide

wireless local area network (LAN) service with plug-and-play hard-

ware. The transceivers come in two primary models—Access Point

and Remote.

Three types of Remote Gateways are available—the Ethernet Bridge,

theSerialGateway,andtheDualGatewaysupporting bothIP/Ethernet

and serial services. Table 1 summaries the different interface abilities

for each type of radio.

A transceiver can be configured by the owner to operate as an Access

Point or as a Remote with some restrictions. Only the Dual Gateway

Remote units can be reconfigured as an Access Point. Ethernet Bridge

and a Serial Gateway Remotes cannot be reconfigured as Access Point

unless they are first upgraded to Dual Gateway type. This is accom-

plished with an “Authorization Key” purchased from the factory.Each

one of these individual software keys is associated with the serial

number of the corresponding unit.

Transceivers serve as either an “Access Point” or “Remote.” An

Access Point (AP) is a wireless hub that usually provides connectivity

intoawired EthernetLAN/WAN.Fromaradio perspective, an Access

Point serves as the network’s “master station” providing synchroniza-

tion data to all associated Remotes (RMT) within its network.

Table 1. Transceiver Models and Data Interface Services

Model Type LAN1COM11COM2

Access Point3N/A Yes Yes Yes

Remote… Ethernet Bridge2Yes No No

Serial Gateway2No Yes Yes

Dual Gateway3Yes Yes Yes

NOTES

1.Provides access to the embedded Menu System on all units.

2.Can be upgraded to Dual Gateway with an Authorization Key.

3.Can be configured as an Access Point or Dual Gateway through

the embedded Menu System.

MAN.ESS-INS, Rev. E ESS Series Installation & Start-Up 5

SIMREX CORPORATION

Differences Between ESS and ESS-II

The ESS and ESS-II Transceivers, while similar in many respects, do

have some important differences. The main differences are summa-

rized in Table 2:

Table 2. Transceiver Differences (ESS vs. ESS-II)

NOTE: The DataMover ESS and DataMover ESS-II transceivers are

not over-the-air compatible.

SIMREX CYBER SECURITY SUITE

The operation and management of an enterprise is becoming

increasing dependent on electronic information flow. An accompa-

nying concern is the cyber security of the communication infrastruc-

ture and the security of the data itself.

The transceiver is capable of dealing with many common security

issues. Table 3 profiles security risks and how the transceiver provides

a solution for minimizing vulnerability. In all cases, the Security Con-

figuration Menu should be reviewed and set to the required parameters

for your environment. Please refer to the User’s Guide

(MAN.ESS-MAN) for complete information.

Characteristic ESS ESS-II

Data Rate 256/512 kbps 512 kbps/1 Mbps

FCC Certification

Type FHSS DTS

Encryption RC4-128 AES-128

Channel size 316.5 kHz 600 kHz

Channel operation Zones Channels

Firmware Specific for ESS Specific for ESS-II

6ESS Series Installation & Start-Up MAN.ESS-INS,Rev.E

SIMREX CORPORATION

INSTALLATION PLANNING

This section provides tips for installation and start-up of the equip-

ment.

General Requirements

There are three main requirements for installing the transceiver—ade-

quate and stable primary power, a good antenna system, and the cor-

rect interface between the transceiver and the data device. The

Installation Reference Chart (center of this guide) shows a typical

Remote installation. Access Point stations typically use omnidirec-

tional antennas whereas Remotes typically use directional antennas

such as a Yagi. Otherwise, the installations are similar.

INSTALLATION STEPS

A typical product shipment consists of a transceiver, a power con-

nector and this start-up guide.

Below are the basic steps for installing a transceiver. Should further

information be needed, see “TECHNICAL ASSISTANCE” on Page

20 of this manual for information on contacting the SIMREX Tech-

nical Services Group. You will also find support information at the

SIMREX Corporation Web site: www.simrex.com.

Table 3. Cyber Security Highlights

Security Level Specification

• SIMREX Cyber Se-

curity Suite, Level 1: • AES-128 encryption (ESS-II only)

• Includes Level 2 features below

• SIMREX Cyber Se-

curity Suite, Level 2: • RC4-128 encryption (ESS only)

• Automatic rotating key algorithm

• Authentication: 802.1x, RADIUS, EAP/TLS, PKI,

PAP, CHAP

• Management: SSL, SSH, HTTPS

• Approved AP/Remotes list (local authentication)

• Failed login lockdown

• 900 MHz operation and proprietary data framing

MAN.ESS-INS, Rev. E ESS Series Installation & Start-Up 7

SIMREX CORPORATION

It is highly recommended that the Access Point unit be installed first.

With this plan, you can quickly check the operation of each associated

Remote as it is placed on the air.

NOTE: Transceivers are shipped from the factory set to the “Remote”

mode unless they are marked differently.

Step 1—Mount the Transceiver

Mount the radio to a stable surface. (Fasteners/anchors or screws are

not normally supplied.) Four threaded holes are located on the bottom

of the radio that are suitable for connecting mounting hardware. Use

6-32 x 1/4 inch (6 mm) screws to attach mounting hardware to the

bottom of the radio. Figure 1 shows the mounting dimensions.

Invisible place holder

Figure 1. Transceiver mounting dimensions

Screws used to hold the mounting brackets to the radio

case should be SAE 6-32 and should not extend farther

than 1/4 inch (6 mm) into case. This will prevent damage

to the transceiver’s internal PC board.

2.75

″

(7 cm)

7.25″(18.4 cm)

CAUTION

POSSIBLE

EQUIPMENT

DAMAGE

8ESS Series Installation & Start-Up MAN.ESS-INS,Rev.E

SIMREX CORPORATION

Step 2—Install the Antenna

To minimize radio frequency interference, the antenna should be

mounted at least nine inches (> 23 cm) from the connected device(s),

sensors and other components of the system. Additional information

on antenna selection and installation is provided in the DataMover

ESS Series User’s Guide.

Step 3—Measure & Connect Primary Power

The primary power at the transceiver’s power connector must be

within 10.5–30 Vdc and be capable of continuously providing up to

580 mA. A power connector with screw-terminals is provided with

each unit. Strip the wire leads to 6 mm (0.25"). Be sure to observe

proper polarity as shown in Figure 1 with the positive lead (+) on the

left. If the transceiver is to be powered at voltages of 28 Vdc or higher,

please review the User’s Guide for important recommendations.

Invisibleplaceholder

Figure 2. Power Connector

Polarity: Left +, Right –

The transceiver must be used only with negative-ground

systems. Make sure the polarity of the power source is

correct. Review complete power requirements in the

User’s Guide, Part No. MAN.ESS-MAN.

The power supply used with the transceiver should be equipped with

overload protection (NEC Class 2 rating), to protect against a short cir-

cuit between its output terminals and the transceiver power connector.

NOTE: It typically takesabout 30 seconds forthe transceiver to power

up, and about 20 to associate with another unit.

Step 4—Review the Transceiver’s Configuration

Two essential settings for the transceiver should be known before

placing the unit into service. They are:

Wire Ports

Lead

Screws (2)

Binding

+–

CAUTION

POSSIBLE

EQUIPMENT

DAMAGE

Inhaltsverzeichnis

Andere SIMREX Transceiver Handbücher

SIMREX

SIMREX DataMover ESS Bedienungsanleitung

Beliebte Transceiver Handbücher anderer Marken

Yaesu

Yaesu FT-7B Bedienungsanleitung

Kenwood

Kenwood ProTalk TK-3201 Bedienungsanleitung

Texas Instruments

Texas Instruments TLK10232 Bedienungsanleitung

Mizuho

Mizuho MX-2 Produkthandbuch

Kenwood

Kenwood TK-3180 Bedienungs- und Wartungshandbuch

Blitz

Blitz MJ-398U Bedienungsanleitung

Utilicom

Utilicom LongRanger 2050 Bedienungsanleitung

Standart

Standart HX290UKA Bedienungsanleitung

Altronix

Altronix Pace1PTM Bedienungsanleitung

Kirisun

Kirisun PT2208 Bedienungsanleitung

ELECRAFT

ELECRAFT KX2 Bedienungsanleitung

Zodiac

Zodiac K3 Bedienungsanleitung

Assa Abloy

Assa Abloy SecureComm HKC GSM-WIFI U Bedienungsanleitung

Kenwood

Kenwood TK-2217 Bedienungsanleitung

Siemens

Siemens PSO 4000 Bedienungsanleitung

Kenwood

Kenwood TS-590SG Bedienungsanleitung

Midland

Midland G8E-BT Handbuch

ComNav

ComNav Mariner X2 Bedienungsanleitung
