SERVICE MANUAL

ASE-18AH, ASE-24AH, ASE-36AH,

ASE-48AH, ASE-60AH

CONDENSING UNIT



OutdoorUnits- appearance

18,000Btu/h

24,000Btu/h

30,000~36,000Btu/h

48,000Btu/h-60,000Btu/h

Model Names of Outdoor Units

Universal Outdoor unit Model Compressor type Compressor Brand

ASE-18AH Rotary GMCC

ASE-24AH Rotary GMCC

ASE-36AH SCROLL SANYO

ASE-48AH SCROLL SANYO

ASE-60AH SCROLL SANYO

Heat Pump

Features

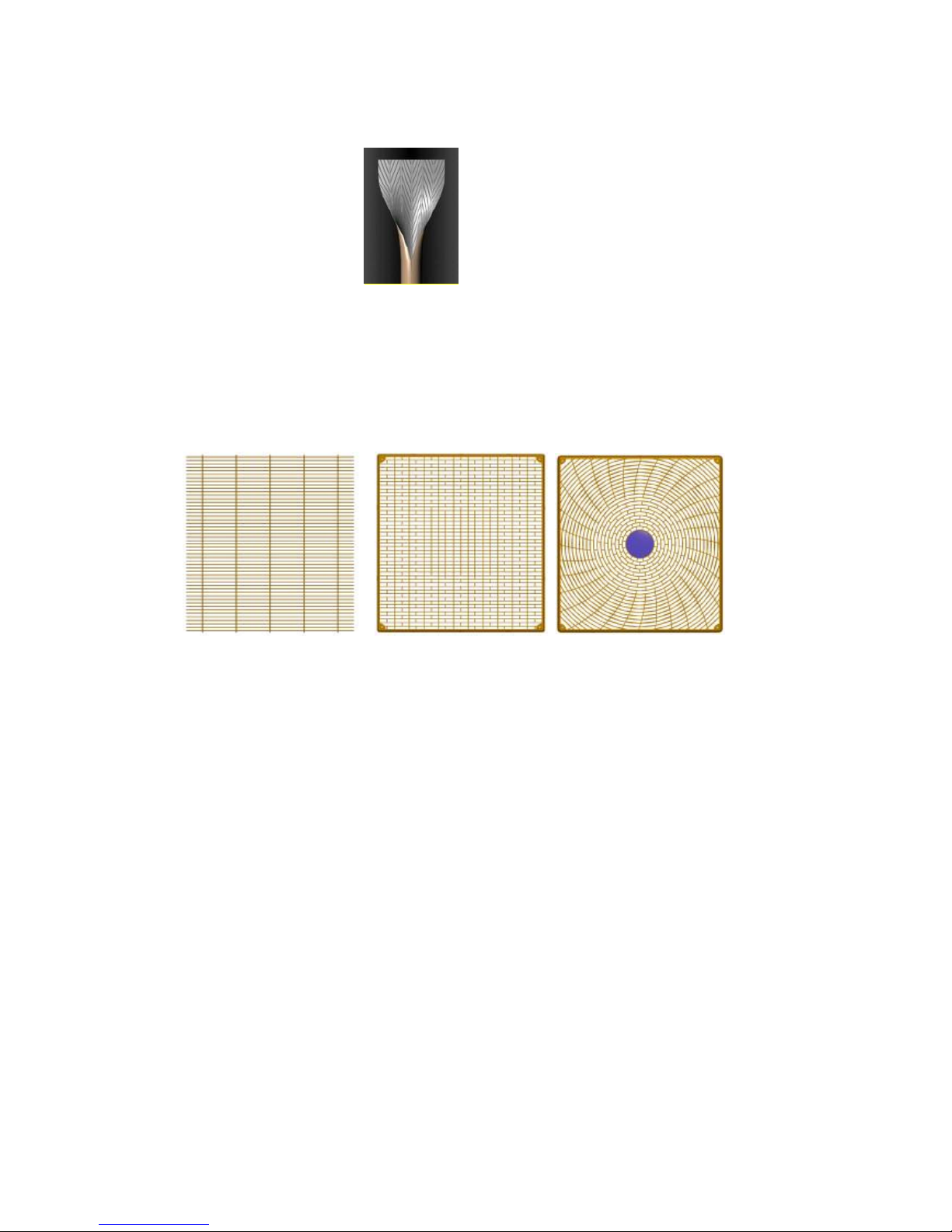

Highqualitycoils:

Thecoil isconstructed ofadvanced innergrooved coppertubeand aluminumfins.

Anti-rust, 500 hourssalt spraytest.

Lowoperation sound level:Well-knownstableand quiet runningfan motor.

Well-knowncompressor.

Compact design: Smallerdimension and largerstuffingcapacity.

Universaloutdoorunit design.

Optionalairoutlet grille: plastictypeand wiretype.

WiretypePlastictypePlastictype

Optionallowtemperaturecoolingmodule.

R410Aenvironment friendlyrefrigerant.

Outdoor Units

1.Specifications............................................................ 100

2.Dimensions................................................................ 109

3.ServiceSpace............................................................ 110

4. Wiring Diagrams .........................................................111

5.ElectricCharacteristics............................................. 118

6.Operation Limits........................................................ 119

7.Sound Levels............................................................. 120

8.Troubleshooting......................................................... 121

Model ASE-18AH

ASE-24AH

Code 220037802190 220075301210

Powersupply V-ph-Hz 220~240-1-50 220~240-1-50

Max. inputconsumption W 2950 3450

Max. inputcurrentA 15 18

Compressor

ModelPA225X2CS-4KU1 PA290X3CS-4MU1

TypeRotary Rotary

Brand GMCC GMCC

CapacityBtu/h 18493/18698 24498

InputW 1855/1940 2430

Ratedcurrent(RLA)A 8.7/8.7 11.4

LockedrotorAmp(LRA)

A 36.8 61

ThermalprotectorInternal Internal

CapacitorμF 50μF/440V-450V

50μF/440V-450V

Refrigerant oilml ESTEROILVG74750 ESTEROILVG74/950

Outdoorfan

motor

ModelYDK48-6H(A) YDK100-6D

Qty 1 1

Input W 110 168.7

Capacitor μF 3μF/450V 5μF/450V

Speed r/min 890 900

Outdoorcoil

Numberofrows 2 2

Tubepitch(a)×rowpitch(b)

mm 21x13.37 21x13.37

Finspacing mm 1.4 1.4

FintypeHydrophilicaluminium Hydrophilicaluminium

Tubeoutsidedia.and type

mm φ7, Innergroovedcopper

tube

φ7, Innergroovedcopper

tube

Coillength ×height ×width

mm 658x546x26.74 785x651x26.74

Numberofcircuits 4 4

Outdoorairflow m

/h 2439 3200

Outdoornoiselevel(sound pressure)dB(A) 54 55

Outdoorunit

Dimension(W×H×D) mm 760x590x285 845×695×324

Packing(W×H×D) mm 887×645×355 965×755×395

Net/Grossweightkg 39/42 53/57

RefrigerantType R410a R410a

Chargedvolume g 1400 1900

Throttletype

Capillary Capillary

Design pressure MPa 4.2/1.5 4.2/1.5

Refrigerant

piping

Liquidside/Gassidemm φ6.4/φ12.7 φ9.5/φ15.9

Max. pipelengthm 25 25

Max. differenceinlevel m 15 15

Ambienttemp. ℃cooling:18~43;

heating:-7~24 cooling: 18~43;

heating:-7~24

Notes:1.Nominalcoolingcapacitiesarebasedonthefollowingconditions:

Indoortemp:27°CDB,19°CWB;Outdoortemp:35°CDB;

2.Nominalheatingcapacitiesarebasedonthefollowingconditions:

Indoortemp:20°CDB;Outdoortemp:7°CDB,6°CWB;

3.Actualnoiselevelmaydiffer, depending ontheroomstructure, etc, sincethesenoisevaluesarefroman anechoic

room.

Model ASE-36AH

Code 220075500682

Powersupply V-ph-Hz

380~415-3-50

Max. inputconsumption W 4950

Max. inputcurrentA 10

Compressor

ModelC-SBN303H8D

TypeSCROLL

Brand SANYO

CapacityBtu/h 33438

InputW 3650

Ratedcurrent(RLA)A 6.58

LockedrotorAmp(LRA)

A 48

ThermalprotectorInternal

CapacitorμF --

Refrigerant oilml FV68S/1700

Outdoorfan

motor

ModelYDK190-6D

Qty 1

InputW 290

CapacitorμF 10μF/450V

Speedr/min 840

Outdoorcoil

Numberofrows 2

Tubepitch(a)×row

pitch(b)

mm 21x13.37

Finspacing

mm 1.4

FintypeHydrophilicaluminium

Tubeoutsidedia.and

type

mm φ7, Innergroovedcoppertube

Coillength ×height ×

width

mm 890x903x26.74

Numberofcircuits 7

Outdoorairflowm

/h 5000

Outdoornoiselevel(sound pressure)dB(A) 57

Outdoorunit

Dimension(W×H×D) mm 990×966×354

Packing(W×H×D) mm 1120×1100×435

Net/Grossweightkg 92/96

RefrigerantType R410a

Chargedvolume g 2900

Throttletype capillary

Design pressureMPa 4.2/1.5

Refrigerant

piping

Liquidside/Gassidemm φ12.7/φ19

Max. pipelengthm 30

Max. differenceinlevel

m 20

Ambienttemp. ℃cooling: 18~43; heating:-7~24

Notes:1.Nominalcoolingcapacitiesarebasedonthefollowingconditions:

Indoortemp:27°CDB,19°CWB;Outdoortemp:35°CDB;

2.Nominalheatingcapacitiesarebasedonthefollowingconditions:

Indoortemp:20°CDB;Outdoortemp:7°CDB,6°CWB;

3.Actualnoiselevelmaydiffer, depending ontheroomstructure, etc, sincethesenoisevaluesarefroman anechoic

room.

Model ASE-48AH ASE-60AH

Code 220075701250 220075800650

Powersupply V-ph-Hz

380~415-3-50 380~415-3-50

Max. inputconsumption W 6300 7500

Max. inputcurrent A 10.5 12.6

Compressor

ModelC-SBN373H8D C-SBN453H8D

TypeScroll Scroll

Brand Sanyo Sanyo

CapacityBtu/h 48109 55956.8

InputW 4750 5750

Ratedcurrent(RLA)A 8.22 9.77

LockedrotorAmp(LRA)

A 66 67

ThermalprotectorInternal Internal

Capacitor

μF

-- ---

Refrigerant oilml FV68S,1700 FV68S,1700

Outdoorfan

motor

ModelYDK65-6-1+YDK65-6F-1 YDK65-6+YDK65-6F

Qty 2 2

InputW 171 2 148+140

CapacitorμF (4μF/450V) 2 (3.5μF/450V) 2

Speedr/min 825 800

Outdoorcoil

Numberofrows 2 2

Tubepitch(a)×row

pitch(b)

mm 21×13.37 22×19.05

Finspacing

mm 1.4 1.6

FintypeHydrophilicaluminium Hydrophilicaluminium

Tubeoutsidedia.and

typemm φ7Innergroovedcoppertube

φ7.94 Innergroovedcopper

tube

Coillength ×height ×

widthmm 840×1113×26.74 837×1100×38.1

Numberofcircuits 4 8

Outdoorairflowm

/h 6800 6850

Outdoornoiselevel(sound pressure)dB(A) 59 59

Outdoorunit

Dimension(W×H×D) mm 900×1167×340 900×1167×340

Packing(W×H×D) mm 1032×1307×443 1032×1307×443

Net/Grossweightkg 102/106 106/111

RefrigerantType R410a R410A

Chargedvolume g 3250 3200

Throttletype capillary capillary

Design pressureMPa 4.2/1.5 4.2/1.5

Refrigerant

piping

Liquidside/Gassidemm φ12.7/φ19 φ12.7/φ19

Max. pipelengthm 50 50

Max. differenceinlevel

m 25 25

Ambienttemp.℃cooling: 18~43; heating:-7~24

cooling: 18~43; heating:-7~24

Notes:1.Nominalcoolingcapacitiesarebasedonthefollowingconditions:

Indoortemp:27°CDB,19°CWB;Outdoortemp:35°CDB;

2.Nominalheatingcapacitiesarebasedonthefollowingconditions:

Indoortemp:20°CDB;Outdoortemp:7°CDB,6°CWB;

3.Actualnoiselevelmaydiffer, depending ontheroomstructure, etc, sincethesenoisevaluesarefroman anechoic

room.

Model Ratedcurrent

ASE-18AH 15A

ASE-24AH 18A

ASE-36AH 10A 3 phases

ASE-48AH 12.5A 3 phases

ASE-60AH 12.6A 3 phases

2.Dimensions

Model (mm) A B C D E F H

ASE-18AH 760 530 290 315 270 285 590

ASE-24AH 842 560 335 360 312 324 695

ASE-36AH 990 624 366 396 340 354 966

Model(mm) A B C D E F H

ASE-48AH 900 590 378 400 330 340 1167

ASE-60AH 900 590 378 400 330 340 1167
