Sinclair SDV6 Leitfaden

SWC-63

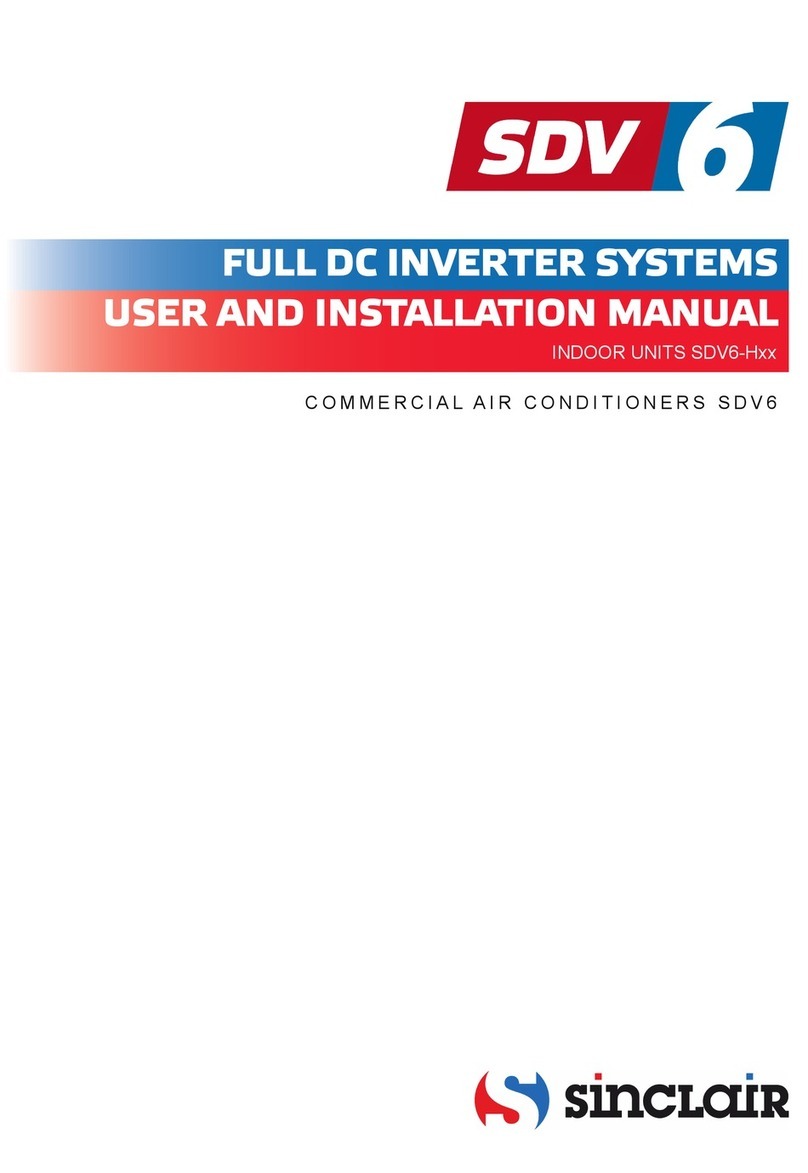

COMMERCIAL AIR CONDITIONERS SDV6

USER & INSTALLATION MANUAL

This manual gives detailed description of the precautions that should be

brought to your attention during operation.

In order to ensure correct service of the wired controller please read this

manual carefully before using the unit.

For convenience of future reference, keep this manual after reading it.

CONTENTS

About the documentation

For the user

1.2

1.1 01

GENERAL SAFETY PRECAUTIONS

204

BASIC PARAMETERS

304

ACCESSORIES LIST

Control Panel Explanation

4.1 5

4 OPERATION INSTRUCTIONS

Basic Operation

Mode

Fan speed

Swing

Timer

Self-cleaning

ETA function

Air quality monitoring

Function settings

4.3

4.4

4.5

4.6

4.7

4.8

4.9

4.10

4.2

Installation Precautions

Installation Method

7.2

7.1 47

7 INSTALLATION

5 OTHER FUNCTIONS AND SETTINGS

6 FAQ

8 ENGINEERING SETTINGS

Parameter settings of the wired controller

Engineering Menu

Wired controller Configuration

IDU settings

ODU settings

8.1

8.2

8.3

8.4

8.5

1 GENERAL SAFETY PRECAUTIONS

1.1 About the documentation

The original documentation is written in English. All other languages are

translations.

The precautions described in this document cover very important topics,

follow them carefully.

All activities described in the installation manual must be performed by

an authorized installer.

1.1.1 Meaning of warnings and symbols

Indicates a situation that results in death or serious injury.

DANGER: RISK OF ELECTROCUTION

Indicates a situation that could result in electrocution.

DANGER: RISK OF BURNING

Indicates a situation that could result in burning because of

extreme hot or cold temperatures.

DANGER

Indicates a situation that could result in death or serious injury.

WARNING

1.2 For the user

If you are not sure how to operate the unit, contact your installer.

The appliance is not intended for use by persons, including children, with

reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

Children must be supervised to ensure that they do not play with the

product.

Indicates a situation that could result in minor or moderate injury.

Indicates a situation that could result in equipment or property

damage.

Indicates useful tips or additional information.

CAUTION

NOTE

INFORMATION

Do NOT rinse the unit. This may cause electric shocks or fire.

CAUTION

Do NOT place any objects or equipment on top of the unit.

Do NOT sit, climb or stand on the unit.

NOTE

Units are marked with the following symbol:

This means that electrical and electronic products may not be mixed with

unsorted household waste. Do not try to dismantle the system yourself: the

dismantling of the system, treatment of the refrigerant, of oil and of other

parts must be done by an authorized installer and must comply with

applicable legislation. Units must be treated at a specialized treatment

facility for reuse, recycling and recovery. By ensuring this product is

disposed of correctly, you will help to prevent potential negative

consequences for the environment and human health. For more

information, contact your installer or local authority.

2 BASIC PARAMETERS

3 ACCESSORIES LIST

DescriptionItems

Rated voltage

Wiring size

Operating environment

Humidity

DC18V

-5°C ~ 43°C

≤ RH90%

No.

Name

Wired controller

Philips head screw, M4×25

Installation and Operation Manual

Quantity

5Bottom cap of the wired controller 1

4Plastic support bar 2

6 Round head screw ST4X20 4

7Plastic expansion pipe 4

RVVP-0.5mm2×2

4.1 Control Panel Explanation

4 OPERATION INSTRUCTIONS

On/off

Information

Back

RightDown

Enter

Left

Display

4.2 Basic Operation

1. On/Off

2. Menu Press " Menu " to enter the menu selection screen.

3. back Press " Back " to return to the previous menu

4. Left/Right key Press " " " " to adjust the fan speed.

5. up/down Press " " " " to adjust the temperature and humidity.

6. Confirmation

Press " " to wake up the screen.

7. Information

Press " Information " to view error codes.

Press " On/Off ". The interface/operation button will light up

and the device will start. Under one-to-many individual control,

the screen will not die when the power-off button is pressed.

Press " On/Off " again. The screen/operation button will be off,

and the device will shut down.

Set temperature display

Timer OFF Timer ON

Cool

Auto

Heat

Dry

Filter Blockage

Fan

WiFi

Vertical swing

Main/secondary

Horizontal swing

ETA function

Home leaving mode

Indoor temp.

Sleep

ECO

Comfort

Avoid people

Backup running

Key lock

Sterilization

Aux heater

3D circulating air

Blow on people

Silent IDU

Fault prompt

Schedule

Air quality monitoring:good,middle,poor

Lock mode

Rapid heatingRapid cooling
