SinoCon KonNad C2000-A2-SDD8080-AC1 Bedienungsanleitung

Last updated: 2019-12-13

C2000-A2-SDD8080-AC1

User Manual

RS485 ⇋ 8DI + 8DO

Open-collector output, Pulse count

Remote I/O Module — RS485 Digital I/O Module

SinoCon Co., Ltd.

Catalog

1. Hardware Description

1.1. Specifications

1.2. Apprearance

1.3. Indicators

1.4. Port Description

1.5. Product Dimensions

1.6. Installation Method

2. Package Contents

3. Warranty Policy

C2000-A2-SDD8080-AC1 User Manual

2 / 12

SinoCon Co., Ltd. www.sinoconsys.com

Trademarks

The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this

manual belong to their respective manufacturers.

Disclaimer

This document only provides information about KonNaD products. No license to any intellectual property rights is

granted by this document, including any intellectual property licenses, expressed or implied, or by any means.

SinoCon assumes no responsibility other than the liability stated by SinoCon in the terms and conditions of sale of

its products and SinoCon makes no warranties regarding the sale or use of KonNaD products, including the

suitability for the specific use of the products, and marketability, and SinoCon doesn't guarantee that it won't

infringe any patent, copyright or other intellectual property rights, etc.

Information in this document is subject to change without notice and does not represent a commitment on the

part of SinoCon.

SinoCon Co., Ltd.

Address: 16th Floor, Tower A, Zhongyin Building, Caitian Road, Futian District, Shenzhen, China

Web: www.sinoconsys.com

Tel: +86 0755-88865168

C2000-A2-SDD8080-AC1 User Manual

3 / 12

SinoCon Co., Ltd. www.sinoconsys.com

C2000-A2-SDD8080-AC1 User Manual

4 / 12

SinoCon Co., Ltd. www.sinoconsys.com

1. Hardware Description

1.1. Specifications

Classification Parameter Specification

Digital Input DI Channels 8

DI Connector Terminal block

Input Type Dry contact

DI Mode Logic level & pulse count

Digital Filtering Time Interval 6 sample periods

Counter Frequency 1kHz

Digital Output DO Channels 8

DO Connector Terminal block

DO Type Open-collector Output

DO Mode Logic level & pulse

Contact Capacity 30V/500mA

Upstream Serial Port Serial Standrad RS485

No. of Ports 1

Connector Terminal block

Industrial Protocol Standard Modbus RTU Protocol

Power Power Connector Terminal block

Input Voltage 9~27VDC

Current 80mA @ 12VDC

Physical Characteristics Dimensions 75*105*30mm

Installation Din-rail or wall

Environmental Limits Operating Temperature -40℃ ~ 85℃

C2000-A2-SDD8080-AC1 User Manual

5 / 12

SinoCon Co., Ltd. www.sinoconsys.com

Storage Temperature -60℃ ~ 125℃

Ambient Relative Humidity 5% ~ 95% RH, non-condensing

Classification Parameter Specification

C2000-A2-SDD8080-AC1 User Manual

6 / 12

SinoCon Co., Ltd. www.sinoconsys.com

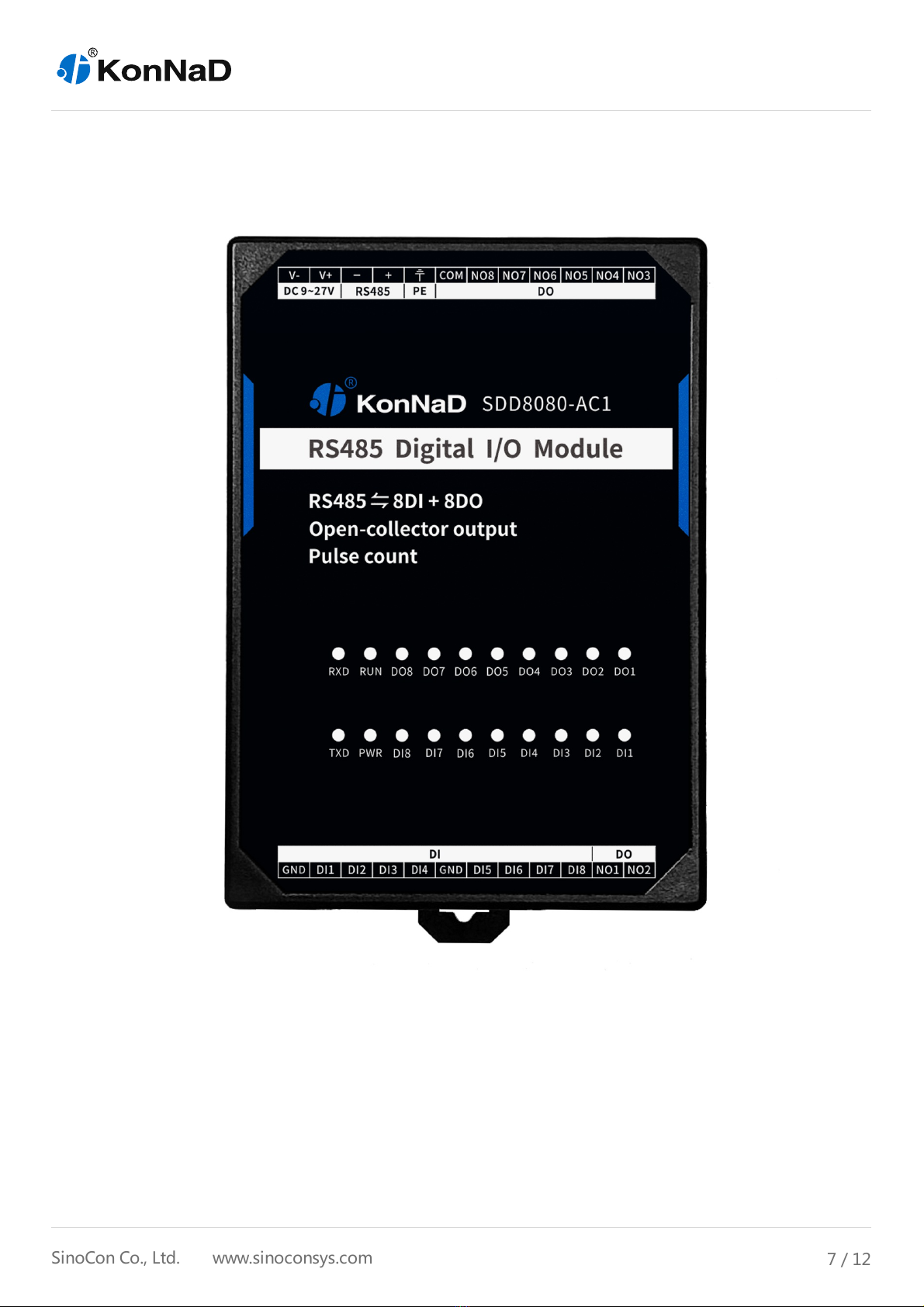

1.2. Apprearance

C2000-A2-SDD8080-AC1 User Manual

7 / 12

SinoCon Co., Ltd. www.sinoconsys.com

1.3. Indicators

Classification Indicator Description Meaning

Digital Input DIx Digital input

indicators (dry

contact)

Steady on：Short to GND

Off：Open

Digital

Output

DOx Digital input

indicators

Steady on：On

Off：Off

Downstream

Serial Port

RXD RS485 data receive

indicator

Steady on：RS485 line fault, please check if the positive

and negative poles of 485 line are reversed

Flashing：RS485 receiving data

Off：RS485 no receiving data

TXD RS485 data

transmit indicator

Flashing：RS485 transmitting data

Off：RS485 no transmitting data

Power PWR Power indicator Steady on：Normal power supply

Off：No power or abnormal power supply, please

check if the voltage range is 9~27VDC

RUN RUN Running indicator Steady on：Device exception

Flashing：Flashes every 1 second when the device is

ready

Off：Device exception

C2000-A2-SDD8080-AC1 User Manual

8 / 12

SinoCon Co., Ltd. www.sinoconsys.com

1.4. Port Description

Classification Port Description Recommended

wiring

Digital Input DIx Digital input RVV 2*0.5

GND Dry contact input common RVV 2*0.5

Digital Output NO Digital output normally open RVV 2*1.0

COM Digital output common RVV 2*1.0

Upstream Serial

Port

485+、

485-

RS485+, RS485- (upstream) RVSP 2*0.5

Power Input V+、V- Power supply input positive, power supply input

negative

RVV 2*1.0

PE Used for reliable grounding of the device, surge

protection

RVV 2*0.5

C2000-A2-SDD8080-AC1 User Manual

9 / 12

SinoCon Co., Ltd. www.sinoconsys.com

1.5. Product Dimensions

unit: mm（inch）

1.6. Installation Method

C2000-A2-SDD8080-AC1 User Manual

10 / 12

SinoCon Co., Ltd. www.sinoconsys.com
