WLM-1500/2500/3500

Wireless ADSL2+ Modem Router

2

User Manual

ABLE OF

ONTENTS

KEY FEATURES .................................................................................................................... 4

PACKAGE CONTENTS ....................................................................................................... 5

PRODUCT LAYOUT............................................................................................................. 6

SYSTEM REQUIREMENTS............................................................................................... 8

WLM-1500/2500/3500 PLACEMENT ..................................................................... 8

SETUP LAN, WAN ............................................................................................................... 9

PC NETWORK ADAPTER SETUP................................................................................ 10

BRING UP THE WLM-1500/2500/3500.............................................................. 13

INITIAL SETUP WLM-1500/2500/3500 ............................................................ 13

CONFIGURATION WIZARD......................................................................................... 19

BASIC SETTINGS.............................................................................................................. 20

ADVANCED SETTINGS................................................................................................... 34

FIREWALL SETTINGS .................................................................................................... 49

TOOLBOX SETTINGS ...................................................................................................... 59

Version: 1.0

Introduction

Congratulations on your purchase of the WLM-1500/2500/3500 Wireless

ADSL2 Modem. The WLM-1500 uses technology based on 802.11n, while the

WLM-2500/3500 is fully compliant with 802.11n. These modems are also fully

compliant with 802.11g & 802.11b. These modems provide the best

performance when used in combination with 802.11n client adapters.

The WLM-1500/2500/3500 is not only a Modem or Wireless Access Point, but

can also be used to connect wired Ethernet devices.

For data protection and privacy, the WLM-1500/2500/3500 can encode all

wireless transmissions with WEP, WPA or WPA2 encryption. By default, the

modem is secured with a WPA2 (AES) encryption key. (The WPA2-key is printed

on the label underneath the modem.)

With a built-in DHCP Server & powerful SPI firewall the WLM-1500/2500/3500

protects your computers against intruders and known Internet attacks, and also

provides safe VPN pass-through.

1Key Features

Features Advantages

IEEE 802.11g compliant Fully Interoperable with IEEE 802.11b /

IEEE802.11g compliant devices

Based on 802.11n technology WLM-1500: Up to 3 times faster than

regular 802.11g.

WLM-2500/3500: Up to 6 times faster

than regular 802.11g

(in combination with a 150n or 802.11n

wireless adapter)

Four 10/100 Mbps Fast

Ethernet Port (Auto-

Crossover)

To connect four wired PC's as well.

Firewall supports Virtual

Server

Mapping, DMZ, IP Filter, ICMP

Blocking, SPI

Avoids the attacks of Hackers or Viruses

from Internet

Supports 802.11i

(WPA/WPA2, AES), VPN pass-

through

Provide mutual authentication (Client

and dynamic encryption keys to

enhance security)

Integrated modem (Annex A) Fully compatible with the fastest

ADSL2 connections up-to-date.

2Package Contents

Open the package carefully, and make sure that none of the items listed

below are missing. Do not discard the packing materials, in case of return;

the unit must be shipped back in its original package.

1. WLM-1500/2500/3500 modem/router

2. 220V ~ 240V Power Adapter

3. Quick Install Guide

4. CD (User’s Manual)

5. Warranty card

6. UTP cable

7. RJ11 cable

3Product Layout

Port Description

ADSL Connect your telephone/ADSL cable this port

LAN Connect the cable from your PC or network device to

this ports.

Power connector

Connect your power adapter to this port.

Power button Turn the modem On or Off.

Power connector

LAN / computer connections

Modem connection

WPS/Reset button

Power button

Back label

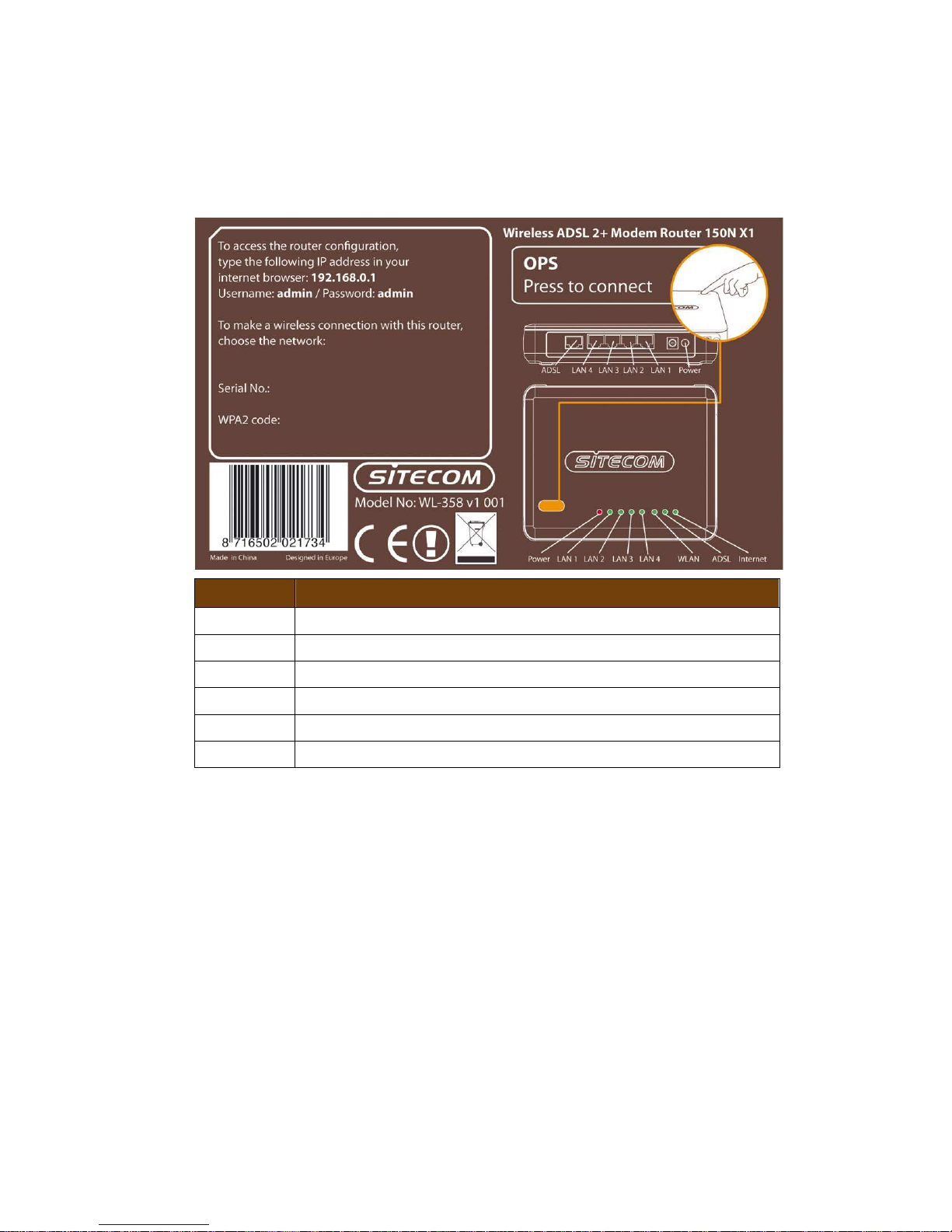

The back label describes the corresponding LED indications and port functionality.

LED Description

Power Lights up when powered ON. Blinks on TEST/RESET

ADSL Lights up when an ADSL cable is connected.

Internet Lights up when internet connection is UP.

WLAN Lights up in Blue when WLAN is enabled. Blinks on traffic

OPS Blinks when OPS mode is on

LAN1~4 When a LAN cable is connected the corresponding light lights up.

4System Requirements

To begin using the WLM-1500/2500/3500, make sure you meet the following

as minimum requirements:

•PC/Notebook.

•1 Free Ethernet port.

•Wi-Fi card/USB dongle (802.11 b/g/n) – optional.

•Annex A, ADSL internet connection.

•PC with a Web-Browser (Internet Explorer, Safari, Firefox, Opera)

•

Ethernet compatible CAT5 cables.

5WLM 1500/2500/3500

Placement

You can place the WLM-1500/2500/3500 on a desk or other flat surface, or

you can mount it on a wall. For optimal performance, place your Wireless

Broadband Modem/Router in the center of your office (or your home) in a

location that is away from any potential source of interference, such as a

metal wall or microwave oven. This location must be close to a power

connection and the ADSL/phone line should not be over 2 meters long.

6Setup LAN, WAN

Modem connection

LAN / computer connections

7PC Network Adapter setup

Windows XP

•Go to [Start Menu],  [Control panel],  [Network Connections].

•Right-mouse-click on the [Local Area Connection]) icon, and select

[properties]

•Select [Internet Protocol (TCP/IP)] =>Click [Properties].

•Select the [General] tab.

The WLM-1500/2500/3500 supports DHCP. Please select both [Obtain an

IP a ress automatically] and [Obtain DNS server a ress automatically].

Andere Handbücher für WLM-1500
