SJE Rhombus IFS Bedienungsanleitung
SILENCE
/TEST
+
DISPLAY
EXP.
1
J5
TB 1 P1
1 2 3 4 5 6
7
8
9
10
T1
T2 RUN T1 T2 RUN
-
P2
L1 L2
P1
L1 L2
P2
AUX
+
24VDC
-
+
-
ALARM
+
-
HORN
STATUS
IN IN2 IN3 IN4
E
X
P.
J
5
L1
L2
P2
Installer Friendly Series®
SJE RHOMBUS®Type IFS
Operation Manual
Technical support: +1-800-746-6287
www.sjerhombus.com
Technical Support Hours: Monday-Friday, 7 A.M. to 6 P.M. Central Time
TABLE OF CONTENTS
Warnings.................................................................................................. 1
Introduction and Specifications...................................................... 2
Main Screen (Programming) ............................................................. 3
User Interface....................................................................................... 3
Main Menu .............................................................................................. 4
HAND/OFF/AUTO Operation .............................................................10
Clearing Counts and ETMs ...............................................................11
Alarms.....................................................................................................12
Troubleshooting Information Screens .........................................13
I/O Tables...............................................................................................17
Mounting Dimensions ........................................................................18
Controller Dimensions .......................................................................18
Schematic Example............................................................................19
SJE Rhombus® Type IFS Operation Manual
WARNINGS
Failure to read and understand the information provided in this manual may result in personal injury
or death, damage to the product or product failure. Please read each section in its entirety and be
sure you understand the information provided in the section and related sections before attempting
any of the procedures or operations given.
Failure to follow these precautions could result in serious injury or death.
Keep these instructions with warranty after installation. This product must
be installed in accordance with National Electrical Code, ANSI/NFPA 70 so
as to prevent moisture from entering or accumulating within the controller
housing.
ELECTRICAL SHOCK HAZARD
A qualified service person must install and service this product
according to applicable codes and electrical schematics.
Disconnect power prior to servicing any equipment.
EXPLOSION OR FIRE HAZARD
Do not use this product with flammable liquids. Do not install
in hazardous locations as defined by National Electrical Code,
ANSI/NFPA 70.
• Do not connect power to this equipment if it has been damaged or has
any missing parts.
• Do not install in areas with: excessive or conductive dust, corrosive or
flammable gas, moisture or rain, excessive heat, regular impact shocks,
or excessive vibration.
SJE Rhombus® 1 Type IFS Operation Manual
Warning: Users must read this manual and understand controller operation before changing any settings. Entering
incorrect settings may result in damage to equipment.
If the controller was shipped pre-installed in a control panel, some default values may have been changed at the
factory in order to properly test the control panel operation. The user must adjust the settings to the requirements
of the installation.
The user should always keep a record of the settings before making changes, in case there is a need to revert to
previous settings. The user should also record all settings changed for use in programming a new controller in case
a replacement is ever needed.
Always thoroughly test controller operation in the installed configuration to verify user settings.
INTRODUCTION & SPECIFICATIONS
Congratulations and thank you for your purchase of a control panel utilizing the Installer Friendly
Series®controller. This manual explains the features and operations of the controller which
was designed to operate up to two pumps for tank pump down applications. The controller
automatically controls the operation of the pump(s) based on the status of float switches or
C-Level™ sensor.
GENERAL
• One or two pump level controller
• Operates using float switches or C-Level™
sensor
• HMI - Rotary selector for menu navigation
and editing settings
• HMI - High-Brightness 2.4” color graphic LCD
display, 240X320 pixel resolution
PUMP CONTROL AND PROTECTION
• Automatic pump alternation (duplex)
• Multiple alternation configurations
• Automatic alternation on pump fault
• Pump run indication
• 1-2 Pump power relays, 240 Vac, 20A max.
SYSTEM
• Alarm counts
• Pump cycle counts
• Pump run time
ELECTRICAL SPECIFICATIONS
• Universal 85-265 Vac, 50/60Hz
Control/Alarm power input
• 0-250 Vac, 50/60Hz, 20A max. Pump Power
input
• 5kA short circuit current rating
• 24 Vdc, class 2 control power
• Auxiliary Power -- 24 Vdc, 100mA max.
DEDICATED I/Os
• 4 Float switch inputs
• C-Level™ sensor with 2 backup floats
• 1 Auxiliary alarm input
• 2 Pump OL/thermal cutout inputs
• 1 Test/Silence/Manual alarm reset input
• 1 Alarm beacon output, 24 Vdc, 60mA max.
• 1 Alarm horn output, 24 Vdc, 30mA max.
COMMUNICATION
• Dedicated display communication port
(RJ45), RS485, Modbus protocol.
• Expansion communication port (RJ45),
RS485, Modbus protocol
ENVIRONMENT
• Operational temperature -20ºF to 122ºF
(-30ºC to 50ºC)
• Storage temperature -40ºF to 140ºF
(-40ºC to 60ºC)
• Relative Humidity (RH) 5% to 95%
(non-condensing)
• Indoor rated - for indoor use or mounted inside
of an outdoor rated enclosure
SJE Rhombus® 2 Type IFS Operation Manual
PROGRAMMING

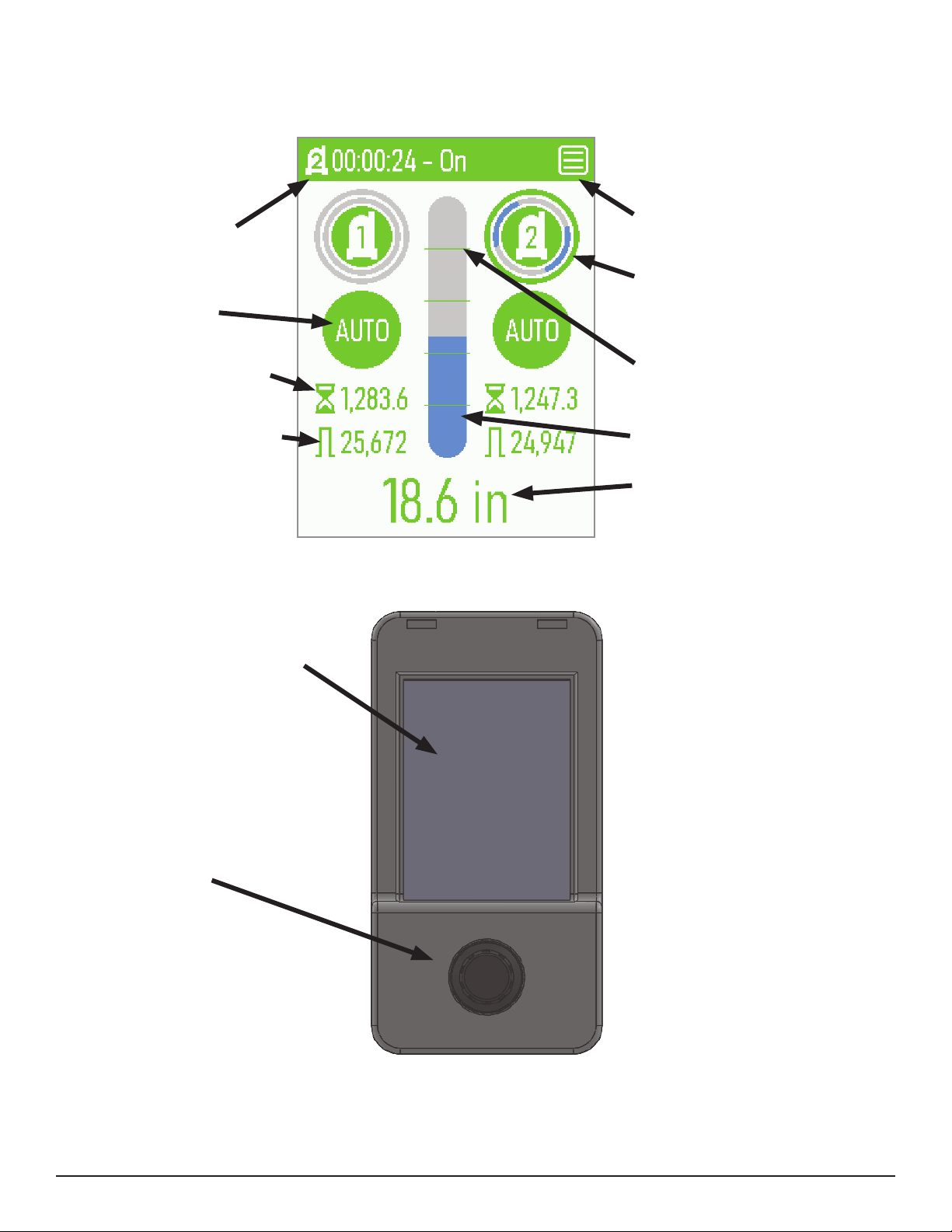

HMI MAIN SCREEN
The main screen shows an overview of the system status including any active alarms.
Timed Dose Operation
(ON/OFF Timer Status)
USER INTERFACE
SJE Rhombus® 3 Type IFS Operation Manual
Pump HAND/OFF/AUTO
Status/Selection
Pump Hour Meter (selectable)
Settings Menu
Graphical Setpoint Bars (C-Level™)
Level Bar Graph or Float Status
Tank Level (C-Level™)
Color Liquid Crystal Display (LCD)
Menu Navigation
And ENTER Dial
Graphical Timer Count Down
(indicated on lead pump)
Pump Cycle Counts (selectable)
Pump Amps
(selectable - not shown)
MAIN MENU
ROTATE
Counts and ETMs
- Displays pump run time, pump run
counts and alarm counts
Timer Settings (timed dose mode only)
- Congures timers for timed dose
operation
Level Settings
- Congures level setpoints
Alternation (duplex only)
- Congures alternation mode for
duplex panels
Advanced
- Congures advanced functions and
accesses troubleshooting tools
Back
- Exits the Main Menu
SJE Rhombus® 4 Type IFS Operation Manual
SJE Rhombus® 5 Type IFS Operation Manual
Main Menu
Counts and ETM’s
ETM HH:MM:SS
Pump 1 00:00:00
Pump 2 * 00:00:00
Cycles
Pump 1 0000
Pump 2 * 0000
Counts
High Alarm 0
Pump 1 Fault 0
Pump 2 Fault* 0
Pump 1 Overload 0
Pump 2 Overload* 0
Pump 1 Thermal 0
Pump 2 Thermal* 0
Pump 1 Seal 0
Pump 2 Seal
Sensor Fail
* 0
0
Back
*visible only for duplex controllers
Timer Settings (Timed Dose Mode Only)
Pump 1 *
On Time
Off Time
Override On Time
Override Off Time
Pump 2 *
On Time *
Off Time *
Override On Time *
Override Off Time *
Back
*visible only for independent timers mode

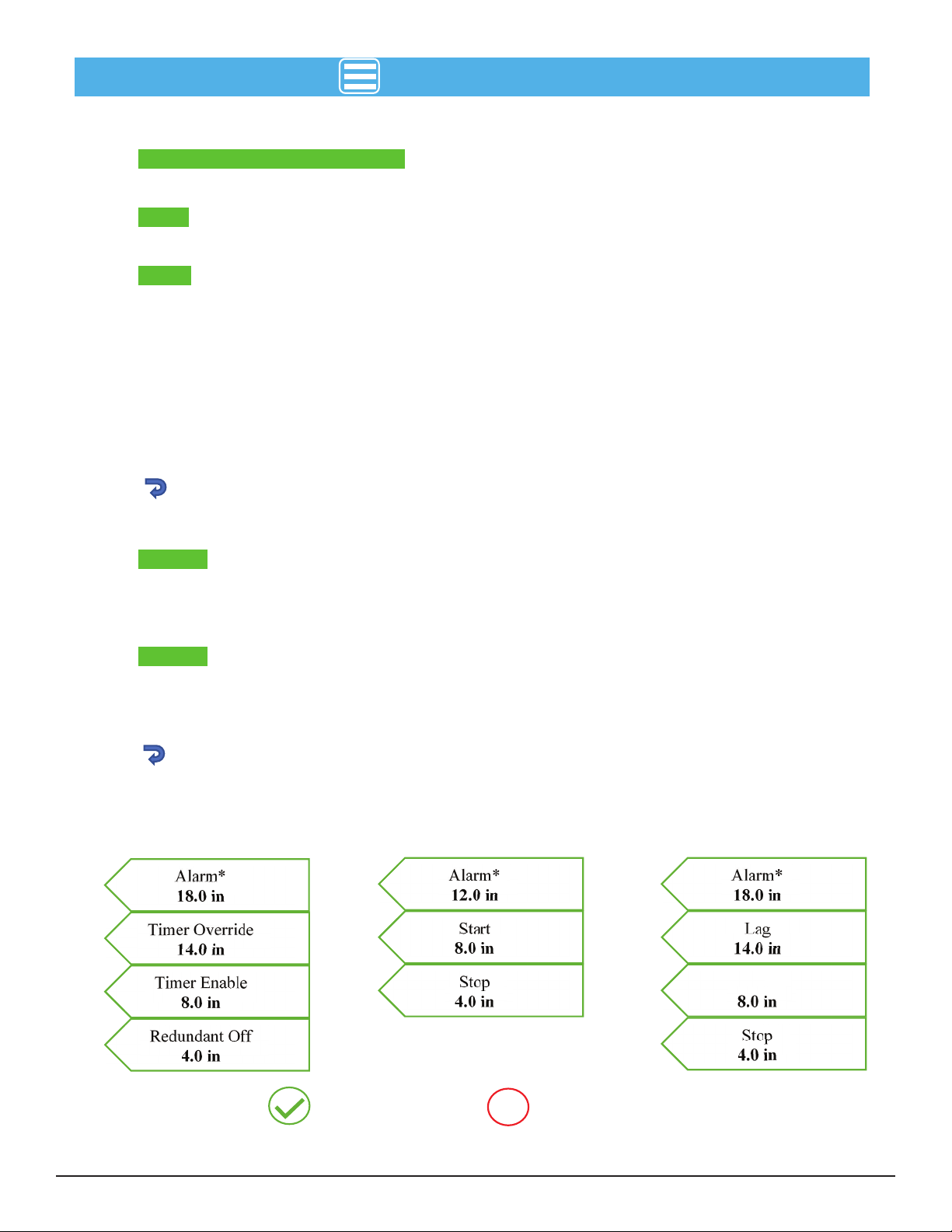

Level Settings (C-Level™ Mode Only)
Timed Dose Mode Simplex Demand Dose Mode Duplex Demand Dose Mode
= save and exit X= exit without saving
*the order of the alarm setting changes based on the value entered
Start
SJE Rhombus® 6 Type IFS Operation Manual
Alternation (Duplex Controller Only)
Alternate
Pump 1 Lead
Pump 2 Lead
Back
A
dvanced
Level Sensing
Timed/Demand Dose
Seal Fail/Thermal
Expansion Port
Overload Cutout
Alarm Options
Troubleshooting
Maximum Pumps On
General
Back
Level Sensing
Float Switches
C-Level Sensor
Back
C-Level™
Range (when C-Level™ Sensor is selected)
40” Sensor
Timed/Demand Dose
Timed Dose
Demand Dose
Back
Timer Type (when Timed Dose is selected, duplex panels only)
Single Timer
Independent Timers*
Back
Expansion Port
Seal Fail/Thermal (when Expansion Port is enabled)
Enable
Enable
Disable
Disable
Back
Back
100” Sensor
Back
*Allows for two independent timed dose systems on a duplex panel
SJE Rhombus® 7 Type IFS Operation Manual
Setup Type
Auto
Manual
Manual Setup (when Manual Setup Type is selected)
000.0 kΩ
= save and exit X= exit without saving
Overload Cutout
Enable
Disable
Back
Alarm Options
Beacon Flash
Horn Flash
Manual Reset
Redundant High Water Lag (duplex controller with C-Level™ only)
Seal Fail Alarm (when Seal Fail/Thermal Module enabled)
Thermal Alarm (when Seal Fail/Thermal Module enabled)
Overload Alarm (when Overload Cutout enabled)
Back
Beacon Flash
No Flash
No Flash
Flash All
Flash Alarm 2 Only
Back
Horn Flash
Flash All
Flash Alarm 2 Only
Back
Manual Reset
Redundant High Water Lag
Seal Fail Alarm
Thermal Alarm
Overload Alarm
Enable
Enable
Enable
Disable
Disable
Back
Back
Enable
Enable
Enable
Disable
Back
Back
Disable
Back
Disable
Back
SJE Rhombus® 8 Type IFS Operation Manual
Troubleshooting
C-Level™ Status *
Simulator
Frequency* 1234 Hz
Tank Level* 4.7 in
Float Status **
Lag Down
Alarm Down
Start Down
Stop Down
Pump Status
Pump 1 Called Off
Pump 1 Amps 0.01 A
Pump 2 Called*** Off
Pump 2 Amps*** 0.01 A
Alert Status
Horn Off
Beacon Off
Alarm Aux Off
Input Status
Test/Silence Off
Alarm 2 Off
Overload 1 Off
Overload 2 Off
Fault Status
Pump 1 Inactive
Thermal 1 Inactive
Seal 1 Inactive
Pump 2 *** Inactive
Thermal 2*** Inactive
Seal 2*** Inactive
Controller Status
DC Bus 1 22.50 V
DC Bus 2 11.80 V
DC Bus 3 3.29 V
Back
*Visible only for C
***Visible only for duplex configuration
-Level™ mode
**Float Status for duplex demand dose configuration.
Float labels change based on controller configuration.
