User manual

1-16

Инструкция по эксплуатации

17-32

Technical support

XR-40IPHD

WIFI EZ mode AP mode

XR-40IPHD

1REV. 1.0 2

Attention!

As a result of continuous upgrades and functionality improvements, technical

characteristics of the device can be changed without any preliminary declaration.

This manual can contain some inaccuracy or misprint. The owner reserves the right to

make corrections to the information described in the user manual and device package.

The last revision of this manual is available on www.slinex.com

Safety instructions

Read and keep that manual.

The device installation process should be carried out by the qulied specialists.

Use the device from –10 ˚C to +55 ˚C, always keep it within that temperature range.

Installation surface should be free from vibration and impact inuence.

Keep this device far from open sources of heat, such as radiators, heaters, and ovens.

The device can be installed near other electronic equipment in case if the temperature of the environment

does not exceed previously mentioned range.

The device should be protected from the direct inuence of the natural phenomena, such as direct

sunlight, rain or snow.

Don’t use aggressive or abradant detergent for the device surface cleaning.

Use soft wet cloth or tissue to remove strong dirt.

Don’t overpower outlets. It can cause re or electric shock.

Nature protection

Don’t throw away the device with other industrial or nutritive trash if you see that

symbol. Some regions have separation and recycling systems for the electronic

equipment. Connect with local authorities to receive information about recycling of

electronic equipment for your region.

Rights and limitation of liability

languages or reproduced in any way including electronic or mechanical.

Document recording and copying is strictly denied without owner permission.

Table of contents

1. Package ................................................................................................................................................................................... 3

2. Specication.......................................................................................................................................................................... 3

3. Description............................................................................................................................................................................. 4

4. Installation.............................................................................................................................................................................. 5

4.1. Cable requirements............................................................................................................................................. 5

4.2. Schematic diagrams............................................................................................................................................ 6

4.3. Unit mount ............................................................................................................................................................. 8

5. Software.................................................................................................................................................................................. 9

5.1. Creating new account ........................................................................................................................................ 9

5.2. Wireless Wi-Fi network connection steps in «AP mode»........................................................................ 10

5.3. Wireless Wi-Fi network connection steps in «EZ mode» ........................................................................ 11

5.4. Operation................................................................................................................................................................ 12

5.5. Sharing with the other devices....................................................................................................................... 14

5.6. Notication messages........................................................................................................................................ 15

6. Limited Warranty.................................................................................................................................................................. 16

WIFI EZ mode AP mode

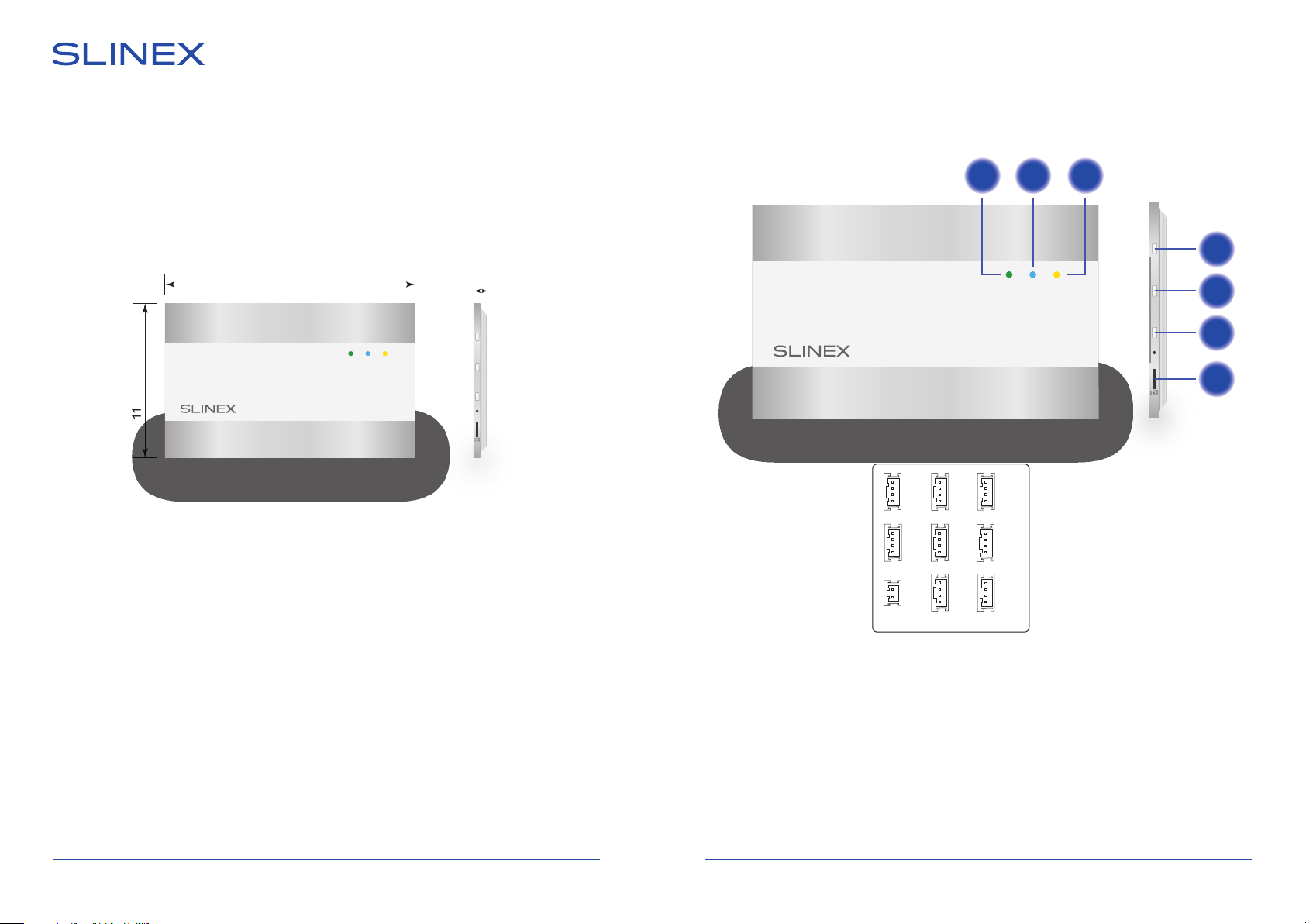

RST

WiFi status LED

EZ mode LED

AP mode LED

AP mode activation button

EZ mode activation button

Reset button

MicroSD card slot

3. Description

111 mm (4.37")

182 mm (7.17") 16 mm (0.63")

1. Package

XR-40IPHD converter − 1 pc.

Wall mounting bracket − 1 pc.

Connection wires set − 1 pkg.

Installation kit − 1 pkg.

User manual − 1 pc.

2. Specication

XR-40IPHD

3 4

12 3

VIDEO SYSTEM

PAL / NTSC / AHD, TVI, CVI (720p, 1080p)

AUDIO TYPE

Half duplex

MEMORY

MicroSD card, up to 128 Gb

STANDBY MODE POWER CONSUMPTION

2 W

WORKING MODE POWER CONSUMPTION

6 W

POWER SUPPLY

Built-in power supply, ~100–240 V

MOUNTING TYPE

Surface mount

DIMENSIONS

182×111×16 mm (7.17×4.37×0.63")

WORKING TEMPERATURE

10 ... +55 ˚C (+14...+131 ˚F)

WIFI EZ mode AP mode

RST

Cam 2 OUT

Cam 2 IN

Cam 1 OUT

Door 2 OUT

Cam1 IN

Door 2 IN

Door 1 OUT Door 1 IN

Ext. power

Video

GND

Audio

Power

Video

GND

Audio

Power

Video

GND

Audio

Power

+12V

GND

Video

GND

Audio

Power

Video

GND

Audio

Power

Video

GND

Audio

Power

Video

GND

Audio

Power

Video

GND

Audio

Power

Cam 2 OUT

Cam 2 IN

Cam 1 OUT

Door 2 OUT

Cam1 IN

Door 2 IN

Door 1 OUT Door 1 IN

Ext. power

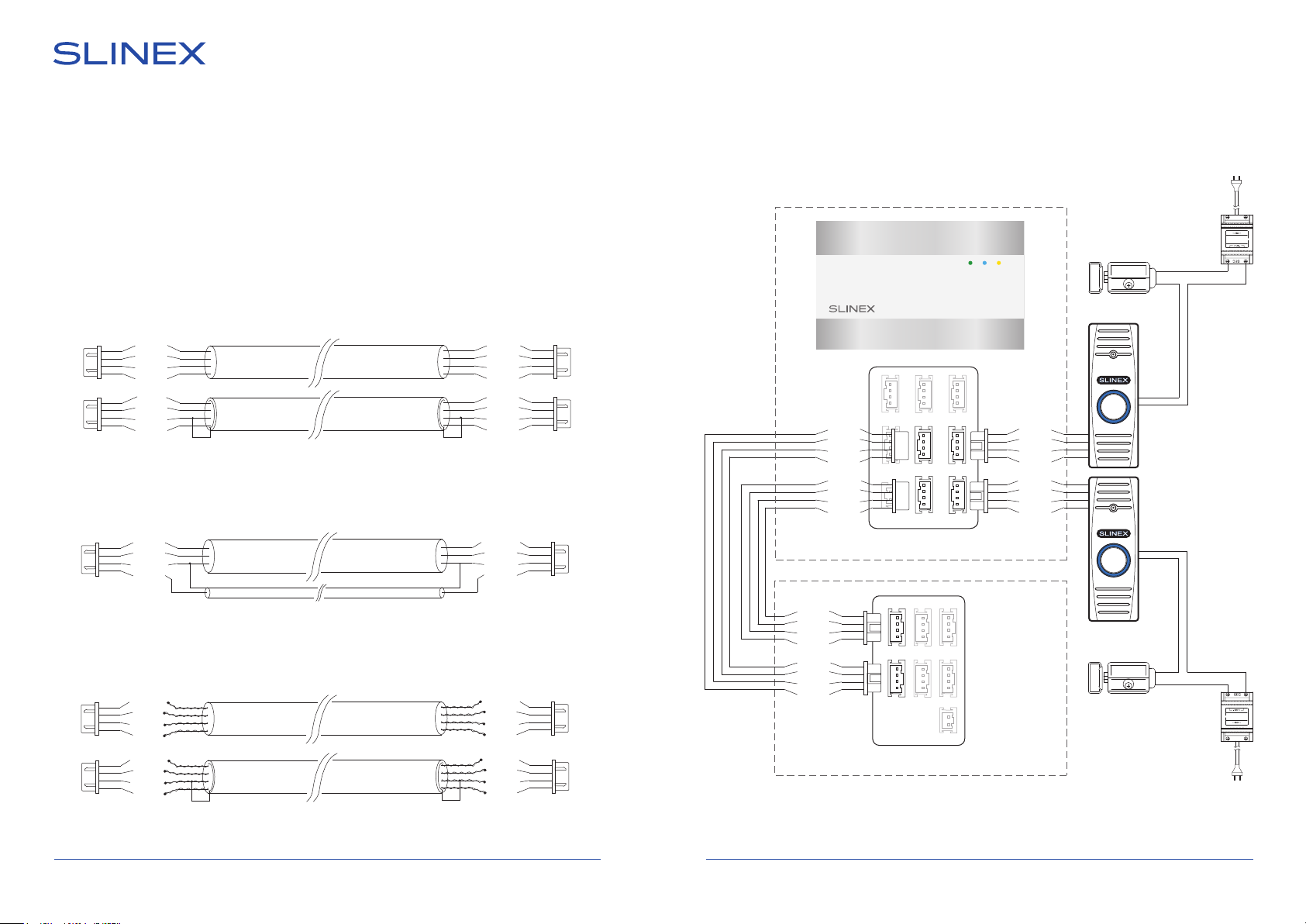

4.2. Schematic diagrams

Diagram 1. XR-40IP coverter, Sonik 7 monitor and outdoor panels connection.

XR-40IPHD

5 6

4. Installation

4.1. Cable requirements

Disconnect all power cables before device installation.

able type that is used for device connection depends on the distance between the last indoor monitor in

the system and outdoor panel:

) Use 4-wire cable with such parameters:

• distance up to 25 meters (82 ft.) use a cable with 0,22 mm square of one wire (AWG 24);

• distance 25 to 50 (82-164 ft.) meters use a cable with 0,41 mm square of one wire (AWG 21);

• distance 50 to 100 meters (164-328 ft.) use a cable with 0,75 mm square of one wire (AWG 18).

b) If the distance between door monitor and door panel is between 80 and 100 meters (262-328 ft.) then

use a 3-wire cable with 0,75 mm (AWG 18) square of one wire and RG-59 or RG-6 coaxial cable for the

video signal.

c) Shielded or non-shielded twisted pair (not recommended):

• distance up to 25 meters (82 ft.) non-shielded twisted pair can be used;

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

0 - 50 m

Shield

50 - 80 m

80 - 100 m

RG-59 or RG-6

0 - 25 m

25 - 50 m

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Shield Shield

164 - 262 ft.

0 - 164 ft.

262 - 328 ft.

0 - 82 ft.

82 - 164 ft.

Outdoor

panel 1

Outdoor

panel 2

Lock

Lock power

supply

XR-40IPHD

Video

GND

Audio

Power

Video

GND

Audio

Power

Video

GND

Audio

Power

Video

GND

Audio

Power

Sonik 7

Door 1

Door 2

CCTV 1

CCTV 2

Input

Output

Ext. power

Power

Audio

GND

Video

Power

Audio

GND

Video

WIFI EZ mode AP mode

Lock power

supply

Diagram 2. XR-40IP coverter, Sonik 7 monitor and camera connection.

XR-40IPHD

7 8

Notes:

* The second video camera can be connected in the same way as the rst one. «Cam 2 IN» and «Cam 2

OUT» plugs has the same pinout as «Cam 1 IN» and «Cam 1 OUT»;

** Use «Ext. power» plug to connect external power supply +12 V. While use external power supply keep

main power cord ~100-240 V disconnected from the outlet, otherwise it can damage converter circuits;

*** Monitor, outdoor panels, cameras, power supplies and locks, illustrated on this diagrams are optional

devices and aren’t included into converter kit.

Cam 2 OUT

Cam 2 IN

Cam 1 OUT

Door 2 OUT

Cam1 IN

Door 2 IN

Door 1 OUT Door 1 IN

Ext. power

XR-40IPHD

Video

GND

Video

GND

Audio

Power

Sonik 7

Door 1

Door 2

CCTV 1

CCTV 2

Input

Output

Ext. power

Power

Audio

GND

Video

WIFI EZ mode AP mode

Video

GND

+12 V

CCTV 1

Camera

power

suppply

+12 V

GND

WAN 1 2 3 4

XR-40IPHD

Android / iOS

Smart call

Diagram 3. XR-40IPHD wireless Wi-Fi network connection.

Android / iOS

Internet

3G / Wi-Fi

Wi-Fi (LAN)

«AP or EZ mode»

Router

WIFI EZ mode AP mode

4.3. Unit mount

1) Take the surface mount bracket from the kit and place it on 150-160 cm height;

2) Mark and drill four halls in the wall;

3) Take four anchors from the kit and hammer them into the drilled halls;

4) Fix surface mount bracket on the wall with four screws from the kit;

5) Connect all communication wires and x the converter on the surface mount bracket.

XR-40IPHD

9 10

5. Software

Enter «Google Play» (for Android) or «Apple App Store» (for iOS) and search for «Smart Call» application,

then install this applicationи on your mobile device.

5.1. Creating new account

1) Start «Smart Call» application on your mobile device and press «SIgn up» button to create an account;

2) Choose destination country and enter your Email, then press «Get verication code» button to receive

an Email with verification code;

3) Check the Email, specied on the previous step;

4) Enter 6-digit code from the letter to activate your account. Set your password and press «Finish» to

nalize account creation process. Use your Email as a login for Smart Call application.

5.2. Wireless Wi-Fi network connection steps in «AP mode»

1) Connect mobile device into the same Wi-Fi network you want to connect the converter;

2) Disable 3G/4G internet connection on your mobile device;

3) Press «Add device» button and choose device model for connection;

4) Turn on the converter power and press «Next» button in the application;

5) On the converter shortly press «AP» button on the right side of the case and wait for device reboot.

After reboot «AP mode» LED will become active on the front panel. Press «Next» button in the «Smart

Call» application;

6) Enable «Next step» switch then press «Next» button;

7) Enter Wi-Fi network name, the converter will be conected to, and network password. Then press «Next»

button to go to the next step;

8) Press «Go to connect» button and manually conect mobile phone to the Wi-Fi hotspot of the converter.

Wi-Fi hotspot name is «SmartLife-xxxxxx». Password: 12345678;

9) When mobile phone is connected to the Wi-Fi hotspot, come back to the mobile application. The

converter will be connected to the Wi-Fi network, specied on the 7-th step and paired to the current

account of the «Smart Call» application.

If current device is already paired to some account in

the «Smart Call» application

, then it

is impossible to add this device to any other account. To add this device to some other

account delete this device in the account, it is currently connected to!

XR-40IPHD

11 12

5.3. Wireless Wi-Fi network connection steps in EZ mode

1) Connect mobile device into the same Wi-Fi network you want to connect the converter;

2) Disable 3G/4G internet connection on your mobile device;

3) Press «Add device» button and choose device model for connection. Then choose «EZ mode»

connection type in the upper right corner of the screen;

4) Turn on the converter power and press «Next» button in the application;

5) On the converter shortly press «EZ» button on the right side of the case and wait for device reboot.

After reboot «EZ mode» LED will become active on the front panel. Press «Next» button

in the «Smart Call» application;

6) Enable «Next step» switch then press «Next» button;

7) Enter Wi-Fi network name, the converter will be conected to, and network password. Then press «Next»

button to go to the next step;

8) The converter will be connected to the Wi-Fi network, specied on the 7-th step and paired to the

current account of the «Smart Call» application.

5.4. Operation

Press device icon

to start monitoring

Go to the

main menu

Enable sound

from the

outdoor panel

Main

settings

Full screen

mode

Main menu Monitoring menu

XR-40IPHD

13 14

Enable conversation

mode

Outdoor panel 1

Outdoor panel 2

Camera 1

Camera 2

Take a snapshot

Record video

Video channels

switching

Records playback

from the

monitor archive

Mobile phone records

local archive playback

Open lock

(Default password:

888888)

Advanced settings

5.5. Sharing with the other devices

The account, device is added for the first time, is master account. This account has master permissions and

can change all the settings. If several mobile phones are going to be used with the same device then

personal account must be created on every mobile phone. Here are the steps to add the same device on

several mobile phones:

1) Create an account on the rst mobile phone application and add your device. Account on this mobile

phone will be the master account for this device;

2) Install «Smart Call» application on every mobile phone that is going to be used and create its own

account in every application. Every mobile phone must use it’s own account in the application;

3) Using master account enter device monitoring screen, press icon on the right upper corner of

the screen and enter «Add sharing» menu. Enter account name, used on the shared device and press

«Done» button on the right upper corner of the screen. Shared account must be added to the sharing

list. It means that the user on the shared mobile phone now have an access to this device;

4) In the same manner add all other mobile devices into sharing list.

XR-40IPHD

15 16

Press «Accept» button to start

conversation with the visitor or

«Decline» to hang up incoming

call.

5.6. Notication messages

Press «Me» bookmark on the bottom of the main screen, then press icon on the right upper corner of

the screen and enter «App Notication» menu. Here you can enable or disable notification messages from

the application.

6. Limited warranty

Manufacturer guarantees product normal functioning during the warranty period if the user keeps all

safety instructions described in that manual.

Warranty period is 12 months from the moment of the product purchasing (warranty period could be

extended up to 24 months or more, depending on the local regulations).

Warranty period allows user to make guarantee repair in cases when normal functioning of the product

was violated by the fault of manufacturer and the user has not oend transporting, installation and

working conditions.

This limited warranty does not cover any damage to the product that results from improper installation,

accident, abuse, misuse, natural disaster, insucient or excessive electrical supply, abnormal mechanical

or environmental conditions, or any unauthorized disassembly, repair or modication.

Warranty void in such cases:

• the product was damaged by the fault of the customer;

• the product wasn’t properly installed according reccomendations from the manual;

• the sticker on the backside of the product was broken;

• the product was not used for its intended function.

This limited warranty covers only repair, replacement, refund or credit for defective products, as provided

above. Manufacturer is not liable for, and does not cover under warranty, any damages or losses of any

kind whatsoever resulting from loss of, damage to, or corruption of, content or data or any costs

associated with determining the source of system problems or removing, servicing or installing products.

This warranty excludes third party software, connected equipment or stored data. Manufacturer is

therefore not liable for any losses or damage attributable to third party software, connected equipment or

stored data.

In the event a product has been discontinued, manufacturer shall either repair the product, oer to

replace it with a comparable product or provide a refund at the lesser of the purchase price or the

product’s current value.

Repaired or replacement products will continue to be covered by this limited warranty for the remainder

of the original warranty term.

XR-40IPHD

17 18

Содержание

1. Комплект поставки............................................................................................................................................................ 19

2. Характеристики.................................................................................................................................................................. 19

3. Описание ............................................................................................................................................................................... 20

4. Установка............................................................................................................................................................................... 21

4.1 Выбор кабеля ........................................................................................................................................................ 21

4.2 Схемы подключения.......................................................................................................................................... 22

4.3 Монтаж..................................................................................................................................................................... 24

5. Программное обеспечение .......................................................................................................................................... 25

5.1. Создание учетной записи............................................................................................................................... 25

5.2. Подключение к беспроводной Wi-Fi сети в режиме AP.................................................................... 26

5.3. Подключение к беспроводной Wi-Fi сети в режиме EZ .................................................................... 27

5.4. Управление .......................................................................................................................................................... 28

5.5. Общий доступ к устройству .......................................................................................................................... 30

5.6. Оповещения о входящих вызовах ............................................................................................................. 31

6. Условия гарантии............................................................................................................................................................... 32

Указания по безопасности

Прочтите и сохраните эту инструкцию.

Все работы, связанные с установкой данного продукта, должен выполнять квалифицированный

специалист.

Соблюдайте температурный режим, используйте прибор при температуре от -10 ˚C до +55 ˚C.

Устанавливать устройство следует на поверхностях, не склонных к вибрациям или ударным

нагрузкам.

Устанавливайте устройство вдали от открытых источников тепла, таких как радиаторы,

обогреватели и печи.

Допускается установка устройства вблизи других устройств бытовой электроники, если

температура окружающей среды не выходит за границы вышеупомянутых температур.

Устройство должно быть защищено от погодных воздействий, таких как прямой солнечный свет,

вода (дождь) или снег.

Не используйте агрессивные или абразивные моющие средства для чистки корпуса прибора.

Используйте мягкую увлажненную ткань или салфетку для удаления трудных загрязнений.

Защита окружающей среды

Если вы видите этот символ на продукте, не выбрасывайте его с промышленными

или пищевыми отходами. В некоторых регионах созданы системы для сбора и

утилизации электронного оборудования. Свяжитесь с местными органами власти

для получения информации об утилизации для вашего региона.

Авторские права и ограничение ответственности

форме и любыми средствами, переведена на другой язык, переписана, переделана в любой другой

форме, храниться в поисковой системе или передаваться любыми средствами, включая

электронные или механические.

Запрещена запись или ксерокопирование без предварительного письменного разрешения

владельца.

Внимание!

В связи с постоянным проведением модернизаций и улучшения функциональности

оборудования, внешний вид, технические характеристики и функциональность

могут быть изменены без предварительного уведомления.

Данное руководство пользователя может содержать неточности или опечатки.

Производитель оставляет за собой право вносить изменения к информации,

содержащейся в данном руководстве, а также к комплектации и/или общему

описанию изделия.

REV. 1.0

Inhaltsverzeichnis

Sprachen:

Andere Slinex Medienkonverter Handbücher

Slinex

Slinex XR-30IP Bedienungsanleitung

Beliebte Medienkonverter Handbücher anderer Marken

SoundTraxx

SoundTraxx Blunami BLU-2200 Bedienungsanleitung

SPROLINK

SPROLINK VA1 Bedienungsanleitung

Acclaim Lighting

Acclaim Lighting DDC-1-AC Bedienungsanleitung

Nikon

Nikon AF-S TC-20E III Bedienungsanleitung

Axis

Axis AXIS Q7406 Bedienungsanleitung

Omega

Omega TAC80B-J Bedienungsanleitung

Zoom

Zoom Thunderbolt TAC-2R Bedienungsanleitung

OST

OST iConverter 10/100M Bedienungsanleitung

Vertiv

Vertiv Netsure Bedienungsanleitung

birddog

birddog MINI Bedienungsanleitung

Roland

Roland GI-10 Bedienungsanleitung

Wallenstein

Wallenstein WX310 Bedienungsanleitung

Pace

Pace MSS 200-1 Bedienungsanleitung

Solar Converters

Solar Converters EQ 12/24-50 Bedienungsanleitung

CYP

CYP EL-7400V Bedienungsanleitung

TIE

TIE MIDI 1i1o Bedienungsanleitung

DCS

DCS Vivaldi Upsampler Bedienungsanleitung

Westermo

Westermo MCW-211 SERIES Bedienungsanleitung
