INSTEON ApplianceLinc V2 User’s Guide

TABLE OF CONTENTS

ABOUT INSTEON APPLIANCELINC..........................................................................................................3

What is INSTEON?....................................................................................................................................3

Key ApplianceLinc Features......................................................................................................................3

HOW TO INSTALL APPLIANCELINC.........................................................................................................4

ApplianceLinc Installation Tips..................................................................................................................4

Installing ApplianceLinc.............................................................................................................................5

HOW TO SET UP APPLIANCELINC...........................................................................................................6

Linking ApplianceLinc to an INSTEON Controller.....................................................................................6

Unlinking ApplianceLinc from an INSTEON Controller.............................................................................6

Unlinking ApplianceLinc from an INSTEON Controller.............................................................................7

Creating an INSTEON Scene....................................................................................................................8

ADVANCED FEATURES OF APPLIANCELINC.........................................................................................9

Restoring Power to ApplianceLinc ............................................................................................................9

Resetting ApplianceLinc to Its Factory Default Settings ...........................................................................9

X10 PROGRAMMING OPTIONS...............................................................................................................10

Setting the X10 Primary Address............................................................................................................10

Removing the X10 Primary Address.......................................................................................................10

Enabling or Disabling Local Control........................................................................................................10

ADVANCED X10 PROGRAMMING OPTIONS..........................................................................................11

About X10 Scene Address Programming................................................................................................11

Remotely Setting an X10 Scene Address...............................................................................................11

Remotely Removing an X10 Scene Address..........................................................................................11

ABOUT INSTEON ......................................................................................................................................12

Understanding Why an INSTEON Network Is Reliable...........................................................................12

Further Enhancing Reliability ..................................................................................................................12

Using Smarthome’s SignaLinc RF to Upgrade Your INSTEON Network ...............................................12

About INSTEON and X10........................................................................................................................13

TROUBLESHOOTING................................................................................................................................14

SPECIFICATIONS......................................................................................................................................16

ApplianceLinc Specifications..................................................................................................................16

Certification..............................................................................................................................................17

Limited Warranty .....................................................................................................................................17

INSTEON ApplianceLinc V2 User’s Guide

ABOUT INSTEON APPLIANCELINC

Congratulations on purchasing the INSTEON™ApplianceLinc™V2. Your new ApplianceLinc allows you

to remotely control any non-dimmable devices or lamps in your home at the touch of a button.

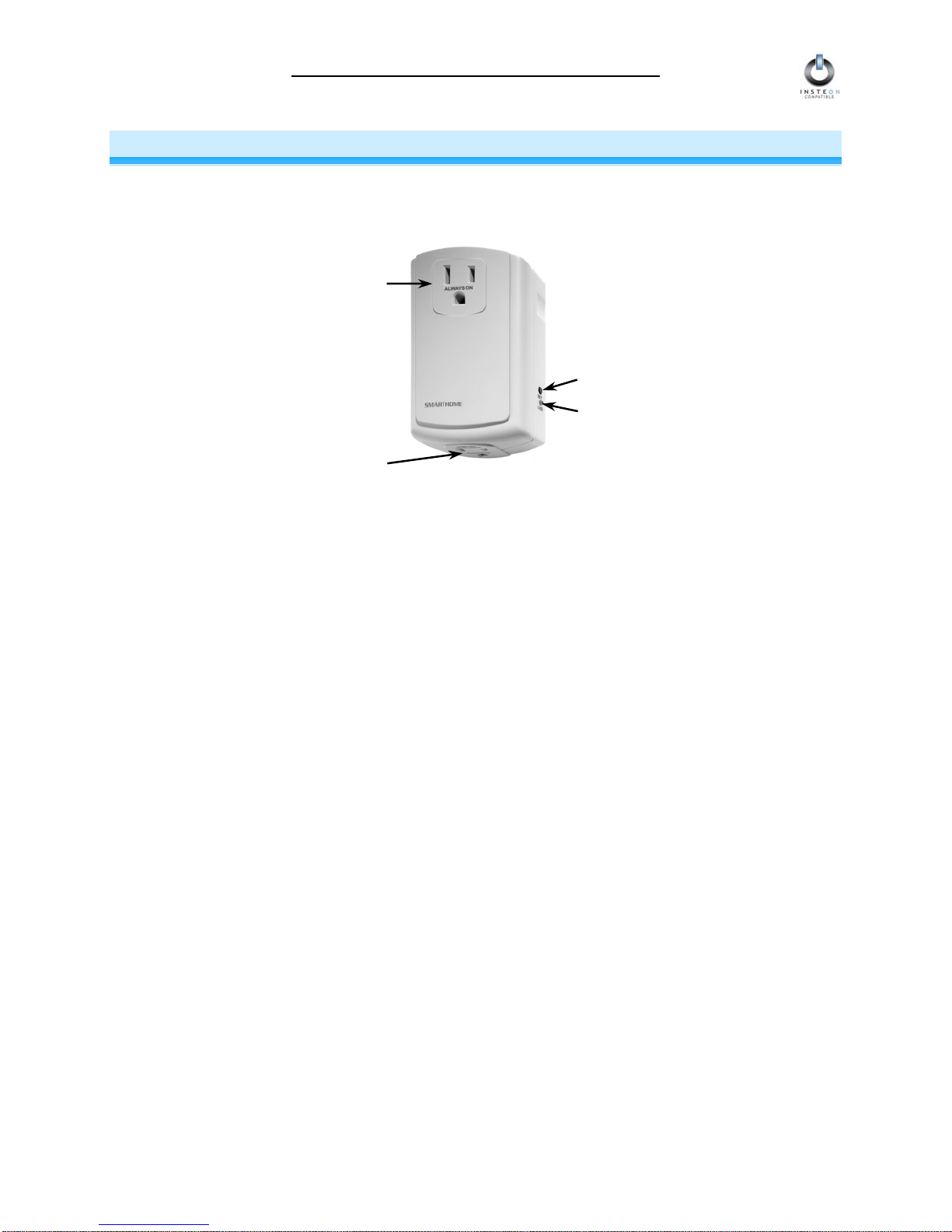

Status LED

SET Button

Pass-through

Out

Controlled

Out

What is INSTEON?

INSTEON is a simple, reliable, and affordable breakthrough in home control. Simple, because Plug-n-

Tap™setup is a breeze, and there are no wires to add – INSTEON uses existing powerline wiring as well

as radio-frequency for communication. Reliable, because every INSTEON device is a two-way repeater.

And affordable, not just because of low cost, but because INSTEON also works with legacy X10 devices.

An INSTEON home grows in value with every INSTEON device you add, making life more convenient,

safe and fun.

Key ApplianceLinc Features

• Setup is easy – ApplianceLinc installs in minutes

• Controls all standard appliances up to 15 Amps and incandescent lights, up to 480 watts

• Responds to commands from X10 controllers

• A pass-through receptacle on the front so you don’t lose an outlet

• Shows INSTEON and X10 activity with a white status LED

• Stores setup state in memory, even while unplugged

• Quiet Relay

• Local load sensing easily disabled

• Set button also functions as On/Off toggle switch

• Warranted for two years

Page 3 of 17

INSTEON ApplianceLinc V2 User’s Guide

HOW TO INSTALL APPLIANCELINC

pplianceLinc Installation Tips

let controlled by a switch, because if the switch is inadvertently

• strip or AC line filter.

orking and that the manual switch

• , LampLinc , SignaLinc™RF, or PowerLinc™modules together by

•

devices that preserve, maintain, or contribute to human or animal safety or life

Caution

Read and understand these instructions before installing, and retain them for future reference.

pplianceLinc is intended for installation in accordance with the National Electric Code and local regulations in the

United States, or the Canadian Electrical Code and local regulations in Canada. Use indoors only. ApplianceLinc is no

designed nor approved for use on power lines other than 120V 60Hz, single phase. Attempting to use ApplianceLinc on

non-approved powerlines may have hazardous consequences.

Proper installation of at least two SignaLinc™RF Signal Enhancers is required

prior to installing and using other INSTEON devices.

• Don’t plug ApplianceLinc into an out

turned off, ApplianceLinc won’t have power.

Don’t plug ApplianceLinc into a filtered power

• Be sure the non-dimmable device or lamp you want to control is w

on it is in the ON position.

Don’t stack ApplianceLinc TM

plugging them into each other. Stacked modules may overheat and stop functioning.

Do not use outdoors

• Do not use to control

support.

Page 4 of 17

INSTEON ApplianceLinc V2 User’s Guide

Installing ApplianceLinc

1. For best INSTEON Network performance, be sure you have properly installed at least two SignaLinc

RF Signal Enhancers.

2. Plug ApplianceLinc into an unswitched wall receptacle. The white Status LED

on the side will illuminate steadily.

3. Plug the non-dimmable device/lamp you want to control into the controlled

outlet on the bottom of ApplianceLinc.

4. The non-dimmable device/lamp you plugged in will turn on. If the non-dimmable device/lamp does

not turn on, turn it on manually.

5. You can use the pass-through outlet on the front of ApplianceLinc as you would an ordinary

uncontrolled wall outlet. However do not plug another home automation product into this outlet.

Page 5 of 17

INSTEON ApplianceLinc V2 User’s Guide

HOW TO SET UP APPLIANCELINC

Linking ApplianceLinc to an INSTEON Controller

1. Select your INSTEON Controller from the list below and follow the method shown to put it into

Linking Mode.

A. SwitchLinc™V2 – Press and hold SwitchLinc V2 ’s Paddle Top for 10

seconds, then release. To confirm that it is in Linking Mode, SwitchLinc V2

will flash the light that it is wired to once and begin blinking the top LED in its

LED Bar.

B. ControLinc™V2 Tabletop Controller – Choose the ON/OFF Button Pair you

want to use for controlling ApplianceLinc. Press and hold the ON Button of

the pair for 10 seconds. To confirm that it is in Linking Mode, ControLinc V2’s

Status LED will begin blinking.

C. KeypadLinc™V2 – Choose the ON Button you want to use for controlling

ApplianceLinc. Press and hold the ON Button for 10 seconds. To confirm

that it is in Linking Mode, KeypadLinc V2 will flash the light that it is wired to

once and begin blinking the ON Button that you pushed.

D. Other INSTEON Controllers – See the INSTEON Controller’s User’s Guide.

2. Press and hold the black SET Button on ApplianceLinc for 3 seconds. The ApplianceLinc’s Status

LED will blink to confirm linking. Depending on the INSTEON controller, you have about 4 minutes to

perform this step before the unit automatically exits from linking mode.

Page 6 of 17

INSTEON ApplianceLinc V2 User’s Guide

Unlinking ApplianceLinc from an INSTEON Controller

If you are no longer going to use an ApplianceLinc that has previously been linked to an INSTEON

Controller, it is very important that you unlink it, otherwise the controller will retry any commands intended

for the unused module, thus slowing down your system.

1. Select your INSTEON controller from the list below and follow the method shown to put it into

Unlinking Mode.

A. SwitchLinc V2 – Press and hold SwitchLinc V2 ’s Paddle Top for 10

seconds TWICE. To confirm that it is in Unlinking Mode, SwitchLinc V2 will

flash the light that it is wired to once for each paddle press and begin blinking

the top LED in its LED Bar.

B. ControLinc V2 Tabletop Controller – Press and hold the OFF Button of the

ON/OFF Button Pair you used for controlling ApplianceLinc for 10 seconds.

To confirm that it is in Unlinking Mode, ControLinc V2’s Status LED will begin

blinking.

C. KeypadLinc V2 – Press and hold for 10 seconds the ON Button you used for

controlling ApplianceLinc, then press and hold the same ON Button for 10

seconds again. To confirm that it is in Unlinking Mode, KeypadLinc V2 will

flash the light that it is wired to once and begin blinking the ON Button that you

pushed.

D. Other INSTEON Controllers – See the INSTEON Controller’s User’s Guide.

2. Press and hold the black SET Button on ApplianceLinc for 3 seconds. The ApplianceLinc’s Status

LED will blink to confirm unlinking. Depending on the INSTEON Controller, you have about 4 minutes

to perform this step before Unlinking Mode times out automatically.

Page 7 of 17

INSTEON ApplianceLinc V2 User’s Guide

Creating an INSTEON Scene

INSTEON Scenes let you activate dramatic lighting moods with the press of just one button. INSTEON

Scenes are very easy to set up – just link more than one INSTEON module to an ON/OFF Button Pair on

an INSTEON Controller. Then, when you press either the ON or the OFF Button on the INSTEON

Controller, all of the INSTEON modules linked in the scene will respond as a group. You can link multiple

ApplianceLincs or other INSTEON modules to multiple INSTEON Controllers.

To add an additional ApplianceLinc to a scene controlled by an ON/OFF Button Pair on an INSTEON

Controller, simply follow the same procedure that you used for linking the first ApplianceLinc. See Linking

ApplianceLinc to an INSTEON Controller, above. To remove an ApplianceLinc from a scene, see

Unlinking ApplianceLinc from an INSTEON Controller.

TIP

With some INSTEON Controllers, you can avoid having to hold a button down for 10 seconds for each

setup step by placing the Controller in Scene Setup Mode, also called Multilink Mode. Refer to you

INSTEON Controller’s User’s Guide for detailed instructions on how to set it to Scene Setup Mode.

The following will work for a Smarthome ControLinc™V2 Tabletop Controller.

1. Set the ControLinc V2 to Scene Setup Mode for the ON/OFF Button Pair you want to use fo

controlling the scene by pressing and holding the ON Button of the pair for 10 seconds, then

tapping the same ON Button again. ControLinc V2’s Status LED will blink slowly.

2. Press and hold the black SET Button on ApplianceLinc for 3 seconds. The module’s Status LED

will blink to confirm linking. ControLinc V2 will beep to confirm linking, and its Status LED will

continue to blink slowly.

3. Continue Steps 2 and 3 for any additional INSTEON modules you want to link to the scene.

4. When you are finished linking INSTEON modules to the desired ON/OFF Button, complete Scene

Setup by pressing the ON Button. ControLinc V2’s Status LED will stop blinking and remain

steadily on. You have about 4 minutes of inactivity before Scene Setup Mode times out

automatically.

Page 8 of 17

INSTEON ApplianceLinc V2 User’s Guide

ADVANCED FEATURES OF APPLIANCELINC

Restoring Power to ApplianceLinc

ApplianceLinc stores all of its settings in non-volatile memory, even when unplugged. In the event of a

power loss, ApplianceLinc will automatically return the non-dimmable device/lamp being controlled to the

on/off position it had before the power was interrupted. Similarly, if ApplianceLinc is plugged into an

outlet controlled by a wall switch and you turn the switch off, ApplianceLinc will turn the non-dimmable

device/lamp back on to its prior on/off position when you turn the wall switch back on.

Resetting ApplianceLinc to Its Factory Default Settings

The factory-reset procedure can be used to clear ApplianceLinc’s memory and restore its factory default

settings. This procedure will clear the unit of all INSTEON Links, and any programmed X10 Primary

Address, or X10 Scene Addresses.

1. Before resetting an ApplianceLinc that has been linked to an INSTEON Controller, be sure to unlink it

from the Controller first. See Unlinking ApplianceLinc from an INSTEON Controller, above.

2. Unplug ApplianceLinc for about 10 seconds.

3. While holding down the black SET Button on ApplianceLinc, plug ApplianceLinc back in.

4. After plugging ApplianceLinc back in, continue to hold down the black SET Button for 3 seconds.

5. Release the black SET Button.

6. After several seconds, ApplianceLinc’s Status LED will turn on and the lamp you plugged in will come

on, indicating that the factory reset is complete. ApplianceLinc is now reset to all the default settings

and ready for fresh programming and use.

Page 9 of 17

INSTEON ApplianceLinc V2 User’s Guide

X10 PROGRAMMING OPTIONS

ApplianceLinc is X10 ready, meaning that it can respond to X10 commands from an X10 controller.

However, to operate ApplianceLinc in X10 mode, you must first set up an X10 Primary Address. As

it ships from the factory, or after a factory reset procedure, ApplianceLinc will have no X10 Primary

Address assigned.

Setting the X10 Primary Address

You must do this before ApplianceLinc will respond to X10 commands. You can use any of the 256

possible X10 addresses for the X10 Primary Address.

1. Press and hold the black SET Button on ApplianceLinc for 3 seconds. The white Status LED will

begin flashing and the lamp you are controlling will blink to confirm that you are setting up an X10

Primary Address.

2. Use an X10 Controller to send an X10 address and an ON command THREE TIMES. You have

about 30 seconds to perform this step before setup mode expires. (NOTE: If you send an X10 OFF

command during this step, Local Control will be disabled. See the next section for an explanation.)

3. Once ApplianceLinc has received the X10 Address and an ON or OFF command, the Status LED on

ApplianceLinc will stop flashing and the X10 Primary Address will be set.

Removing the X10 Primary Address

1. Press and hold the black SET Button on ApplianceLinc for 3 seconds. The white Status LED will

begin flashing to confirm that you are setting up an X10 Primary Address.

2. Press and hold the black SET Button on ApplianceLinc for 3 seconds again.

3. Use an X10 Controller to send any X10 ON Address THREE TIMES. You have about 30 seconds to

perform this step before setup mode expires. The white Status LED will stop flashing to confirm that

you have removed the X10 Primary Address. Please note that removing the X10 primary address

does not disable all X10 reception. If any scenes were set, the module will still respond to those

scene addresses.

Enabling or Disabling Local Control

Local Control allows you to manually turn on the non-dimmable device or lamp you plugged into

ApplianceLinc by using the switch on the device itself, without sending a command from an X10 or

INSTEON Controller. By default, Local Control is enabled. You can disable Local Control by setting the

X10 Primary Address using an X10 OFF command in Step 2 above. Remember that if the switch on the

device itself is turned off, ApplianceLinc will not be able to control the device.

Page 10 of 17

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere smart home Controller Handbücher

smart home

smart home ControLinc Maxi 4071 Bedienungsanleitung

smart home

smart home 4071 Bedienungsanleitung

smart home

smart home INSTEON Touchlinc 2448 Bedienungsanleitung

smart home

smart home RemoteLinc 2 INSTEON 2444A2 Bedienungsanleitung

Beliebte Controller Handbücher anderer Marken

Digiplex

Digiplex DGP-848 Betriebsanleitung

YASKAWA

YASKAWA SGM series Bedienungsanleitung

Sinope

Sinope Calypso RM3500ZB Bedienungsanleitung

Isimet

Isimet DLA Series Style 2 Installationshandbuch

LSIS

LSIS sv-ip5a Bedienungsanleitung

Rockwell Automation

Rockwell Automation 1769-L31 Bedienungsanleitung

Airflow

Airflow Uno hab Bedienungsanleitung

ABB

ABB ACS580-01 drives Bedienungsanleitung

Panasonic

Panasonic GM1 Series Bedienungsanleitung

Emerson

Emerson SW93 Bedienungsanleitung

AutoAqua

AutoAqua Smart ATO micro SATO-120P Bedienungsanleitung

Panasonic

Panasonic FP? Positioning Unit RTEX Bedienungsanleitung

Samson

Samson Type 5824 Service-Handbuch

Alpha IP

Alpha IP MIOB 21001 Bedienungsanleitung

Siemens

Siemens OpenAir GMA 1 Series Bedienungsanleitung

Surecom

Surecom SR-629 Bedienungsanleitung

Fishman

Fishman TriplePlay Bedienungsanleitung

Regulus

Regulus SRS1 T Bedienungsanleitung

smart home ApplianceLinc V2 Bedienungsanleitung

Beliebte Controller Handbücher anderer Marken
