Smartec STH 3230 Bedienungsanleitung

Smartec – STH 3230

www.smartec-security.eu

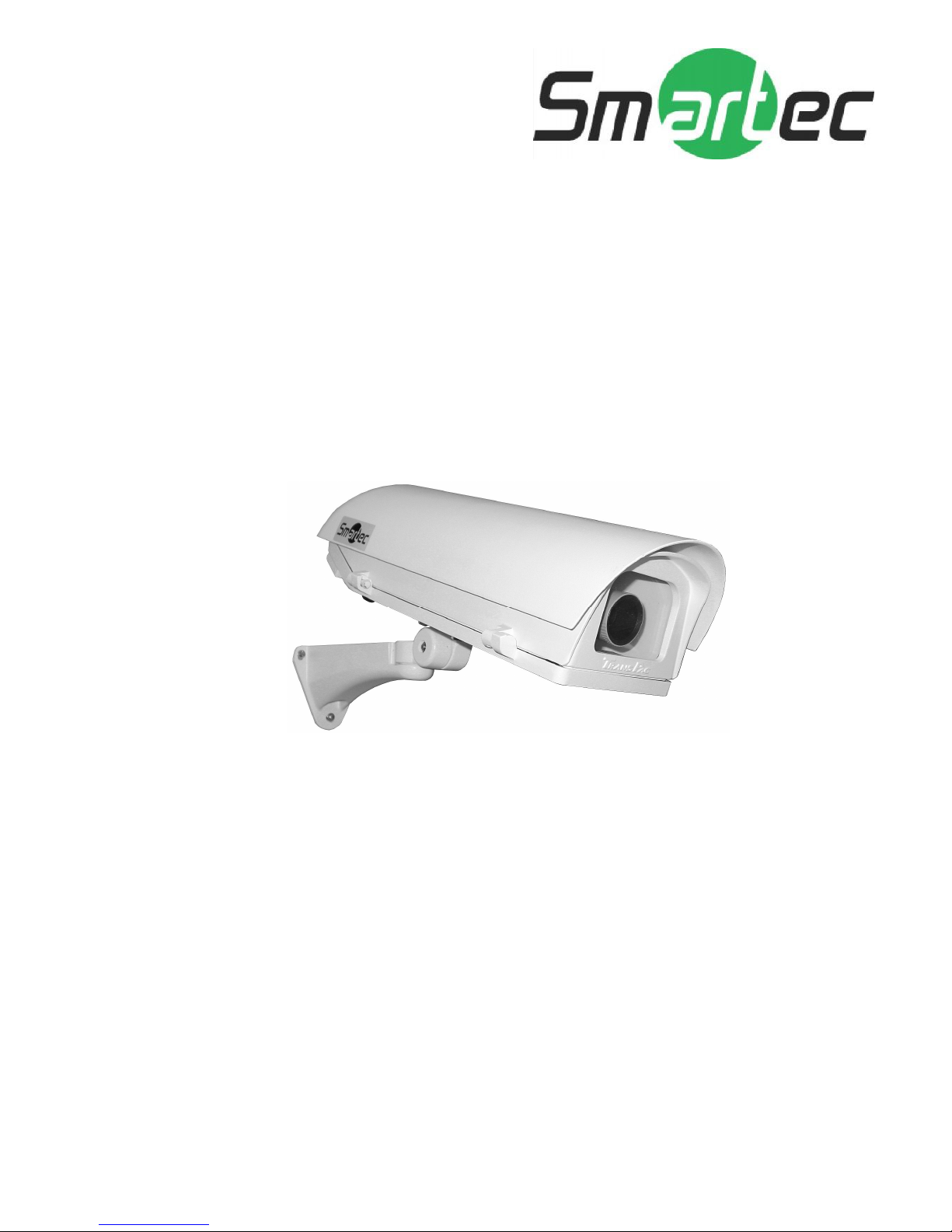

Outdoor camera housing

User Manual

I. Introduction

The STH-3230 Series Camera Housing is constructed by die-cast aluminum alloy with powder coated

finished and equipped with adjustable BR-16 (Semi-Cable Managed) Mounting Bracket. The Product is CE

certified, owns IP 67 or IP 44 environmental protection level and conform with RoHS regulations.

II. Mounting Configuration and Dimensions of STH-3230 Series

BR-16 Semi-Cable Managed Bracket Dimensions of Bracket Base

Adjust position and direction

Inner space for camera mount W90 x H70 x L260mm

III. Fitting instructions for camera.

Terminal block

Cameia mounting platfDim

Heater (12VDC, 24Л10Я30 VAC

Cable Gland

Heater wire. Ground wire

Theimal control board

Capptive retaining VU – Screws * 3

IV. Wiring Diagram

Inside the internal wiring diagram of STH-3230

Series

for the window demister. A spare 6 way terminal

block is

provided at the rear of the housing for the camera

when

necessary and lens connections. Circuit identified as

follows:

TB.1 6 way terminal block

TB.2 3 way terminal block

FTB.1 Fused terminal block

STAT.1 18 Thermostat

STAT.1 35 Thermostat

H.1 Heater

PSU Power Supply Unit

P.C.B.1 Thermal control circuit board

FS.1 3 Amp. Fuse

DC output of PSU connectors

1. Pin1,2 and pin 3,4 is DC 12V output for motor lens, IR illuminator

siren or speaker use. If no use please remove cable from connector.

2. Pin 5,6 is for DC12V output for camera.

V. INSTALLATION SUGGESTION:

If you plan to install this camera into a tropical, sear coastal, saltwater or corrosive industrial water/moist

environment, please seal each stainless steel screw and fittings with a silicon grease compounds. This will help

prevent electrolysis corrosive occurring and extend the lifespan of the camera and housing. The installation of a

surge protection device is strongly recommended in frequent thunder area.

IMPORTANT NOTE:

1. Disconnect Device: A disconnect device from main supply shall be incorporated in the building installation wiring.

2.Electrical Connections: Only a qualified electrician allow to make electrical connections.

AC power connection

Shows how to connect the AC power cord to

the FTB. 1 connector.

*First heater prevents moisture on the window glass till weather temperature -25, second heater is heating in housing for camera operation

properly till weather temperature -40

**With 12Vdc camera jet
