USER’S MANUAL PAGE 2TECH-5000P
SAFETY INFORMATION
1. Avoid dangerous environments. Do not charge this item in rain,
snow, damp or wet environments.
2. Do not use this item or charger in the presence of explosive
atmospheres (gaseous fumes, dust or ammable materials)
since sparks may be generated when attaching or removing
FULLY CHARGE IMMEDIATELY AFTER PURCHASE
Fully recharge after each jumpstarting, or every 3 months to ensure
long battery life.
What’s included with the Smartech TECH-5000P Power Kit
USER’S MANUAL PAGE 3TECH-5000P
3. Charge in a well-ventilated area. Do not allow smoking or open
ames near a charging battery. Vented gases may explode.
4. Do not burn or incinerate this item. This item may explode,
causing personal injury or damage. Toxic fumes and materials
are created when batteries are burned.
5. Do not crush, drop, or damage this item.
6. Do not use this item or a battery charger that has received a
sharp blow, been dropped, run over or damaged in any way
(e.g. pierced with a nail, hit with a hammer or stepped on).
7.WARNING: Do not disassemble. Disassembly may result in
the risk of electric shock, re or exposure to battery chemicals.
8. Battery chemicals cause serious burns. Never allow contact
with skin, eyes, or mouth. If this item leaks battery chemicals,
use rubber or neoprene gloves to dispose of it. If skin is
exposed to battery uids, wash with soap and water and
rinse with vinegar. If eyes are exposed to battery chemicals,
immediately ush with water for 20 minutes and seek medical
attention. Remove and dispose of contaminated clothing.
9. Do not short circuit. This item will short circuit if a metal object
makes connection to the power cable port. Do not place this
item near anything that may cause a short circuit, such as
coins, keys, or nails. A shortcircuited battery may cause re
and personal injury.
10. When jump starting your vehicle do not place Jump Starter on
the ground or at a height less than 18 inches.
11. Never charge or jump start a frozen battery. Store this item and
charger in a cool dry place.
12. Do not store this unit for more than 10 days where tempera-
tures may exceed 120 degrees F (50 degrees C) such as in
direct sunlight, a vehicle, or metal building during the summer
as it may cause damage it the unit.
USER’S MANUAL PAGE 4TECH-5000P
TECH-5000P POWER BANK / JUMP STARTER
The Power Bank / Jump Starter features a low voltage protection
(for Power Bank / Jump Starter itself), spark proof, reverse polarity
13. This product is intended for private use only and should not
be used in any commercial applications. Use of this product to
start multiple vehicles over a short period of time may damage
the Jump Starter / Charger.
14. WARNING: Before attempting to start a vehicle, be sure the
blue plug of the Smart Jumper Cable is rmly secured into
the Smart Jumper Cable Input Socket and be sure that the
battery clamps have a good connection with the proper battery
terminals. Clean rusted or dirty terminals before attempting to
jumpstart the vehicle.
15. WARNING: Remove the jump starter form the vehicle battery
within 30 seconds of successfully restarting. To do so, remove
the Smart Jumper Cables from the Jump Starter. Then remove
the Smart Jumper Cables from the battery terminals.
16. WARNING: Only use the provided charging cords with this
product.
17. WARNING: Disposal of this Device. This device contains a non
replaceable Lithium Polymer battery. It is not user replaceable.
Battery must be disposed of properly when it no longer holds a
charge. This product should be recycled or disposed of as per
state and local guidelines
18. WARNING: This product is not a toy and is not intended for
use by children.
19. PROPOSITION 65 WARNING: This product contains
chemicals known to the state of California to cause cancer and
birth defects or other reproductive harm (California law requires
this warning to be given to customers in the state of California).
USER’S MANUAL PAGE 5TECH-5000P
TECHNICAL SPECIFICATIONS:
Battery Type Lithium-ion Polymer
Battery Capacity 44.4WH
Starting Current 250A
Peak Current 500A
Jump Start up to 5.5L Gas Engine
USB Output 5V/2.4A, 5V/2.4A
LED Flashlight 1W
19V Output 19V/3.5A for Laptops
12V Output 10A Max
Operating Temperature -22˚F ~ +122˚ F
Charging Temperature 32˚F ~ +104˚F
Storage Temperature -4˚F ~ +95˚F (for 3 months)
protection and short circuit protection. This Power Bank / Jump
Starter can instantly jump start most single battery vehicles, up
to 60+ (over 60) times on a full charge. The Power Bank / Jump
Starter is also equipped with USB power output, LED ashlight,
19VDC power output and 12VDC power output.
USER’S MANUAL PAGE 6TECH-5000P
PRODUCT FEATURES AND LAYOUT
EC5
ENGINE START
Socket
LCD
15V/1A
Input Port
19V
Output
12V
Output Port
USB Output
Ports
Flashlight
Button
Power
Button
USER’S MANUAL PAGE 7TECH-5000P
LCD DISPLAY
1 2 3 4 5 6
7 8 9
1. 15V/1A input
2. 5V/2.4A output
3. Light steady on
4. Light FLASH
5. 5V/2.4A output
6. Light SOS
7. Battery capacity
8. 12V output
9. 19V output
CHARGING THE LITHIUM ION POWERBANK
This product is partially charged from the manufacturer. Fully
charge the unit immediately after purchase. In order to prolong
the product life, be sure to fully recharge the unit after each
jumpstarting, or every 3 months even if this unit has not been used.
If battery voltage in the TECH-5000P Power Kit is too low, the
unit will shut off to prevent damage to itself. Recharge as soon as
possible to be activated and fully charge it to ensure long battery
life. In addition, it is not recommended to charge and discharge
(use) the Power Bank at the same time.
CHARGING OPTION 1:
Plug one end of the wall charger cord into the 15V/1A Input
port of the Lithium Ion Powerbank and plug the other end of
the wall charger cord into a standard wall outlet. (See detailed
diagram on the following page.)
USER’S MANUAL PAGE 8TECH-5000P

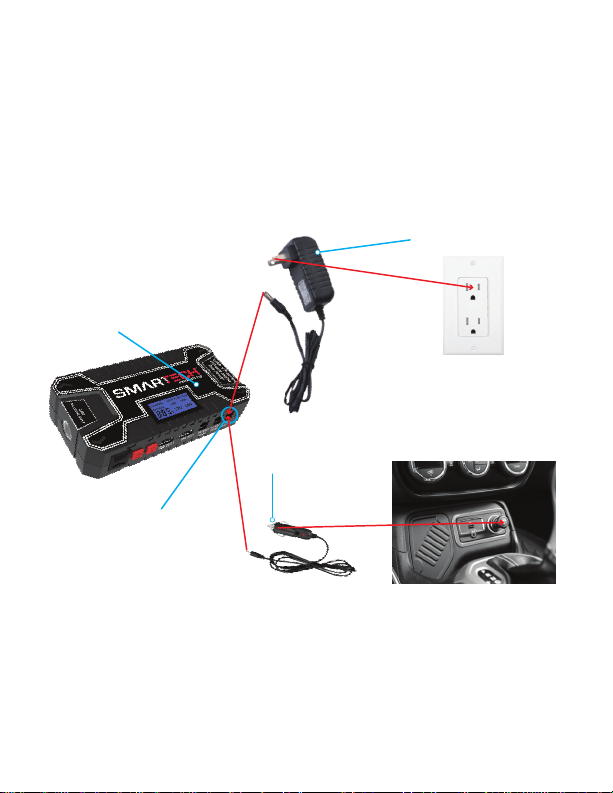

TECH-5000P
Power Bank
15V/1A Input
Charging Port
Option 1
Wall Charger
Wall Outlet
Option 2
12V Car
Charger Car Cigarette lighter
CHARGING OPTION 2:
Plug one end of the 12V car charger cord into the 15V/1A Input
port of the Lithium Ion Powerbank and plug the other end of the
12V car charger cord to your car cigarette lighter. (See detailed
diagram below.)
USER’S MANUAL PAGE 9TECH-5000P
JUMP START YOUR VEHICLE BATTERY USING THE
TECH-5000P POWER BANK
CONNECT TO BATTERY
1. Identify polarity of battery posts. The positive battery terminal
is typically marked by these letters or symbol (POS,P,+). The
negative battery terminal is typically marked by these letters or
symbol (NEG,N,-).
2. Do not make any connections to the carburetor, fuel lines, or
thin metal parts.
3. Identify if you have a negative or positive grounded vehicle.
This can be done by identifying which battery post (NEG or
POS) is connected to the chassis.
4. For a negative grounded vehicle (most common): connect
the RED POSITIVE jumper clamp rst to the positive battery
terminal, then connect the BLACK NEGATIVE jumper clamp to
the negative battery terminal or vehicle chassis.
5. For a positive grounded vehicle (very uncommon): connect the
BLACK NEGATIVE jumper clamp rst to the negative battery
terminal, then connect the RED POSITIVE jumper clamp to the
positive battery terminal or vehicle chassis.
6. When disconnecting, disconnect in the reverse sequence,
removing the negative rst (or positive rst for positive ground
systems).
USER’S MANUAL PAGE 10TECH-5000P
Red
LED
BOOST
Button
EC5
Plug
Negative
Clamp
Positive
Clamp
Green
LED
12 Volt
Vehicle
Battery
+
-
TECH-5000P
Power Bank
Pull rubber tab to open
ENGINE START
socket
Vehicle Battery Connection
