SmarTrike Breeze 605 Bedienungsanleitung

USA: 1-855-SMTRIKE

(1-855-768-7453)

Watch a live assembly !

Scan this code to view

a step-by-step visual guide, and

assemble your product easily.

Thank you for buying smarTrike.

If you have any assembly questions,

please contact us at any time.

[email protected]

USA:1-855-SMTRIKE

(1-855-768-7453)

Ⓡ

www.smarTrike.com

Find us at @smarTrike

-1-

SR T U V W

Spare/De rechange

X4 X2

O P

Breeze™605

-2-

-3-

CB O

3b 3c

1b 1c

Click

Cliquez

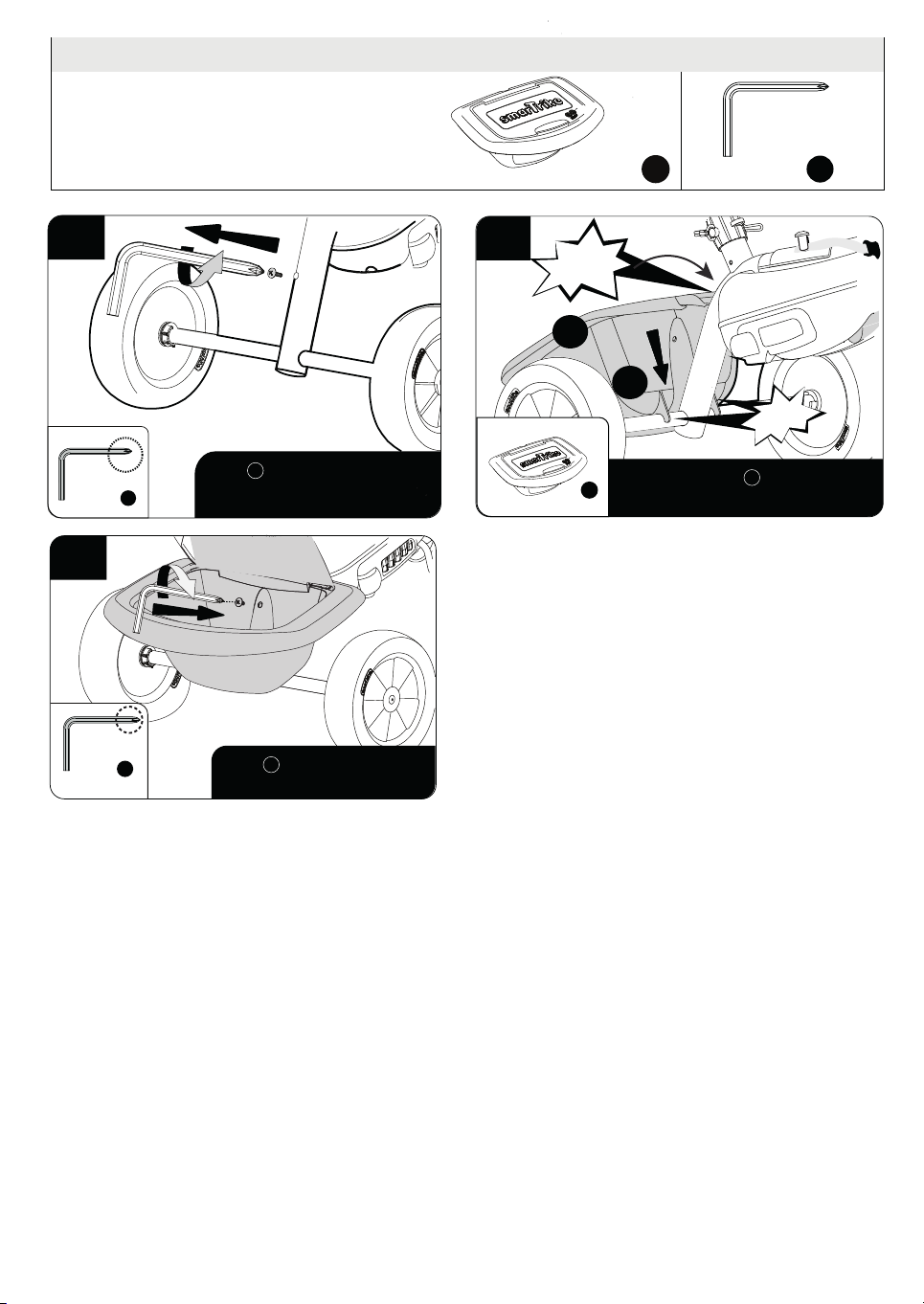

Insert the wheel axel into the

trike’s body up to the marked center.

Attach part M to the

rear axel until it “clicks”.

-4-

Step 1-3

Parts needed to complete this section

Remove the bolt from the

trike’s body.

Fasten the bolt back in place.

Click

Cliquez

Front

clockwise.

Firmly screw in O with P .

Align and insert O in the dropout hole

of rear tube. Push until it "clicks" in.

4a 4b

4d4c

-5-

Step 4

Parts needed to complete this section

Firmly screw in O with P .

c d

B O

Use V to release 4 screw .

Make sure not to

lose the screws

Repeat on the other side

Use V to screw in

Flip the handlebar to screw in 4 screw.

4 screw (clockwise).

The screws must be screwed in the order a, b, c, d

5a 5b 5c

6a 6b

Step 5-6

Parts needed to complete this section

Make sure the arrow sticker direction

on the handlebar.

Remove the bolt from

the handlebar stem.

Use the bolt to attach the

handlebar.

Use the bolt to attach the

handlebar.

-6-

Lock the screw with P (clockwise).

Make sure not to

lose the screws

Insert part “

Put the screw on

the slot of the

connector.

Insert the steering wheel to the

trike body.

With the red button on the right

side of the trike, insert the wheel

into the body of the trike.

-7-

Step 7

Parts needed to complete this section

Scan this code

to Watch a live guide

Front

insert, slightly turn until you

insert,

Cover the connector.

Click

Cliquez

Turn the apple to face you.

Push the apple until

you hear a "click" sound.

Align part H into the designated

holes in the center of the handlebar

and push down ﬁrmly until it "clicks".

Cli

Click

Cliquez

Click

Cliquez

7a 7b

a. Release the safety belt holder screw

b. and thread the screws through the belt and belt holder

Insert and turn the pedals “V” into the fork until they click.

while still in parent mode.

Repeat on the other side

-8-

Click

Cliquez

Step 8

Parts needed to complete this section

9a 9b

Insert and turn the pedals “V” into the fork until they click.

while still in parent mode.

-7-

-9-

Click

Cliquez

Step 9-10

Parts needed to complete this section

Insert and turn the pedals W into the fork until they click.

while still in parent mode.

Click

Cliquez

Scan this code

to Watch a live guide

15m+ 15m+

24m+ 24m+

a. Push the button to release the plastic cap.

b. Pull out the plastic cap. Repeat on the other side

-10-

Click

Cliquez

Click

Cliquez

Use P to unscrew the back

screw (counter clockwise). Place and click I on rear

axle.

Push the apple until

you hear a "click" sound.

11b

11a

11c

Use P to secure the basket

(clockwise).

insert, slightly turn until you

insert,

Cov er the connector

-8-

Click

Cliquez

Click

Cliquez

Click

Cliquez

Use “P” to unscrew the back

screw (counter clockwise). Place and click “I” on rear

axle.

Turn the apple to face you.

Push the apple until

you hear a "click" sound. Align part “H” into the designated

holes in the center of the handlebar

and push down ﬁrmly until it "clicks".

Cli

Click

Cliquez

H I P

Step 11

Parts needed to complete this section
