iSmartADAS HD Calibration Tool User Manual

may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic,

mechanical, photocopying, recording or otherwise, without the prior written permission of SMARTSAFE.

Neither SMARTSAFE nor its affiliates shall be liable to the purchaser of this unit or third parties for damages,

losses, costs, or expenses incurred by purchaser or third parties as a result of: Accident, misuse, or abuse of

this unit, or unauthorized modifications, repairs, or alterations to this unit, or failure to strictly comply with

SMARTSAFE operating and maintenance instructions. SMARTSAFE shall not be liable for any damages or

problems arising from the use of any options or any consumable products other than those designated as

Original SMARTSAFE Products or SMARTSAFE Approved Products by SMARTSAFE.

All information, specifications and illustrations in this manual are based on the latest information available at

the time of printing. SMARTSAFE reserves the right to make changes at any time without prior written or oral

notice.

Trademark Information

is a registered trademark of SHENZHEN SMARTSAFE TECH CO.,LTD. in China and other

countries. All other SMARTSAFE trademarks, service marks, domain names, logos, and company names

referred to in this manual are either trademarks, registered trademarks, service marks, domain names, logos,

company names of SMARTSAFE or are otherwise the property of SMARTSAFE or its affiliates. In countries

where any of the SMARTSAFE trademarks, service marks, domain names, logos and company names are not

registered, SMARTSAFE claims other rights associated with unregistered trademarks, service marks, domain

names, logos, and company names. Other products or company names referred to in this manual may be

trademarks of their respective owners. You may not use any trademark, service mark, domain name, logo, or

company name of SMARTSAFE or any third party without permission from the owner of the applicable

trademark, service mark, domain name, logo, or company name. You may contact SMARTSAFE by visiting the

website at www.newsmartsafe.com, or writing to SHENZHEN SMARTSAFE TECH CO.,LTD., 3F, Building B,

Qiao’an Technology Industrial Park, Guanlan, Longhua New District, Shenzhen, to request written permission

to use Materials on this manual for purposes or for all other questions relating to this manual.

Safety Precautions

iSmartADAS HD calibration tool is used for the calibration of commercial vehicle ADAS system, and is used in

conjunction with vehicles and diagnostic device. In order to avoid personal injury or death, property damage

and accidental injury, please read all the safety tips in this chapter carefully before using the product:

• In order to avoid improper operation, iSmartADAS HD operators need to have a background of motor vehicle

technical knowledge, and be familiar with the hazards, risks and working conditions in the repair shop.

• This point applies to all the tips of each chapter in this manual. In addition, the operator is requested to pay

attention to the working methods and safety warnings after the operation prompts.

• In addition, please refer to the regulations of the Industrial and Commercial Bureau, labor unions, automobile

manufacturers, and environmental protection regulations, as well as all laws and regulations related to

automobile repair shops.

The safety information explained here covers all the situations that SmartSafe is aware of. SmartSafe cannot

know, predict, or suggest all possible hazards. The operator must ensure that the maintenance operations

performed under any circumstances will not cause harm to personal safety.

iSmartADAS HD Calibration Tool User Manual

Warning Symbols and Definitions

Indicates that there is a serious hazard. If it is not evaded or wrongly operated, it

will cause death or serious injury to the user.

Indicates that there is a potentially dangerous situation. If it is not circumvented or

wrongly operated, it will cause minor injuries or property damage.

Indicates the points of attention when using and the use situation to be avoided

as much as possible.

The exhaust gas from the engine contains a variety of toxic compounds (such as hydrocarbons, carbon

monoxide, nitrogen oxides, etc.), which can cause unresponsiveness, and even serious personal injury or

death. The vehicle under test should be parked in a well-ventilated place during operation.

It is forbidden to replace the built-in lithium battery by yourself, and the internal battery must be replaced by an

authorized maintenance organization or authorized technician. Modification of the battery pack or improper

replacement of the battery pack can cause an explosion.

Please read all safety warnings and operating information carefully. Failure to follow the safety warnings and

operating information may result in electric shock, fire or serious personal injury.

1. Always keep the vehicle calibration in a safe environment.

2. Do not connect or disconnect the diagnostic equipment when the ignition switch is on or the engine is

running.

3. Do not operate the diagnostic equipment while driving the vehicle to avoid distraction and cause a car

accident.

4. Before starting the engine, the hand brake should be pulled, especially the front wheels should be blocked,

and the gear lever should be placed in Neutral (manual transmission) or [P] position (automatic

transmission) to avoid starting the engine and causing the vehicle to rush out and hurt people .

5. No smoking or sparks near the battery or engine. Do not operate the device in an explosive environment.

6. Please provide a fire extinguisher next to the workplace.

7. Please wear protective glasses when inspecting the car.

8. Make anti-rolling settings for the vehicle.

9. Be extremely careful when working around the ignition coil, distributor cap, ignition circuit and ignition plug.

The voltage generated by these components when the engine is running is very dangerous.

10. To avoid damaging the diagnostic device or generating incorrect data, please ensure that the vehicle

battery is sufficiently charged and the connection of vehicle diagnostic link connector is clean and safe.

Precautions for operating iSmartADAS HD Calibration Tool

To avoid user injury or device damage caused by improper operation, please pay attention to the following

points:

• Please be sure to install it in accordance with the method described in the manual.

• Prevent iSmartADAS HD from contacting water and being violently impacted.

• Prevent iSmartADAS HD from long-time sunlight.

• The light source should ensure that there are no reflection points on the calibration target.

iSmartADAS HD Calibration Tool User Manual

III

• There should be no direct light source in the camera's field of view, otherwise the camera will reduce the

exposure and darken the captured calibration target, which will adversely affect the calibration.

• The light source should ensure that the illumination of the calibration work site is evenly distributed.

• Please maintain iSmartADAS HD regularly.

Precautions for operating the vehicle

When performing calibration operations, please read the following information carefully:

• Ensure that all wheels of the vehicle are parked on level ground.

• Set the gear position to P (parking) state for Automatic Transmission vehicles.

• During the test, make sure the connection between the diagnostic device and the diagnostic link connector is

good which is to avoid signal interruption affecting the test.

• The vehicle system is operating normally and there is no fault stored in the ECU DTC memory.

• To avoid losing the connector, please make sure to remove it from the vehicle diagnostic link connector after

use.

Precautions for using laser equipment

• Please store in a dry place.

• The laser beam is projected directly into the eyes, which can cause eye damage.

• Do not look directly at the laser beam.

• Please fix the laser instrument, do not point the laser beam at people or animals.

• Do not operate the laser level around children. Do not allow children to use laser equipment.

• Do not use a magnifying glass or telescope to observe the laser beam.

• Do not tear off or scratch the warning labels on the laser equipment.

• Do not bring the instrument close to the pacemaker.

• Do not operate the instrument in an explosive environment, such as an environment with flammable liquid,

gas or dust.

• Do not use strong detergents or chemicals to clean the instrument. The instrument can be cleaned with water

or a small amount of soap with water.

• Please prevent the instrument from falling down.

• When installing the laser, make sure that it is firmly installed.

iSmartADAS HD Calibration Tool User Manual

Contents

Copyright Information..................................................................................................................................................... I

Trademark Information.................................................................................................................................................... I

Safety Precautions........................................................................................................................................................... I

1. Product Introduction.................................................................................................................................................. 1

1.1 About ADAS..............................................................................................................................................................1

1.2 About iSmartADAS HD........................................................................................................................................... 1

1.3 Packing List.............................................................................................................................................................. 2

2. Get to Know iSmartADAS HD Calibration Tool................................................................................................... 5

2.1 Main Components................................................................................................................................................... 5

2.2 Base Components...................................................................................................................................................6

2.3 Lifting Components................................................................................................................................................. 7

2.4 Cross Member Components................................................................................................................................10

2.5 Wheel Clamp Components..................................................................................................................................13

2.6 Central Laser (LAC09-02)....................................................................................................................................14

2.7 Ranging Panel (LAH09-01)..................................................................................................................................14

2.8 Mounting Plate (LAH05-01)................................................................................................................................. 15

2.9 ACC Reflector (LAH05-02).................................................................................................................................. 16

3. Initial Use.....................................................................................................................................................................17

3.1 Install the Calibration Main Frame......................................................................................................................17

3.2 Install the Wheel Clamp Components................................................................................................................21

3.3 Activate the Software ADAS Calibration Function............................................................................................22

4. Start Using ADAS Calibration Tool.......................................................................................................................24

4.1 Preconditions for Using ADAS Calibration Tool................................................................................................24

4.2 Camera Calibration............................................................................................................................................... 26

4.3 Radar Sensor Calibration.....................................................................................................................................30

5. Service and Maintenance........................................................................................................................................34

iSmartADAS HD Calibration Tool User Manual

1. Product Introduction

1.1 About ADAS

ADAS stands for "Advanced Driver Assistance System". Its principle is to use vehicle cameras, radars,

distance measurement and other sensors to sense the surrounding environment, collect data, and perform

identification, detection and tracking for static and dynamic objects at any time during vehicle driving.

Combined with the navigation map data, perform system calculation and analysis, so as to allow the driver to

perceive the possible danger in advance, which effectively increase the comfort and safety of driving.

The cameras and sensors used in ADAS must be precisely calibrated and adjusted. Incorrect calibration will

cause the system to output incorrect results or even completely fail, resulting in serious accidents or even

death.

1.2 About iSmartADAS HD

As a comprehensive and flexible calibration tool for the Advanced Driving Assistance System of commercial

vehicles, the iSmartADAS HD calibration tool of SmartSafe enables you to effectively and accurately calibrate

various types of camera and radar driving assistance systems, such as the front camera for the Lane

Departure Warning system, radar sensors for ACC (Adaptive Cruise Control) and more.

The iSmartADAS HD calibration tool has two main components:

iSmartADAS HD calibration tool-used to determine the locations of vehicle to be calibrated and the

calibration tool, combined with the calibration software to complete the ADAS system calibration. It is mainly

composed of a calibration main frame (including base components, rotating components, middle frame

components, cross member components and target brackets), wheel clamp components, rangefinders,

ranging panels, camera calibration targets, ACC radar targets (including mounting plate), central laser and

other components.

Diagnostic tool (need to be purchased separately) - The calibration tool needs to be used together with a

diagnostic tool that is compatible with the ADAS function of commercial vehicles authorized or approved by

SmartSafe.

iSmartADAS HD Calibration Tool User Manual

1.3 Packing List

Please check the packing list after receiving the calibration tool, so that you can immediately complain about

potential damage or missing components. For different destinations, accessories may be different. Please

consult your local dealer for more details.

Please note when unloading: heavy equipment may fall and cause personal injury. Please unload the

equipment with the help of others or use appropriate auxiliary tools as needed.

Name of Accessories

Reference Picture

Quantity

Main Frame

Wheel Clamp

Wheel Clamp Panel

Laser Range Finder

iSmartADAS HD Calibration Tool User Manual

Mounting Plate

LAH05-01

ACC Reflector

LAH05-02

Central Laser

LAC09-02

Ranging Panel

LAH09-01

ADAS Activation Card

User Manual

Packing List

iSmartADAS HD Calibration Tool User Manual

Calibration Target

Reference Picture

Quantity

Iveco/Man/Scania

LDW Target

LAH01-01

Volvo/Renault

LDW Target

LAH01-02

Isuzu

LDW Target

LAH01-03

UD/Nissan

LDW Target

LAH01-04

Note: Different product configurations provide different targets. For details, please consult customer

service or local dealers.

iSmartADAS HD Calibration Tool User Manual

2. Get to Know iSmartADAS HD Calibration Tool

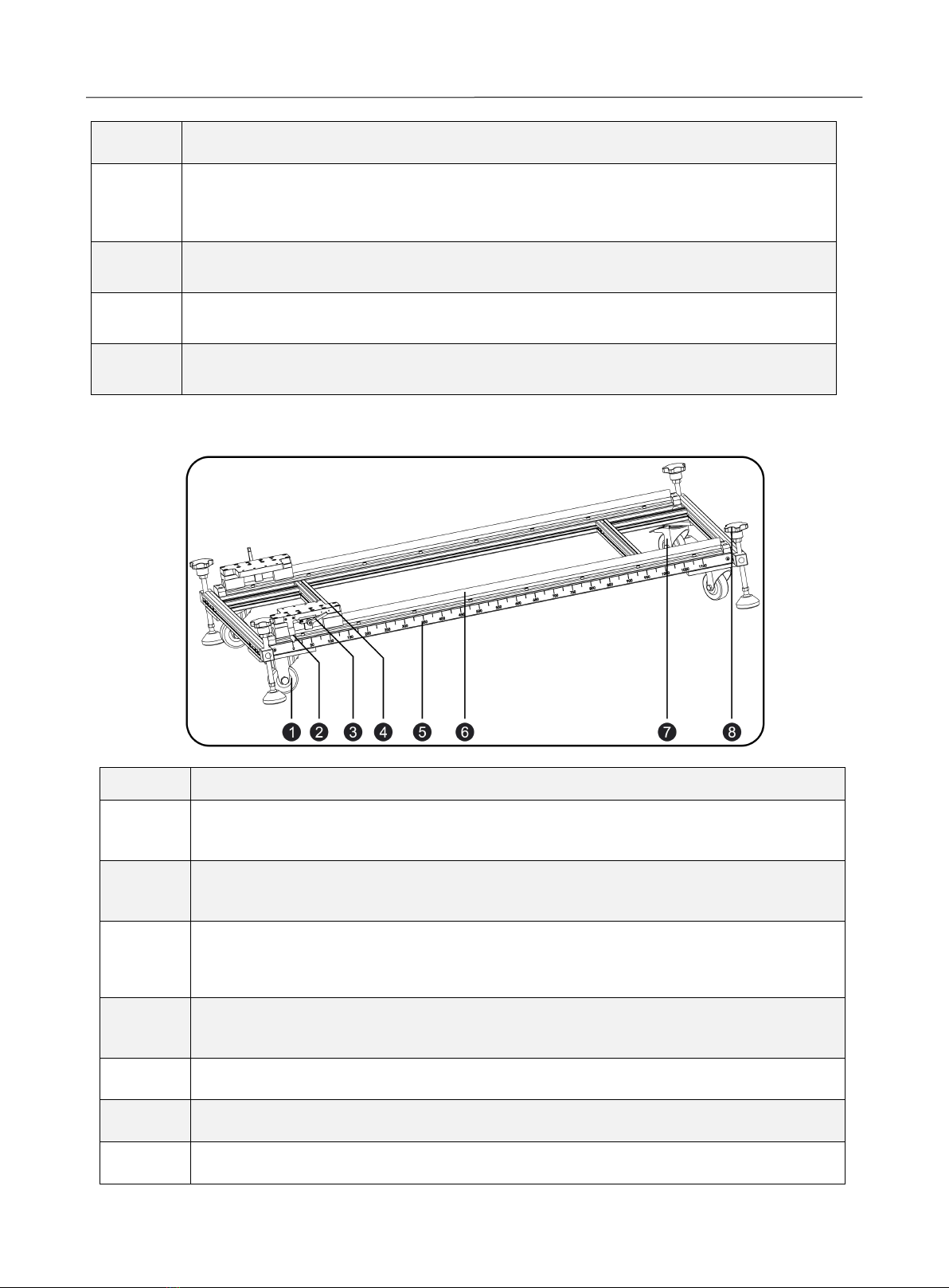

2.1 Main Components

The iSmartADAS HD calibration tool is mainly composed of the following components:

(*This diagram is not a physical picture of the product, which is only for explanation. Due to the continuous

improvement of the product, it will be updated from time to time, please refer to the actual product.)

No.

Specific Description

Base Components

Used to fix the lifting components, balance the cross members and target brackets installed

on the lifting components, and support front and back adjustment. The base is equipped

with 4 rollers, which is convenient for users to move the equipment.

Lifting Components

It is fixed on the base and is used to fix the cross member and the target bracket, which can

realize the height lifting of the equipment and the fine adjustment of the left and right sides

and the parallel fine adjustment of the equipment.

Cross Member Components

It is installed on the lifting assembly and is used to place the central rangefinder and the

mounting plate.

Wheel Clamp Assembly

It is installed on the rear wheel of the vehicle and cooperates with the left and right

positioning rangefinders on the cross member to adjust the parallelism of the calibration

iSmartADAS HD Calibration Tool User Manual

equipment with the vehicle.

Ranging Panel

Used to measure the distance between the device and the vehicle with a central

rangefinder.

Mounting Plate

It is used to hang central laser and ACC reflector, etc.

ACC Reflector

Used to calibrate vehicle ACC radar.

Central Laser

Used for auxiliary adjustment to equipment and vehicle center alignment.

2.2 Base Components

No.

Specific Description

Directional Wheel

Used to move the calibration equipment back and forth.

Indicator Arrow

Used to indicate the front and back adjustment position of the device.

Handle Locker

Used to fix the front and back adjustment slider. When not locked, the slider can move

back and forth on the slide rail.

Slider Connection Block

Used to connect rotating components.

Scale

Slide

Universal Wheel (with Brake Device)

Inhaltsverzeichnis

Beliebte Werkzeuge Handbücher anderer Marken

Martor

Martor SECUNORM 175 Bedienungsanleitung

ERKCO

ERKCO 1000 Bedienungsanleitung

jbc

jbc N4473 Bedienungsanleitung

FEINMETALL

FEINMETALL FZWZ-SET-001 Bedienungsanleitung

Worx Professional

Worx Professional Sonicrafter WU676 Bedienungsanleitung

Gage Bilt

Gage Bilt GB713SH Bedienungsanleitung

Hilti

Hilti DX 9-ENP Bedienungsanleitung

norbar

norbar NORTRONIC 34399 Bedienungsanleitung

BGS technic

BGS technic 8578 Bedienungsanleitung

Makita

Makita DHR241 Bedienungsanleitung

Motor Guard

Motor Guard JMB-1250 Bedienungsanleitung

Power Adhesives

Power Adhesives 805-12 Bedienungsanleitung

Clemco

Clemco 24189 Bedienungsanleitung

VVG

VVG VNG 903 Series Bedienungsanleitung

Hilti

Hilti FX 3-A Bedienungsanleitung

Grizzly

Grizzly H6472 Bedienungsanleitung

axing

axing BWZ 5-02 Bedienungsanleitung

Dh-Robotics

Dh-Robotics RGI-100 Anleitung zur Verwendung
