SMC Networks SMC7004WFW Bedienungsanleitung

Barricade Plus

VPN IPSEC & PPTP

Configuration Guide

The Information in this guide applies to the:

●Barricade™ Plus Cable/DSL Broadband Router (SMC7004FW)

●Barricade™ Plus Wireless Cable/DSL Broadband Router (SMC7004WFW)

NEXT – Table of Contents

BACK - Introduction NEXT – Installing VPN Protocols

This document will guide you through configuring and implementing secure, remote

connections to your LAN using the VPN functionality of your Barricade Plus Cable/DSL

Broadband Router.

This document is divided into the following sections:

1. Installing Virtual Private Network Protocols

❍Windows 95/98/98SE

❍Windows Me

❍Windows NT

❍Windows 2000/XP

2. Configuring your MS PPTP Client to Connect to the Barricade Plus

3. Configuring your Barricade Plus as a PPTP Client

4. Configuring your Barricade Plus as a PPTP Server

5. Barricade Plus IPSec Tunnel Configuration

6. Glossary

BACK - Table of Contents NEXT – Windows 95/98/98SE

SECTION 1: Installing VPN Protocols

This section outlines the process for installing the necessary VPN protocols on the

following operating systems:

§Windows 95/98/98SE

§Windows Me

§Windows NT

§Windows 2000/XP

Before you begin this configuration process please verify that you have the following:

§Original (Licensed) Windows CD

BACK - Installing VPN Protocols NEXT – Windows Me

Windows 95/98/98SE

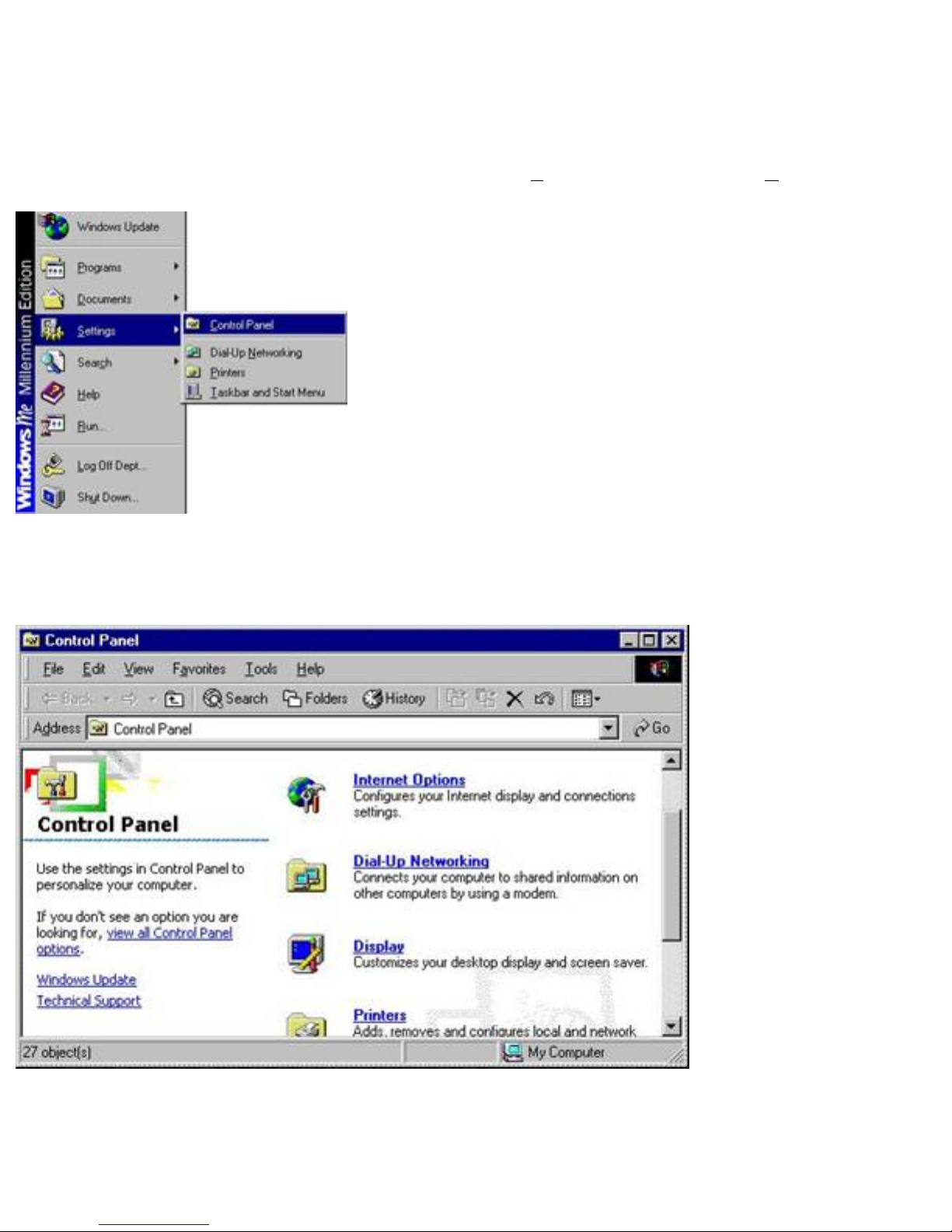

Step 1: Click on the [Start] button, then choose [Settings], then select [Control Panel].

Figure 1.0

Step 2: Locate and double-click the [Add/Remove Programs] icon.

Figure 1.1

Step 3: Click on the [Windows Setup] tab and highlight the [Communication]

component, then click on the [Details…] button.

Figure 1.2

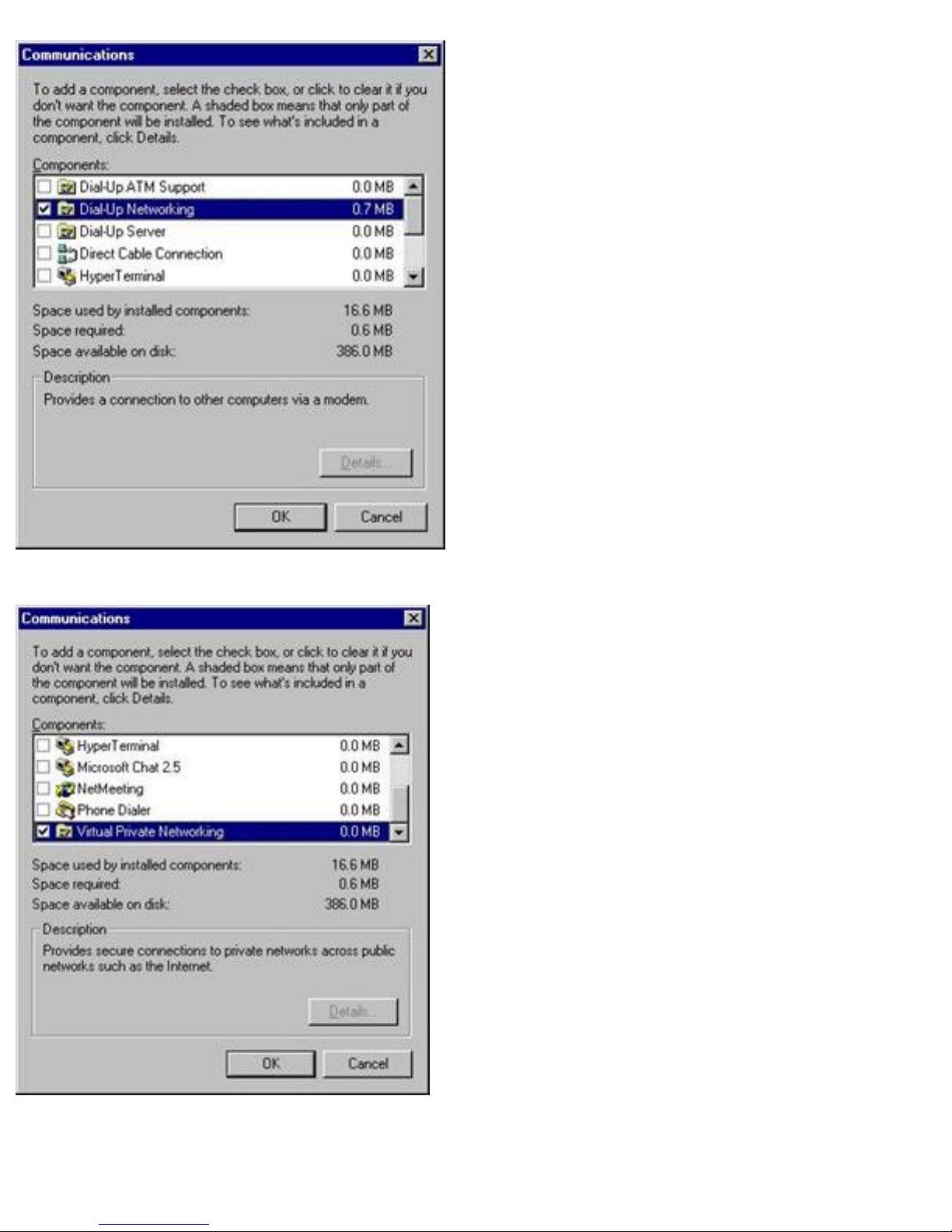

Step 4: In the [Communication] dialog box, verify that the following 2 options are

selected:

§[Dial-Up Networking]

§[Virtual Private Networking]

Figure 1.3

Figure 1.4

When you have verified or selected these 2 options, click the [OK] button to save the

settings and close the [Communications] dialog box.

If you already had these options selected, click the [Cancel] button to close the

[Communications] dialog box, then click the [Cancel] button again to close the [Add /

Remove Programs] dialog box. Skip to Section 2!

Step 5: The [Communications] option should now be checked. Click the [OK] button to

save this change and close the [Add/Remove Programs] dialog box.

Figure 1.5

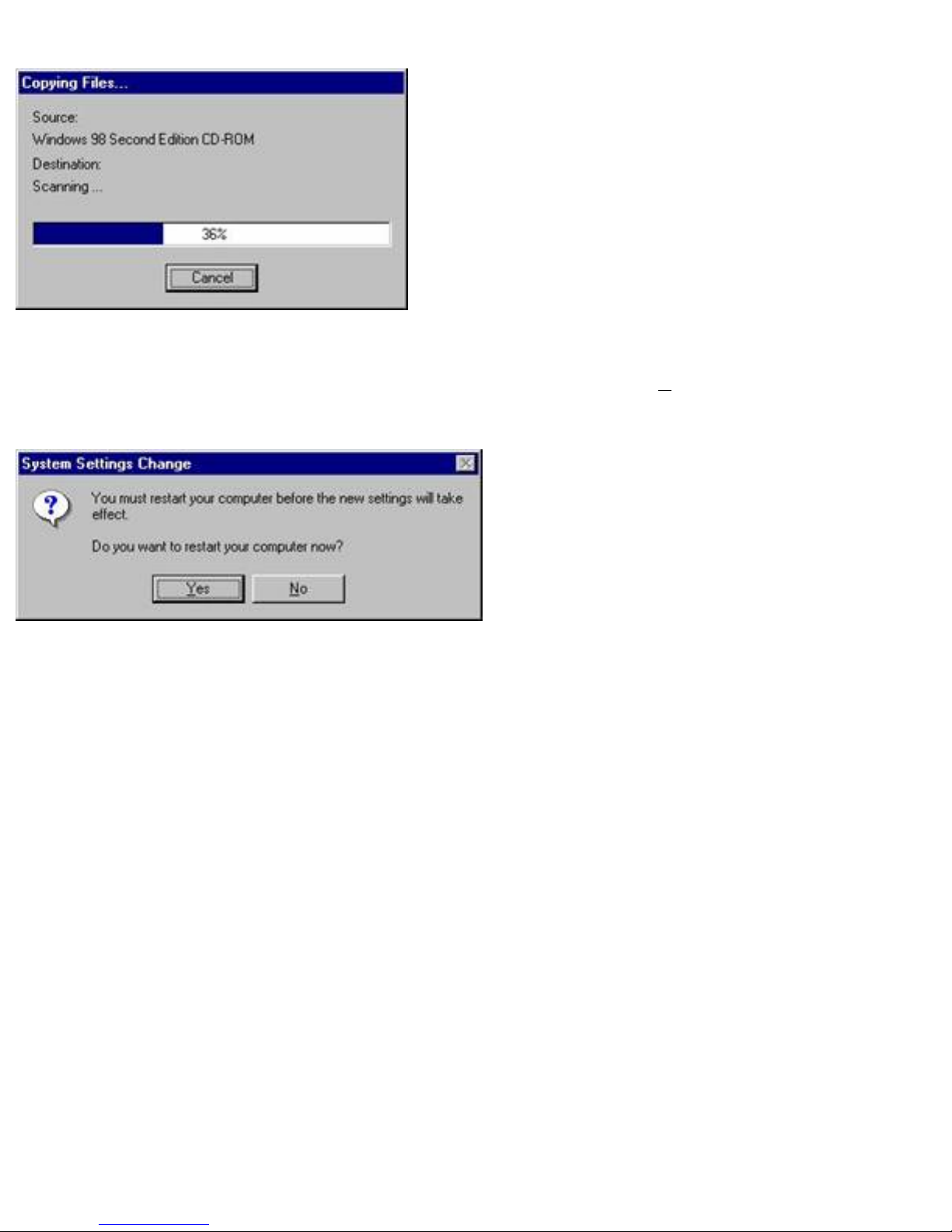

Step 6: If prompted, please insert your [Windows CD] to copy the required system files.

Figure 1.6

Figure 1.7

Step 7: When prompted with the dialog box below, click the [Yes] button to reboot your

computer and complete the installation process.

Figure 1.8

BACK – Windows 95/98/98SE NEXT – Windows NT

Windows Me

Step 1: Click on the [Start] button, then choose [Settings], then select [Control Panel]

Figure 1.0

Step 2: Locate and double-click the [Dial-Up Networking] icon.

Figure 1.1

Step 3: Click on the [Windows Setup] tab and highlight the [Communication]

component, then click on the [Details…] button.

Figure 1.2

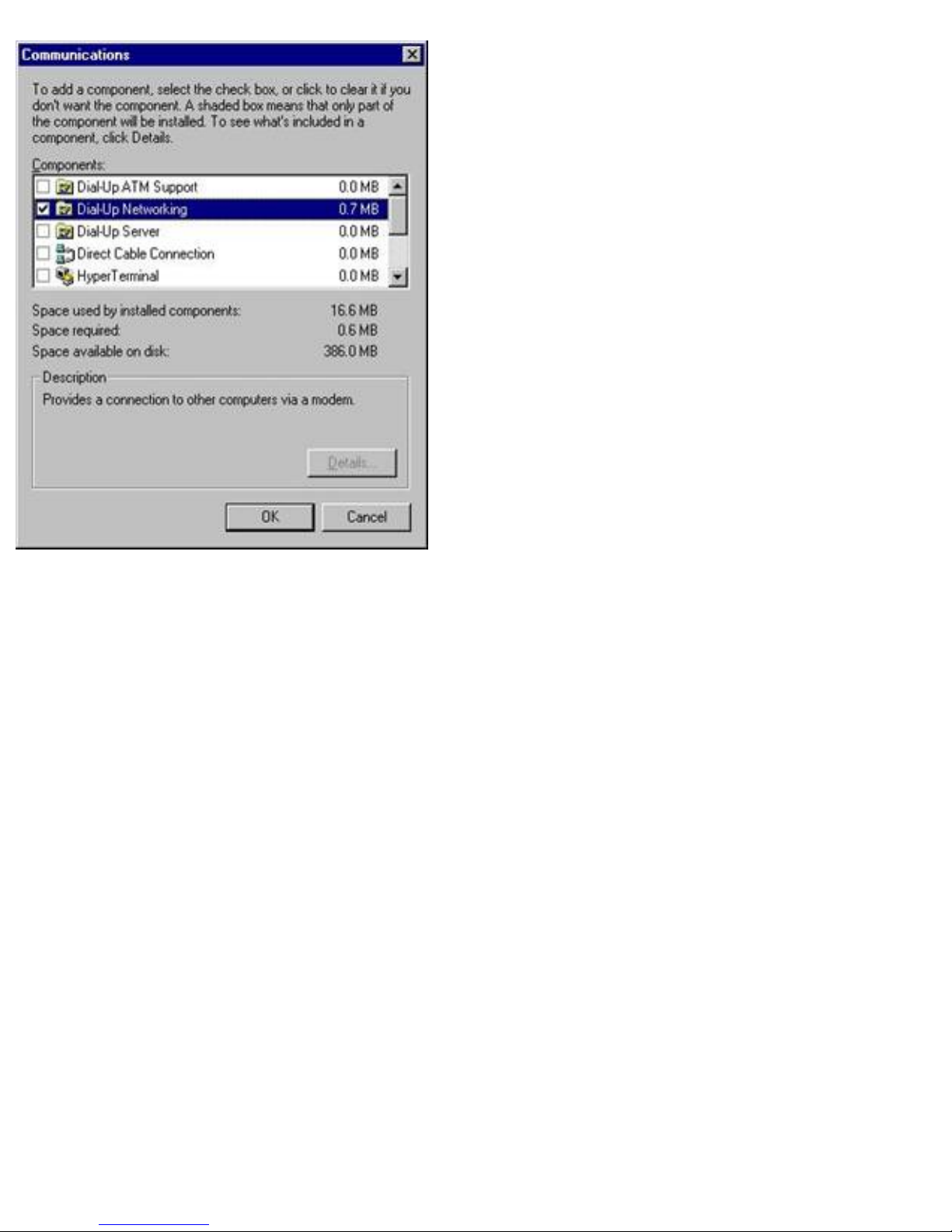

Step 4: In the [Communication] dialog box, verify that the following 2 options are

selected:

§[Dial-Up Networking]

§[Virtual Private Networking]
