SMONET Y001 Bedienungsanleitung
Smart Lock Manual
Electronic Keypad Deadbolt Lock
PREFACE
Please read this manual before installing.
Any question, please contact our customer service.
WARNING：
This Manufacturer advises that no lock can provide complete security
by itself.
This lock may be defeated by forcible or technical means, or evaded
by entry elsewhere on the property.
No lock can substitute for caution, awareness of your environment,
and common sense.
In order to enhance security and reduce risk, you should consult a
qualified locksmith or other security professional.
How Can I Get Tech Support?
E-MAIL: service@clocktida.com
Toll Free: 1-866-262-2888
(Available after 6:00 PM at Pacific time)
DIRECTORY
INTRODUCTION
Product Specifications
Package
Performance
INSTALLATION MANUAL
Tools Needed
Installation Step
SMART INSTRUCTION
Pairing Lock to Phone App
TT LOCK App Operating
MATCH the Wi-Fi GATEWAY to the APPLICATION
MATCH the TTLOCK APP to the ALEXA APP
MATCH the SMART WATCH to the SMART LOCK
OPERATION INSTRUCTIONS
Setting Admin Passcode
Lock/Unlock
Dead Lock
Reset
Battery Power Runs Out
FAQ
01
01
02
03
04
04
04
12
12
13
18
19
21
22
22
23
23
24
24
27
INTRODUCTION
< 01 >
Product Specifications
Item No.
Material
Weight
Communication mode
Unlocking way
Support System
Unlock time
Power supply
Static current
Working current
Y001
Zinc Alloy
2.46 lb
Bluetooth 4.0ble
Bluetooth, Code, Mechanical key
Android 4.3 / IOS 7.0 above
≈ 1.5 sec
4pcs AA batteries
≤30uA
≤200mA
< 02 >
Package
Part Quantity
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
2
1
1
2
1
4
1
1
1
4
1
3
1
1
1
2
2
Description
Key
Keypad
Keyhole Cover
Double-screw Bolt
Latch
Wood Screws
Strike Plate
Box Striking Plate
Inside Mounting Plate
Flat Screw
Receiver Module
Short Flat Screw
Longest Flat Screw
Battery Cover
Size Reference Card
Drill Bit
Needle
R2
ICCard
A
CD
I
K
J
BEG
F
N
R
L
M
Q
H
1.Smarter and Safer
Smart Lock Front Door set out to provide extra home security with
keyless codes, Bluetooth unlock, anti-peep password and auto lock
(5-200s) to keep your house safe and sound.
2.Real Time Record
Through Keyless Door Locks for Homes APP, you could check the
unlocking records and incorrect password records from the Admin
account in real time. And you’ll have comfort in knowing your door’s
status.
3.Fast Sharing and Convenient
With Smart Digital Door Locks for Homes, You can share code with
friends and guests valid for a few weeks,hours, or minutes, and
revoke them whenever you need to. Never worry about lost, stolen or
copied keys again.
4.Easily Install and Smart Reminder
Just a screwdriver and a easy-to-follow instruction to easily install
Door Locks with Keypads. And when in low battery, Keypad Door Lock
Deadbolt Set will alarm and could be temporary charged by a 9V
battery.
< 03 >
Performance
Tools Needed
Phillips Screwdriver Tape Measure Pencil Other Chiseling Tools
Installation Step
1.Adjusting Latch Length
INSTALLATION MANUAL
< 04 >
Note: Install and test lock with door open to avoid being locked out
Note: When performing this operation, please take protective
measures and be careful of the metal edge not to injure yourself.
2.Check Door Dimensions
Hold the right part of the lock tongue with your right hand and turn
the left iron piece counter clockwise (about 15 degrees) with your
left hand.
When the rectangular position of the 2-3/8”(60mm) tick mark
changes from convex to concave (as shown), slowly extend the
locking latch, and then turn clockwise the inside of the locking latch
back to the rectangular position of 2-3/4”(70mm)scale.
1) Backset Determination
Backset is a distance from door edge to center of hole on door face.
2) Hole's Diameters
Using the marks as guide to drill holes
Φ3/8''(10mm)----Fasten Smart door lock
Φ2-1/8''(54mm)
3) Door Thickness
The door thickness within 1-1/2'' to 1-7/8'' (38mm-48mm) are all
suitable for the keypad deadbolt handle set.
< 05 >
In order to fasten door lock,
you need to drill an extra hole.
center to center
minimum
4”
2⁷/8”
³/8”
2¹/8”
A.Identify the center of plate: Close the door to lay the latch bolt
against the door frame.
Mark the the outline of the plate onto door jamb.
B.Drill 25mm deep at intersection of horizontal and vertical line of
plate.
3.Install Lock
1)Install Latch
Note:Need to keep this way up when inserting the latch.
< 06 >
A.Mark the outline of the faceplate ,then take out the latch.
C.Insert the latch into the door ,use 2 wood screws to secure latch.
B.Chisel 1mm-2mm deep along the outline to allow the faceplate
to be aligned with the door edge.
2)Install Plate
Insert the latch and ensure it is parallel to the door face.
Chisel 1mm-2mm deep along the plate outline to allow the plate to
be aligned with the door frame.
C.Insert the plastic lock groove and the strike plate into door jamb
tighten with wood screws.

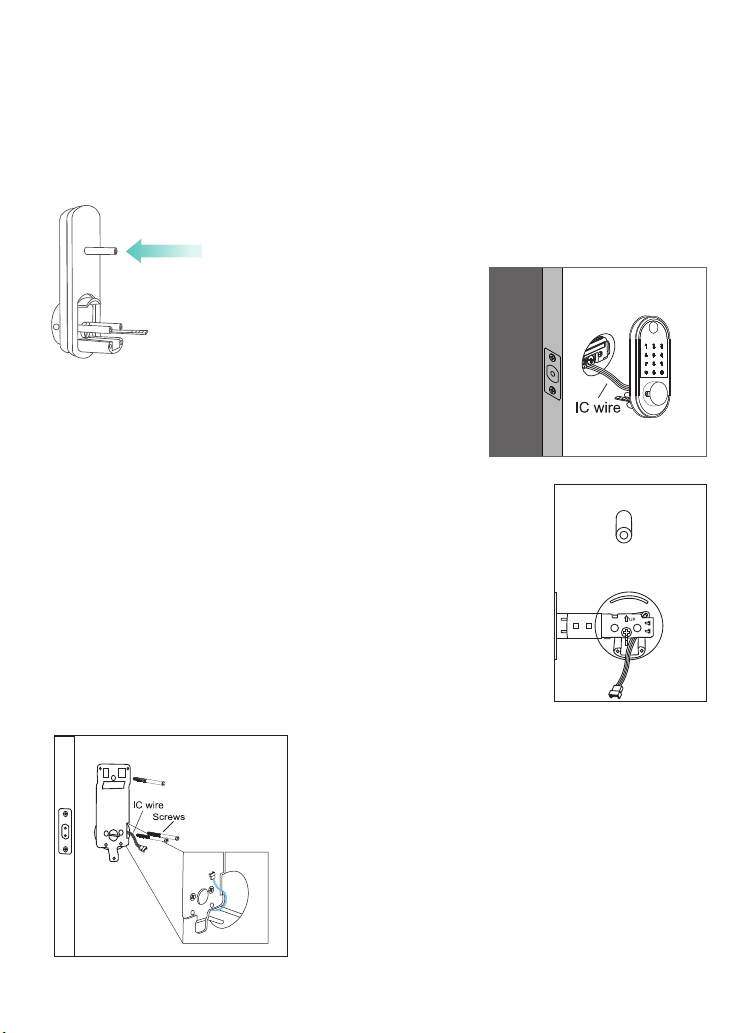

3)Install Keypad
< 07 >
PlaceICwire,latchlinkbaranddou-
ble-screwsthroughtheholesonthe
deadbolt,asthepictureontheright
shows.
Note:ICwireshouldbeplacedunderlatch.
Afterinstallingthefrontpad,rollthe
handlespindletotestifitcouldworkwith
deadboltornot.Ifcouldnot,takeoutthe
frontpadandrollthelatchlinkbararound
90degreeandtrytoinstallagainuntillit
couldworkwiththedeadbolt.
Pass the IC wire and the latch link bar to
mounting plate.
Use 1 flat screw to secure with the keypad
double-screw bolt.
Use 2 flat screw connect mounting plate
with latch.
Note: Please place the IC line as shown in
the figure to avoid the lock latch out of
control.
Install double-screw bolt into
keypad inner plate.
