Installation

Instructions

Tube and Latch Kit

Part No. 1687262

Note: Use these Instructions to supplement portions of

the Operator’s Manual for Twin Catcher 1694916. Keep

these Instructions for future reference.

INSTALLATION

1. Apply new ID Label (A, Figure 2) directly over exist-

ing product ID Label on channel assembly (B).

For 38” Regent Series Twin Catchers

Figure 1. Contents

Figure 2. Apply New ID Label

A. ID Label, 1695163, (New)

B. Channel Assembly

Kit Contents:

Ref. Part No. Qty. Description

1 1732735A 1 Seal Plate

2 1732799 1 Seal

3 1960404 6 Screw, Phillips,

#10-24 x 3/4

4 1933896 6 Nut, Nylock,

#10-24

5 1703769 1 Tube

6 1704603 1 Latch, Tube

7 1960185 1 Washer, Flat

8 1935048 1 Nut, 5/16-18

9 1960122 1 Capscrew,

5/16-18 x 3/4

Ref. Part No. Qty. Description

10 1919326 1 Lockwasher,

5/16

11 1731420 1 Label, ID,

1695163

12 1931338 5 Carriage Bolts,

5/16-18 x 1-3/4

13 1720452 2 Saddle Clamp

Ref. Part No. Qty. Description

14 1960686 6 Nut, Nyloc,

5/16-18

15 1733432A 1 Brace

16 1930591 1 Capscrew,

5-16 x 3/4

17 1733416A 1 Latch

This kit is for updating a 1694916 Twin Catcher to

a 1695163 Twin Catcher.

Before beginning any service work turn off the

PTO, set the parking brake, turn off the ignition,

and disconnect the spark plug wire(s).

WARNING

Installation Instructions Tube and Latch Kit

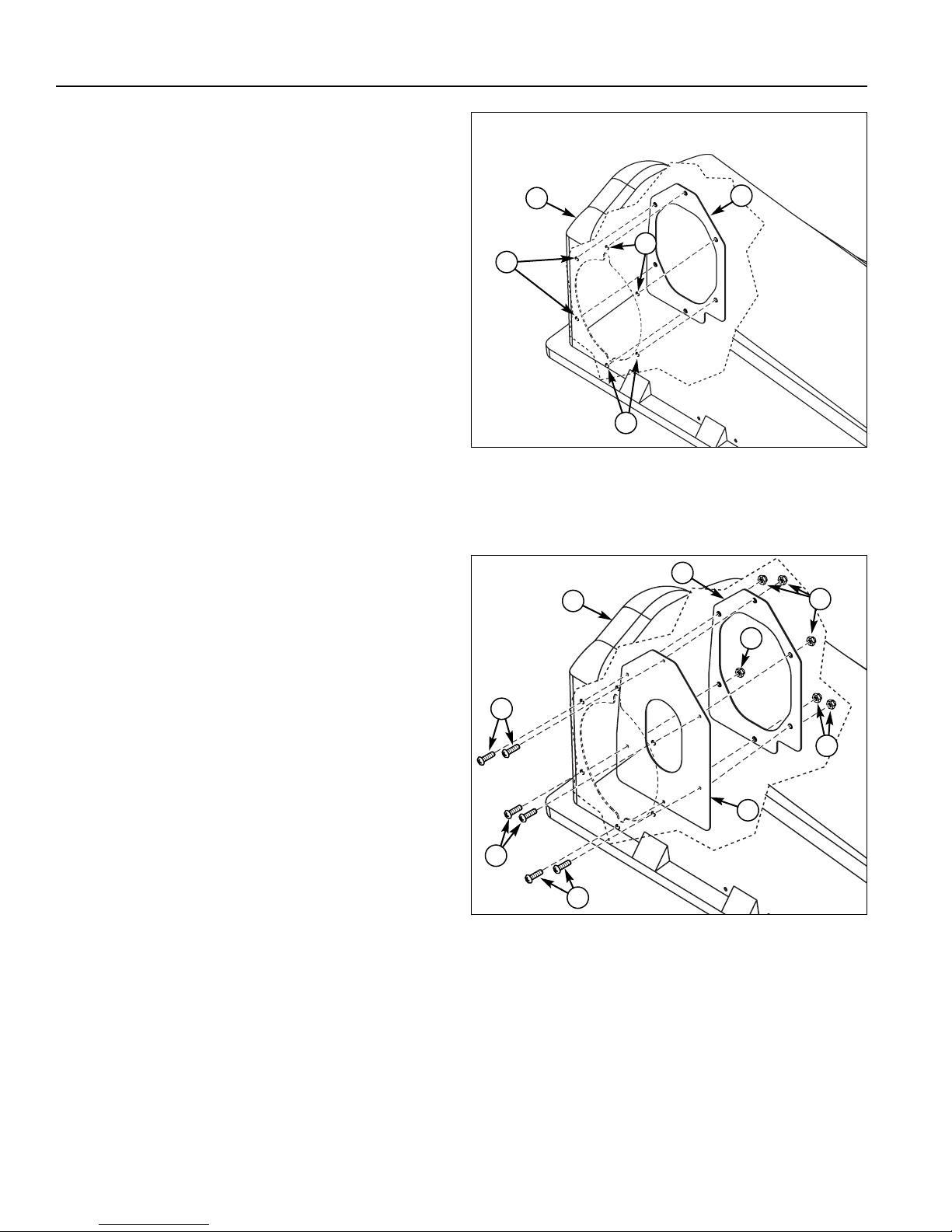

Figure 3. Drill Adapter Plate Holes

A. Cover Plate

B. Grass Catcher Cover

C. New13/64” Hole Locations

Figure 4. Install Seal and Cover Plate

A. Cover Plate

B. Grass Catcher Cover

C. Screw, Phillips, #10-24 x 3/4

D. Seal, Rubber

E. Locknuts, ESNA, #10-24

2. From the inside of grass catcher (B, Figure 3) cover

use cover plate (A) as a template to drill six 13/64”

holes (C) on grass catcher cover (B) as shown.

3. Inside grass catcher cover (B, Figure 4) place the

seal (D), and cover plate (A). Secure using #10-24 x

3/4 screws (C), and #10-24 locknuts (D).

Tube and Latch Kit Installation Instructions

2“

Drill 11/32”

Hole Here

4. Drill a new 11/32 hole (A, Figure 5) 2” from the exist-

ing hole (B) in boot (C) as shown.

5. Secure the puck (B, Figure 6) to boot (A) using 5/16-

18 x 3/4 capscrew (C) and 5/16-18 locknut (D).

6. Remove and discard the latch (B, Figure 7) from the

cover assembly (A). Remove and retain #10-24 x 5/8

screws (D) and #10-24 locknuts (C).

7. Install the new latch (B, Figure 8) to the cover assem-

bly (A) securing with Existing #10-24 x 5/8 screws (D)

and #10-24 locknuts (C) as shown.

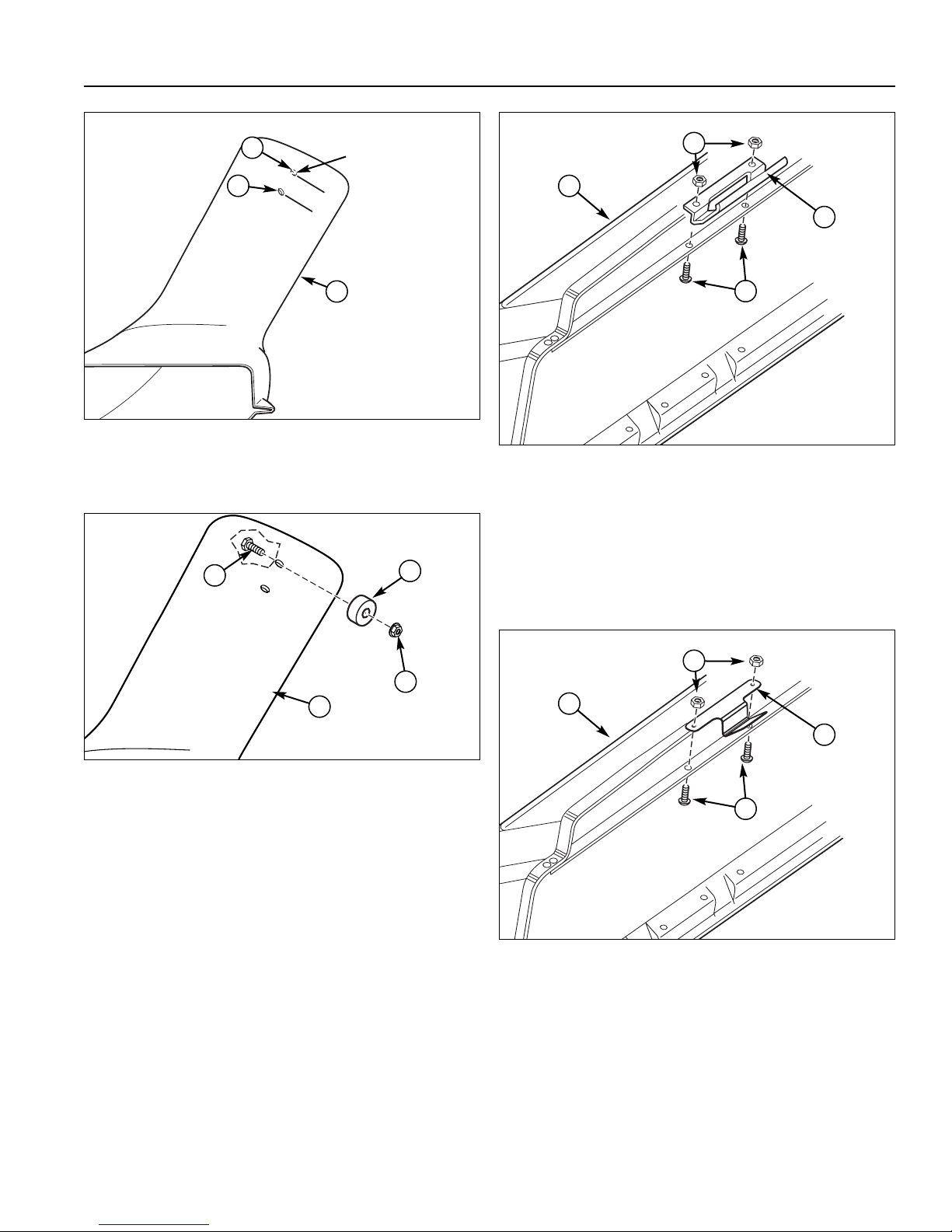

Figure 5. Drill Hole In Boot

A. New 11/32” Hole

B. Existing Hole

C. Boot

Figure 6. Install Puck to Boot

A. Boot

B. Puck, Metal

C. Capscrew, Thin Head, 5/16-18 x 3/4

D. Locknuts 5/16-18

Figure 7. Remove Latch

A. Cover Assembly

B. Latch

C. Locknuts, Nylock, #10-24

D. Screws, #10-24 x 5/8

Figure 8. Install Latch

A. Cover Assembly

B. Latch (New)

C. Locknuts, ESNA, #10-24 (Existing)

D. Screws, #10-24 x 5/8 (Existing)

Installation Instructions Tube and Latch Kit

8. Install the “U” tube (A, Figure 9) and “L” channel (F)

to channel assembly (B) securing with 5/16-18 x 3/4

carriage bolts (C) and 5/16-24 nuts (E).

9. Using the “L” channel as a guide drill two 11/32 holes

(G) in “U” tube (A) as shown. Install 5/16-18 x 1-3/4

carriage bolts (C) through new holes (G) and secure

with saddle clamps (F) and 5/16-18 locknuts (D) and

5/16-18 nuts (E).

10. Install 5/16-18 x 3/4 capscrew (H) and 5/16-18 lock-

nut (D) as shown.

Connect Tube to Cover and Boot

1. Slide discharge tube (A, Figure 10) into seal (B). It

may be necessary to lengthen several slits (C) in

order for tube (A) to fit into seal (B)

2. Install boot according to Operator’s Manual.

Figure 9. Install “U” Tube

A. “U” Tube

B. Channel Assembly

C. Carriage Bolts, 5/16-18 X 1-3/4

D. Nuts, Nyloc, 5/16-18

E. “L” Channel

F. Saddle Brackets

G. New 11/32 Holes

H. Capscrew, 5/16-18 x 3/4

Figure 11. Install Discharge Tube to Boot

A. Boot

B. Discharge Tube

C. Metal Puck

D. Wire Form

Figure 10. Install Tube in Cover

A. Tube

B. Seal

C. Slits

Form No. 1733418-01

Rev. 5/2006

TP 200-4298-01-SK-SMA

MANUFACTURING, INC.

500 N Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

3. Attach the discharge tube (B, Figure 11) to boot (A)

and secure the tube by moving wire form (D) down

over metal puck (C).

4. Reverse connection to remove discharge tube.
