XNET Network Dome Camera User’s Guide

XNET Network Dome Camera

User’s Guide

Ver. 1.0 (070918)

1of 44

XNET Network Dome Camera User’s Guide

This product is designed for indoor use only. When using this camera at outdoors or in an

environment that exceeds the limited range, you must separately use a water-resistant case.

Be careful not to cause any physical damage by dropping or throwing the unit. Especially keep

the device out of reach from children.

Do not disassemble this camera. You will be excluded from After Service when disassembled.

Use only the power adapter provided with this product.

If you would like to use this camera for security, monitoring, please check the legal

regulations within the country.

Directions

zConsult the dealer or an experienced radio/TV technician for help.

zConnect the equipment into and outlet on a circuit different from that to which

the receiver is connected

zReorient or relocate the receiving antenna.

zIncrease the separation between the equipment and receiver.

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generate, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Note

Any changes or modifications in construction of this device which are not explicitly

approved by the party responsible for compliance could void the user’s authority to

operate the equipment.

This appliance and its antenna must not be co-located or operating in conjunction with

any other antenna or transmitter. A minimum separation distance of 20 cm must be

maintained between the antenna and the person for this appliance to satisfy the RF

exposure requirements.

Caution

2of 44

XNET Network Dome Camera User’s Guide

Table of Contents

1. Introduction............................................................................................................................................ 4

1.1. Overview.......................................................................................................................... 4

1.2. XNET Features................................................................................................................. 4

1.3. XNET Applications........................................................................................................... 5

2. Product Description ...............................................................................................................................5

2.1. Contents........................................................................................................................... 5

2.2. Preview............................................................................................................................. 5

2.3. Physical description........................................................................................................ 6

2.4. PC Requirements .......................................................................................................... 10

2.5. Quick Installation Guide............................................................................................... 10

3. Connecting XNET to Network............................................................................................................. 13

3.1. Connecting to LAN........................................................................................................13

3.2. Connecting to an xDSL/Cable Modem .......................................................................14

4. IP-Installer............................................................................................................................................ 15

4.1. Main window of IP-Installer.........................................................................................15

5. Configuring XNET in Administrative Mode ........................................................................................ 15

5.1. Log On............................................................................................................................ 15

5.2. Basic Setup....................................................................................................................18

5.3. Network Configuration.................................................................................................20

5.4. User Admin & Time Setup...........................................................................................23

5.5. Sensor & Capture Setup..............................................................................................26

5.6. Alarm Device Setup......................................................................................................28

5.7. Motion Region Setup....................................................................................................29

5.8. PTZ Setup(This is not related with XNET Network Dome Camera)....................... 31

5.9. Encryption Set up......................................................................................................... 33

5.10. Upgrade & Reset.........................................................................................................35

5.11. Status Report..............................................................................................................37

6. Tips for Using XNET............................................................................................................................. 38

6.1. Sensor-IN and Relay-OUT ...........................................................................................38

6.2. Trouble Shooting........................................................................................................... 41

6.3. Web Viewer....................................................................................................................42

6.4. How to Upgrade the XNET/XNET-Wireless................................................................44

3of 44

XNET Network Dome Camera User’s Guide

1. Introduction

1.1. Overview

The XNET is a state-of-the-art network camera which transmits synchronized video and audio

data in real time at D1 resolution and at full frame rates. Depending on which model you

purchased the XNET offered with a standard Ethernet interface.

Using MPEG4 CODEC technology, the XNET delivers high quality video via highly compressed

data streams. Using TCP/IP based connections from remote location, the XNET may be

monitored and/or controlled via the internet, or intranet. Unlike analog CCTV equipment, or

DVRs, the XNET is easy to install. Often one can often take advantage of existing network

infrastructure saving valuable installation labor and equipment costs. Based on CNBTEC’s

Embedded Software Solution (Embedded Web Server, Embedded Streaming Server & Network

Protocol), the XNET delivers unprecedented performance and stability. Weather your application

is basic, or scaling to the enterprise, CNBTEC Network Video Recording Applications (XNET-NVR)

offer highly reliable methods of managing your security video.

1.2. XNET Features

y1 channel synchronized real time Video/Full Duplex Audio streaming

MPEG-4 video, ADPCM audio.

yBi-directional audio communication

Real time audio communication between XNET and Client PC(s)

yThe viewer assisted recording and playback functions.

y1 Alarm sensor input/1 relay output

yMotion detection

-Up to 3 independent motion detection zones, featuring arbitrary shape configuration

-E-mail, or FTP Full Motion Video Clips on motion detection alarm

-Optional Motion Detection Only Based Recording

yResolution

-NTSC: 720x480, 352x240, 176x144.

-PAL/SECAM: 720x576, 352x288, 176x144

yRS-485 interface for Pan/Tilt device connection

yRemote Administration and Control

-Entire operational parameter set up, Software upgrade

yProprietary PoE(Power over Ethernet) for installation convenience.

4of 44

XNET Network Dome Camera User’s Guide

1.3. XNET Applications

ySecurity surveillance (Buildings, Stores, Manufacturing facilities, Parking lots, Banks,

Government facilities, Military, Etc.)

yReal-time internet broadcasting

yRemote monitoring (Hospitals, Kindergartens, Traffic, Public areas, Etc.)

yTeleconference (Bi-directional audio conference)

yDistance (Remote) Learning/Education

yWeather and environmental observation

2. Product Description

2.1. Contents

Each Camera ships with the following equipment:

Components Description Remarks

XNET Network Dome Camera Unit

Power adapter Input: 100~250V 50-60Hz

Output: DC 12V, 3.33A Standard Power

AC power cable AC 250V, 10A~16A

RCA Video cable Cable for analog video output from

camera module inside of network

camera

Use your hand held

video monitor for

easy camera field

of view setup.

CD-ROM Software & User’s Guide

2.2. Preview

XNET IP-Installer XNET-NVR

MPEG-4 Network Dome

Camera

PC software to assign an IP

address to the XNET

PC software to view and record

the A/V streaming data

transmitted from the XNET.

There are two editions available

(NVR/XNVR).

5of 44

XNET Network Dome Camera User’s Guide

2.3. Physical description

2.3.1. Configuration DIP Switches

Depending on which model you purchased, the XNET network dome camera comes with one of

two optional modules (fixed focal type or vari-focal type).

Figure 2-1 illustrates exterior view and internal parts. Accommodating various camera site

requirements, the camera module can be configured to enable/disable various video features.

a. Reset b. Control knobs for vari-focal lens

d. Camera control Module for

varifocal lens

Zoom Control

Focus Control

FL/AGC/BLC/

DSS/ZOOM/D&N

Switch

Video out

DC Level

C. Camera control Module for

fixed focal lens

Reset

Figure 2-1. External and inner views of XNET

yBLC (Back Light Compensation)

Under severe bright “back light” conditions, the target object will show dark, which hides

object detail. Set this switch to “ON” for compensation for this phenomenon. The target

object should appear with more detail after enabling this setting.

yAGC (Automatic Gain Control)

Set this switch to “ON” to enable this automatic video gain adjustment. Under

severe/excessive illumination conditions, the camera video may saturate. Enabling this

feature will automatically lower the video amplifier gain, improving video quality. This

setting also compensates for low light conditions. If the camera is subject to under

exposure, or overly dark illumination conditions, the camera will automatically increase

video amplifier gain, improving video quality.

6of 44

XNET Network Dome Camera User’s Guide

yFL or F/L (Fickerless)

Set this switch to “ON” to prevent flicker from the following AC Power conditions:

-Using an NTSC camera in a region with 50 Hz AC power, or a PAL

camera in a region with 60 Hz AC power may cause a visible “video

flicker.”

This is outside of normal power conditions for the two aforementioned video standards.

Thus the improper 10 Hz differentiation is the cause of the “flicker.”

yD/N (Day & Night) - Available only for Day & Night camera module

Set this switch to “ON” to enable the camera’s day & night feature set. Under very low

light conditions, the camera automatically switches to “Night Mode/Black and White Mode,”

delivering daylight quality Black & White video.

yDSS (Digital Slow Shutter) - Available only for Day & Night camera module

Turning this switch “ON”, tells the camera to sacrifice the video refresh rate in order to

compensate for ultra low light conditions, improving the brightness and sharpness of the

video.

yZOOM (Digital Zoom) - Available only for Day & Night camera module

Set switch to “ON” to enable digital zoom.

yDC Level - Available only for Day & Night camera module

For adjusting output video DC levels.

yAnalog Video Output

Connect a handheld monitor to assist in adjust the viewing angle and focus right at the

camera.

A standard RCA video cable adapter is included with network camera.

To Analog Video Out of network camera To Analog Monitor

Figure 2-2. Analog Video Cable

7of 44

XNET Network Dome Camera User’s Guide

yReset

There is a factory default switch provided for returning the network camera to factory

default state. Press the switch using tools with sharp tip for a few seconds while power is

applied.

2.3.2. Bottom view and Cable Harness

100BaseT(RJ45)

Sensor In/Relay Out

Line Out

DC Power

MIC/Line In

Figure 2-3. XNET Cable

yMIC /LINE In

Connect external audio source or microphones here.

Use a standard stereo earphone jack for the connections.

Audio In

Ground

Not used

Audio In

Ground

Not used

Audio out

Ground

Not used

Audio out

Ground

Not used

Figure 2-4. Pin assignment of the plug for MIC/LINE In (left) and

LINE OUT (right)

yLine Out

Connect to speakers with built in amplifier, or PA system. Audio from the remote site is

output through Line out in bi-directional audio mode. Use a standard stereo jack for the

connection.

8of 44

XNET Network Dome Camera User’s Guide

y100BaseT (RJ45)

100Mbps Ethernet connector (RJ-45) with proprietary PoE.

-Link LED: Continuous yellow light means that network cable is plugged in. It will

flicker when there is traffic.

-Status LED: Green color indicates that the camera is in normal operation mode,

while RED color indicates that the camera is in abnormal condition.

yDC Power

Power input of XNET. DC 12V

<Warning>: Do not apply power through the power input jack on the back of the

camera when power is supplied through a LAN cable using proprietary PoE.

This will damage the camera! CNBTEC assumes no responsibility for the damages

caused by applying power using both connectors.

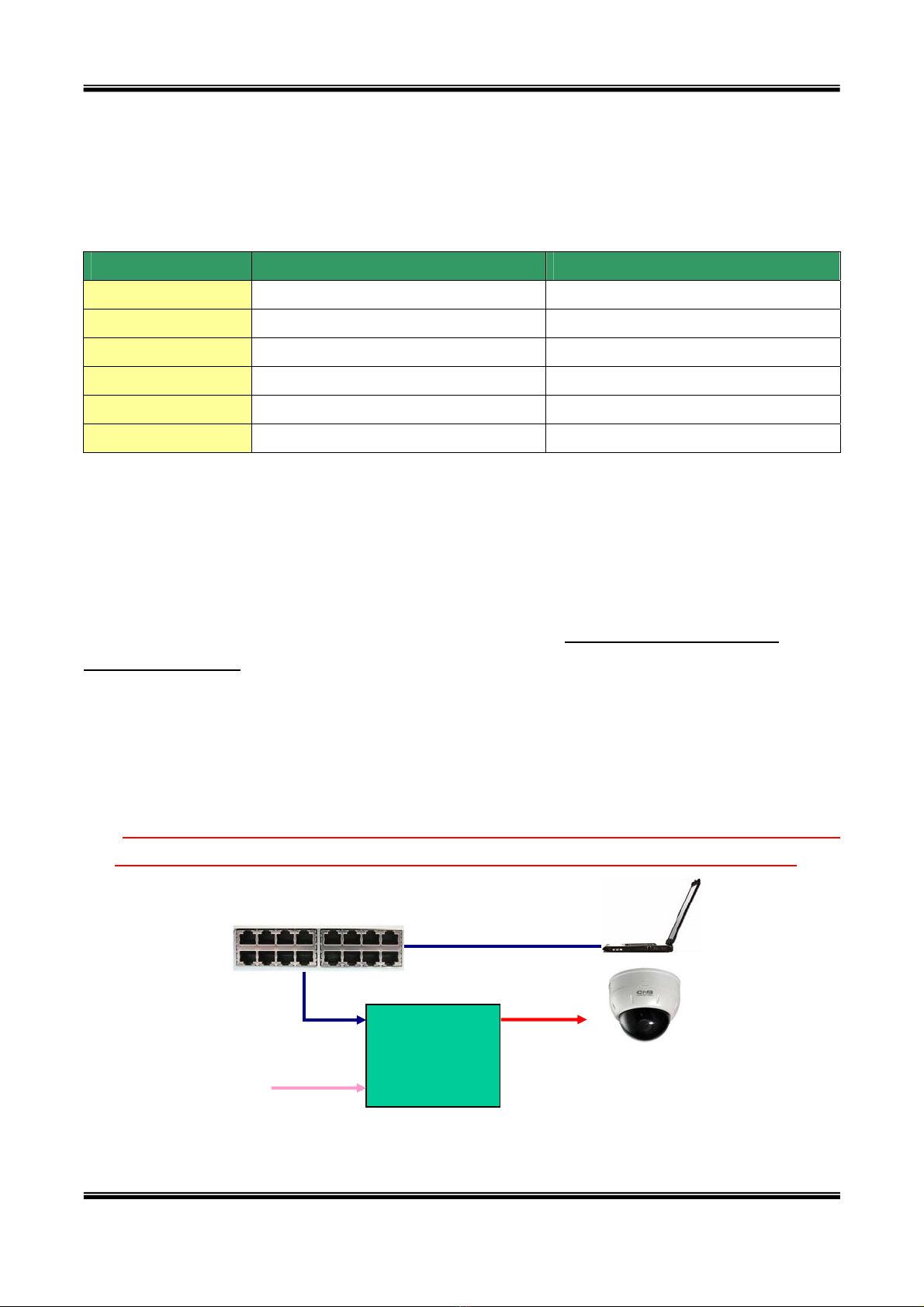

ySensor In/Relay Out

Used for connecting sensor, and alarm devices to XNET. Note that the each signal is

differentiated by color of cable.

Cable color Description Misc.

Red Sensor In (+) NC/NO selectable in admin mode.

Black Sensor In (-) NC/NO selectable in admin mode.

Orange Relay out Normal close

Brown Relay out Common

Yellow Relay out Normal open

Sensor Input : Connect external alarm sensors such as the infrared sensors, heat

sensor, magnetic sensors, etc. NC/NO selectable in the admin page.

Relay Output : It is used for connecting external alarm generators such as sirens,

flashing light, etc. When activated, relay output configures a closed circuit.

Please refer to Section 6.1 for more detailed description on the Sensor In and

Relay Out connections.

9of 44

XNET Network Dome Camera User’s Guide

2.4. PC Requirements

AV streaming data received from XNET can be decoded or stored in a PC running the XNET-

NVR program, which is a live monitoring and digital video recording PC compatible application.

Minimum PC requirements:

Minimum Recommended

CPU Pentium III 700 Pentium IV 1.2G above

Main Memory 128 MB 256MB above

Operating system*Windows 2000 or XP Windows XP

Web browser Internet Explorer 6.0 Internet Explorer 6.0

Resolution 1,024 X 768 Better than 1,024 X 768

Network 10 Base-T Ethernet 100 Base-T Ethernet

* Operating Systems supported : Windows 2000 Professional

Windows XP Professional / Windows XP Home Edition

2.5. Quick Installation Guide

This is a quick reference for experienced installers. For more detailed information please refer

to the installation manual and or the CNBTEC home page (http://www.cnbtec.com). The

Download Center menu provides updates for Software, Firmware, and Manuals.

Registration is required.

① Connect XNET to the LAN using one of the following methods

1) If you have PoE(Power Over Ethernet) Adaptor, connect the network camera and PC as

illustrated in Figure 2-5. The power and network connection are made using a single LAN

cable.

Note: CNBTEC cameras use proprietary PoE technology. Using a third party PoE

product with CNBTEC cameras will damage the camera and void the warranty.

LAN Hub

Figure 2-5. Connecting Network camera and PC using PoE Adaptor

100BaseT

PoE Adaptor XNET

LAN

AC In

Cam

10 of 44

Inhaltsverzeichnis

Andere SNB Sicherheitskamera Handbücher

SNB

SNB TBL24R-x10SW Bedienerhandbuch

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
