Owner’s Manual

1 | Page SnowBear® Tailgate Spreader (TGS-325)

Revision 2

Owner’s Manual

2 | Page SnowBear® Tailgate Spreader (TGS-325)

Revision 2

Table of Contents

General Safety Precautions ................................................................................................................... 3

Personal Safety ...................................................................................................................................... 4

Fire and Explosion ................................................................................................................................. 4

Ventilation .............................................................................................................................................. 4

Cell Phones ............................................................................................................................................ 4

Spreader Parts List ................................................................................................................................ 5

Assembly tool list ................................................................................................................................... 6

SnowBear® Wireless Remote System .................................................................................................... 7

Spreader Installation .............................................................................................................................. 8

OVERVIEW: ................................................................................................................................. 8

INSTALLATION: ........................................................................................................................... 8

General Maintenance ........................................................................................................................... 13

Tailgate Spreader Troubleshooting ...................................................................................................... 14

SnowBear ® Warranty Information ....................................................................................................... 15

Owner’s Manual

3 | Page SnowBear® Tailgate Spreader (TGS-325)

Revision 2

General Safety Precautions

READ THE OWNER’S MANUAL CAREFULLY. Know your tailgate spreader. Learn its

applications and limitations. Improper installation and operation could cause personal injury

and/or equipment and property damage.

KEEP AWAY FROM CHILDREN AND PETS. Be sure bystanders, especially children and

pets are kept a safe distance from the tailgate spreader operating area.

DO NOT ABUSE THE SPREADER. Follow the guidelines set forth in this manual. Do not

force the tailgate spreader to do a job it was not designed for.

MAINTAIN THE SPREADER. Keep the spreader clean when the unit is not in use to avoid

corrosion and/or seizing of parts. Before servicing/working on the spreader, disconnect

power cord, secure all loose-fitting clothing, unrestrained long hair and wait for auger and

spinner to stop. Do not operate a spreader in need of maintenance.

INSPECT THE SPREADER BEFORE EACH USE. Check the alignment of all moving

parts, and check for any loose bolts that may affect the operation of the spreader system.

Before operating spreader, reassemble any parts or hardware removed for cleaning or

adjusting.

NEVER SIT IN, CLIMB OR RIDE ON THE SPREADER. Serious injury could occur.

ONLY USE SNOWBEAR® CERTIFIED PARTS AND ACCESSORIES. Consult the owner’s

manual for the recommended accessories and/or replacement parts. The use of improper

accessories and/or replacement parts may cause hazards and void applicable warranties.

ALWAYS VERIFY THAT THE HITCH PIN IS PROPERLY INSTALLED BEFORE MOVING.

If the spreader is incorrectly attached to the vehicle's receiver, the spreader could fall off

from the vehicle potentially harming bystanders and damaging your SnowBear® product, or

vehicle.

NEVER OVERLOAD YOUR VEHICLE OR SPREADER. Overloading could result in an

accident or damage. Do not exceed GVWR or GAWR ratings as found on the driver-side

door side or corner post of the vehicle. See Loading Section to determine maximum

volumes of spreading material.

DO NOT LEAVE UNUSED MATERIAL IN SPREADER HOPPER. Material can freeze

and/or solidify, causing unit to not work properly. Empty and clean after each use whenever

possible.

Owner’s Manual

4 | Page SnowBear® Tailgate Spreader (TGS-325)

Revision 2

Personal Safety

Remove ignition key and put the vehicle in park or in gear to prevent others from starting

the vehicle during installation or service.

Wear only snug-fitting clothing while working on your vehicle or spreader. Do not wear

dangling jewelry or neckties and secure long hair.

Wear safety glasses to protect your eyes from dust, dirt & debris from the spreader,

especially when in operation and close to spreader. Material is spread at significant velocity.

Fire and Explosion

GASOLINE IS HIGHLY FLAMMABLE, VAPOURS ARE EXPLOSIVE. Never smoke while

working on vehicle. Keep all open flames and sources of ignition away from gasoline tank,

lines and containers. Wipe up any spilled gasoline immediately. Do not use gasoline to

clean parts. Store gasoline only in approved containers away from sources of heat or flame.

Ventilation

VEHICLE EXHAUST CONTAINS LETHAL FUMES. Breathing these fumes, even in low

concentrations, can cause illness or death. Never operate a vehicle or leave engine running

while performing spreader maintenance in an enclosed area without venting the exhaust to

the outside.

Cell Phones

A driver's first responsibility is the safe operation of the vehicle. The most important thing

you can do to prevent a crash is to avoid distractions and pay attention to the road. Wait

until it is safe to operate Mobile Communication Devices such as cell phones, text

messaging devices, pagers or two-way radios (ie. when vehicle is parked).

Owner’s Manual

5 | Page SnowBear® Tailgate Spreader (TGS-325)

Revision 2

Spreader Parts List

Before you begin, please verify that all of the parts below have been included with your spreader.

Your spreader is packaged nearly complete in one box.

ITEM #1

PT # 324-223

TAILGATE SPREADER ASSEMBLY

(WITH 2 PRE-PAIRED WIRELESS

REMOTE CONTROLS)

(QTY 1)

ITEM #2

PT # 298-178 2" RECEIVER ASSEMBLY (QTY 1)

ITEM #3

PT # 250-761

5/8-11 X 3.50” HEX HEAD CAP

SCREW, 18-8 STAINLESS

(QTY 2)

ITEM #4

PT # 253-255

5/8-11 NYLOCK NUT, 18-8

STAINLESS (QTY 2)

ITEM #5

PT # 254-018

5/8” SAE FLAT WASHER, 18-8

STAINLESS (QTY 4)

ITEM #6

PT # 263-320

Ø5/8"x4.0" HITCH PIN w/ R-CLIP

(Not Shown) (QTY 1)

ITEM #7

PT # 324-239

RIGID PLASTIC LID ASSY KIT

(STRAP AND BRKTS NOT SHOWN)

(QTY 1)

Owner’s Manual

6 | Page SnowBear® Tailgate Spreader (TGS-325)

Revision 2

Assembly tool list

Ratcheting Wrench

15/16" Socket (For Height Adjustment),

1/2" Socket (For Deflector Adjustment)

15/16"Open Ended Wrench (For Height Adjustment)

9/64" Long Shank Allen Key wrench

(For Main Shaft Adjustment (if required))

| Pa

The Snow

follow this i

When the

'ON' button

must be pr

pressed.

The spread

spreader u

perform an

specific re

Spreade

Indic

Key Fob

ear

Tailgat

struction co

ehicle has b

on the sup

ssed to turn

er has been

it. Both sup

pairing with

otes togeth

'ON' toggle

tor Light

Ring Hasp

Spreader

ld result in t

en turned o

lied key fob

the spreade

upplied with

lied key fob

the system.

r with the pr

wBea

irele

hould only

e premature

n, the engin

ust be pre

r off. The In

two remote

are already

are has be

perly paired

® Tail

ss R

e operated

failure of yo

is running,

sed to turn

icator Light

ey fobs, and

paired speci

n taken whe

receiver.

ate S

mot

hen the ve

r vehicles b

nd the hea

preader unit

ill flash eac

one remote

ically to the r

packaging

reade

Sys

icle is runni

ttery.

lights turned

on. The Re

time one o

eceiver, fact

eceiver, so t

he spreader

wner’s

(TGS

tem

g. Failure

on, the Gre

d 'OFF' butt

the buttons

ry installed i

ere is no ne

unit to keep t

preader 'O

Manual

-325)

vision 2

n the

d to

F' toggle

Owner’s Manual

8 | Page SnowBear® Tailgate Spreader (TGS-325)

Revision 2

Spreader Installation

OVERVIEW:

The SnowBear® Tailgate Spreader uses a standard 2" trailer receiver on your vehicle, and standard 4-

pin trailer connector for the electrical harness. Each of these must be already installed on your vehicle

to use the spreader.

INSTALLATION:

The SnowBear® Tailgate Spreader comes factory pre-assembled, except for the 2" Receiver Assembly and

associated mounting hardware (all included).

To install the 2" Receiver Assembly to the Spreader Assembly, select the optimal height for your application.

The Spreader has several vertical mounting height positions that will move the Spreader assembly up or down

2.5" per position. This optimal height will vary with the height of the vehicle's hitch, and the desired

maximum/minimum material spread desired for the application. The higher the Spreader assembly, the

greater the material spread diameter.

Testing was performed at approximately 1 1/2' (18") from the ground to spinner plate of the Spreader. This

yielded an approximate 25-30' spread diameter.

VERTICAL HEIGHT

POSITIONS (2

5"/EA)

2” RECEIVER ASSEMBLY

| Pa

INSTALL

AND WAS

ASSEMBL

NUT ON V

Once you

Receiver A

there is no

The spread

Hold the s

receiver as

2” from an

assembly’s

supplied r-

INST

REC

DEP

HITCH P

/8-11x3.50” H

ER ON REC

SIDE. WAS

ERTICAL PO

desired hei

sembly bra

movement o

er is ready t

reader asse

embly to all

ther. When t

holes aligns

lip in the hit

LL SPREAD

IVER INTO V

IVER. ALIGN

H ADJUSTM

R-CLIP

X BOLT

IVER

ER AND

T SIDE.

ht is determi

ket side, and

the spreade

install into y

bly up to th

w for horizo

e spreader

with the hitc

h pin hole to

R ASSEMBL

HICLE'S 2” H

ONE HORIZ

NT HOLE.

wBea

ed, install t

install wash

assembly o

ur vehicle's

2” hitch rec

tal depth adj

ssembly is s

receiver, an

secure the a

2”

ITCH

NTAL

® Tail

e two 5/8-11

r and 5/8-11

the receive

hitch receive

iver, and sli

ustment in th

lid into the hi

d install the

sembly.

ate S

3.50” hex b

lock nut on

assembly.

e in. There a

e vehicle’s hi

ch receiver,

upplied hitch

ONCE DE

INSTALL

R-CLIP T

reade

lts and wash

ertical post

re three hole

tch receiver.

ook to see

pin. Insert fu

IRED HOLE

UPPLIED HI

SECURE AS

wner’s

(TGS

ers on the 2”

ide. Tighten

in the spre

Each hole is

hen one of t

lly, and insta

S ALIGNED,

CH PIN AND

SEMBLY.

Manual

-325)

vision 2

ntil

der’s 2”

spaced

l the

Owner’s Manual

10 | Page SnowBear® Tailgate Spreader (TGS-325)

Revision 2

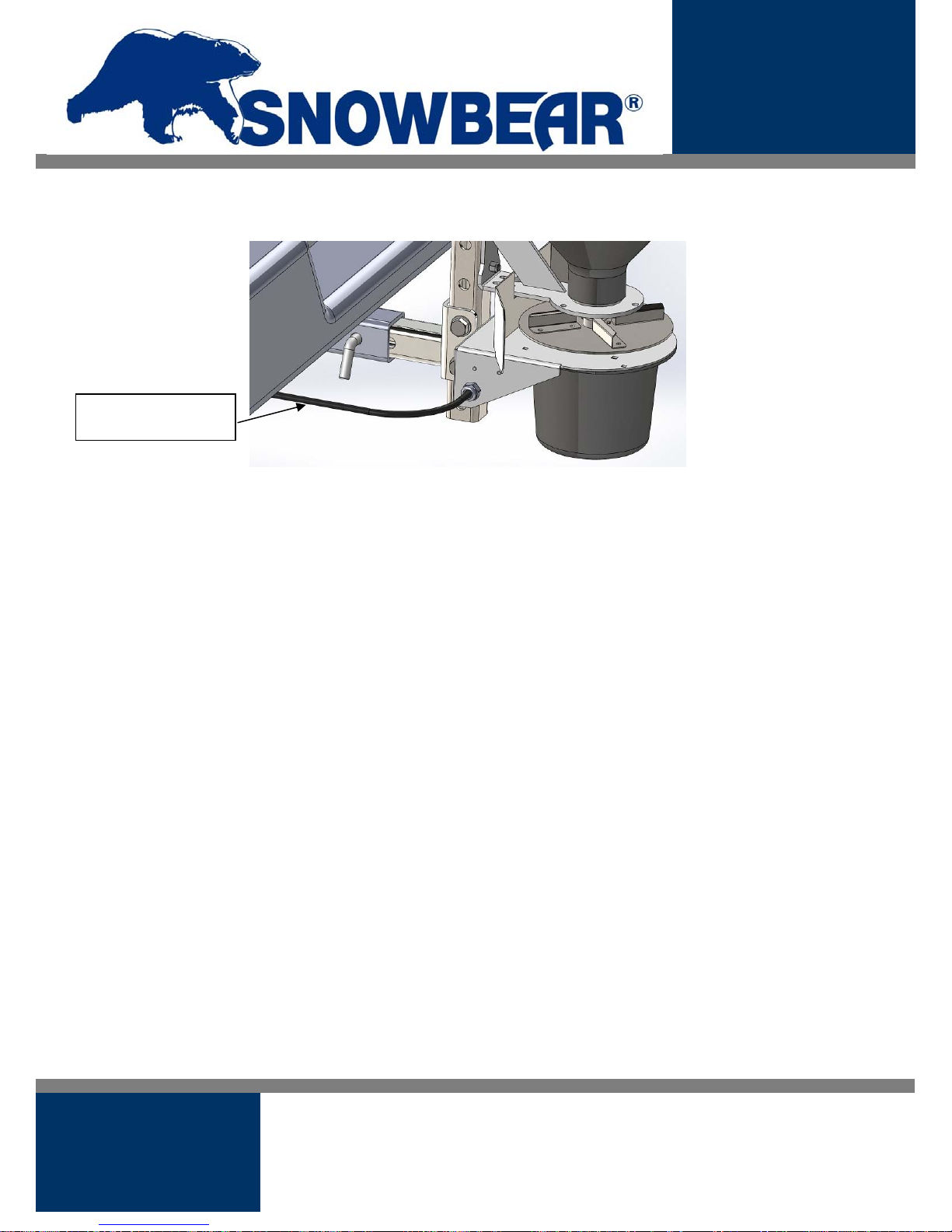

The 4-pin connector can now be plugged into the vehicle's 4-pin socket (if vehicle has a 7 or 9-pin connector,

then a suitable adaptor needs to be purchased). Spreader is now ready to operate.

The SnowBear® Tailgate Spreader is now ready to fill with material and be put to use.

4-PIN CONNECTOR

AND HARNESS
