SOCUS 140 GPS tracker
User manual
(Version 1.5)
In order to better understand this product, please read the instruction
manual carefully before installation.
1. Product feature
GPS+IRNSS+LBS+AGPS
Real time tracking
AIS 140 Compliant
SOS emergency Call
ACC detection
Remote power control
Remote listen in
RS232 RS485
Supports 3 IPs
2. Characteristics
Mechanical
Size
98mm (L) x 56mm (W) x 18mm (H)
Weight
80±5g
Interface
RS232 and RS485 interface
Data transmission
Packet data GPRS and SMS
Positioning method
GPS
Storage
8MB FLASH, up to 60000 GPS data storage
Power
Working Voltage
9-36VDC
Working Current
Max.: <200mA@13.8/27.6VDC
Average: <100mA@12V DC
Sleep mode: <10mA@12/24VDC
GPS and IRNSS
Receiver type:
Module：TRAQ L110
GNSS and IRNSS：
GPS L1 1575.42MHz C/A Code
BeiDou2 B1 1561.098MHz C/A Code
Capture sensitivity: -145dBm
Tracking sensitivity: -162dBm
Accuracy: 5m CEP
Time to first fix:
Cold start: <36.2 s @-130dBm (typ.)
Warm Start<31.4s
Hot start: <1s@-130dBm (typ.)
Cellular
Frequency
Module:FIBCOM G500
GSM/GPRS 850/900/1800/1900 MHz
Working voltage: 3.3 –4.5 V (recommend 4.0V )
Transmitted power:
2 W，850/900 MHz
1 W，1800/1900 MHz
Chipset
STM32F070CB
Battery
Built in 850mAH battery,3.6V ，Lithium polymer
battery, 8 hours working
Anti-200V power supply reverse connection; main
voltage detection
3-axis G-sensor
For vehicle motion and static status detection
LED Indication
GPS/Cellular/
Antenna
Cellular
Internal
GPS
Internal
Accessories
Environment
Working
Temperature
-20℃ ~ +70℃
Storage
Temperature
-40℃ ~ +85℃
Humidity
5%～95%（no fog）
3. Firmware Features
Emergency alert indication.
Health monitoring packets.
Login packets.
Normal Tracking packets.
Firmware upgrade over the air Available.
Configuration over the air (Both SMS and GPRS).
Frame Number for each recorded packet.
Safe immobilization.
Plug & play UART interface.
Smart Analog input filter for fuel solutions.
One UART communication.
GPRMC out through UART.
Maintenance server.
Support 3 IPs connect.
Message ID (Event ID) based detection mechanism for faster detection of
alerts.
NMR - Neighbouring 4 cell ID along with their LAC and signal strength, to i
dentify accurate network
Up to 60000 tracking records.
4. Products Overview
5. Package
GPS GreenLED
Solid on：GPS Position
Slow Blink: LBS Position
LED Off ：Unpositioned
GPRS Red LED
Slow Blink：GPRS Connected
Fast Blink：GPRS Unconnected
Solid on：Module Error
Backup Battery Switch
1) Standard package
GPS140 main unit(Built in Battery)
4 core power cable
Velcro
User Manual , Warranty card
2)Optional accessories
Speaker
Lock relay
SOS button
Fuel Sensor
Microphone
6. Device Installation
1. Please ask the professional people to install the equipment, any
damages by misuse will not be covered by the warranty.
2.Since the device has built in GPS and GSM antenna, please make sure
the revising side face is up and make sure not to be covered by metal.

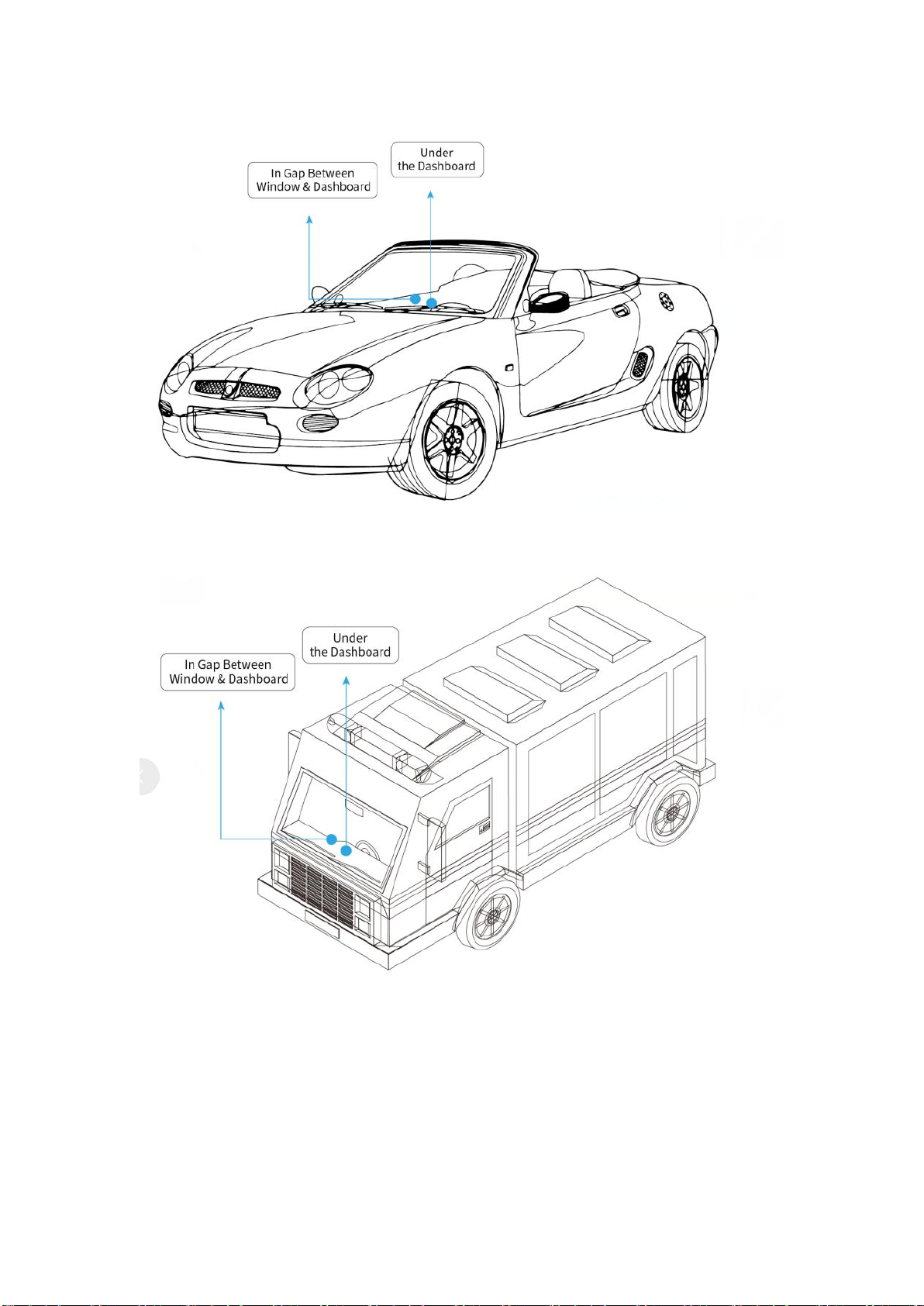

3.Recommand Installation place

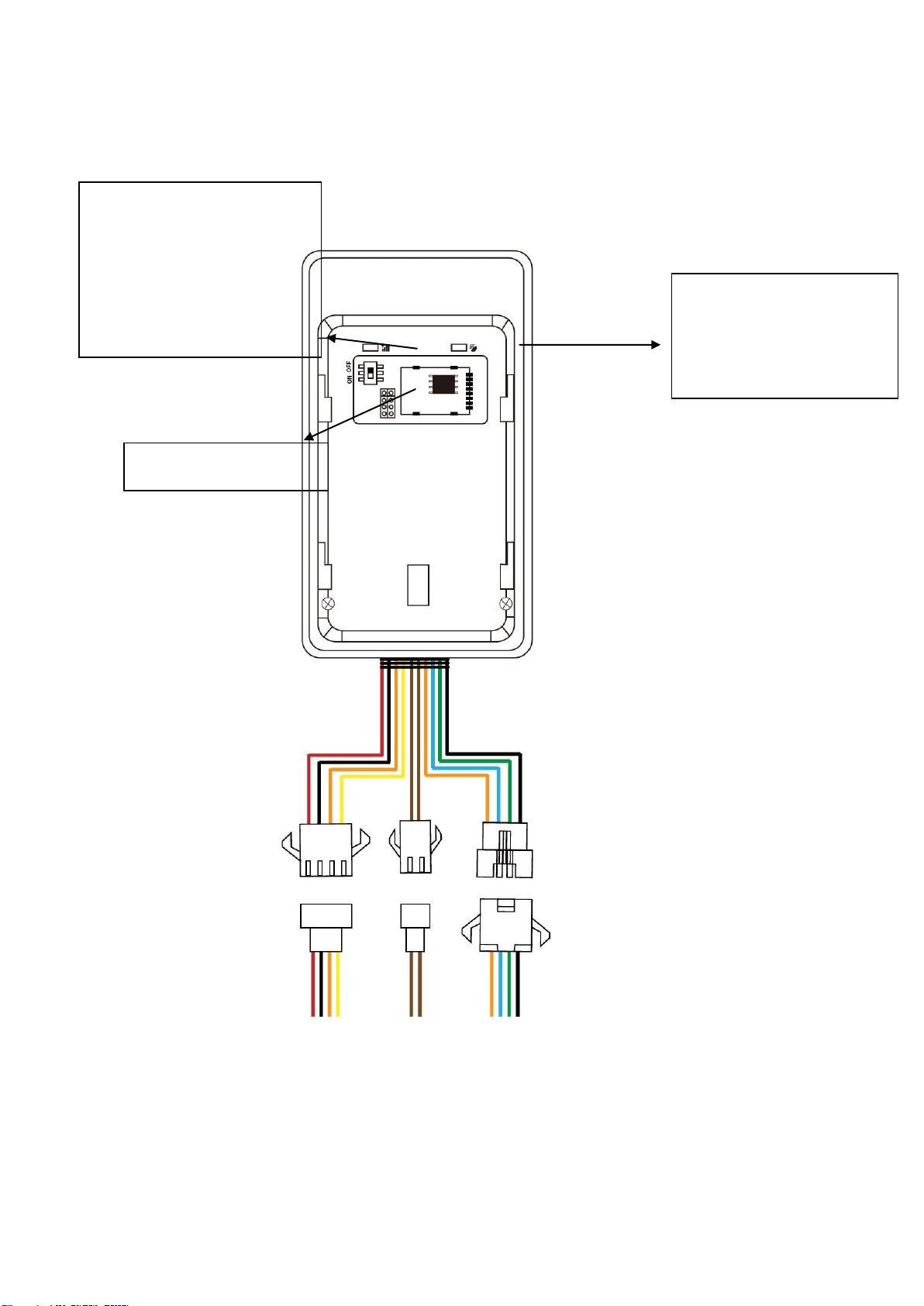

7. Device Wiring diagram
GPS GreenLED
Solid on：GPS Position
Slow Blink: LBS Position
LED Off ：Unpositioned
GPRS Red LED
Slow Blink：GPRS Connected
Fast Blink：GPRS Unconnected
Solid on：Module Error
Backup Battery Switch
Front Side
232 serial port
Black:GND
Green:RXD
Blue:TXD
Orange:DCOutput
Microphone
Power cable
Red: Power 9-36V
Black:GND
Orange：ACC
Yellow：Lock Output
White：power 12V/24V
