Roll Up Basic 28

WireFree RTS Li-ion

EN Roll Up Basic 28 WireFree RTS Li-Ion

1. PRIOR INFORMATION

1. 1. SPHERE OF APPLICATION

Roll Up 28 drives are designed to drive most types of interior roller and roman blinds.

The installer, a home motorisation or home automation professional, must ensure that once the driven product

is installed, it respects the current standards in the country of installation, notably standard EN 13120 relative to

interior blinds.

1. 2. LIABILITY

Before installing and using the drive, please read these instructions carefully. In addition to the instructions provided

in this guide, please also comply with the instructions set out in the enclosed Safety instructions document.

The drive must be installed by a home motorisation and automation professional, in accordance with Somfy’s

instructions and the applicable regulations in the country of installation.

Any operation of the drive outside the sphere of application described above is prohibited. Such operation

shall exclude Somfy from all liability and invalidate the Somfy warranty, as will any failure to comply with the

instructions given herein and in the enclosed Safety instructions document.

Aer installing the drive, the installer must inform his customers of the operating and maintenance conditions

for the drive and must pass the operating and maintenance instructions on to them, as well as the enclosed

Safety instructions document. Any Aer-Sales Service operation on the drive requires intervention by a home

motorisation and automation professional.

Should any doubt arise during installation of the drive or for additional information, consult a Somfy contact or

visit www.somfy.com.

Safety Warning !

1

Warning !

Information

ORIGINAL INSTRUCTIONS

CONTENTS

1. Prior information 2

1. 1. Sphere of application 2

1. 2. Liability 2

2. Installation 3

2. 1. Assembly 3

2. 2. Wiring / RECHARGING 4

2. 3. Commissioning 4

2. 4. Tips and advice on installation 6

3. Operation and maintenance 9

3. 1. Mode selection: Roller or Tilting mode 9

3. 2. Controlling Up, Down, My: In roller mode 9

3. 3. Controlling Up, Down, My: In Tilting mode 9

3. 4. Adjusting the tilting speed 10

3. 5. Favorite (my) position 10

3. 6. Tips and advice on operation 11

4. Technical data 12

These instructions apply to all Roll Up 28 drive, the diﬀerent versions of which are available in the current catalogue.

Roll Up Basic 28 WireFree RTS Li-Ion

2. INSTALLATION

1

These instructions are mandatory for the home motorisation and automation professional installing

the drive.

1

Never drop, knock or puncture the drive or immerse it in liquid.

1

Install an individual control point for each drive.

2. 1. ASSEMBLY

2. 1. 1. Drive preparation

1) Fit the crown (a) and drive wheel (b) to the

motor.

2) Measure the length (L) between the end of the

drive wheel and the head end.

2. 1. 2. Tube preparation

Cut the tube to the required length.

Deburr the tube and remove the debris.

2. 1. 3. Drive/tube assembly

1) Slide the drive into the tube. Insert the wheel

by aligning the wheel to the tube proﬁle. Insert

the drive half way and then slide the crown

down the drive and insert it in the tube. Finally,

push the motor inside the tube.

2) Not required, but if needed, ﬁx the tube to the

drive with self-tapping screws or steel pop

rivets depending on the dimension (L).

2. 1. 4. Mounting the tube-drive assembly on the brackets

a) Standard bracket

b) Drive

plate for speciﬁc bracket

For optimal radio reception, the motor

antenna should be kept straight and should

be positioned outside of headrail (if used).

a b

EN Roll Up Basic 28 WireFree RTS Li-Ion

2. 2. WIRING / RECHARGING

To ensure electrical safety, this Class III motor must be powered by a «SELV» voltage source (Safety Extra

Low Voltage).

1

Use power charger (recommended by Somfy) to charge the drive battery. Ensure battery is fully charged

prior to installation.

1) Connect the charger to the cable attached to drive.

2) LED on charger will illuminate as follows:

• Solid Red = Charging

• Solid Orange = Charging is near completion

• Solid Green = Charging is complete

3) When charging is complete, disconnect and store charger for later use.

The drive will go back to sleep if le untouched for 15 minutes.

2. 3. COMMISSIONING

2. 3. 1. wake up the drive

For initial unpacking of drive, wake up the drive by brieﬂy

pressing the motor head programming button or plugging

in the charger.

The driven product brieﬂy moves Up and Down 3 times.

R

To avoid accidental programming of drive(s) once awake, follow section “Activate/Deactivate “RTS” radio

technology when control point is temporarily preprogrammed (not paired) to the driven product” to deactivate

RTS.

The drive will go back to sleep if le untouched for 15 minutes.

2. 3. 2. Preprogramming the control point

Press the UP and DOWN buttons simultaneously on the control point:

the driven product moves Up and Down and the control point is temporarily programmed to driven product.

2. 3. 3. Checking the rotation direction

Press the control point UP button:

a) If the driven product raises (a), the rotation direction

is correct: proceed to section “Setting the end limits”.

b) If the driven product is lowers (b), the rotation

direction is incorrect: move to the next step.

• b1) Press the control point MY button until the

driven product moves Up and Down: the rotation

direction has been modiﬁed.

• b2) Press the control point UP button to conﬁrm the

rotation direction.

b2b1

Roll Up Basic 28 WireFree RTS Li-Ion

2. 3. 4. Setting the end limits

The end limits can be set in any order.

1) Press and hold the UP button to move the driven

product to the desired Up position. If necessary,

adjust the Up position using the UP or DOWN buttons.

2) To memorize the UP limit: Press the

MY and DOWN buttons simultaneously and

release once the driven product begins to move.

The Up limit is now memorized.

3) Press the MY button when the driven product

reaches the desired Down position. If necessary,

adjust the down position using the UP or DOWN

buttons.

4) To memorize the Down limit: Press the MY

and UP buttons simultaneously and release when

the driven product begins to move. The Down limit

is now memorized. The driven product moves up and

will stop at its upper limit.

5) To conﬁrm and complete limit programming: Press and hold the MY button until the driven product

brieﬂy moves Up and Down. The end limits are now recorded.

2. 3. 5. Activate/Deactivate “RTS” radio technology when control point is temporarily preprogrammed

(not paired) to the driven product.

This function is used to deactivate the radio transmission to save the battery life during shipment, or when the

product will not be used for an extended amount of time (ex: storage).

1) To deactivate the “RTS” Radio Technology Somfy,

press the UP, MY and DOWN buttons simultaneously,

until the driven product brieﬂy moves Up and Down

once.

2) To activate the “RTS” Radio Technology Somfy,

brieﬂy press the motor head programming button,

the driven product brieﬂy moves Up and Down three

times.

2. 3. 6. Recording “Pairing” the control point

Aer recording the end limits:

Brieﬂy press the control point programming button. The

driven product will

brieﬂy

move Up and Down to conﬁrm

pairing.

The

control point

is recorded “paired” to driven

product.

1 2

3 4

1 2

PROG.

EN Roll Up Basic 28 WireFree RTS Li-Ion

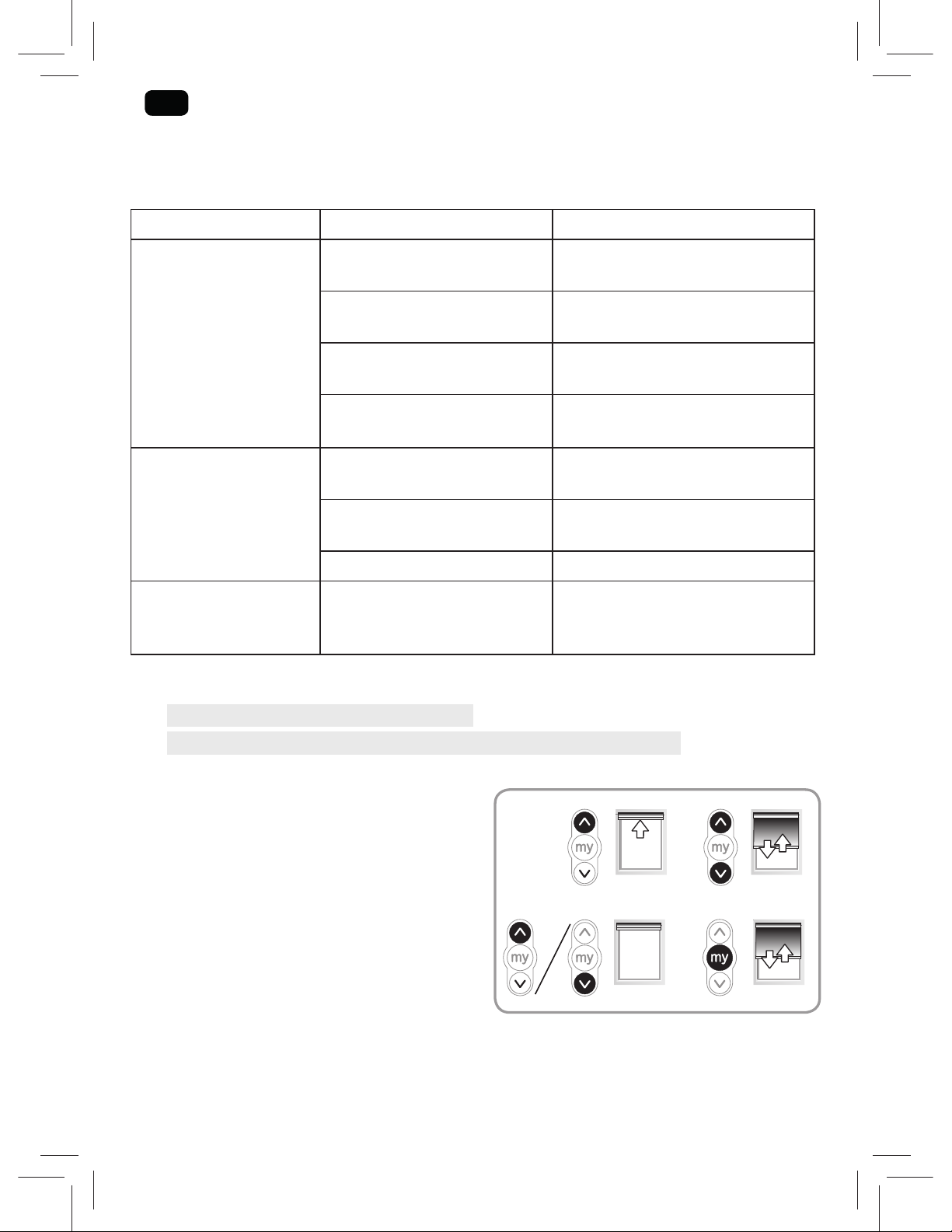

2. 4. TIPS AND ADVICE ON INSTALLATION

2. 4. 1. Questions about the drive?

Observations Possible causes Solutions

The driven product does

not operate.

Drive battery is low and requires

charge.

Charge the battery.

The control point battery is low. Check the battery and replace it as

required.

The control point is not compatible

or not programmed.

Check the compatibility and replace the

control point as required.

The thermal protection has

activated.

Wait for the drive to cool down.

The driven product stops

too soon.

The end limits are incorrectly

programmed.

Reset the end limits.

The driven product has exceeded

recommended weight limit.

Replace driven product.

Battery is low. Charge the battery.

Red LED blinks slowly for

3 seconds before and aer

motor running.

Battery is low. Battery capacity is

less than or equal to 5%.

Charge the battery.

2. 4. 2. End limit readjustment

1

Control point must be paired to the driven product.

Green LED lights on for Up limit adjusting and blinks slowly for Down limit adjusting.

Readjusting the upper end limit

1) Brieﬂy press the UP button, to move the driven

product to the upper end limit.

2) Press and hold the UP and DOWN buttons

simultaneously until the driven product brieﬂy

moves Up and Down.

3) Press and hold the UP or DOWN button to move the

driven product to the new desired position.

4) To conﬁrm the new position press and hold the MY

button until the driven product brieﬂy moves Up and

Down.

1 2

Roll Up Basic 28 WireFree RTS Li-Ion

Readjusting the lower end limit

1) Brieﬂy press the DOWN button to move the driven

product to the lower end limit.

2) Press and hold the UP and DOWN buttons

simultaneously until the driven product brieﬂy moves

Up and Down.

3) Press and hold the UP or DOWN button to move the

driven product to the new desired position.

4) To conﬁrm the new position press and hold the MY

button until the driven product moves Up and Down.

2. 4. 3. Modifying the motor rotation direction

1) Using the UP or DOWN button on the control point,

move the driven product away from the end limits.

2) Press and hold the UP and DOWN buttons

simultaneously until the driven product brieﬂy moves

Up and Down.

3) Press the MY button until the driven product brieﬂy

moves Up and Down to reverse the rotation direction.

4) Press the UP button to check the new rotation

direction. The motor rotation direction is reversed.

2. 4. 4. Modifying the wheel rotation direction

1) Using the UP or DOWN button on the control point,

move the driven product away from the end limits.

2) Press and hold the UP and DOWN buttons

simultaneously until the driven product brieﬂy moves

Up and Down.

3) Press the UP, MY and DOWN buttons simultaneously,

until the driven product brieﬂy moves Up and Down,

wheel rotation is reversed.

1 2

2 3

EN Roll Up Basic 28 WireFree RTS Li-Ion

2. 4. 5. Erasing control points (transmitters) from memory

To delete all the programmed transmitters, press and

hold the motor head programming button until the driven

product brieﬂy moves Up and Down twice. All

programmed control points (transmitters) are deleted.

2. 4. 6. Erasing the memory of the motor (factory default)

To reset the motor, press and hold the motor head

programming button until the driven product brieﬂy

moves Up and Down 3 times.

All the settings are erased.

2. 4. 7. Sleeping mode

1

The driven product must be programmed.

This feature temporarily prevents the drive product from responding to any previously programmed control

points (transmitter) commands.

1) Press and hold the motor head programming button

until the driven product

brieﬂy

moves Up and Down.

2) Brieﬂy press the motor head programming button,

the driven product

brieﬂy

moves Up and Down

twice. “Sleeping mode” is activated.

3) To deactivate the “Sleeping mode”, brieﬂy press the

motor head programming button. The driven product

brieﬂy moves Up and Down, the control point

(transmitter) commands are enabled.

Roll Up Basic 28 WireFree RTS Li-Ion

3. OPERATION AND MAINTENANCE

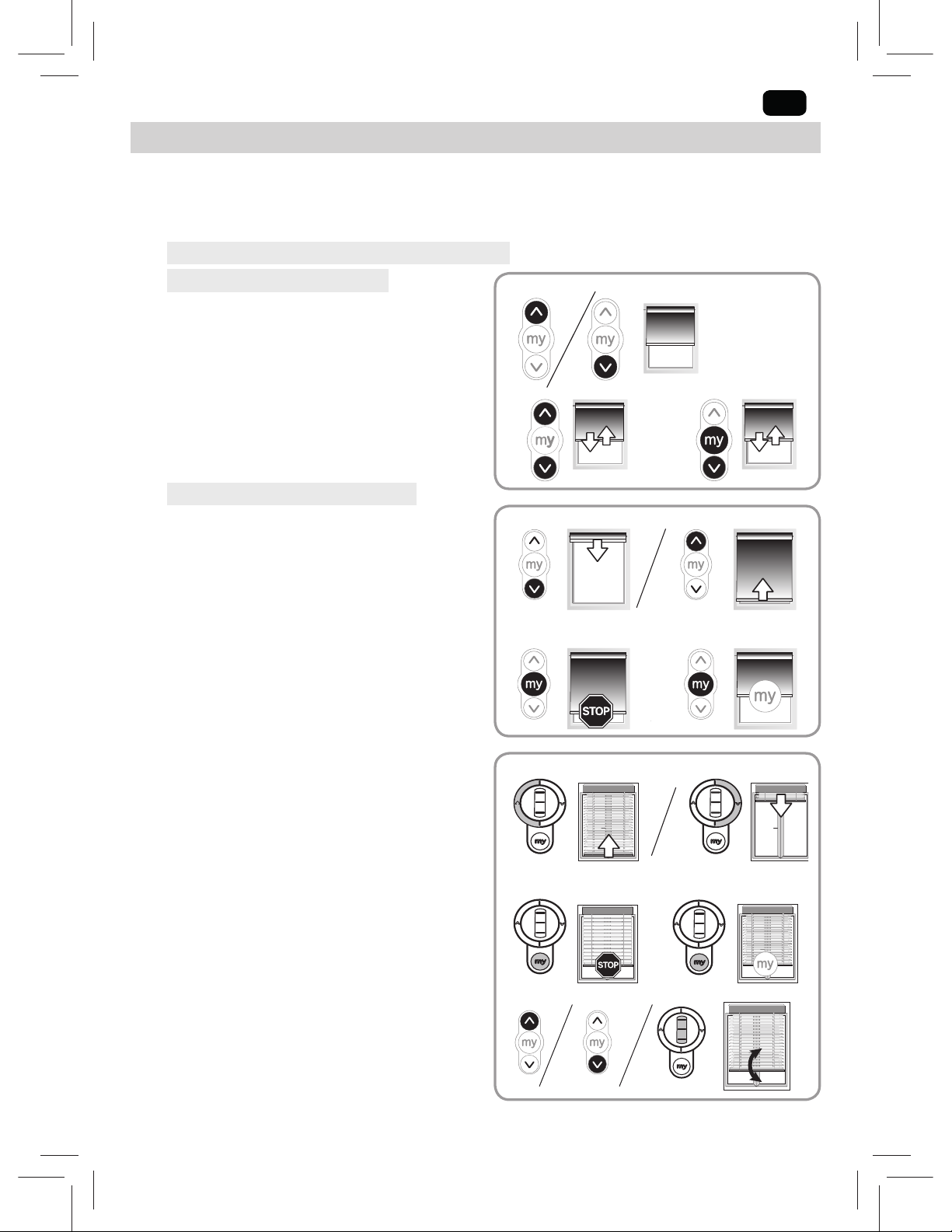

3. 1. MODE SELECTION: ROLLER OR TILTING MODE

The Roll Up 28 is designed to work in 2 modes: Tilting mode or Roller mode.

This feature allows the Roll Up 28 to be set according to the type of application.

The Roll Up 28 is set (by default) to work in Roller mode.

Yellow LED lights on in Roller mode.

1) Move the driven product away from the end limits.

2) Simultaneously press and hold the UP and DOWN

buttons until the driven product brieﬂy moves Up

and Down.

3) Press and hold the MY and DOWN buttons

simultaneously until the driven product

brieﬂy

moves Up and Down to change from Roller mode to

Tilting mode.

Yellow LED blinks slowly in Tilting mode.

3. 2. CONTROLLING UP, DOWN, MY: IN

ROLLER MODE

1) To move the driven product from a limit to the

other limit, brieﬂy press the UP or DOWN button.

2) To stop the driven product, brieﬂy press the MY

button.

3) (If a my position is recorded) To move the driven

product to the my position, brieﬂy press the MY

button.

3. 3. CONTROLLING UP, DOWN, MY: IN

TILTING MODE

1) To move the driven product from a limit to the other

limit, brieﬂy press (less than 0,5s) the UP or DOWN

button.

2) To stop the driven product, press the MY button.

3) (If a my position is recorded) To move the driven

product to the my position, brieﬂy press the MY

button. The driven product will automatically travel

to the down end limit (ﬁrst) then to the my position.

4) To tilt the slats, press and hold the UP or DOWN

button or use the scroll of the remote control, until

the slats reach the desired position.

2 3

EN Roll Up Basic 28 WireFree RTS Li-Ion

3. 4. ADJUSTING THE TILTING SPEED

1) To decrease the tilting speed, press and hold the

MY and DOWN buttons simultaneously until the

driven product brieﬂy moves Up and Down. Repeat

as needed. The minimum speed has been reached

when the driven product no longer moves Up and

Down.

2) To increase the tilting speed, press and hold the

MY and UP buttons simultaneously until the driven

product brieﬂy moves Up and Down. Repeat as

needed. The maximum speed has been reached

when the driven product no longer moves Up and

Down.

3. 5. FAVORITE my POSITION

A intermediate stop or “favorite (my) position,” which is commonly used between the fully Up and Down

positions.

1) To set this function, move the driven product to

the desired position using the UP or DOWN button.

Brieﬂy press MY button to stop the driven product.

2) Press and hold the MY button until the driven product

moves Up and Down. Favorite (my) position is set.

3. 5. 1. To modify the favorite (my) position

1) Use the UP or Down button to move the driven

product to the NEW desired favorite (my) position.

2) Press the My button to stop the driven product.

3) Press and hold the MY button until the driven product

brieﬂy moves Up and Down. The new favorite (my)

position is programmed.

Only one favorite (my) position is permitted.

3. 5. 2. To use the favorite (my) position

1

The driven product must be stopped.

-Brieﬂy press the MY button: the driven product moves

to the favorite (my) position.

1 2

Inhaltsverzeichnis

Sprachen:

Andere SOMFY Gleichstromantrieb Handbücher

SOMFY

SOMFY Sonesse 40 RTS Bedienungsanleitung

SOMFY

SOMFY Sonesse Ultra 50 Bedienungsanleitung

SOMFY

SOMFY Dexxo Compact RTS Bedienungsanleitung

SOMFY

SOMFY J4 WT Bedienungsanleitung

SOMFY

SOMFY YSLO FLEX RTS 1P Bedienungsanleitung

SOMFY

SOMFY J4 WT Bedienungsanleitung

SOMFY

SOMFY S&SO-RS100 io Bedienungsanleitung

SOMFY

SOMFY Movelite DCT Bedienungsanleitung

SOMFY

SOMFY SOLUS P&P Bedienungsanleitung

SOMFY

SOMFY HOME MOTION Sonesse 50 RS485 Bedienungsanleitung

SOMFY

SOMFY S&SO-RS100 io Bedienungsanleitung

SOMFY

SOMFY Sonesse 50 RTS Installationsanleitung

SOMFY

SOMFY HOME MOTION Twipso io Bedienungsanleitung

SOMFY

SOMFY Sonesse 30 DCT Bedienungsanleitung

SOMFY

SOMFY Altus RTS Bedienungsanleitung

SOMFY

SOMFY FREEVIA 600 Bedienungsanleitung

SOMFY

SOMFY Sonesse 28 WireFree RTS Li-ion Bedienungsanleitung

SOMFY

SOMFY Maestria WT Series Bedienungsanleitung

SOMFY

SOMFY MAESTRIA Plus 50 io Bedienungsanleitung

SOMFY

SOMFY Sonesse 50 RTS Installationsanleitung

SOMFY

SOMFY Sonesse Ultra 50 Bedienungsanleitung

SOMFY

SOMFY J4 io Montageanleitung

SOMFY

SOMFY Sonesse 28 WF Zigbee Bedienungsanleitung

SOMFY

SOMFY Sonesse 28 WireFree RTS Li-ion Bedienungsanleitung

Beliebte Gleichstromantrieb Handbücher anderer Marken

Vincent Associates

Vincent Associates UNIBLITZ ED12DSS Bedienungsanleitung

EKSMA OPTICS

EKSMA OPTICS DQ-100-4 Stücklistenhandbuch

Chamberlain Garog

Chamberlain Garog D Series Bedienungsanleitung

Parker

Parker PDS Series Bedienungsanleitung

Festo

Festo DGC G Series Einrichtungshandbuch

Binks

Binks QS-5012-1-CE Bedienungsanleitung

Danfoss

Danfoss VLT 2800 Series Technisches Datenblatt

ABB

ABB ACQ580-01 Series Installationshandbuch

YASKAWA

YASKAWA CANopen SI-S3 Bedienungsanleitung

GE D20A6 Bedienungsanleitung

Unex

Unex MC-D-250-1000-050W-TW Bedienungsanleitung

Geckodrive

Geckodrive G213V Bedienungsanleitung

ABB

ABB RSYC-01 Bedienungsanleitung

Rockwell Automation

Rockwell Automation PowerFlex 700S Betriebsanleitung

WEG

WEG DeviceNet CFW500 Bedienungsanleitung

Siemens

Siemens SINAMICS G Datenblatt

Siemens

Siemens SINAMICS SM150 6SL3815-7NP41-0AA1 Betriebsanleitung

Beckhoff

Beckhoff AX8911 Bedienerhandbuch
